Product Info
- Manufacturer:Acme Electric
- Sub-Category:Dry Type
Description
T253012S

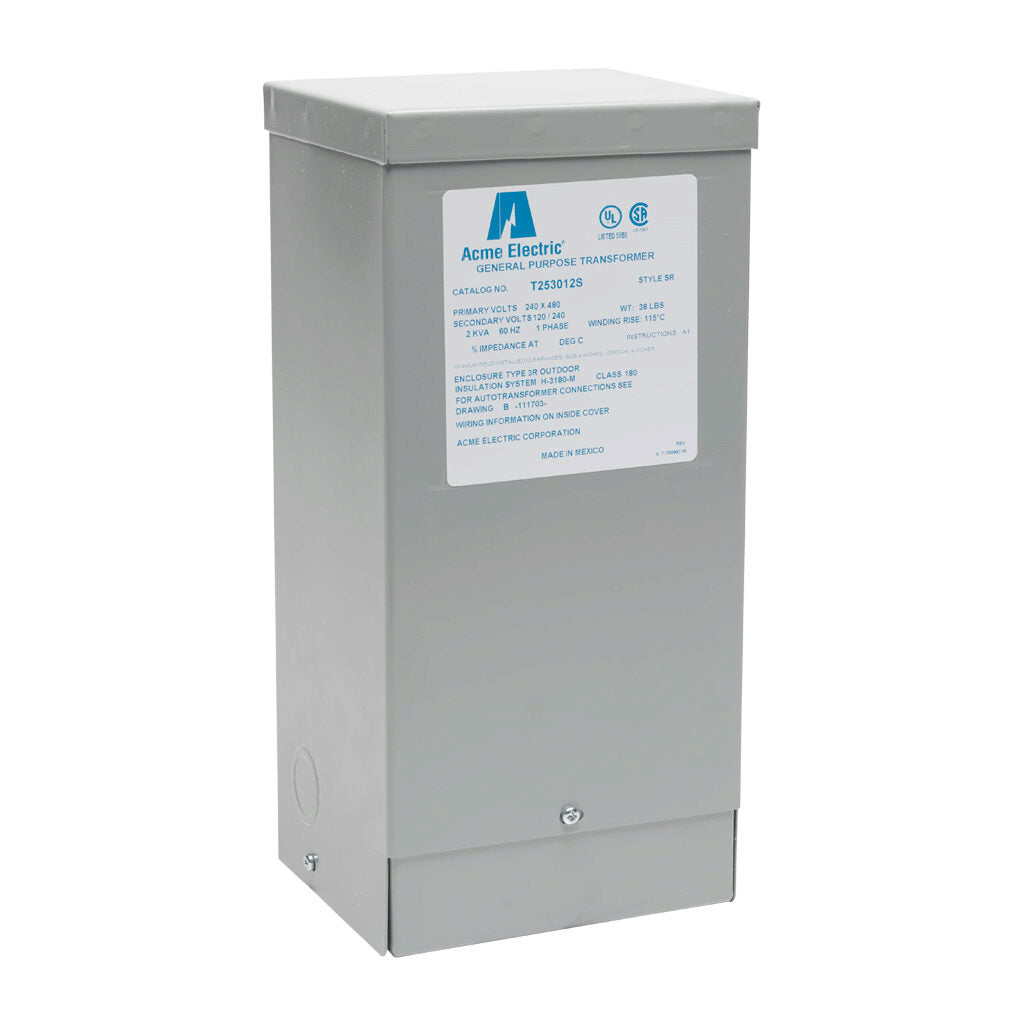

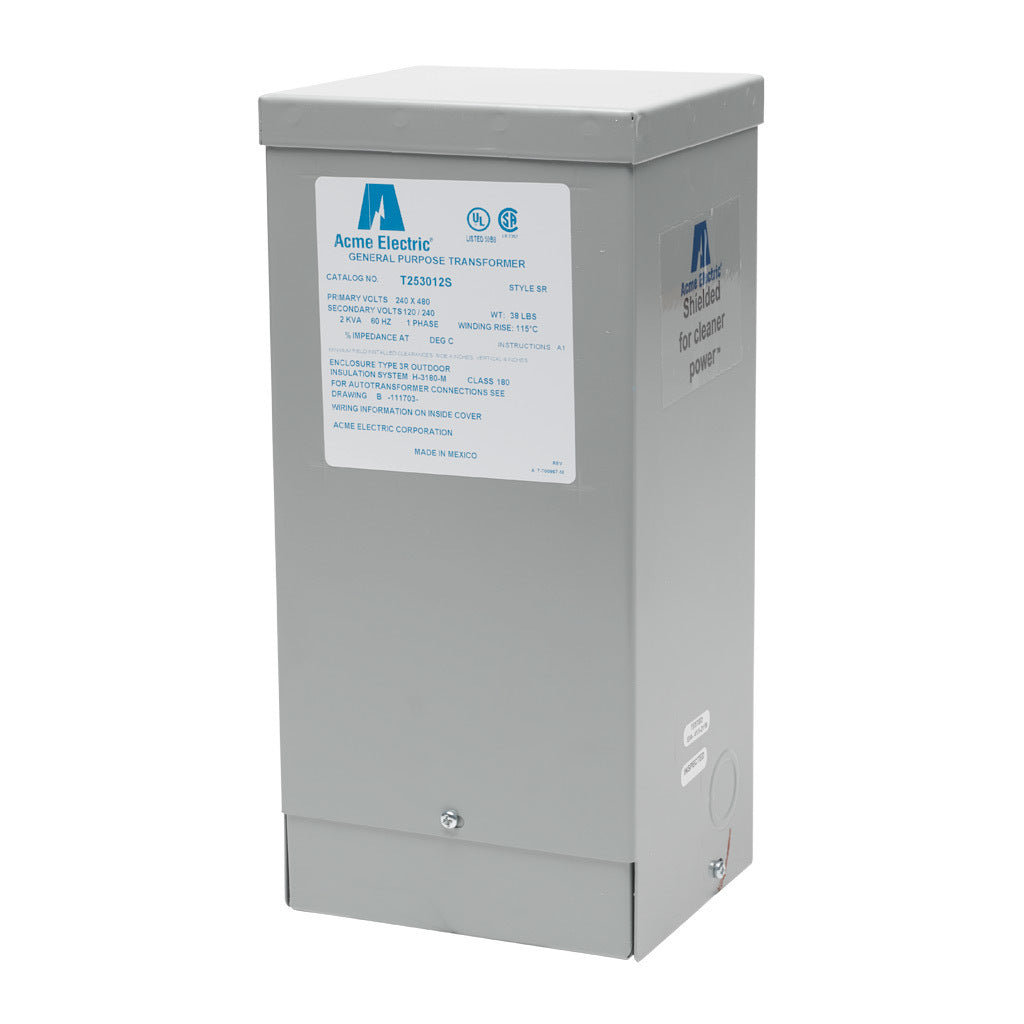

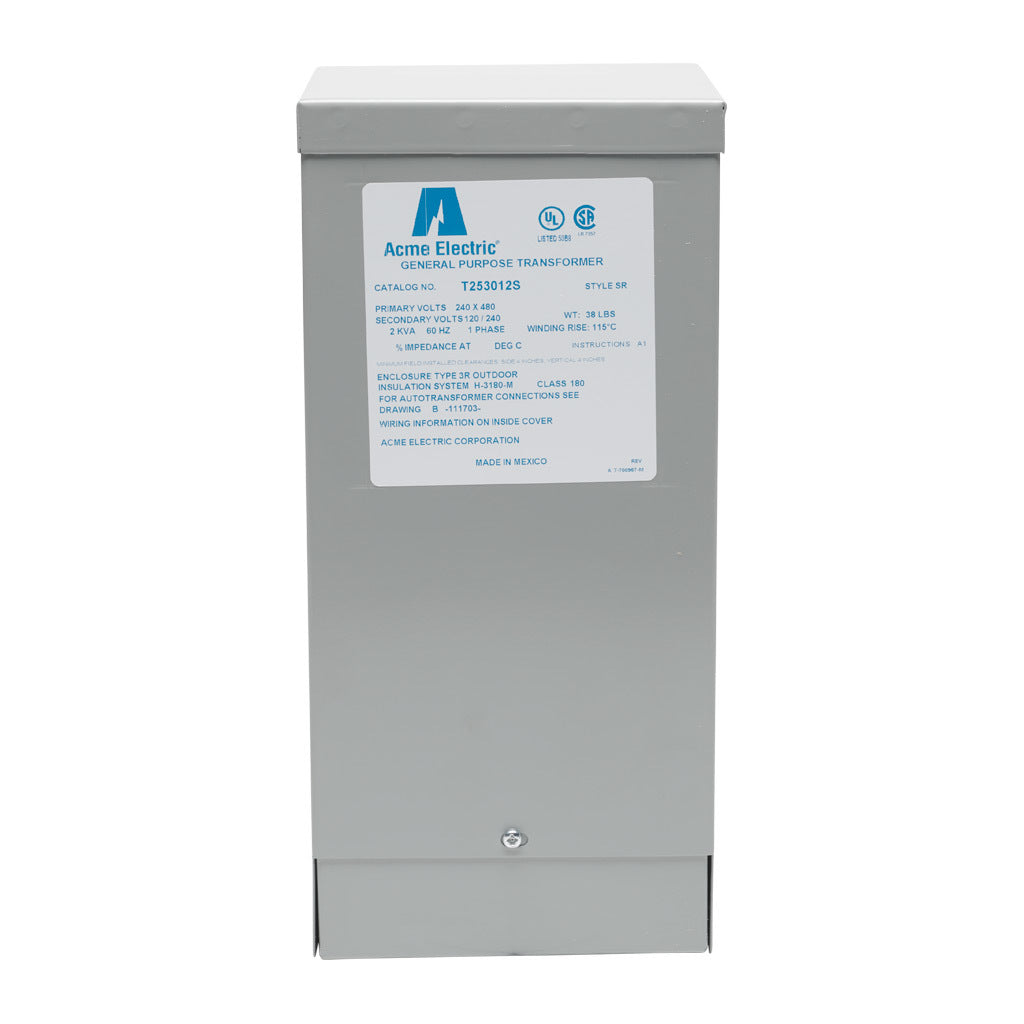

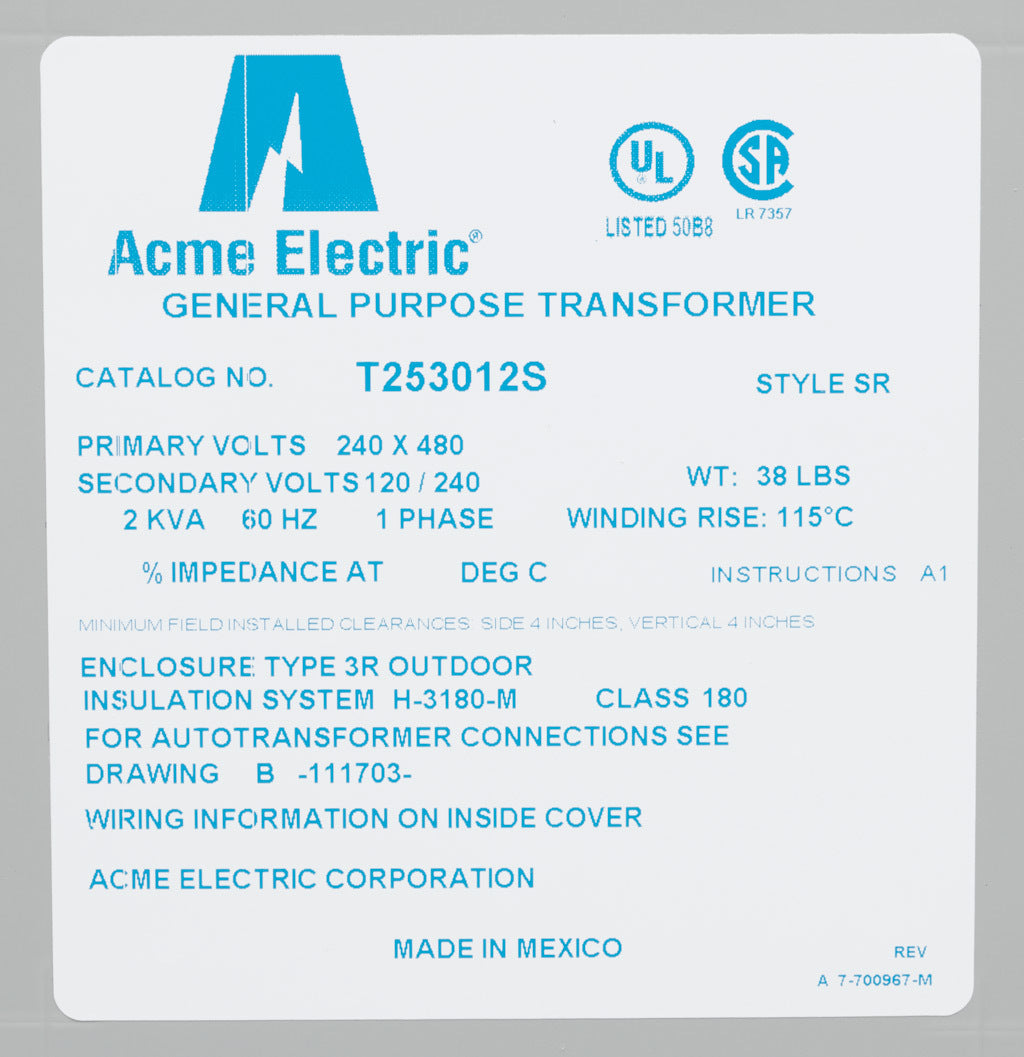

T253012S is a single phase, dry type distribution transformer from Acme Electric, designed for reliable power conversion in commercial and industrial applications. This transformer features an encapsulated core construction and electrostatic shielding for enhanced protection and quiet operation. The T253012S is rated for 2 kVA, with a primary voltage of 240/480 VAC and a secondary voltage of 120/240 VAC, operating at 60 Hz. It is built with a NEMA 3R enclosure for durability and is wall mountable, making it suitable for a variety of installation environments. The unit is constructed with copper windings and Class H insulation, supporting a maximum temperature rise of 115°C.
- Part Number: T253012S
- Manufacturer: Acme Electric
- Type: Dry Type Distribution Transformer
- Phase: Single Phase
- kVA Rating: 2 kVA
- Primary Voltage: 240/480 VAC
- Secondary Voltage: 120/240 VAC
- Frequency: 60 Hz

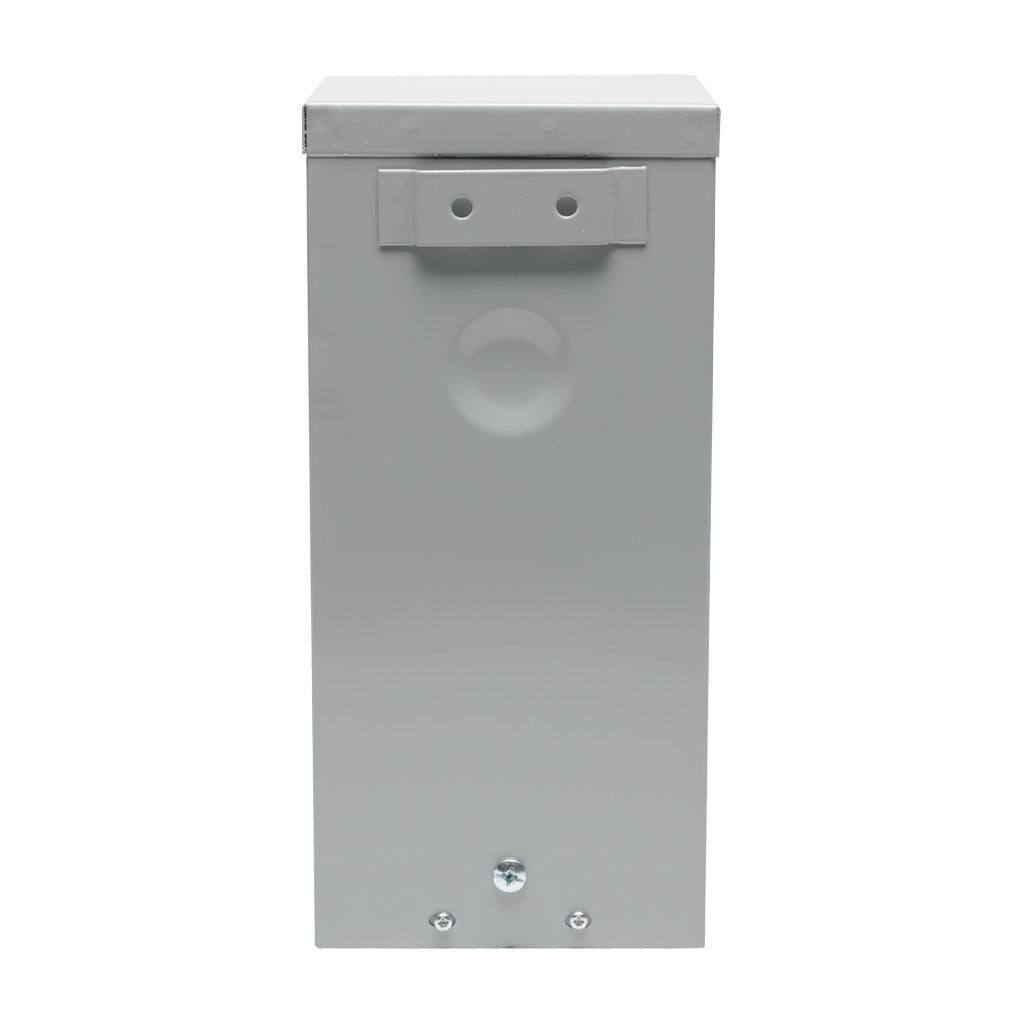

- Mounting Type: Wall Mount
- Enclosure: NEMA 3R
- Insulation Class: Class H (180°C)
- Max Temperature Rise: 115°C
- Winding Material: Copper
- Electrostatic Shield: Yes
- Standards: UL 506, CSA C22.2 No. 47
- Dimensions: 5.13 in x 5.5 in x 13 in
- Weight: 38 lb
Specifications
- Part Number: T253012S
- Manufacturer : Acme Electric
- Brand : Acme Electric
- Category : Transformer
- Item Subcategory : Dry Type
- Phase : 1
- KVA Rating : 2
- Primary Voltage : 240 X 480
- Secondary Voltage : 120/240
Product Data
- UPC : 047503084267
- GTIN : 00047503084267
- Country of Origin : Mexico
- Dimensions : 5 1/2 in x 13 in
- Weight : 38
- Certification : CSA C22.2 No. 47, UL 506
