C1FC10LE - Hammond 100VA 1-Phase Dry Type Transformer 240/480V Primary 120/240V Secondary

C1FC10LE

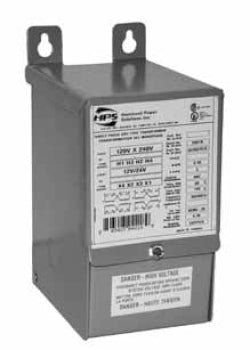

C1FC10LE is a Hammond 100VA single-phase dry type transformer designed for reliable voltage conversion in industrial and commercial applications.

This transformer features a primary voltage rating of 240/480 volts and a secondary voltage rating of 120/240 volts, operating at 60 Hz frequency. It is encapsulated for durability and protection, with copper windings and insulation rated for 130 degrees Celsius. The compact design measures approximately 3.69 inches wide, 5.06 inches deep, and 7.19 inches high, suitable for various mounting configurations. Certified to UL 50 and CSA standards, it meets ANSI 61 and NEMA ST-20 applicable standards, ensuring safety and performance compliance.

• Power Rating: 100 VA
• Phase: Single Phase
• Primary Voltage: 240/480 V
• Secondary Voltage: 120/240 V
• Frequency: 60 Hz
• Type: Dry Type, Encapsulated
• Insulation Temperature Rating: 130°C
• Winding Material: Copper
• Dimensions: 3.69" W x 5.06" D x 7.19" H
• Certifications: UL 50, CSA, ANSI 61, NEMA ST-20

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C1FC10LE
• Manufacturer : Hammond
• Brand : Hammond
• Category : Transformer
• Item Subcategory : Dry Type
• Family : Fortress
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 100VA 240x480V-120/240V 60Hz CU
• Duty : General Duty
• KVA Rating : 0.1
• Frequency : 60Hz
• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 95°C
• Insulation Class : 130°C
• EKVA : 0.1
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ0-N3R
• Enclosure Dimensions : 7.19in/183mm(H), 3.69in/94mm(W), 5.06in/129mm(D)
• Nameplate : Standard
• Standard kVA : 0.1
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No
• Primary Termination (Std) : Wire Leads

Product Data

• UPC : 803423093594
• GTIN : 00803423093594
• Weight : 6
• Certification : CSA, UL

Documentation and Resources

• Engineering Drawing (PDF)
• Brochure
• Hammond Product Application Videos
• Frequently Asked Questions
• Troubleshooting Guide
• Enclosure CAD Drawing (PDF)
