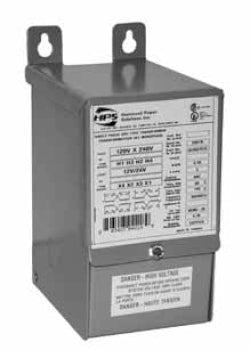

C1FC50LE - Hammond 0.5kVA 1-Phase 240/480V to 120/240V Encapsulated Transformer NEMA 3R Wall Mount

C1FC50LE

C1FC50LE is a Hammond HPS Fortress encapsulated transformer designed for commercial and industrial applications requiring reliable single-phase power conversion. This unit features a robust NEMA 3R enclosure and is wall-mountable for flexible installation. The C1FC50LE transformer is built with an encapsulated core and copper windings, providing protection against moisture, contaminants, and corrosion. It is rated for 0.5kVA, with a primary voltage of 240/480V and a secondary output of 120/240V, operating at 60Hz. The transformer is suitable for general-purpose use and is recognized for its durability and safety in demanding environments.

• Manufacturer: Hammond
• Series: HPS Fortress
• Power Rating: 0.5kVA
• Phase: Single Phase
• Primary Voltage: 240/480V
• Secondary Voltage: 120/240V
• Frequency: 60Hz
• Mounting Type: Wall Mount
• Enclosure: NEMA 3R
• Core Type: Encapsulated
• Winding Material: Copper
• Agency Approvals: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C1FC50LE
• Manufacturer : Hammond
• Brand : Hammond
• Category : Transformer
• Item Subcategory : Dry Type
• Family : Fortress
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 500VA 240x480V-120/240V 60Hz CU
• Duty : General Duty
• KVA Rating : 0.5
• Frequency : 60Hz
• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 95°C
• Insulation Class : 130°C
• EKVA : 0.5
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ1-N3R
• Enclosure Dimensions : 7.19in/183mm(H), 4.31in/110mm(W), 5.56in/142mm(D)
• Nameplate : Standard
• Standard kVA : 0.5
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No
• Primary Termination (Std) : Wire Leads

Product Data

• UPC : 803423090692
• GTIN : 00803423090692
• Weight : 15
• Certification : CSA, UL
