Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Shunt Trip
Description
SNT1RP18K

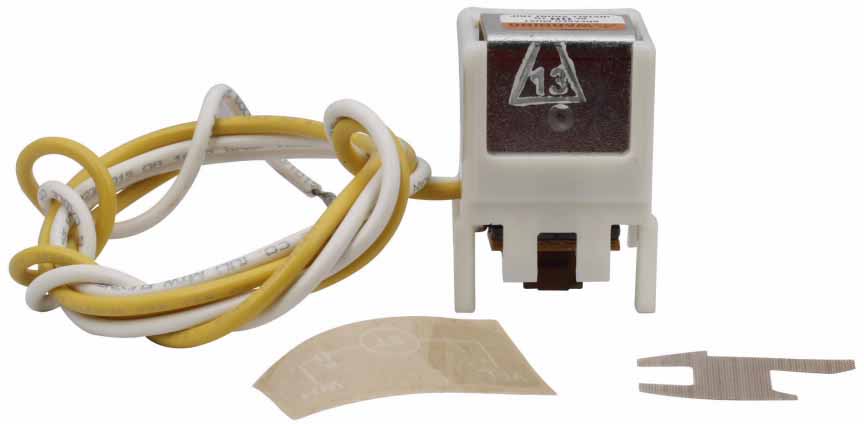

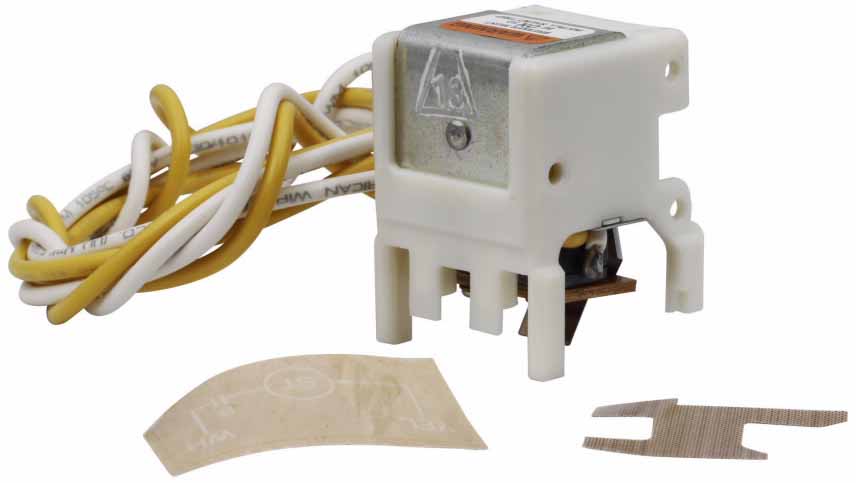

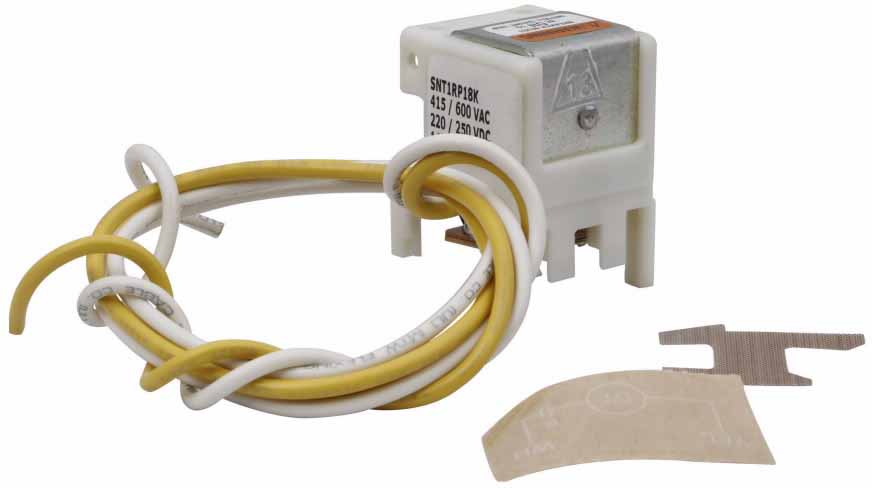

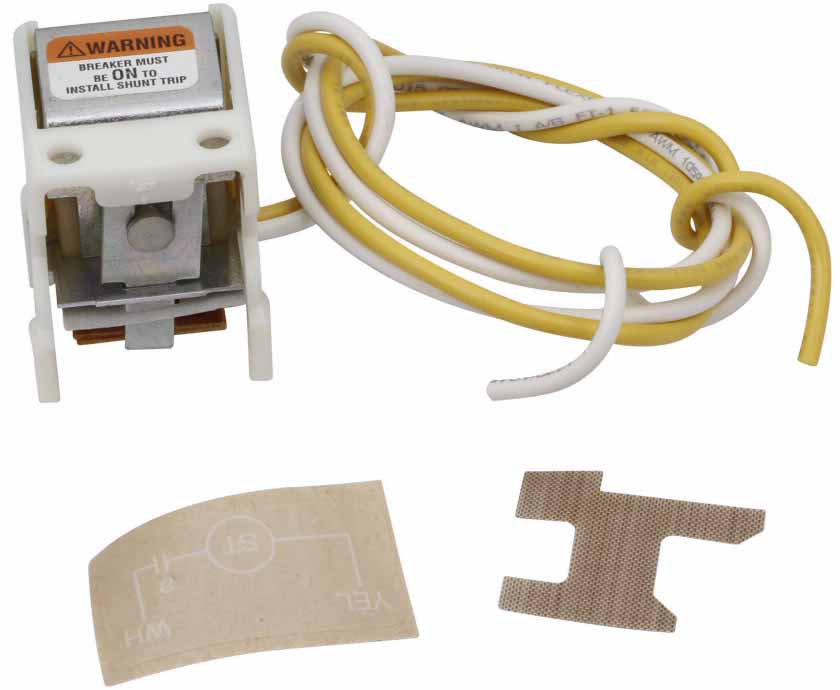

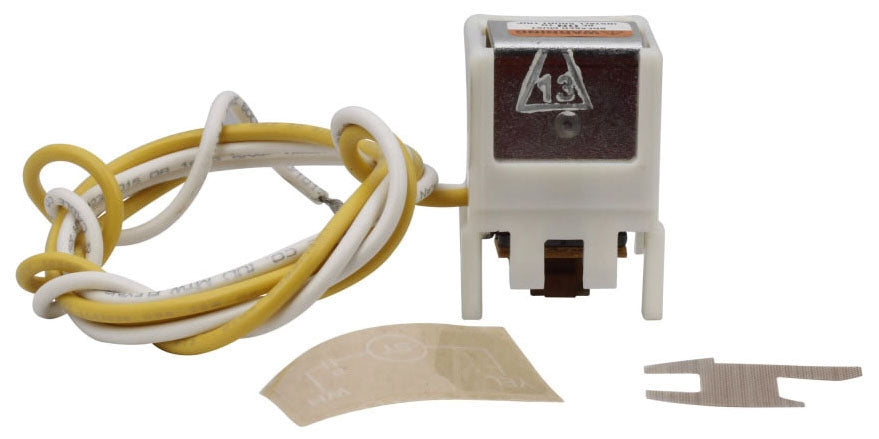

SNT1RP18K is a Cutler Hammer shunt trip accessory designed for 3-pole molded case circuit breakers with a 225 amp rating and dual voltage capability.
This shunt trip unit fits FD frame breakers and supports a voltage rating of 415/600VAC and 220/250VDC. It features right pole mounting and pigtail lead connections, compatible with FDB, FD, HFD, HFDDC, FDC, FG, E2F, and E2FM series molded case circuit breakers. UL approved for reliable performance in industrial and commercial applications.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: SNT1RP18K
- Amperage: 225 Amps
- Voltage Rating: 415/600VAC, 220/250VDC
- Poles: 3
- Mounting Type: Right Pole Mount
- Frame Type: FD Frame
- Connection Type: Pigtail Leads
- Compatible Breakers: FDB, FD, HFD, HFDDC, FDC, FG, E2F, E2FM
- Approvals: UL Listed
- Dimensions (HxWxD): 3" x 3.1" x 5.5"
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: SNT1RP18K
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Series C
- Type : C
- Voltage : 415/600VAC, 220/250VDC
- Amperage : 225
- Poles : 3
- Connection : Pigtail Leads
- Control Voltage Minimum : 415
- Compatible Frames : FD
- Control Voltate Maximum : 600
Product Data
- UPC : 786679553206
- GTIN : 00786679553206
- Country of Origin : Dominican Republic
- Dimensions : 5.5 in x 2.8 in x 3.1 in (Length/Depth x Height x Width)
- Weight : 0.35
- Certification : UL
