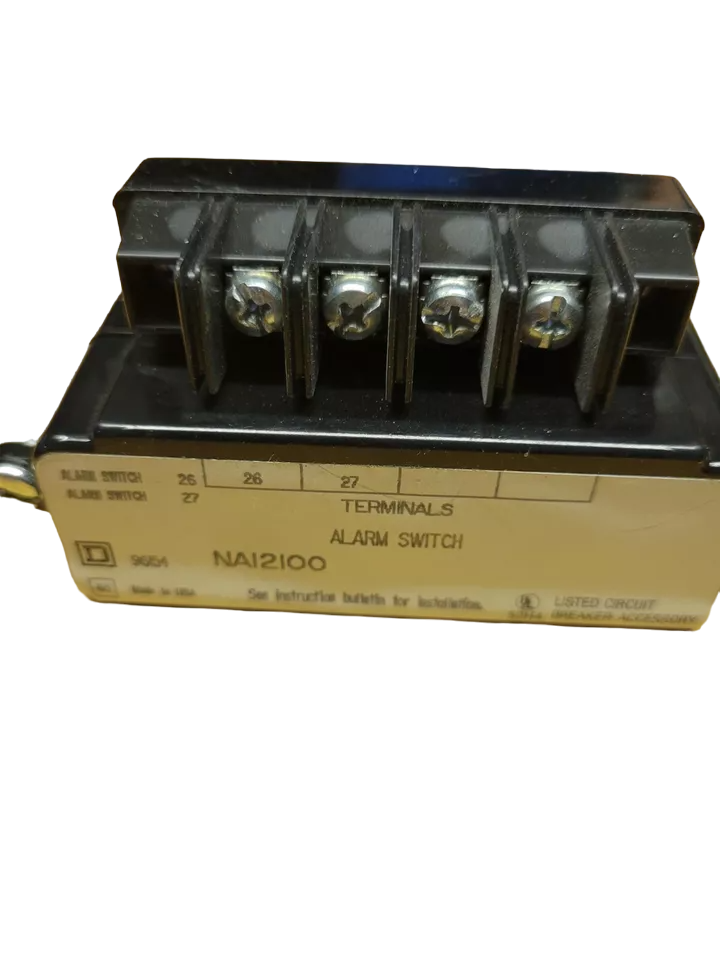

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Square D
- Sub-Category
- Bell Alarm
- Series
- Square D Series
- Frame
- NA
- Rated current
- 100
- Voltage
- 240V
- Poles
- 2
- Interrupting rating
- 10kA@240V
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Compatible Frames
- NA,NAF,NAL,NAP,NC,NCF,NCL,NCP,NE,NEF,NEL,NEP,NX,NXF,NXL,NXP
- Control Voltate Maximum
- 250
- Weight
- 5
Product description & additional details
NA12100
NA12100 is a 2 pole, 240V, 100A plug-in circuit breaker from Square D, designed for reliable protection in commercial and industrial applications. This Q1 frame breaker features a 10kA interrupt rating and is built for easy installation in compatible panels. The NA12100 provides dependable thermal-magnetic protection and is suitable for use in a variety of electrical distribution systems. Its plug-in mounting design allows for quick replacement and maintenance, making it a practical choice for demanding environments.
- Part Number: NA12100
- Manufacturer: Square D
- Amperage: 100A
- Voltage: 240V
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10kAIC @ 240V
- Series/Frame: Q1
- Trip Unit: Thermal-Magnetic
- Certifications: UL Listed
Specifications
- Part Number: NA12100
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Bell Alarm
- Family : Square D Series
- Type : NA
- Voltage : 240
- Amperage : 100
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Protection : Thermal Magnetic
- Compatible Frames : NA,NAF,NAL,NAP,NC,NCF,NCL,NCP,NE,NEF,NEL,NEP,NX,NXF,NXL,NXP
- Control Voltate Maximum : 250
Product Data
- Weight : 5
