Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S203-K13

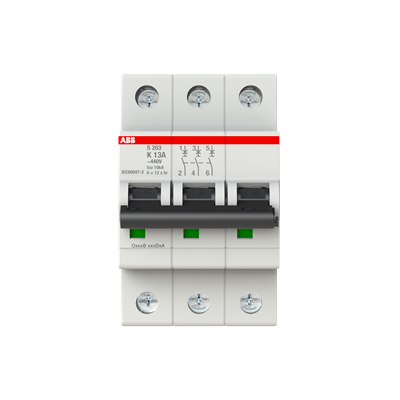

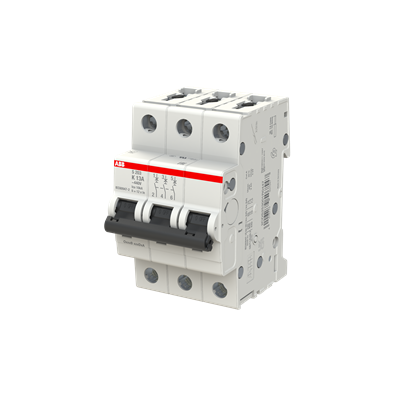

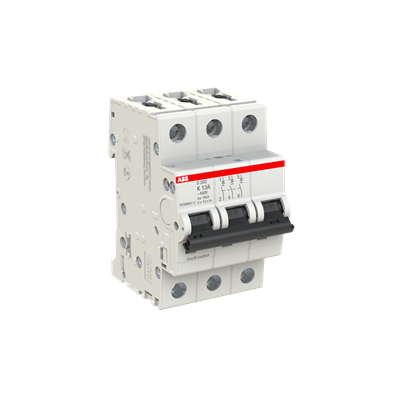

S203-K13 is a 3-pole miniature circuit breaker from ABB designed for reliable circuit protection with a 13 amp rating.
This ABB S203-K13 breaker features a K trip curve, suitable for general-purpose protection, and supports a maximum voltage of 480Y/277VAC. It mounts on a DIN rail and complies with UL 1077 standards. The breaker has a 6 kA interrupt rating and screw-type terminals for secure connections. Optional shunt trip capability is available for enhanced control. It is part of the System pro M compact S200 series, known for current limiting and thermal-magnetic tripping mechanisms.
- Key Specifications
- Amperage: 13 A
- Poles: 3
- Voltage Rating: 480Y/277 VAC
- Trip Curve: K
- Mounting Type: DIN Rail
- Interrupt Rating: 6 kA
- Terminal Type: Screw
- Standards: UL 1077 Recognized
- Series/Frame: S200
- Optional Shunt Trip Available
- Frequency: 50/60 Hz
- IP Rating: IP20
- Part Number: S203-K13
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S203-K
- Voltage : 480
- Amperage : 13
- Phase : 3
- Poles : 3
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 01677950754
- GTIN : 04016779507547
- Country of Origin : United States
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
- Weight : 0.55
- Certification : EN IEC UL
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
