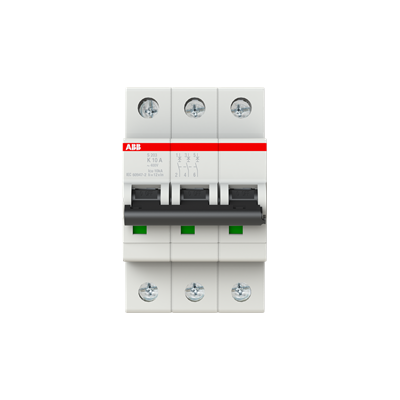

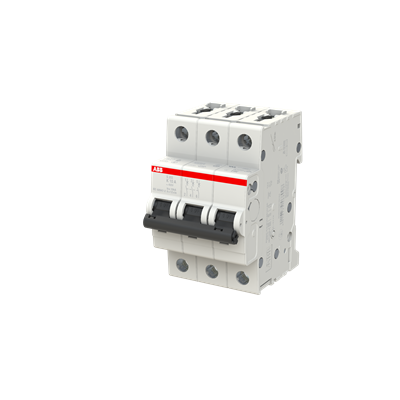

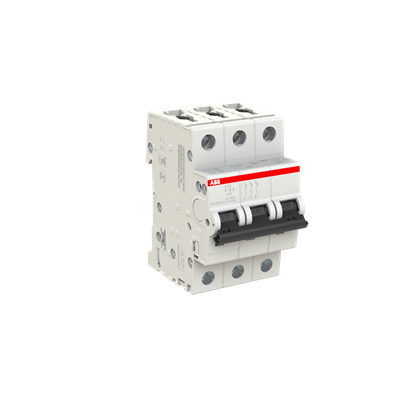

S203-K10 - ABB 10A 480V 3 Pole Miniature Circuit Breaker DIN Rail Mount K-Curve 6kA Interrupt

S203-K10

S203-K10 is a 3 pole, 10 amp miniature circuit breaker from ABB's S200 series designed for DIN rail mounting with a K-curve trip characteristic.This ABB S203-K10 circuit breaker operates at 277/480Y VAC with a 6 kA interrupt rating. It features a thermal magnetic trip unit providing overload and short circuit protection, suitable for residential, commercial, and industrial applications. The breaker supports screw connection wiring for 18 to 4 AWG conductors and has an IP20 enclosure rating. It complies with IEC/EN 60898-1, IEC/EN 60947-2, UL1077, and CSA 22.2 No. 235 standards.

Key Specifications
• Amperage: 10 A
• Voltage: 277/480Y VAC
• Poles: 3
• Mounting Type: DIN Rail
• Interrupt Rating: 6 kA
• Series/Frame: S200
• Trip Unit: Thermal Magnetic, K-Curve
• Connection Type: Screw
• Wire Size: 18 to 4 AWG
• Enclosure Rating: IP20
• Operating Temperature: -25 to 55 °C
• Certifications: IEC/EN 60898-1, IEC/EN 60947-2, UL1077, CSA 22.2 No. 235

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: S203-K10
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : S 200 Series
• Type : S203-K
• Voltage : 480
• Amperage : 10
• Phase : 3
• Poles : 3
• AIC rating : 6kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 01677949614
• GTIN : 04016779496148
• Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
• Weight : 1.61
• Certification : EN IEC UL
