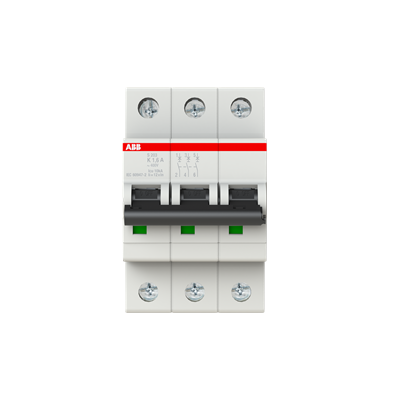

S203-K1.6 - ABB 1.6A 3-Pole Miniature Circuit Breaker S200 Series 480VAC K-Curve

S203-K1.6

S203-K1.6 is a 1.6 amp, 3-pole miniature circuit breaker from ABB's S200 series designed for reliable protection in residential, commercial, and industrial applications.This ABB S203-K1.6 circuit breaker features a thermal-magnetic trip unit with a K-curve trip characteristic, suitable for reverse feed. It supports a rated voltage of 480VAC, has a 6kA interrupting rating at 480V, and uses screw terminals with IP20 protection. The breaker complies with IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA 22.2 No. 235 standards. It is a bolt-on frame type with failsafe bi-directional cylinder lift terminals.

• Rated Current: 1.6 A
• Poles: 3
• Voltage Rating: 480 VAC
• Interrupt Rating: 6 kA at 480 V
• Trip Unit: Thermal Magnetic, K-Curve
• Mounting Type: Bolt-On
• Terminal Type: Screw Terminals
• Degree of Protection: IP20
• Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
• Series/Frame: S200
• Suitable for Reverse Feed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: S203-K1.6
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : S 200 Series
• Type : S203-K
• Voltage : 480
• Amperage : 1.6
• Phase : 3
• Poles : 3
• AIC rating : 6kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 01677950748
• GTIN : 04016779507486
• Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
• Weight : 0.3
• Certification : EN IEC UL
