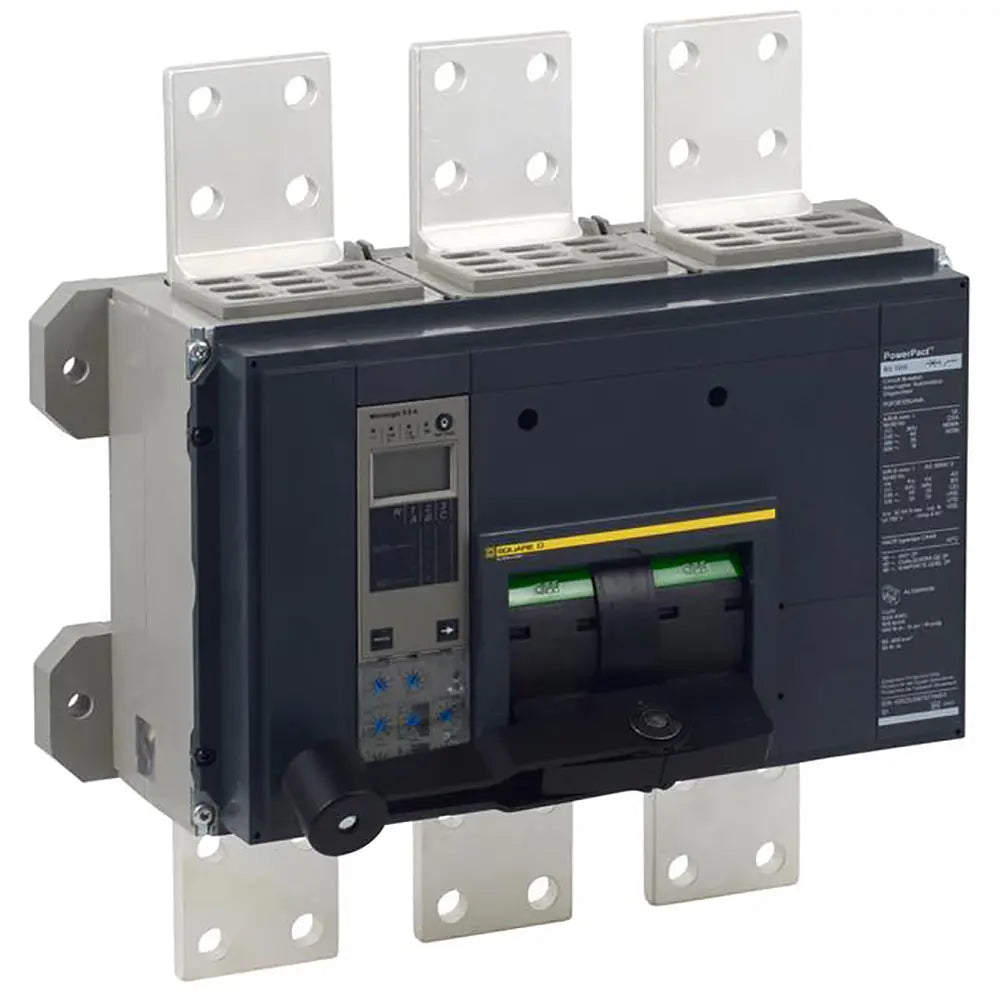

RKF36160U44A - Square D PowerPact R 1600A 600V 3 Pole Molded Case Circuit Breaker 65kAIC

RKF36160U44A

RKF36160U44A is a Square D PowerPact R molded case circuit breaker designed for industrial power distribution applications requiring high amperage and robust protection. This breaker features a 1600A rating, 600V maximum voltage, and a 65kA interrupting capacity at 480V, making it suitable for demanding environments. The unit is a 3-pole design with bolt-on mounting and an electronic trip unit for precise overload and short-circuit protection. The PowerPact R series is known for its durability, reliability, and compatibility with a wide range of electrical systems. This breaker is ideal for use in commercial and industrial installations where dependable circuit protection is critical.

• Part Number: RKF36160U44A
• Manufacturer: Square D
• Series: PowerPact R
• Amperage: 1600A
• Voltage: 600V
• Poles: 3 Pole
• Interrupt Rating: 65kAIC @ 480V
• Mounting Type: Bolt-On
• Frame Type: R Frame
• Breaker Type: Molded Case
• Phase: 3 Phase
• Weight: 52 lb
• Dimensions: 16.53 in W x 16.24 in H x 14.49 in D
• Country of Origin: Mexico
• Warranty: Standard manufacturer warranty
• Electrical Connection: Busbar
• Micrologic Trip Unit: 6.0A
• Load Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RKF36160U44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RKF
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• Country of Origin : Mexico
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 52.001
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
