Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
RKF36100U31A

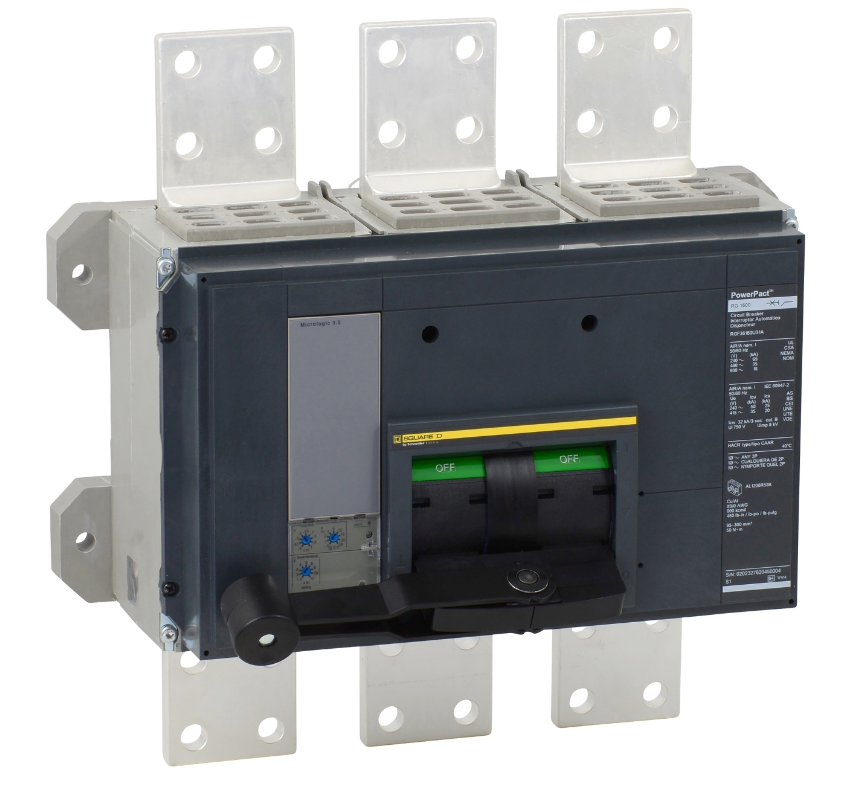

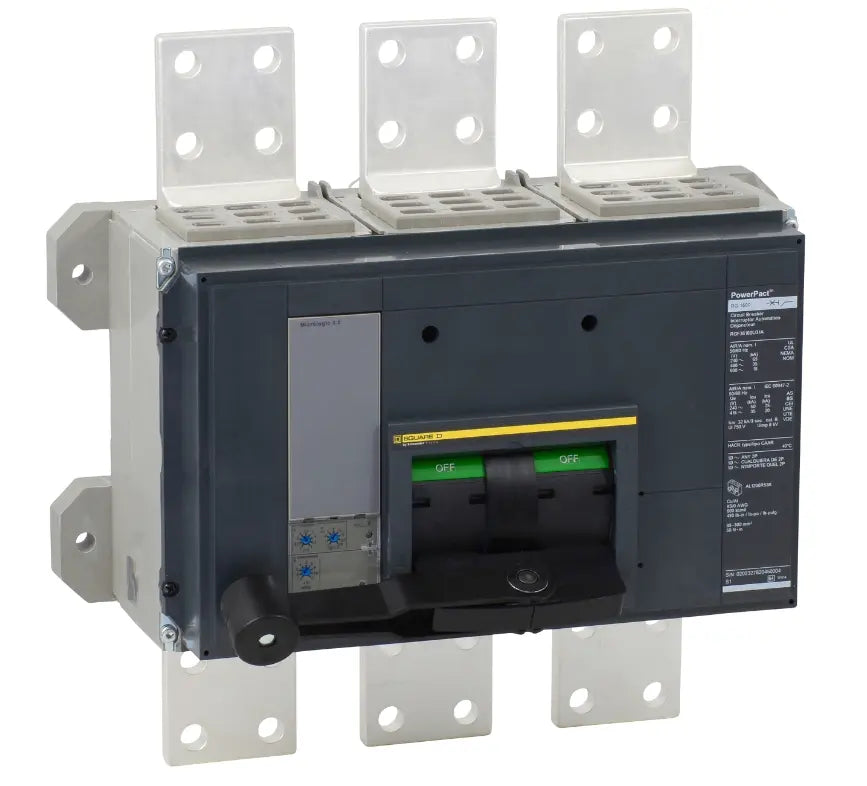

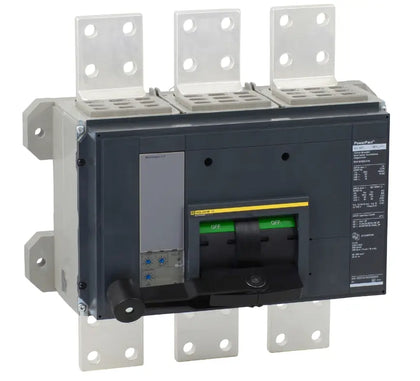

RKF36100U31A is a Square D PowerPact R-frame molded case circuit breaker rated for 1000 amps and 600 volts with 3 poles and a Micrologic trip unit.
This circuit breaker features bolt-on mounting and is designed for reliable protection in industrial and commercial electrical systems. It has an interrupting rating of 18kA at 600VAC, suitable for medium-duty applications. The breaker includes a Micrologic 3.0 trip unit providing advanced electronic trip functions and 80% line rated current capability. It complies with industry certifications for safety and performance.
- Key Specifications
- Amperage: 1000A
- Voltage Rating: 600VAC
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 18kA @ 600VAC (Code G)
- Series/Frame: PowerPact R
- Trip Unit: Micrologic 3.0 electronic trip
- Line Rated Current: 80%
- Phase: 3-Phase
- Certifications: Industry standard compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: RKF36100U31A
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : RKF
- Voltage : 600
- Amperage : 1000
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Solid State
Product Data
- Weight : 37
