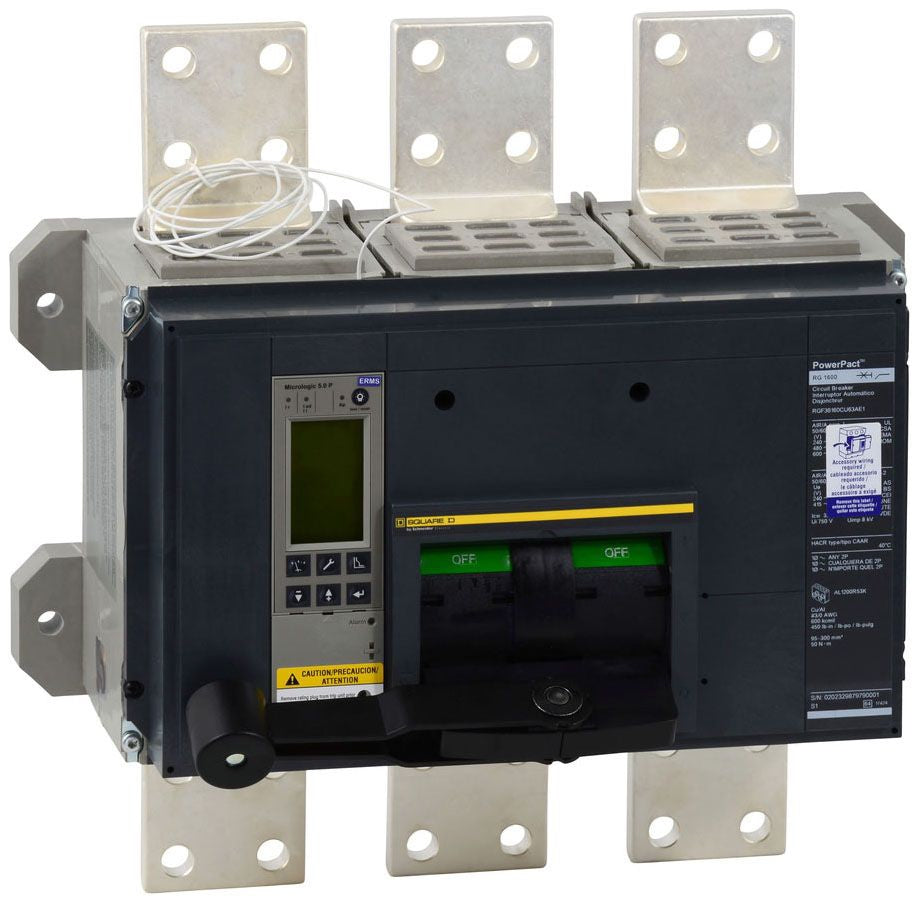

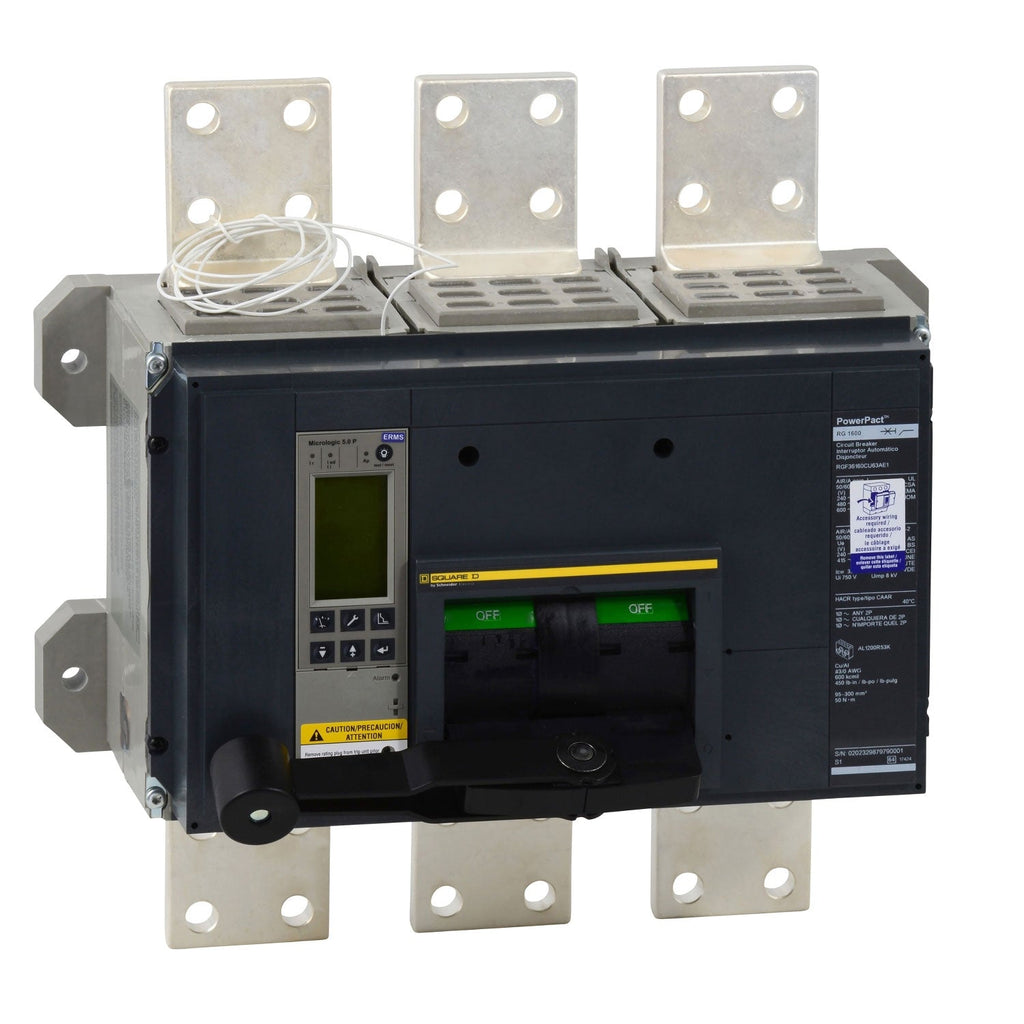

RJF36200U63AE1 - Schneider Electric 2000A 600V 3-Pole PowerPact R Molded Case Circuit Breaker with Micrologic 5.0P

RJF36200U63AE1

This Schneider Electric PowerPact R-frame breaker features a 2000 ampere rating, 3 poles, and a voltage rating of 600 volts AC. It includes a Micrologic 5.0P trip unit with Modbus communication capability, providing advanced overload and short circuit protection. The breaker has a bolt-on mounting type and a 25kA interrupting rating at 600VAC, suitable for demanding electrical environments.

Key Specifications
• Amperage: 2000A
• Voltage: 600V AC
• Poles: 3
• Series/Frame: PowerPact R
• Trip Unit: Micrologic 5.0P with Modbus
• Interrupt Rating: 25kA @ 600VAC
• Mounting Type: Bolt-on
• Manufacturer: Schneider Electric
• Type: Molded Case Circuit Breaker
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: RJF36200U63AE1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RJF
• Voltage : 600
• Amperage : 2000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State



Product Data

• UPC : 3606486287187
• GTIN : 03606486287187
• Country of Origin : United States
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 74
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
