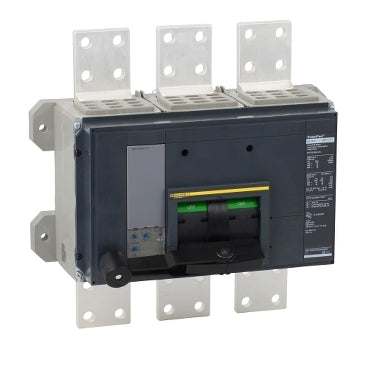

RJF36200U31A - Square D 2000A 600V 3 Pole R Frame Molded Case Circuit Breaker

RJF36200U31A

RJF36200U31A is a Square D 3 pole, 2000 amp, 600 volt R Frame molded case circuit breaker designed for high capacity power distribution.This circuit breaker features an electronic trip unit with a 65kA interrupt rating at 480V and is UL and CSA listed. It is a bolt-on mounted breaker suitable for industrial applications requiring reliable overcurrent protection. The breaker supports a maximum voltage rating of 600 VAC and offers multiple interrupt ratings depending on voltage level, including 100kA at 240V and 25kA at 600V.

Key Specifications
• Amperage: 2000 A
• Voltage Rating: 600 V AC
• Poles: 3
• Frame/Series: R Frame
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 480V, 100kA at 240V, 25kA at 600V
• Trip Unit: Electronic
• Certifications: UL 489 Listed, CSA Approved
• Dimensions: Approx. 16.54" W x 14.49" D x 16.24" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: RJF36200U31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RJF
• Voltage : 600
• Amperage : 2000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Solid State



Product Data

• UPC : 78590141311
• GTIN : 00785901413110
• Country of Origin : United States
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 52.03
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
