RJF36100U33A - Square D 1000A 600V 3-Pole PowerPact R-Frame Molded Case Circuit Breaker

RJF36100U33A

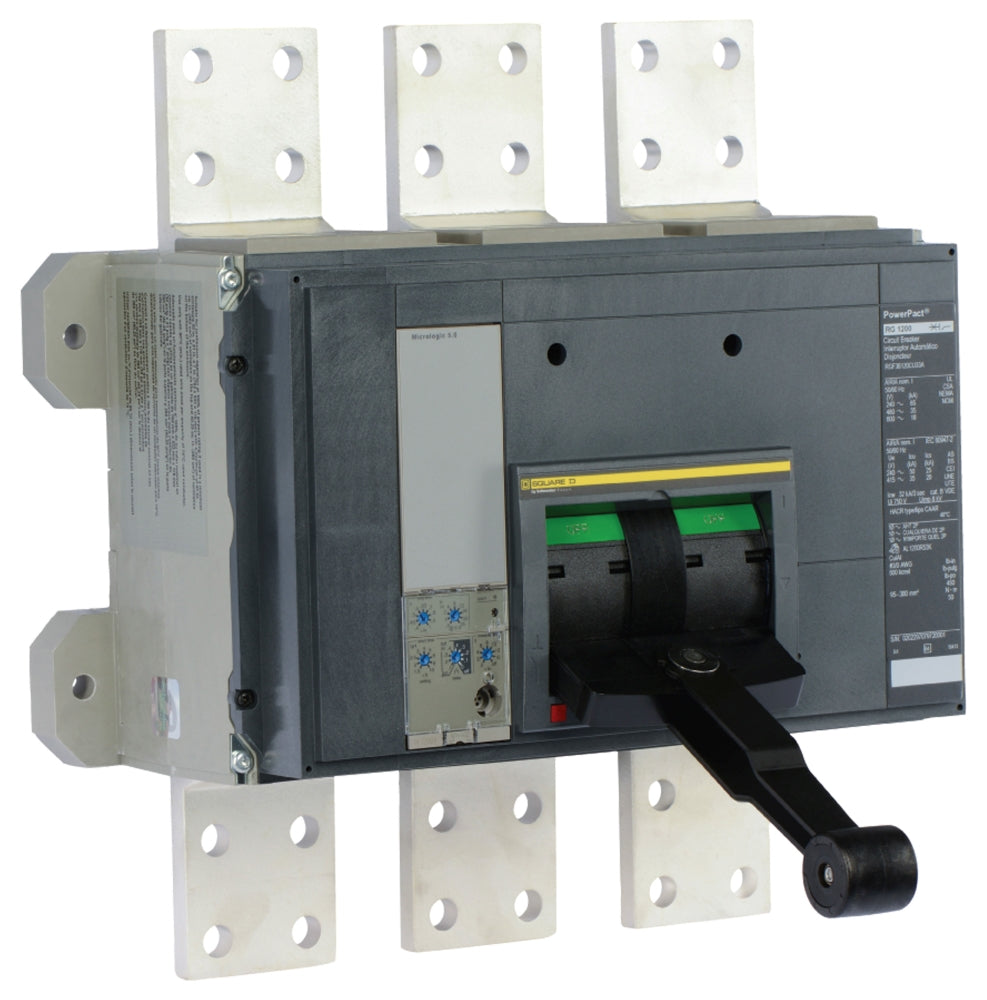

RJF36100U33A is a Square D PowerPact R-frame molded case circuit breaker designed for high-capacity electrical protection.

This 3-pole breaker features a 1000 ampere rating and a voltage rating of 600 VAC. It is part of the PowerPact R-frame series, known for robust construction and reliable performance in industrial and commercial applications. The breaker has a bolt-on mounting type and offers an interrupt rating of 65kA at 240 VAC and 35kA at 480 VAC, meeting IEC 60947-2 standards. It includes a standard electronic MicroLogic 5.0 trip unit for precise protection and coordination.

• Amperage: 1000A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Frame Series: PowerPact R-Frame
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA @ 240 VAC, 35kA @ 480 VAC
• Trip Unit: Electronic, MicroLogic 5.0
• Standards: IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RJF36100U33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RJF
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 078590194512
• GTIN : 00785901945123
• Country of Origin : United States
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 52.001
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
