Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
RGF36250

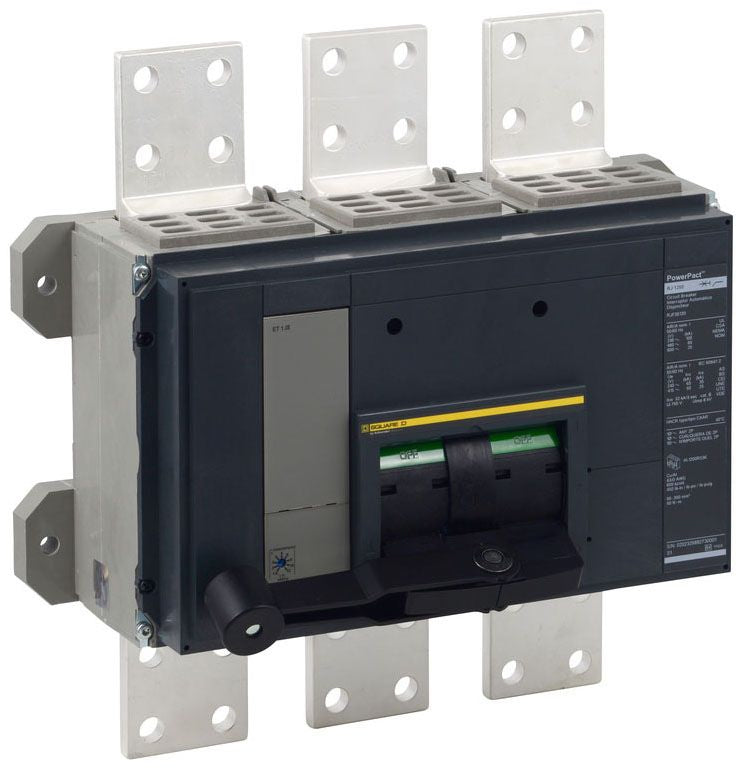

RGF36250 is a 3-pole, 600-volt molded case circuit breaker rated for 2500 amperes, manufactured by Square D as part of the PowerPact family. This industrial-grade breaker features an R-frame design with electronic trip protection and drawout connection capability, making it suitable for heavy-duty power distribution applications requiring reliable fault protection and load management in three-phase systems. The RGF36250 delivers consistent performance in demanding electrical environments with its proven PowerPact architecture.
- Amperage Rating: 2500 A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: R Frame
- Series: PowerPact
- Trip Unit: Electronic
- Connection Type: Drawout
- Interrupt Rating: 35 kAIC @ 480V
- Interrupt Rating: 65 kAIC @ 240V
- Mounting: Bolt-On
Specifications
- Part Number: RGF36250
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : RGF
- Voltage : 600
- Amperage : 2500
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : R Frame
- Protection : Solid State
Product Data
- UPC : 606486996020
- GTIN : 03606486996027
- Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
- Weight : 52
- Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...750 kcmil aluminium/copper
