RGA36120CU33A - Square D Powerpact R 1200A 3-Pole 600V Circuit Breaker

RGA36120CU33A

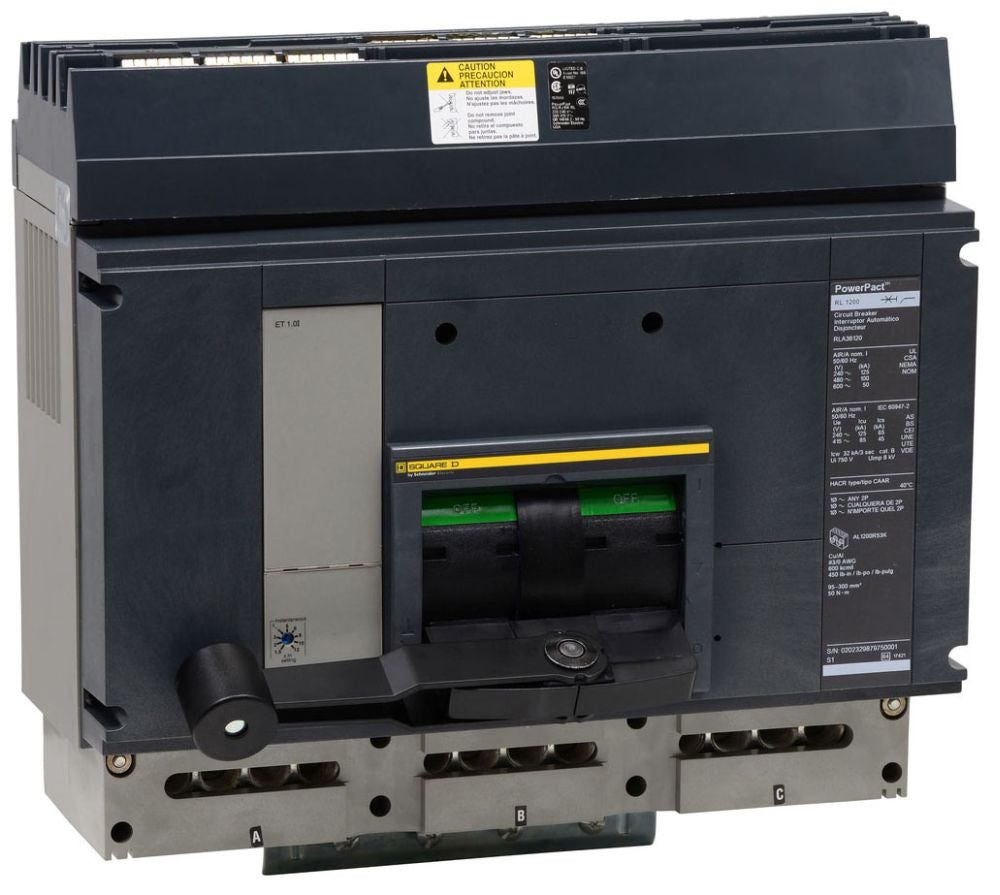

RGA36120CU33A is a Powerpact R molded case circuit breaker manufactured by Square D, featuring a 3-pole configuration rated for 1200 amperes at 600 volts with I-Line style plug-in connection. This solid-state trip unit breaker is designed for industrial power distribution applications requiring reliable overcurrent protection and switching capability in medium voltage systems. The unit combines advanced protection features with compact design suitable for integration into modern electrical distribution equipment.

• Manufacturer: Square D / Schneider Electric
• Series: Powerpact R
• Poles: 3
• Amperage Rating: 1200A
• Voltage Rating: 600V
• Connection Type: I-Line Style Plug-In
• Trip Unit: Solid-State
• Interrupt Rating: 25kA at 600VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RGA36120CU33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RGA
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : R Frame
• Protection : Solid State

Product Data

• UPC : 606486286923
• GTIN : 03606490000000
• Country of Origin : United States
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 52.001
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...600 kcmil aluminium/copper
  4 x AWG 3/0...500 kcmil copper
