Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Molded Case
- Series
- Q Series
- Frame
- QSA
- Rated current
- 20
- Voltage
- 240V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Country of origin
- Mexico
- UPC
- 040892278750
Show all specifications (4 more)
- GTIN
- 00040892278750
- Dimensions
- 4.331 x 3.15 x 1.969 inch
- Weight
- 0.551
- Certification
- UL
Product description & additional details
QSA2020SPD

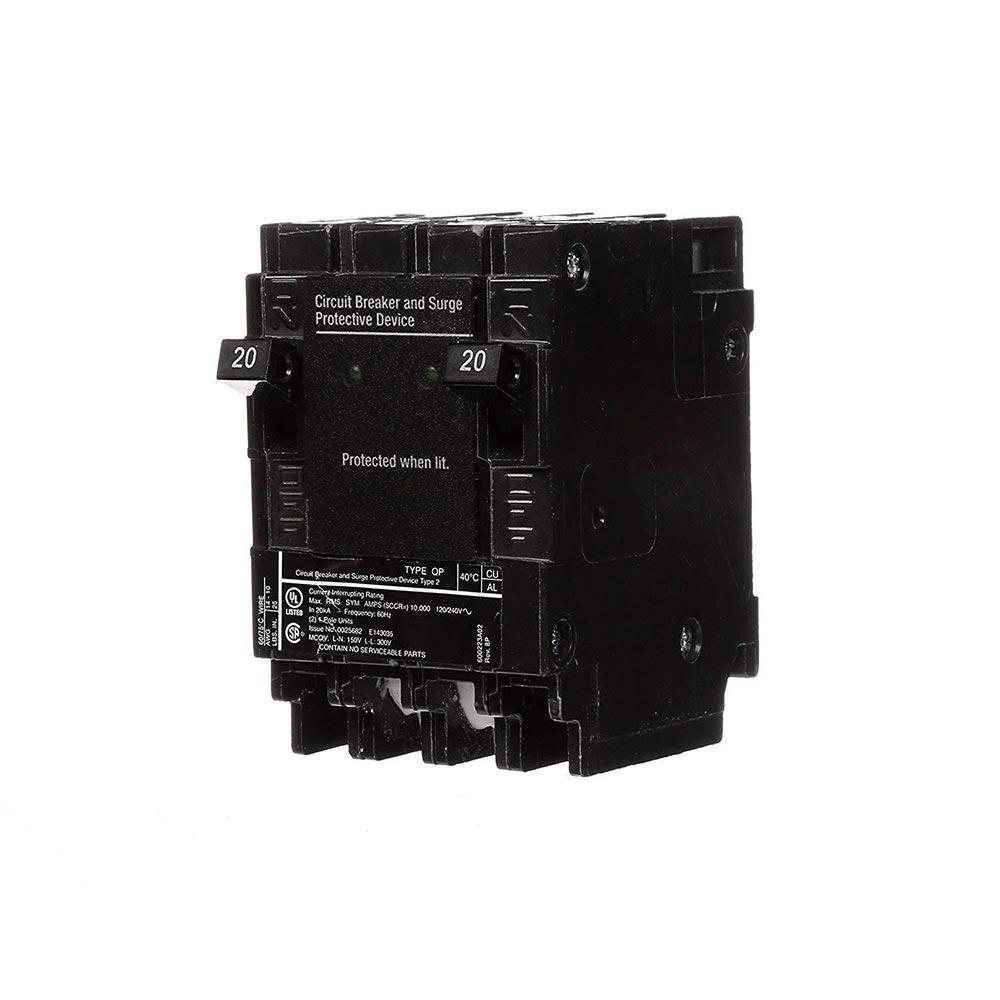

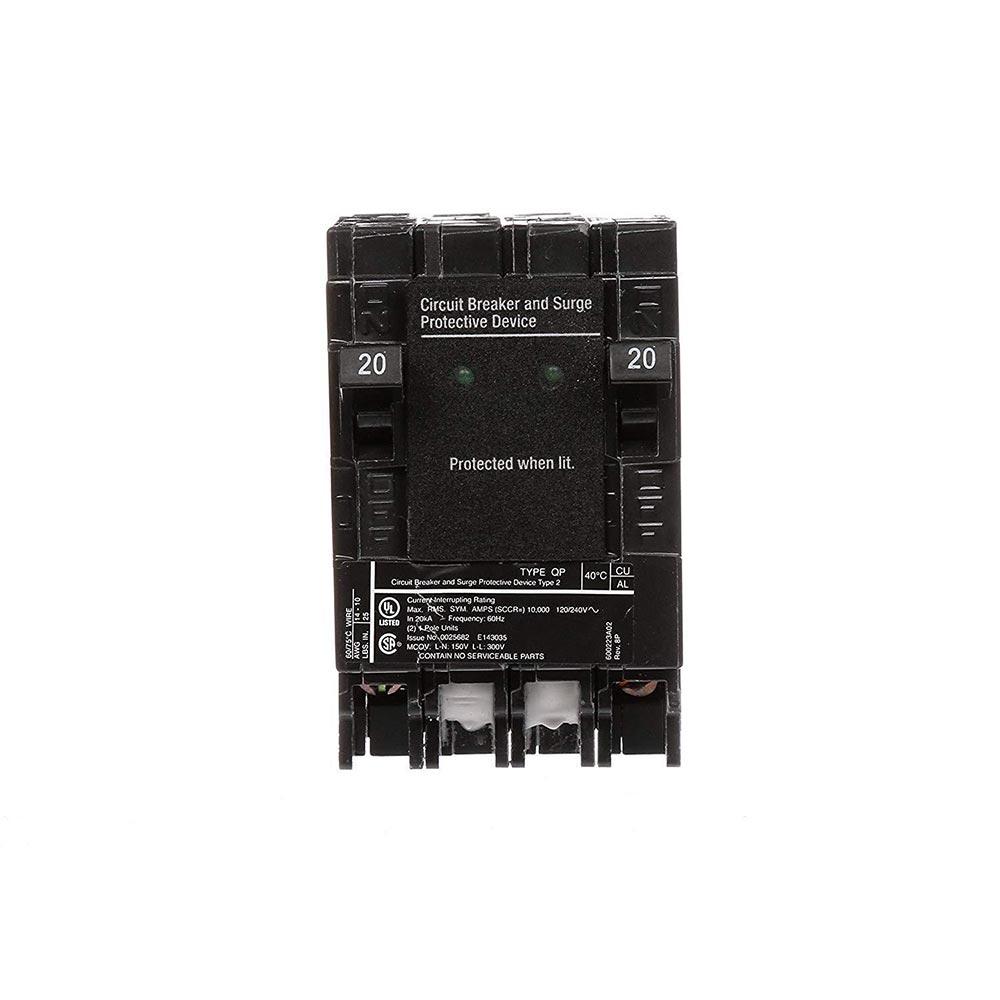

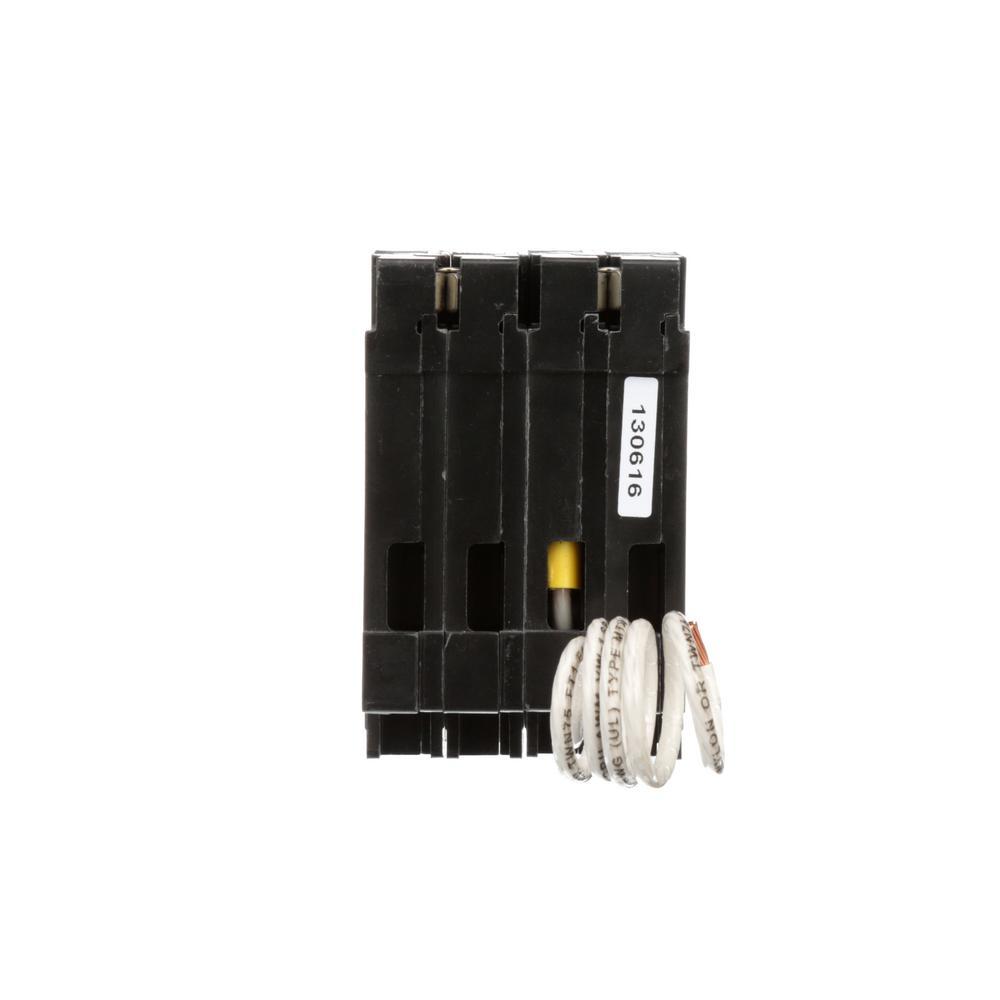

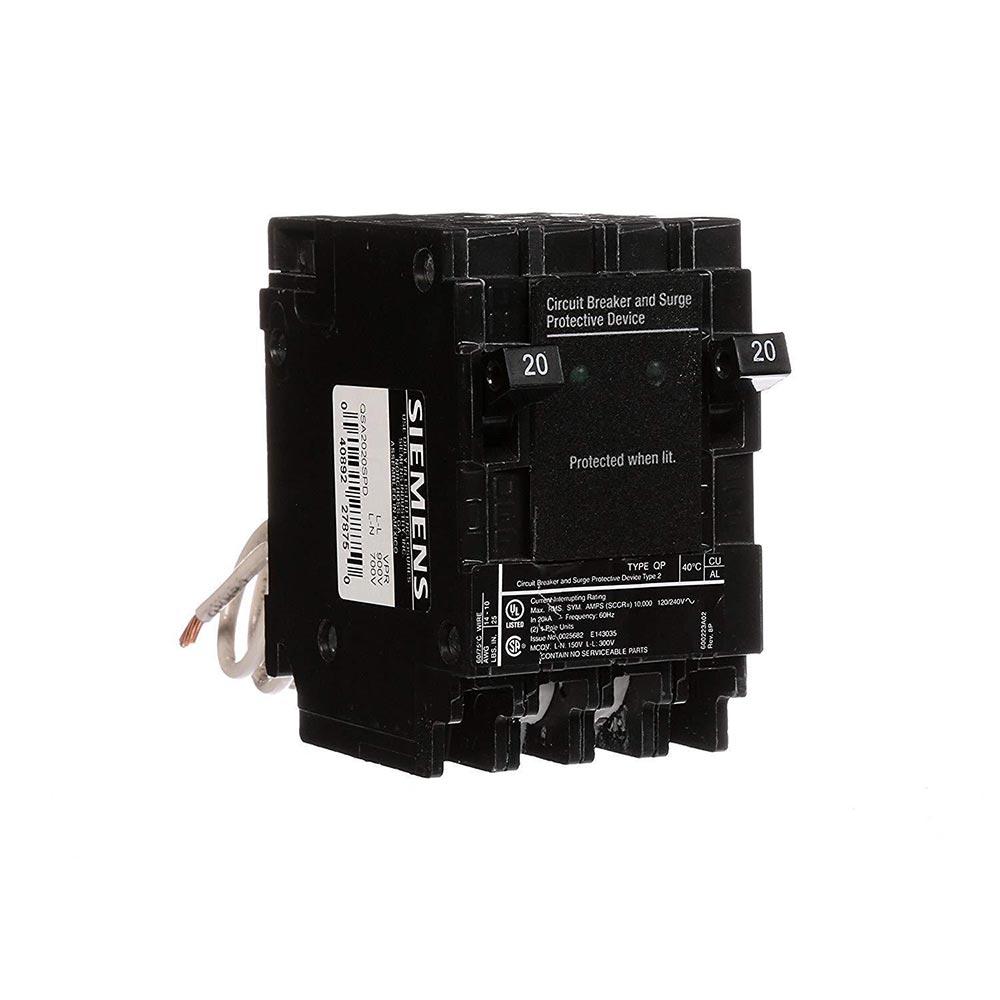

QSA2020SPD is a Siemens 2-pole 20 Amp circuit breaker with integrated surge protection designed for 240V applications.
This Siemens QSA2020SPD combines two 1-pole thermal magnetic circuit breakers with a surge protective device (SPD) featuring 150V AC metal oxide varistors (MOVs) and a 40kA impulse rating. It has a 10kA interrupting rating at 240V and includes long-time and instantaneous trip functions. The breaker is plug-in type, compatible with Siemens Q series load centers, and CSA approved and UL listed.
- Key Specifications
- Manufacturer: Siemens
- Part Number: QSA2020SPD
- Amperage: 20 Amps
- Voltage Rating: 240V AC
- Poles: 2 (two 1-pole breakers)
- Interrupting Rating: 10kA at 240V
- Surge Protection: 40kA impulse rating, 150V AC MOVs
- Trip Functions: Long-time and instantaneous
- Mounting Type: Plug-in connection
- Certifications: UL Listed, CSA Approved
- Series/Frame: QSA Series
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QSA2020SPD
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QSA
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 040892278750
- GTIN : 00040892278750
- Country of Origin : Mexico
- Dimensions : 4.331 x 3.15 x 1.969 inch
- Weight : 0.551
- Certification : UL
