Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Parts And Accessories
- Series
- Surgelogic
- Frame
- SDS
- Voltage
- 347/600 AC
- Poles
- 3
- Standards
- UL 1449:ed. 4: type I, NEC 285: type I, CSA C22.2 No 8
- Country of origin
- Mexico
- UPC
- 785901210887
- GTIN
- 00785901210887
- Dimensions
- 3 in (76.2 mm) x 3.6 in (91.4 mm) x 3.4 in (86.4 mm) (Height x Width x Depth)
- Weight
- 1.025
- Certification
- CSA C22.2 No 8, NEC 285 Type I, UL 1449:ed. 4 Type I
Product description & additional details
SDSA3650

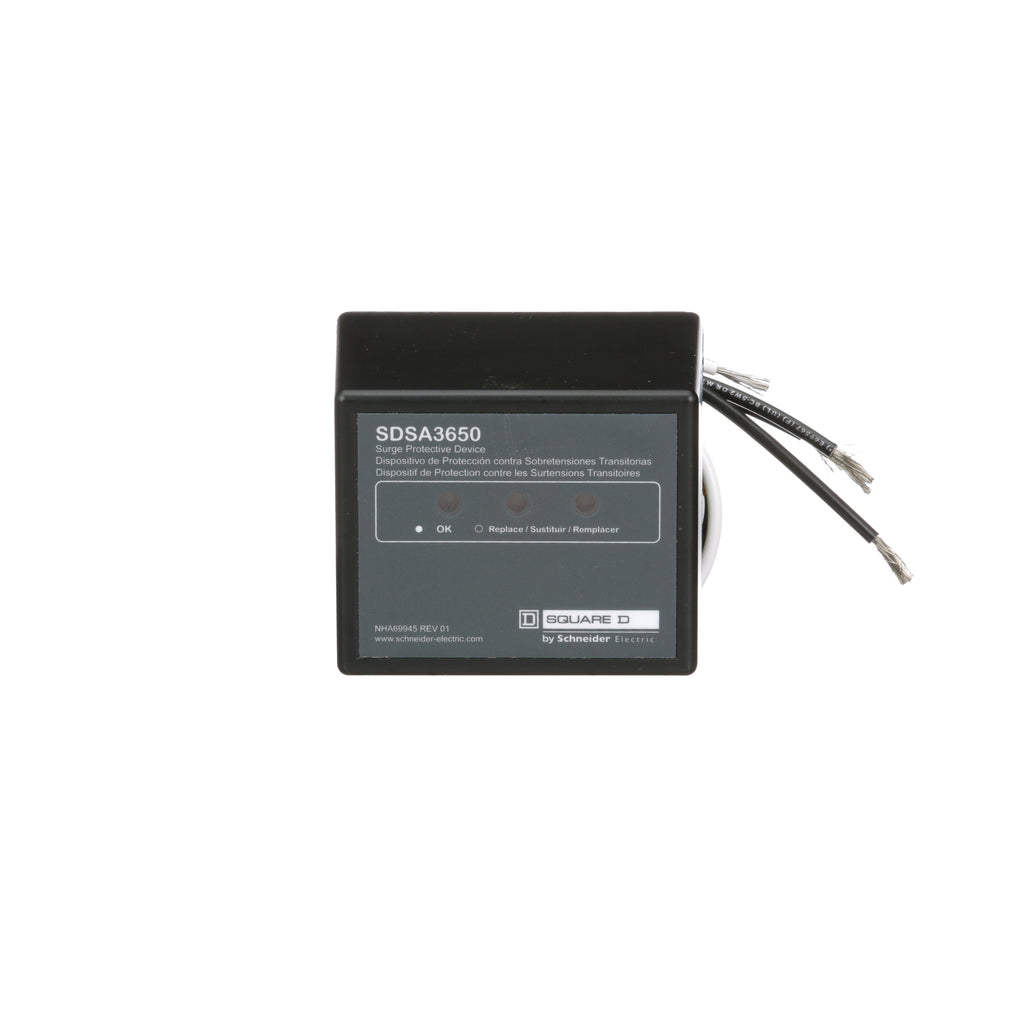

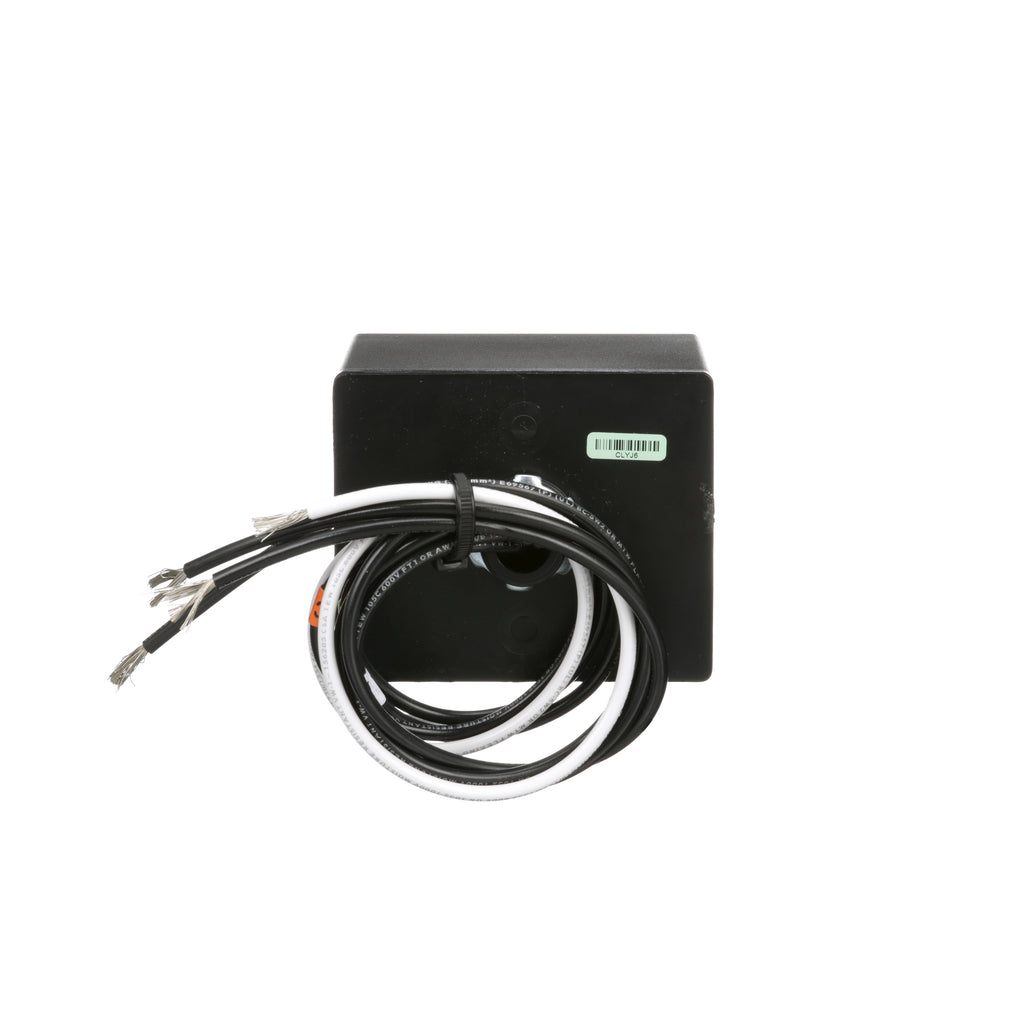

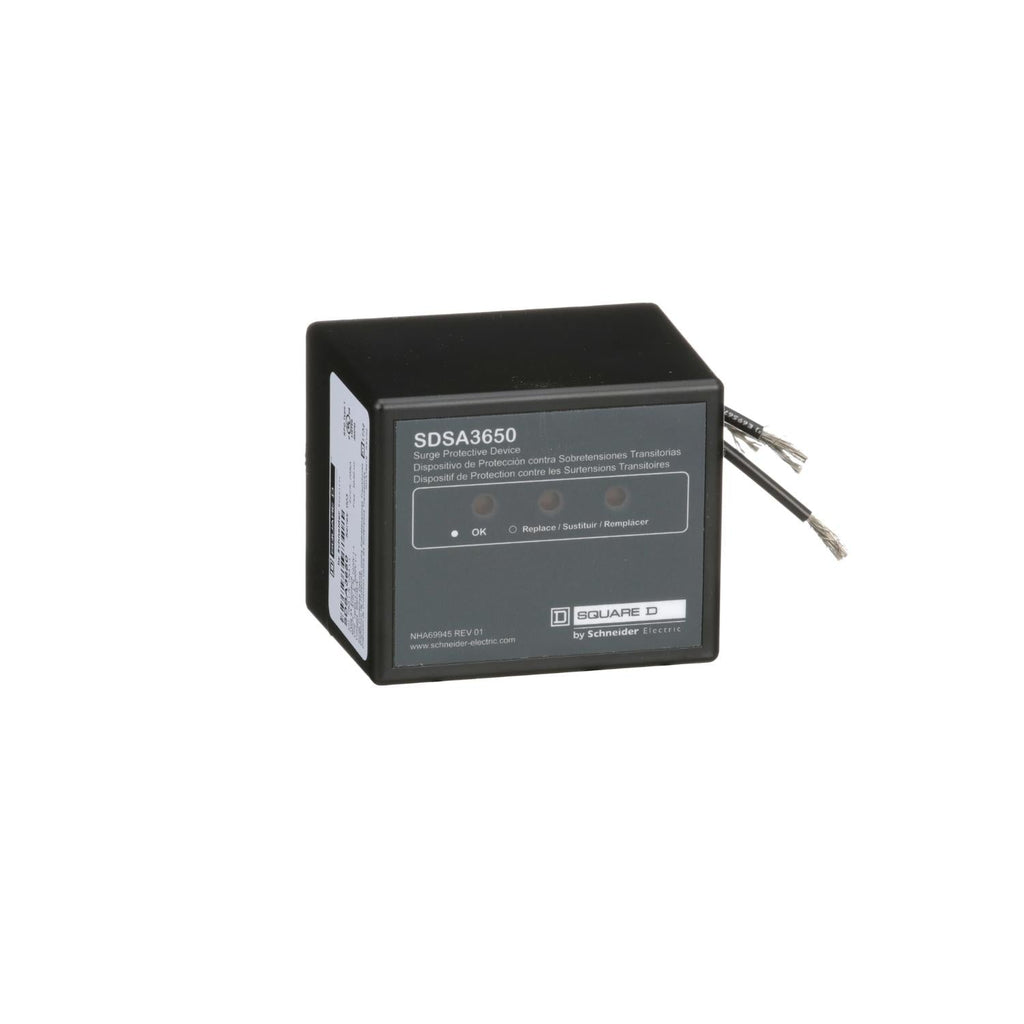

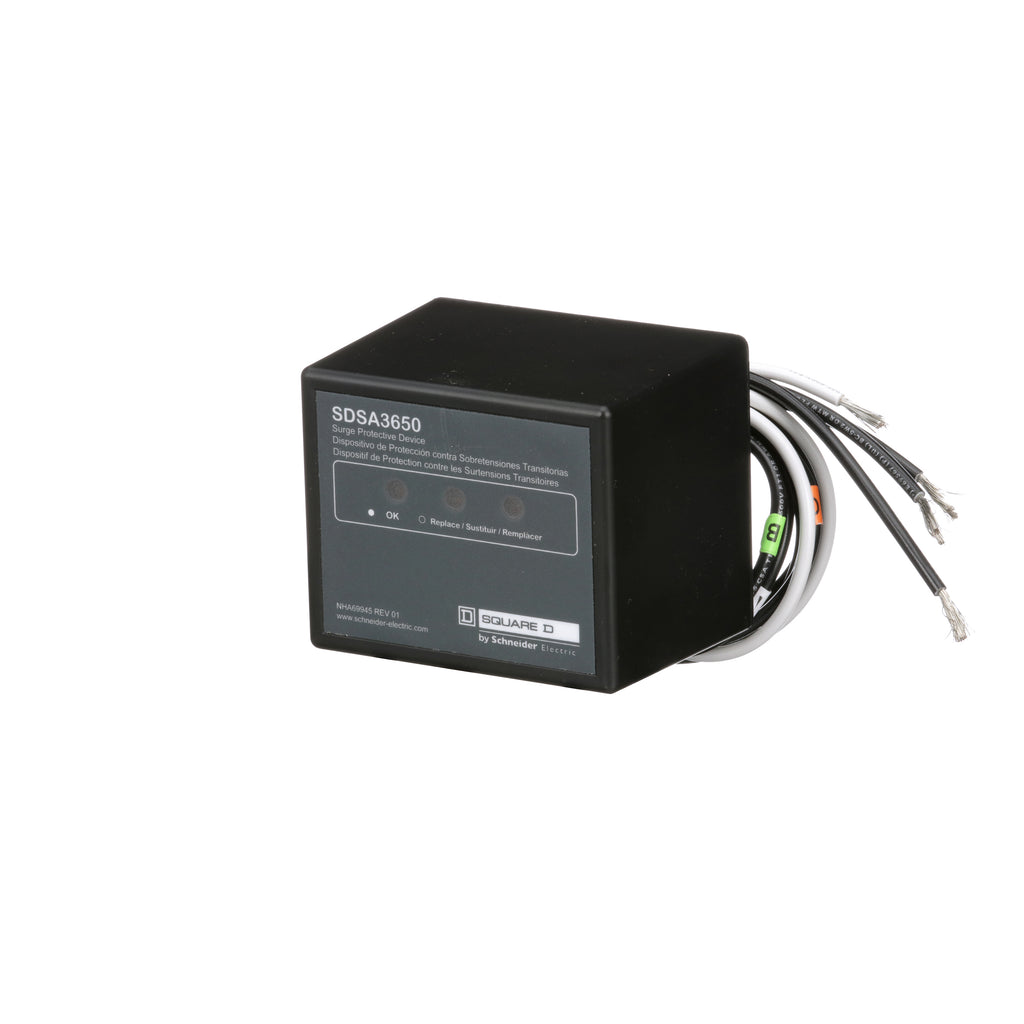

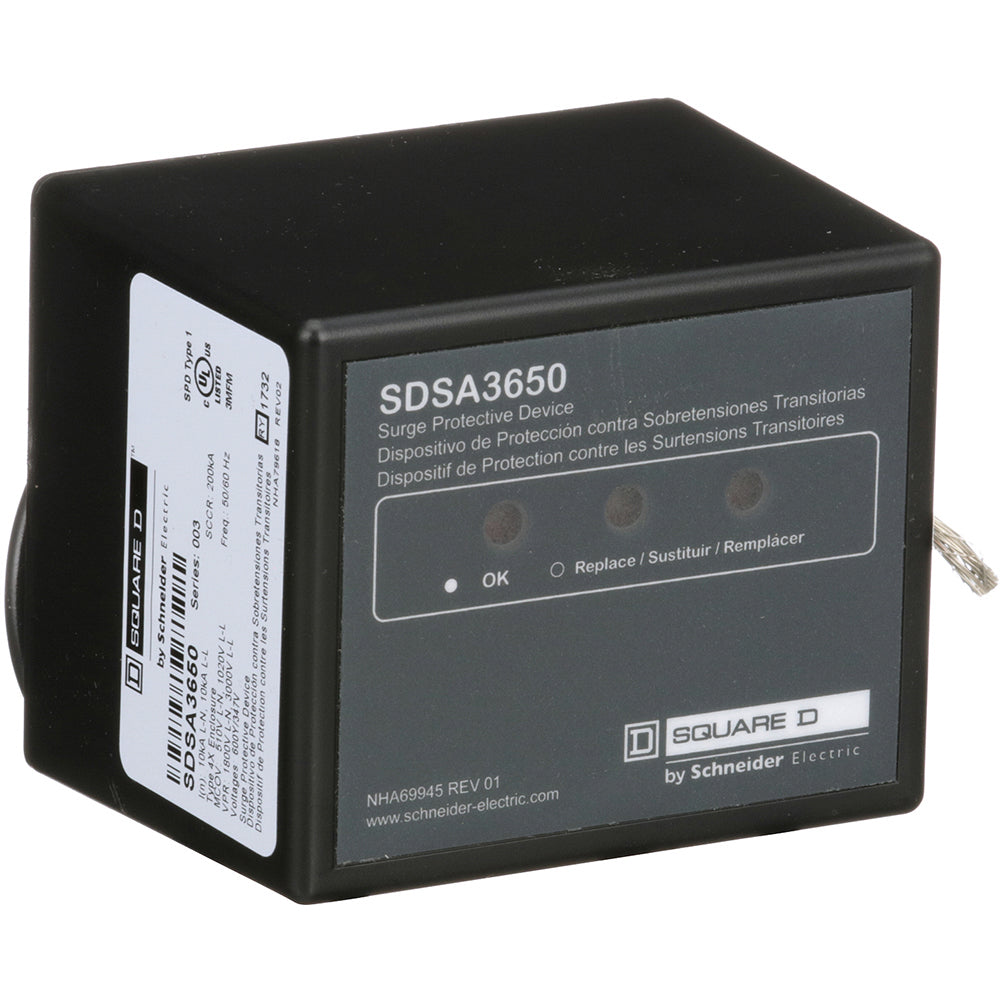

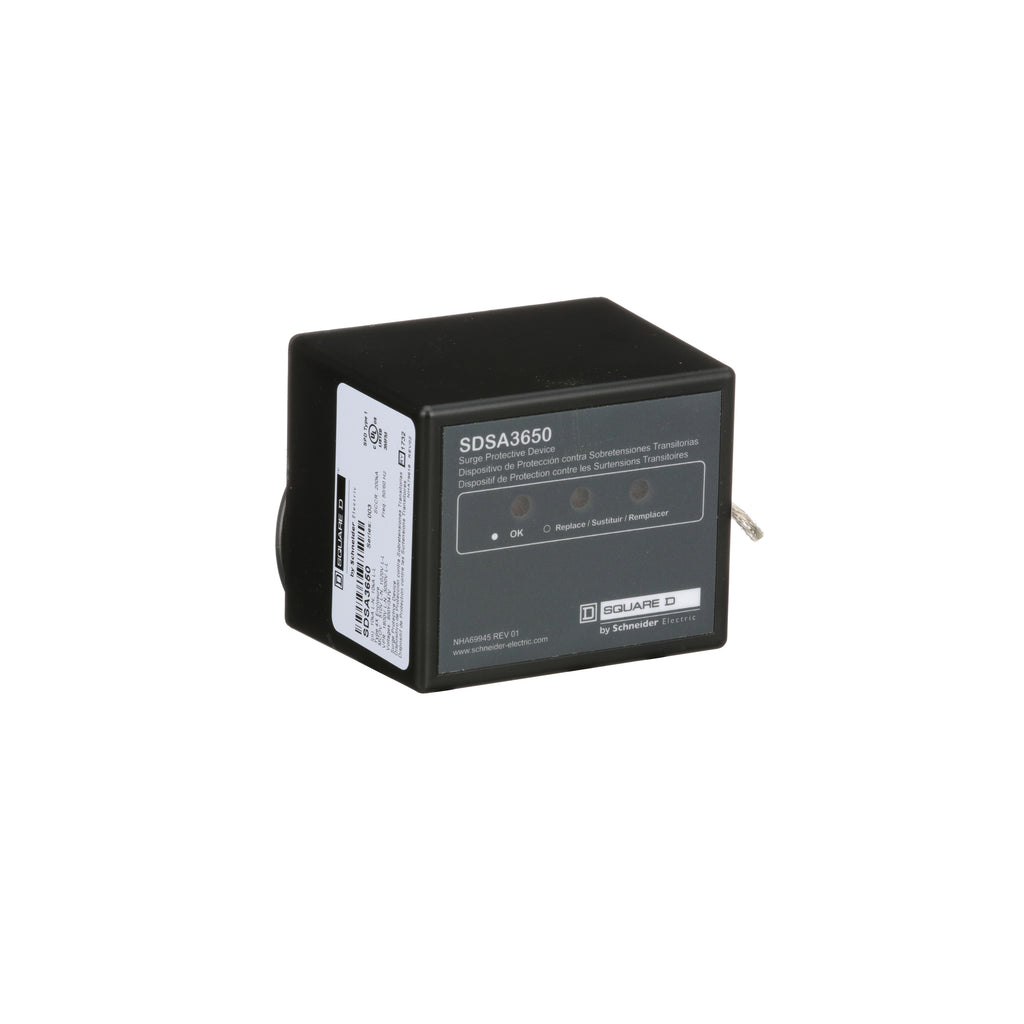

SDSA3650 is a Square D 3-phase surge protection device designed for 347/600VAC Wye systems with a NEMA 4X enclosure rating.This surge arrester provides robust protection with a maximum surge current per phase of 40kA and a short circuit current rating of 200kA. It features a 4-wire configuration, LED status indicator, and is suitable for indoor and outdoor applications. The device complies with UL 1449 3rd Edition and CSA C22.5 standards and mounts via chase nipple.
- Voltage Rating: 347/600VAC Wye
- Number of Poles: 3
- Interrupt Rating: 40kA max surge current per phase
- Short Circuit Current Rating: 200kA
- Mounting Type: Chase Nipple
- Enclosure Rating: NEMA 4X
- Nominal Discharge Current: 10kA
- Voltage Protection Rating: 1800V (L-N), 3000V (L-L)
- Standards: UL 1449 3rd Edition, CSA C22.5
- Includes LED Status Indicator
- Application: Indoor/Outdoor
- Wire Gauge: 12 AWG
Specifications
- Part Number: SDSA3650
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Parts And Accessories
- Family : Surgelogic
- Type : SDS
- Voltage : 347/600 AC
- Poles : 3
Product Data
- UPC : 785901210887
- GTIN : 00785901210887
- Country of Origin : Mexico
- Dimensions : 3 in (76.2 mm) x 3.6 in (91.4 mm) x 3.4 in (86.4 mm) (Height x Width x Depth)
- Weight : 1.025
- Standards : UL 1449:ed. 4: type I, NEC 285: type I, CSA C22.2 No 8
- Certification : CSA C22.2 No 8, NEC 285 Type I, UL 1449:ed. 4 Type I
