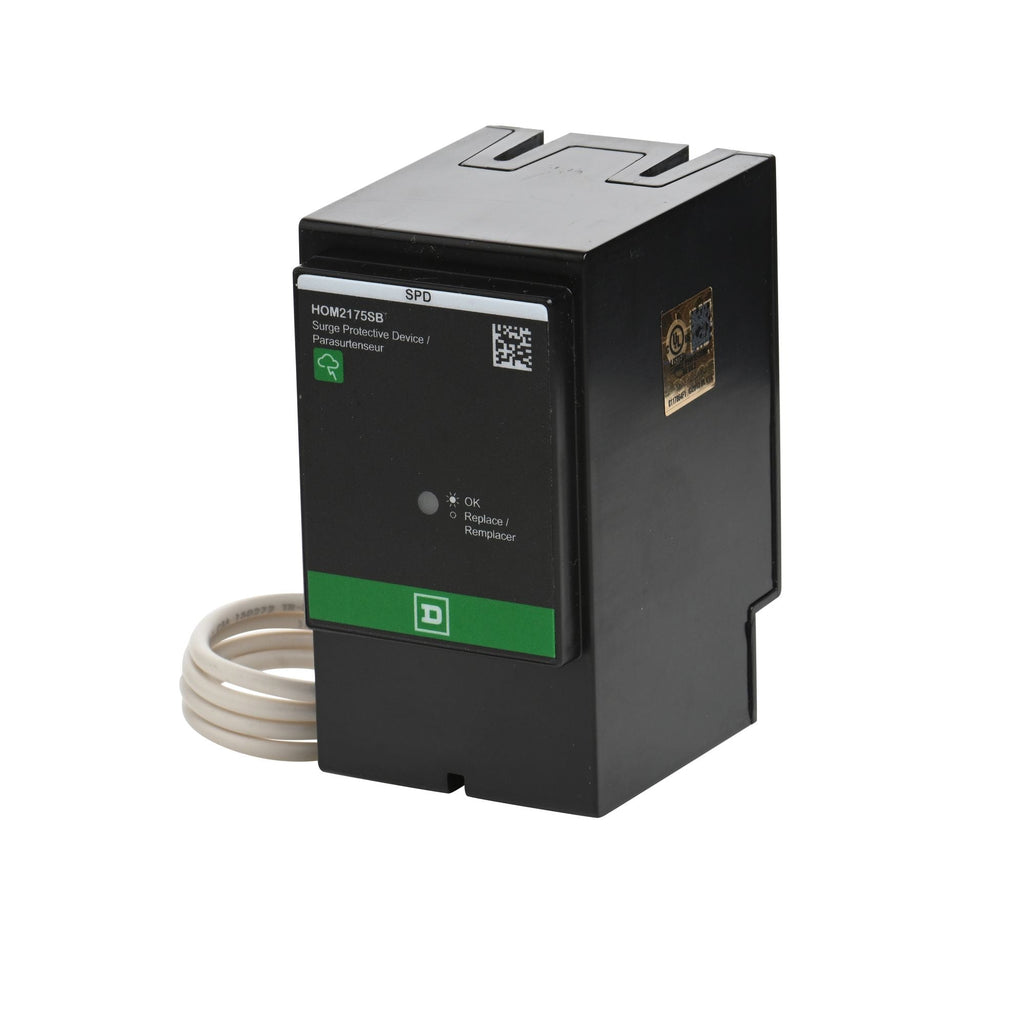

HOM2175SB - Square D 22500 Amp 120/240VAC 2-Pole Surge Protection Device HOM Frame

HOM2175SB

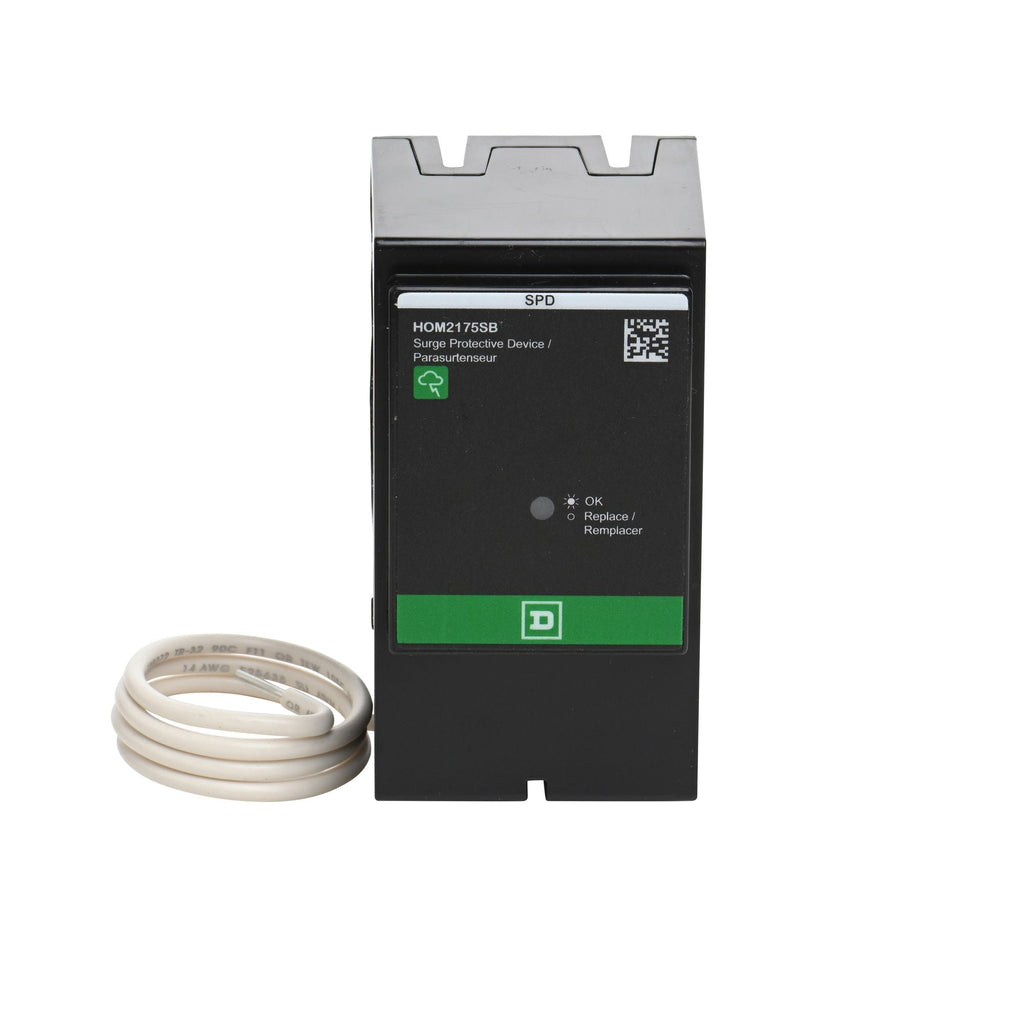

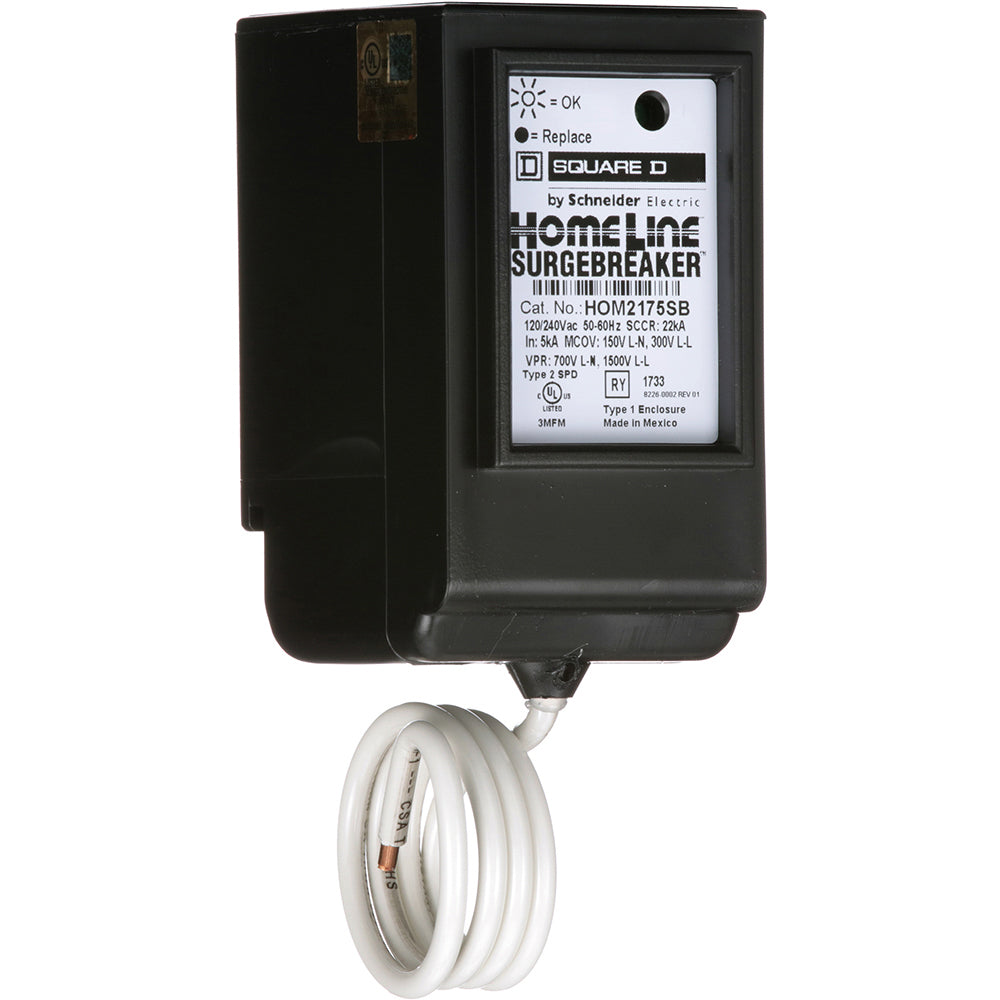

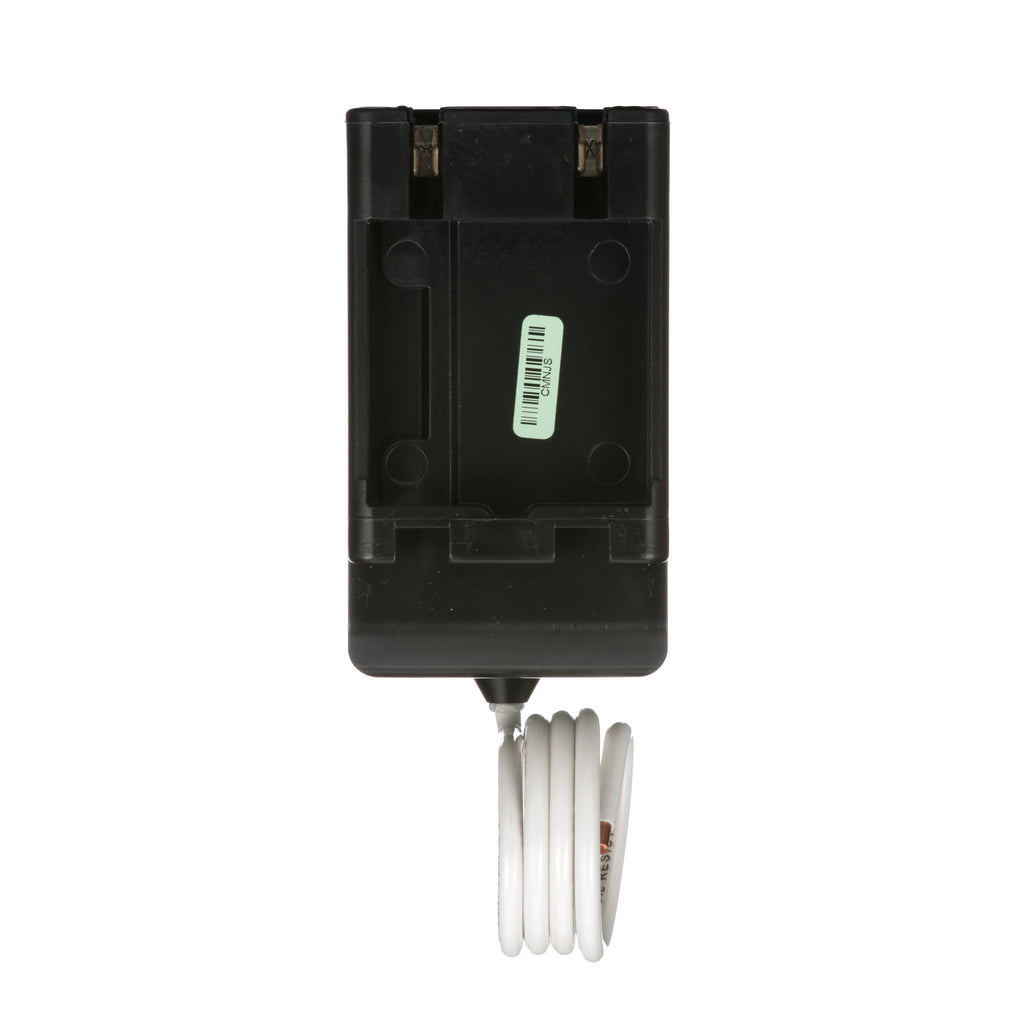

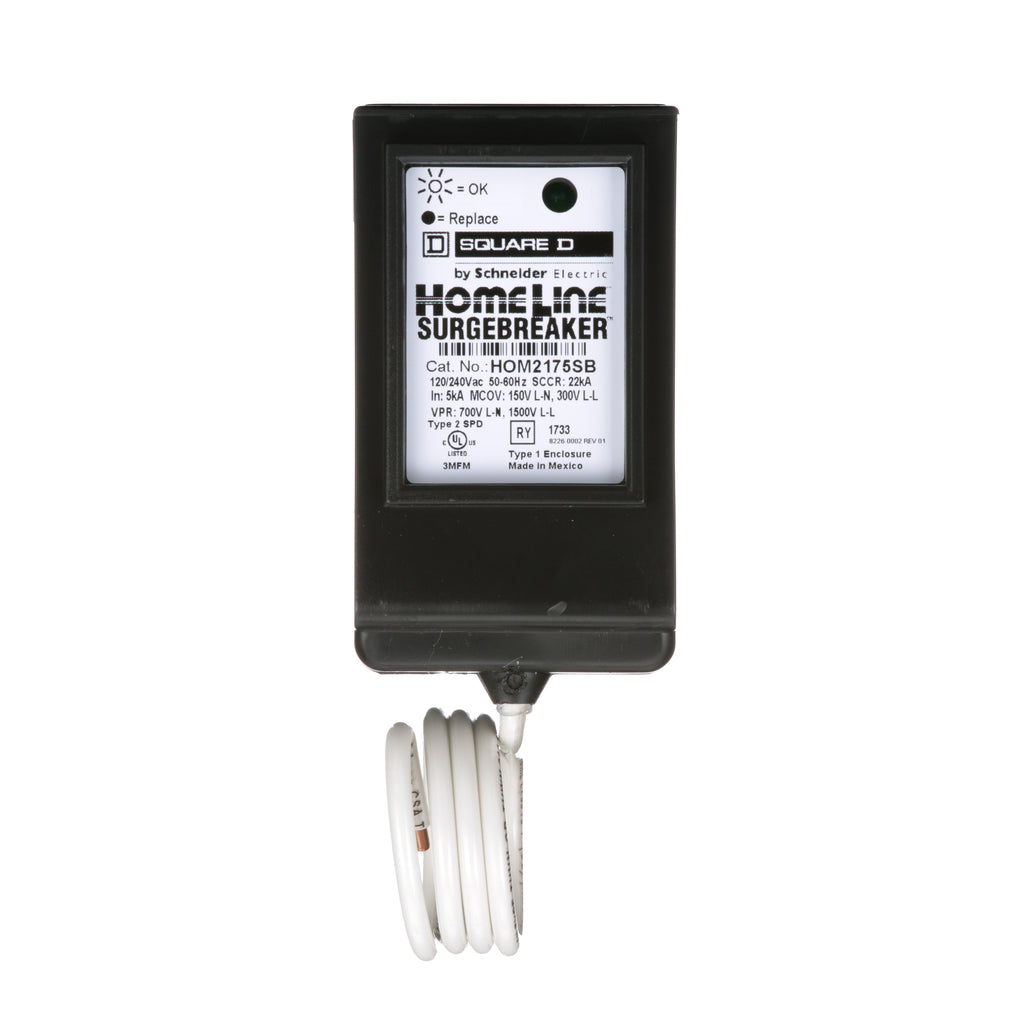

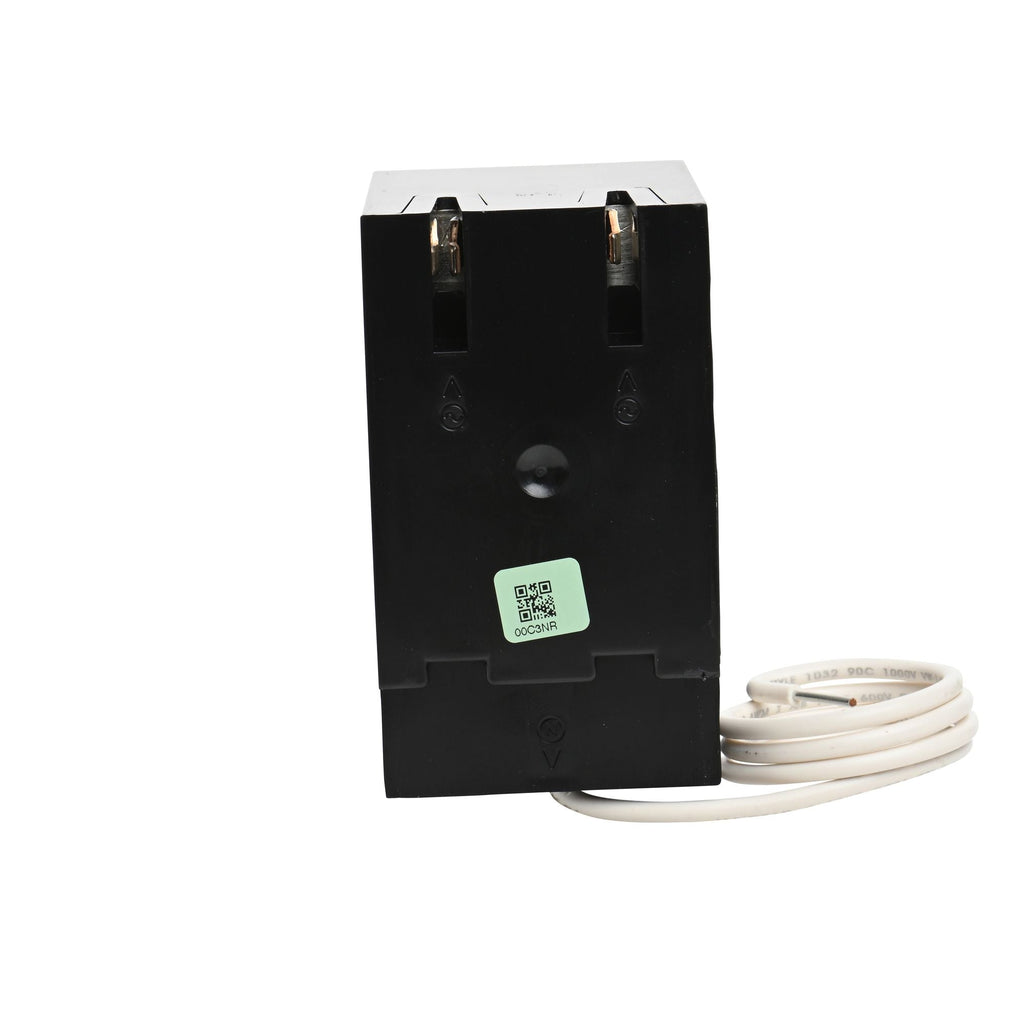

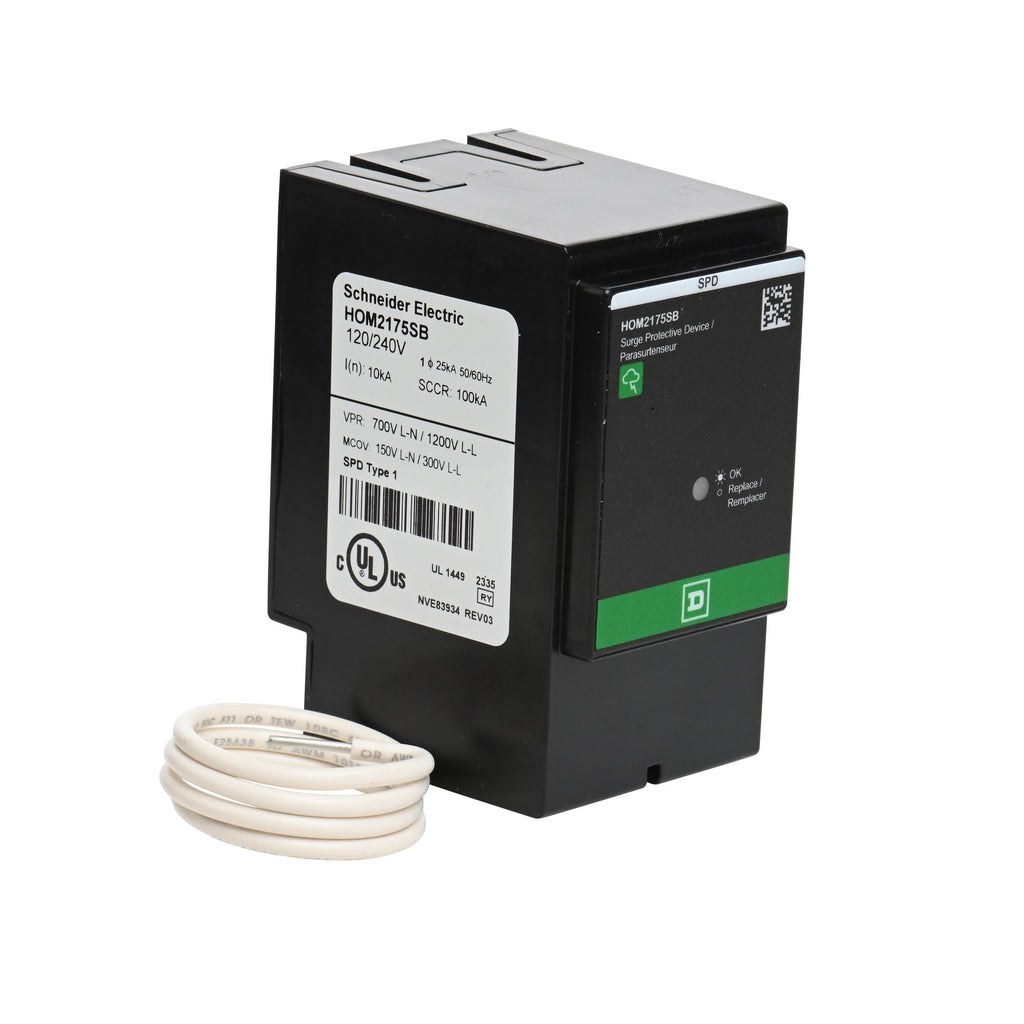

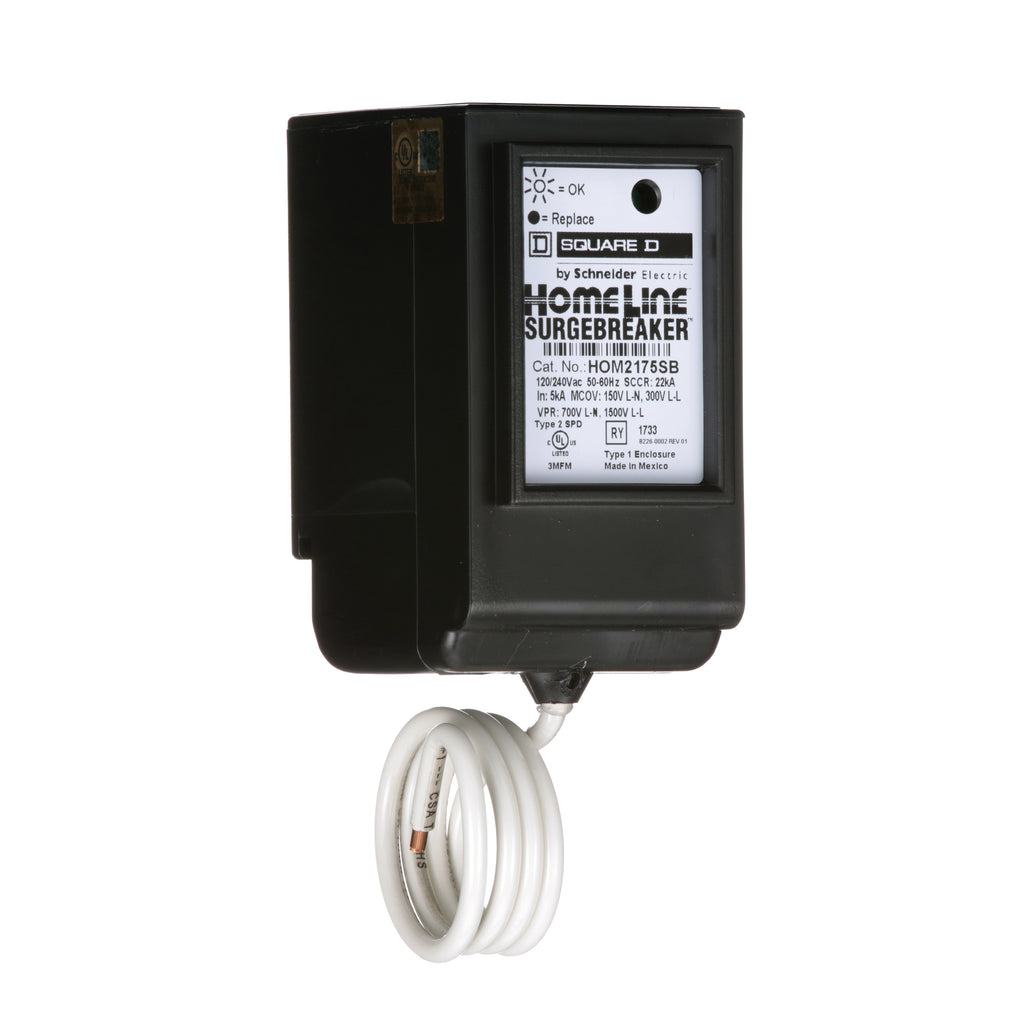

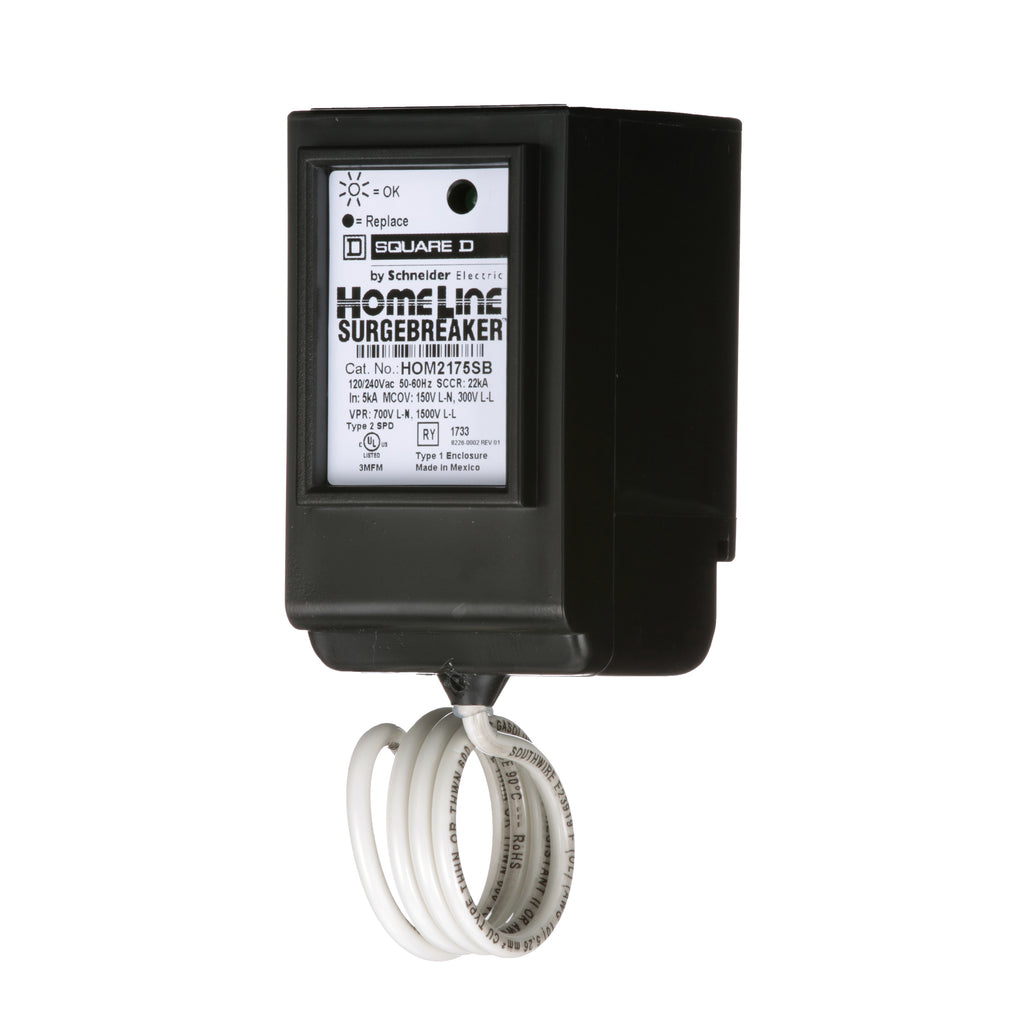

HOM2175SB is a 2-pole surge protection device designed for 120/240VAC single-phase systems with a 22500 Amp surge current rating and HOM frame type.This Square D HOM2175SB Surge Protection Device mounts on panels and is intended for residential and light commercial use. It provides secondary surge protection for Homeline load centers, featuring a NEMA 1 indoor rating, voltage protection ratings of 1500V and 700V, and compliance with UL, CSA, NEC, and ANSI standards. The device includes an LED indicator for operational status and supports 3-wire systems with a plug-on design requiring two pole positions.

Key Specifications
• Amperage: 22500 Amps surge current rating
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Panel mount
• Frame Type: HOM
• Voltage Protection Rating: 1500V, 700V
• NEMA Rating: 1 (indoor)
• Phase: Single phase, 3-wire system
• Standards: UL, CSA, NEC, ANSI certified
• Body Material: Non-metallic plastic enclosure
• Trip Unit: Surge protection device (SPD) type 2
• Color: Black
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HOM2175SB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Surge Protection
• Family : Homeline
• Type : HOM
• Voltage : 120/240VAC
• Amperage : 22500
• Phase : 1
• Poles : 2
• Temp Rating : -13–158 °F (-25–70 °C)
• Compatible Frames : HOM



Product Data

• UPC : 785901210900
• GTIN : 00785901210900
• Country of Origin : Mexico
• Dimensions : 3.7 in (94.0 mm) x 2 in (50.8 mm) x 2.6 in (66.04 mm) (Height x Width x Depth)
• Weight : 0.38
• Standards : UL 1449:ed. 4: type II
• Certification : CSA 233.1-87, CSA C22.2 No. 8-M1986, NEC Article 285, UL Listed, UL 1449, Type 2
