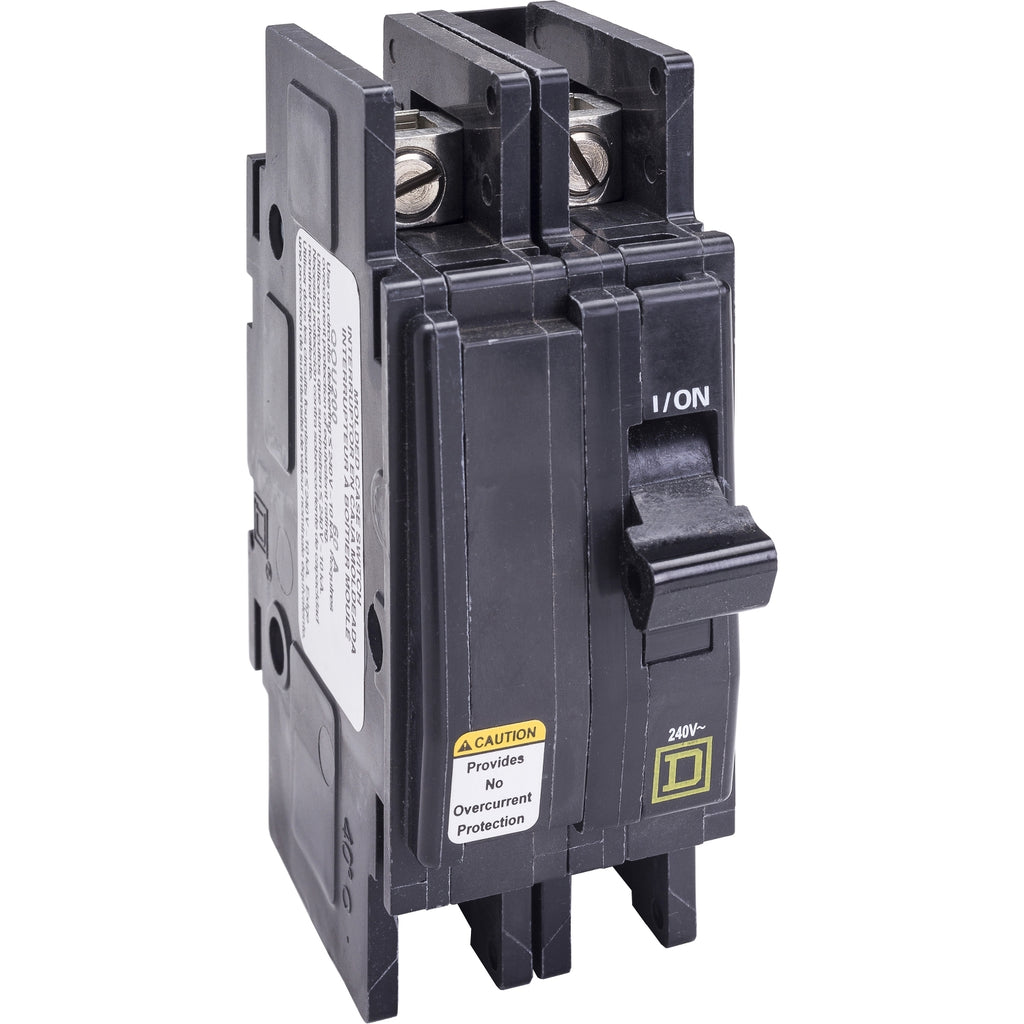

QOU2000 - Square D 100A 2-Pole 240VAC QOU Series Circuit Breaker 10kA Interrupt Rating

QOU2000

QOU2000 is a Square D QOU Series 2-pole circuit breaker rated for 100 amps and 240 volts AC with a 10,000 amp interrupt rating.This thermal-magnetic circuit breaker is designed for non-automatic operation with HACR rating, suitable for residential and commercial applications. It features a slotted box electrical connection and is part of the QOU series known for reliable circuit protection and easy installation. The breaker is UL listed and CSA certified, ensuring compliance with safety standards.

• Amperage: 100 A
• Voltage: 240 VAC
• Poles: 2
• Interrupt Rating: 10,000 A
• Series/Frame: QOU
• Trip Unit: Thermal-Magnetic
• Mounting Type: Unit Mounting
• Certifications: UL Listed, CSA Certified
• HACR Rated
• Electrical Connection: Slotted Box
• Dimensions: 3.5 x 1.5 x 2.91 inches (HxWxD)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU2000
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : NA - No Overcurrent Protection
• Protection : Non-Automatic

Product Data

• Country of Origin : Mexico
• Dimensions : 4.45 in (113.03 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.73
• Certification : UL listed - CSA
• Wire Size : AWG 12...AWG 2/0 aluminium/copper
