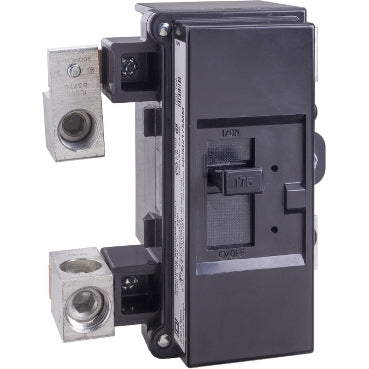

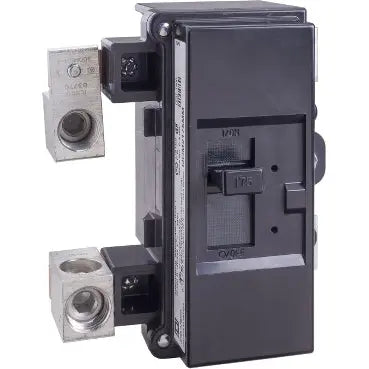

QOM2175MM - Square D 175A 2-Pole Bolt-On Miniature Circuit Breaker, 120/240V, 10kAIC, QO Series, UL/CSA Listed

QOM2175MM

QOM2175MM is a Square D 2-pole, bolt-on miniature circuit breaker designed for reliable main circuit protection in residential and commercial applications.

This circuit breaker features a robust bolt-on mounting for secure installation, a 175A current rating, and a 120/240V AC voltage rating. It is part of the QO series and is suitable for use in Square D MP Meter-Pak meter centers. The QOM2175MM is UL and CSA approved, ensuring compliance with North American safety standards.

Key Specifications
• Part Number: QOM2175MM
• Manufacturer: Square D
• Amperage: 175A
• Voltage: 120/240V AC
• Poles: 2
• Mounting Type: Bolt-on
• Interrupt Rating: 10kAIC at 240V
• Series/Frame: QO
• Trip Unit: Thermal-magnetic (standard for QO series)
• Certifications: UL, CSA
• Terminal Type: Lug
• Wire Range: 4AWG–300kcmil (aluminum or copper)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM2175MM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Type : QOM
• Voltage : 240
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901168157
• Country of Origin : Mexico
• Dimensions : 5.6 in (142 mm) x 5.08 in (129 mm) x 3.6 in (91 mm) (Height x Width x Depth)
• Weight : 2.59
• Wire Size : AWG 4, 300 kcmil Copper or Aluminium
