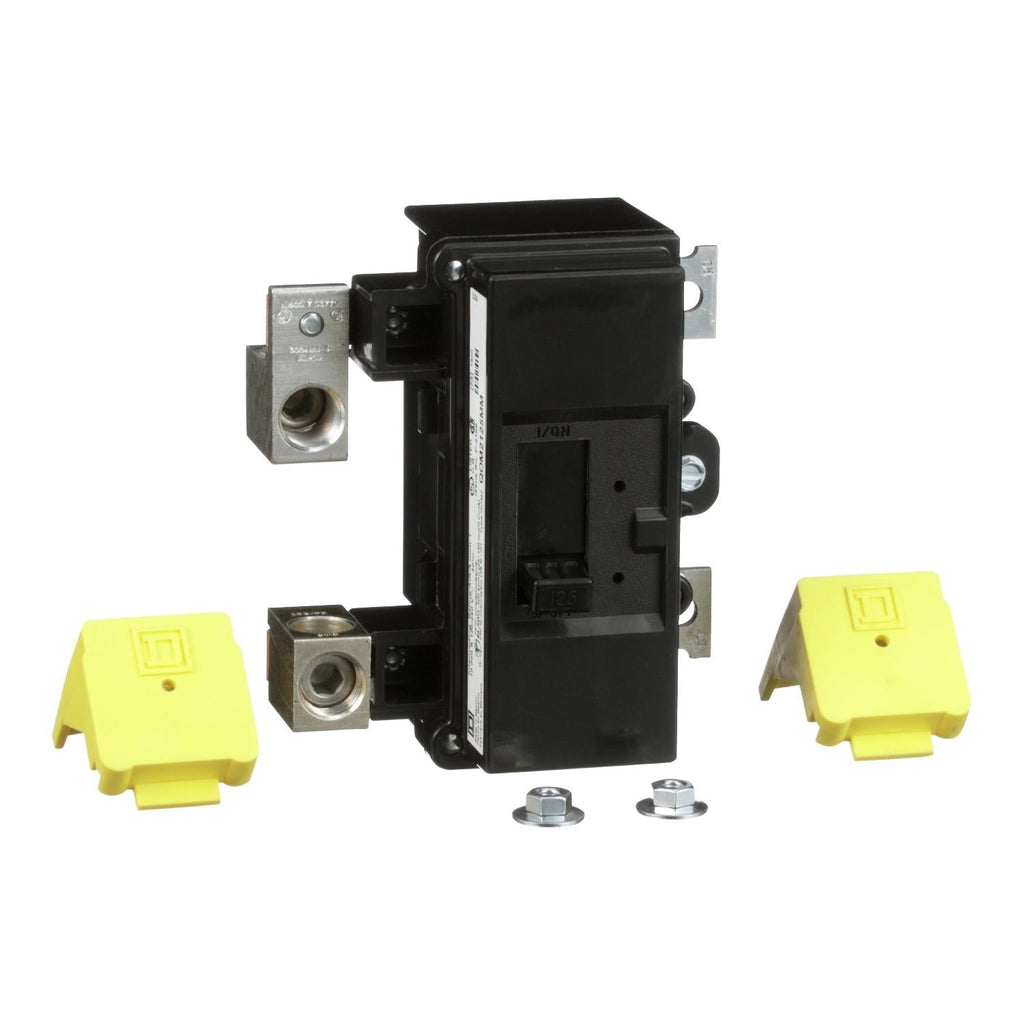

QOM2125MM - Square D QO 125A 2-Pole 120/240V Bolt-On Main Circuit Breaker 10kA

QOM2125MM

QOM2125MM is a 125A, 2-pole main circuit breaker designed for QO load centers, providing reliable overcurrent protection for 120/240V systems. This Square D QOM2125MM breaker features a bolt-on mounting design, thermal magnetic trip unit, and a 10kA interrupt rating. It is UL and CSA listed, suitable for use with 4 AWG to 300 kcmil copper or aluminum wire, and is ideal for metering applications in commercial and industrial settings.

• Part Number: QOM2125MM
• Manufacturer: Square D
• Amperage: 125A
• Voltage: 120/240V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA
• Wire Size: 4 AWG to 300 kcmil (Cu/Al)
• Application: Main Breaker, Metering

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM2125MM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Type : QOM
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 300 kcmil (Cu/Al)
• Breaker Type : Main Breaker
• Protection : Thermal Magnetic

Product Data

• UPC : 785901324270
• GTIN : 00785901324270
• Country of Origin : Mexico
• Dimensions : 5.6 in (142 mm) x 5.08 in (129 mm) x 3.6 in (91 mm) (Height x Width x Depth)
• Weight : 2.69
• Panel Type : QO Load Center
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 4 to 300KCmil, Aluminum/Copper
