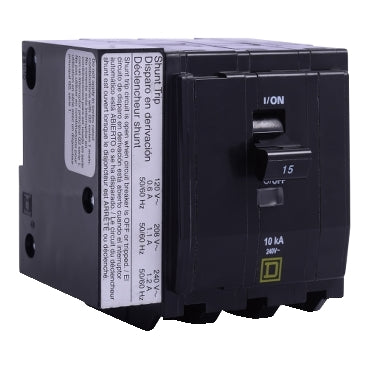

QOB3151021 - Square D 15 Amp 240V 3 Pole Bolt-On Circuit Breaker QOB Series

QOB3151021

QOB3151021 is a 3 pole, 15 amp thermal magnetic molded case circuit breaker from Square D's QOB Series designed for bolt-on mounting.This circuit breaker supports 120/240VAC and 48VDC voltage ratings with a 10kA interrupt rating at both 120VAC and 240VAC. It features a thermal magnetic trip unit and is UL and CSA certified for industrial and commercial applications.

Key Specifications
• Amperage: 15 Amp
• Voltage Rating: 120/240VAC, 48VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120VAC and 240VAC
• Series/Frame: QOB Series
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QOB3151021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic



Product Data

• UPC : 785901494379
• GTIN : 00785901494379
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.213
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper or Aluminum
