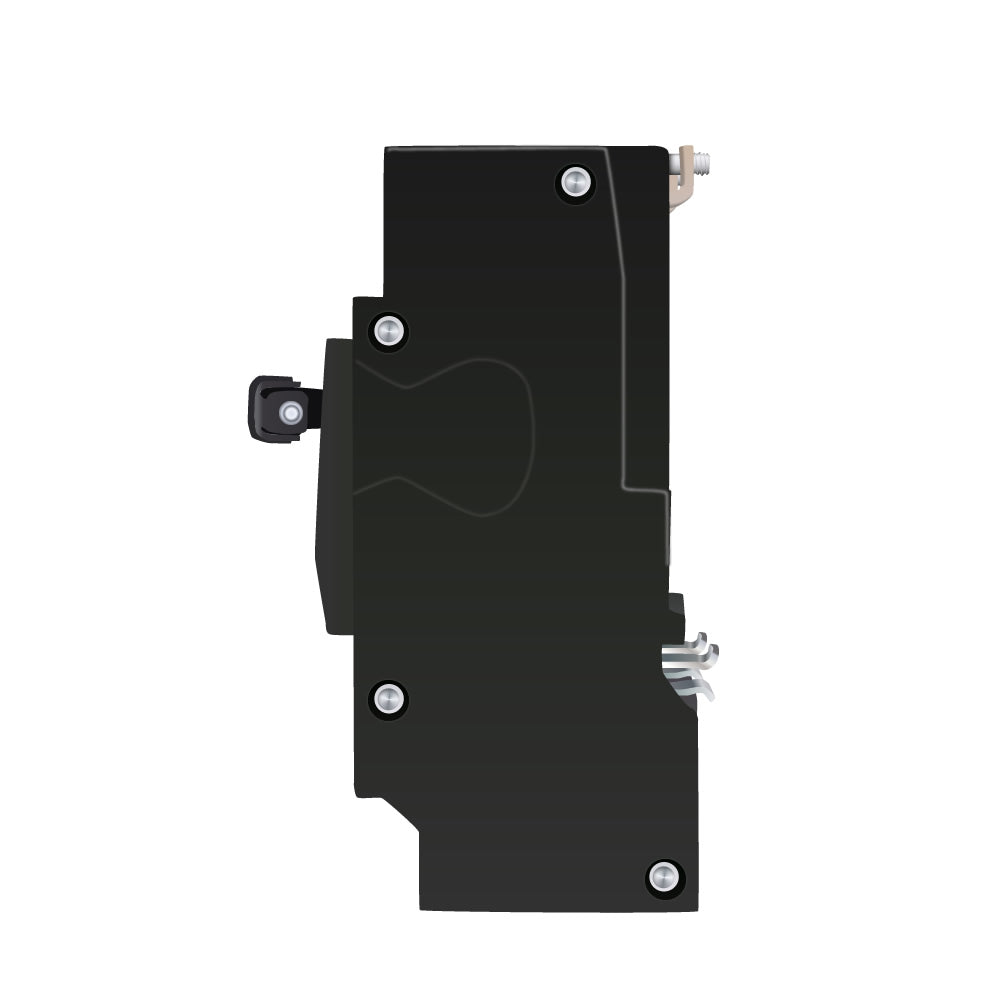

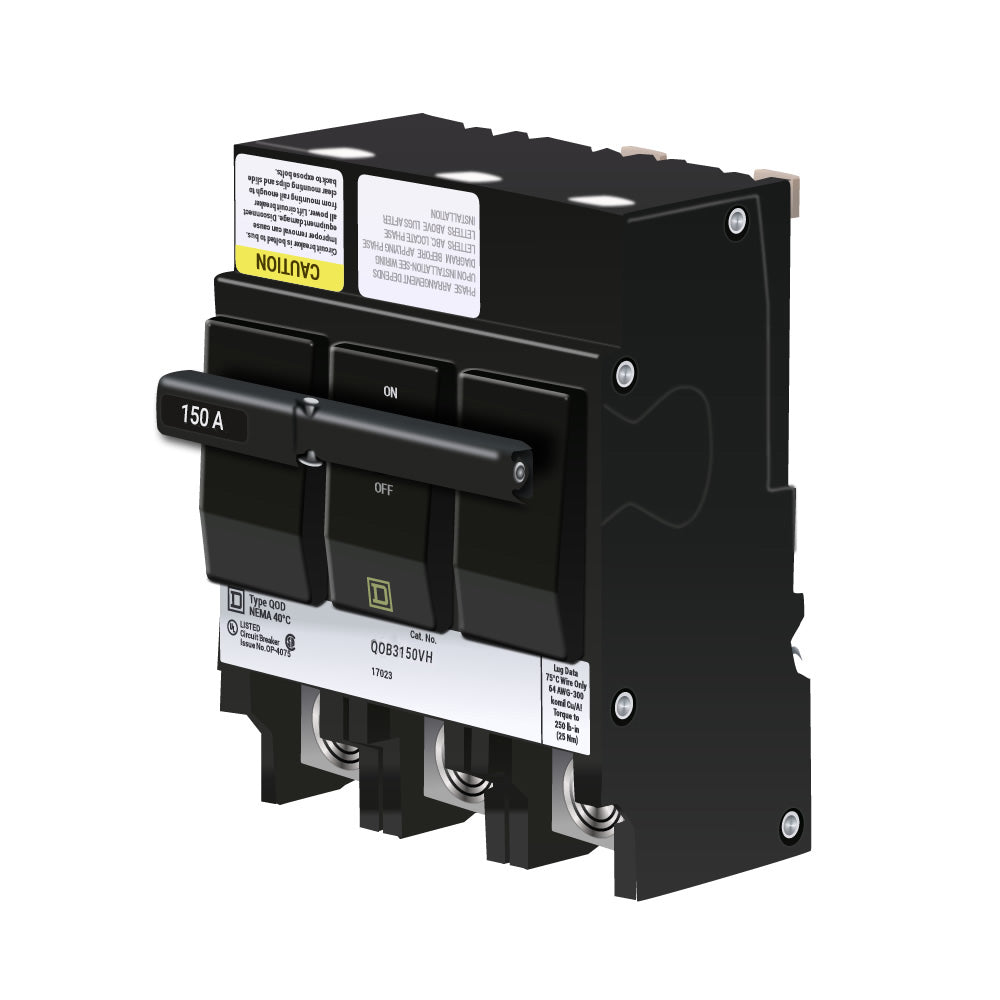

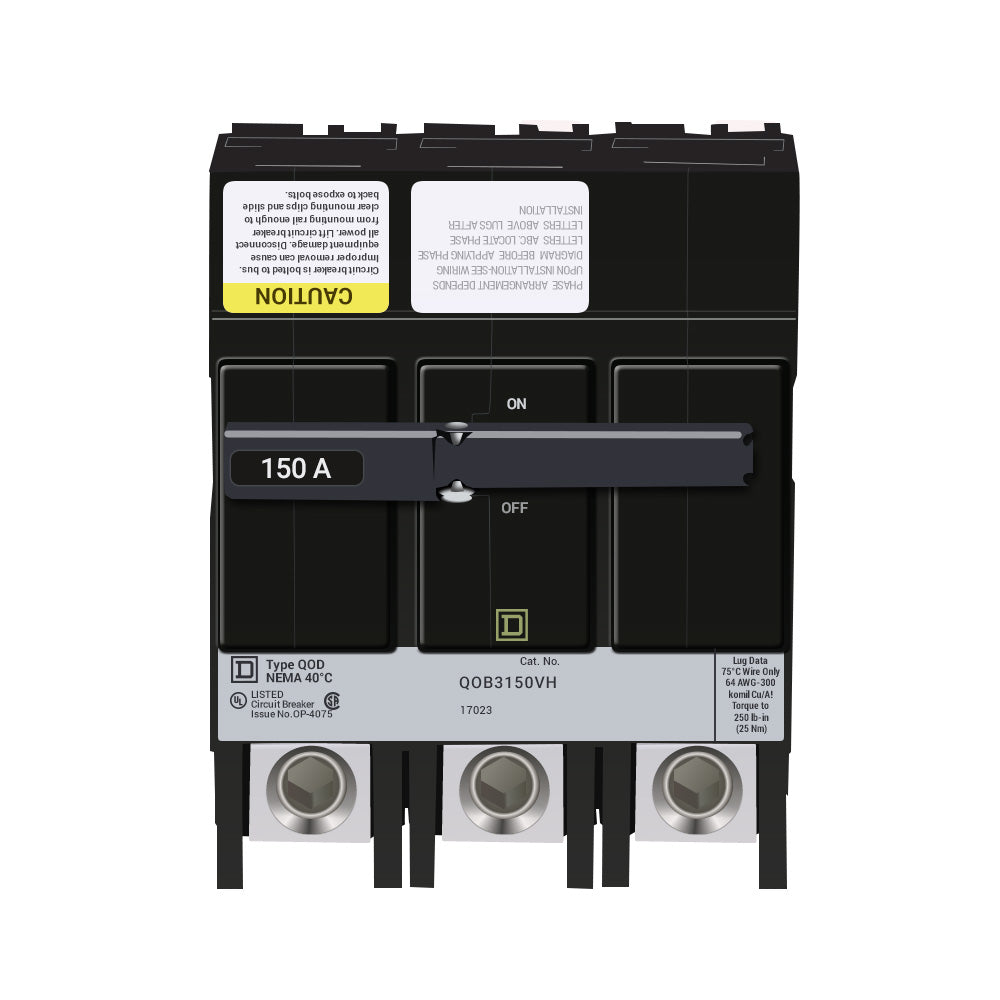

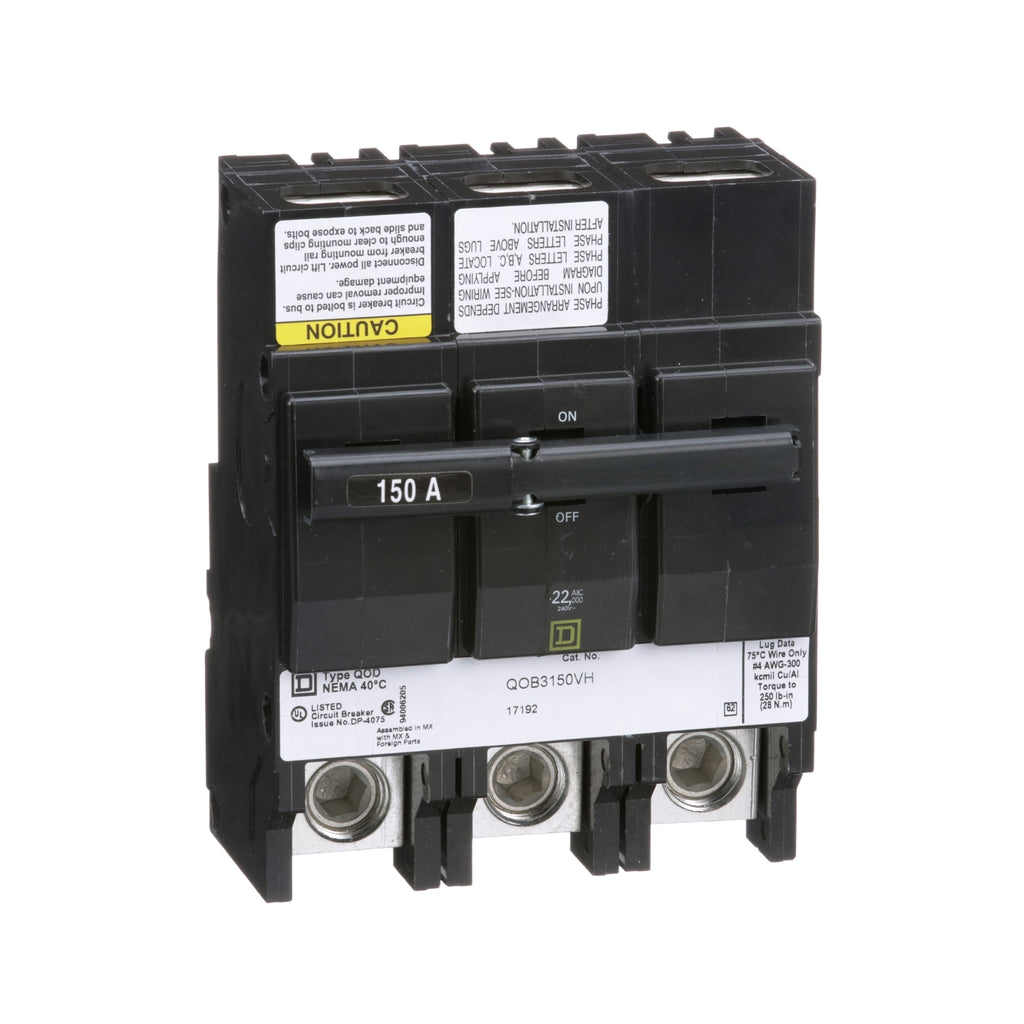

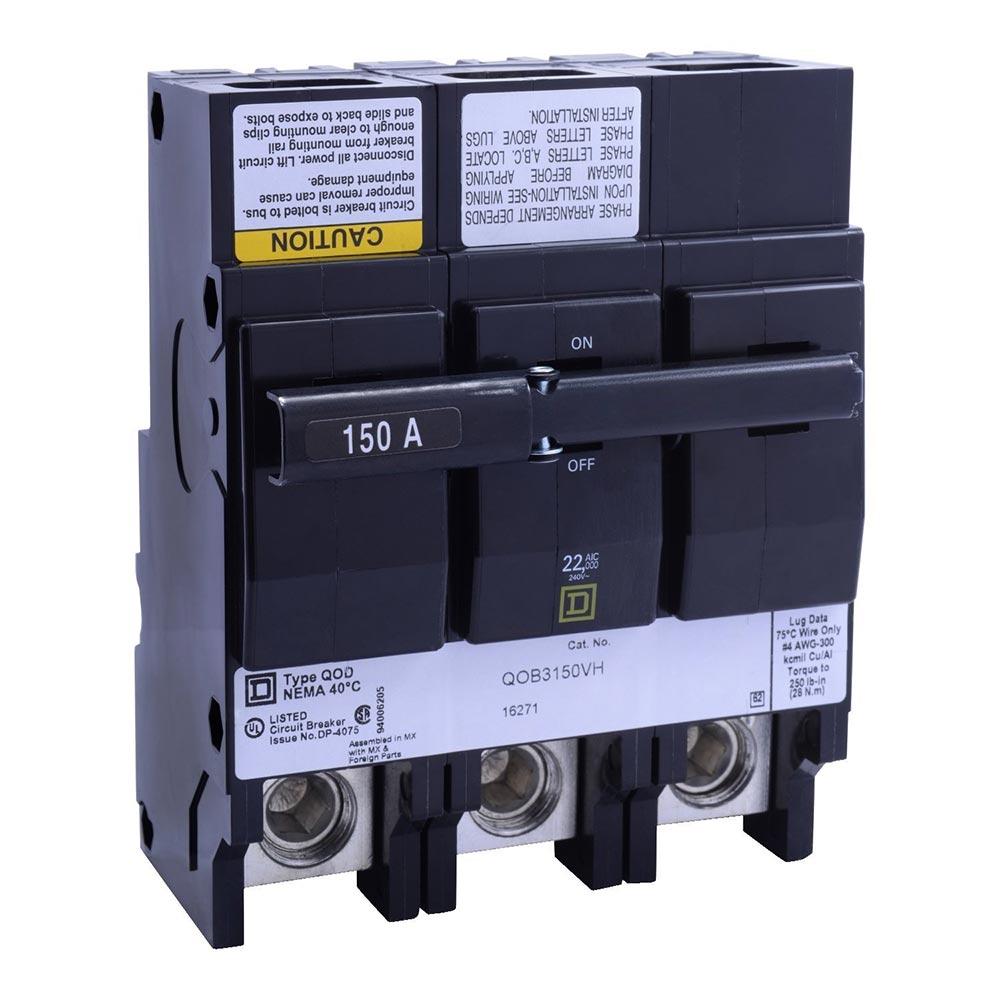

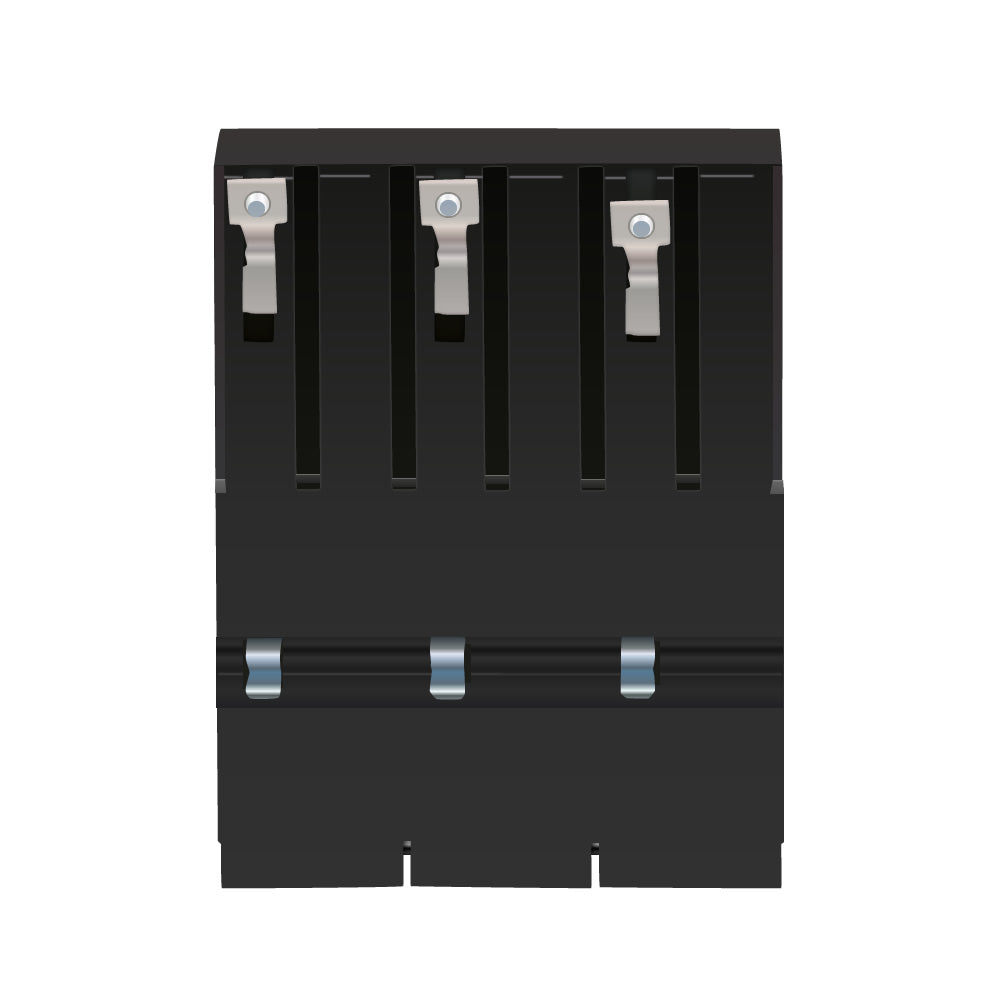

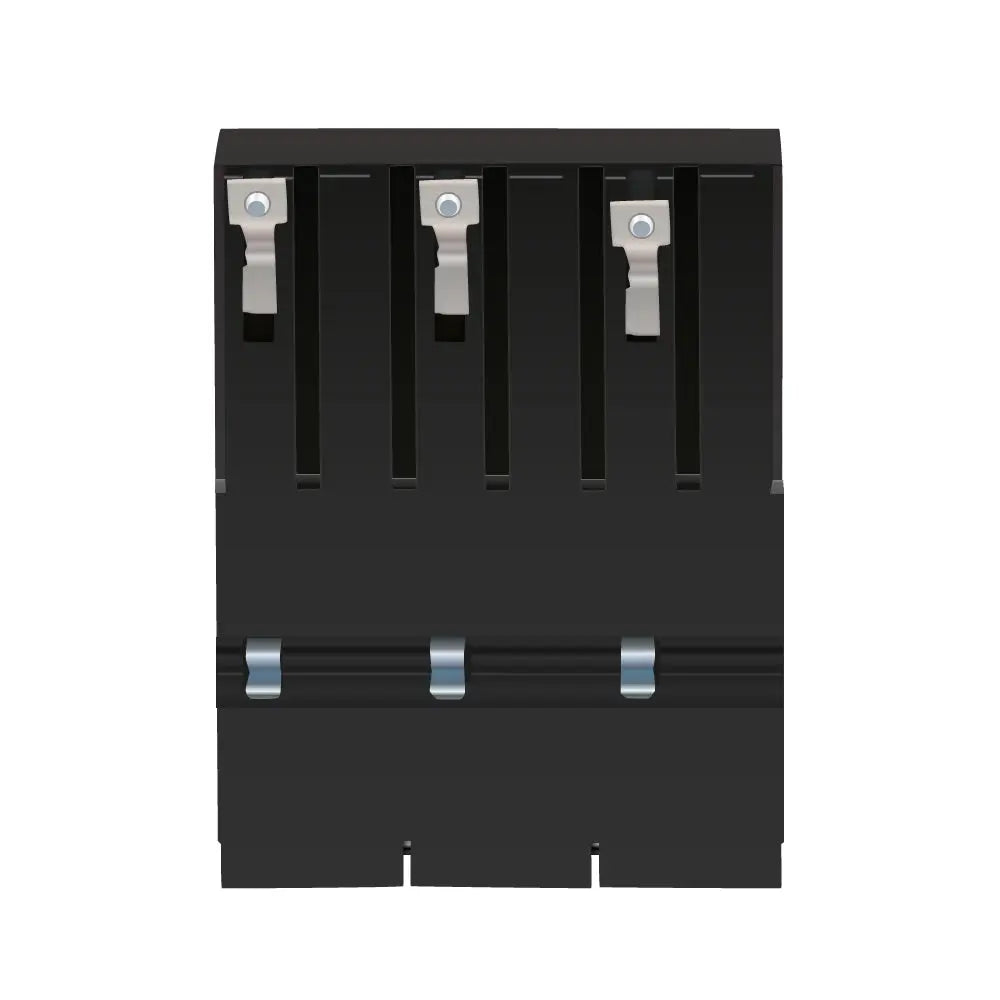

QOB3150VH - Square D 150 Amp 240 VAC 3 Pole Bolt-On Miniature Circuit Breaker 22kA Interrupt Rating

QOB3150VH

QOB3150VH is a 150 Amp, 3 Pole, 240 VAC bolt-on miniature circuit breaker from Square D designed for reliable overcurrent protection.This circuit breaker features a thermal magnetic trip unit with a 22kA interrupt rating, suitable for use in Square D NQOD panelboards. It supports 4 AWG wire size with box lug terminal connections and complies with UL, CSA, RoHS standards. The bolt-on mounting type ensures secure installation and fast setup with VisiTrip indication for easy diagnostics.

• Amperage: 150A
• Voltage: 120/240 VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA
• Trip Unit: Thermal Magnetic
• Wire Size: 4 AWG
• Terminal Connection: Box Lugs
• Compatible Panelboards: Square D NQOD
• Certifications: UL Listed, CSA, RoHS Compliant
• Series/Frame: QO

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB3150VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic
• Shipping Dimensions : 8x8x8

Product Data

• UPC : 785901065517
• GTIN : 00785901065517
• Country of Origin : Mexico
• Dimensions : 5.7 in (145 mm) x 4.5 in (114 mm) x 4.9 in (124 mm) (Height x Width x Depth)
• Weight : 3.979 lb
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 4 to 300KCmil, Copper or Aluminum
