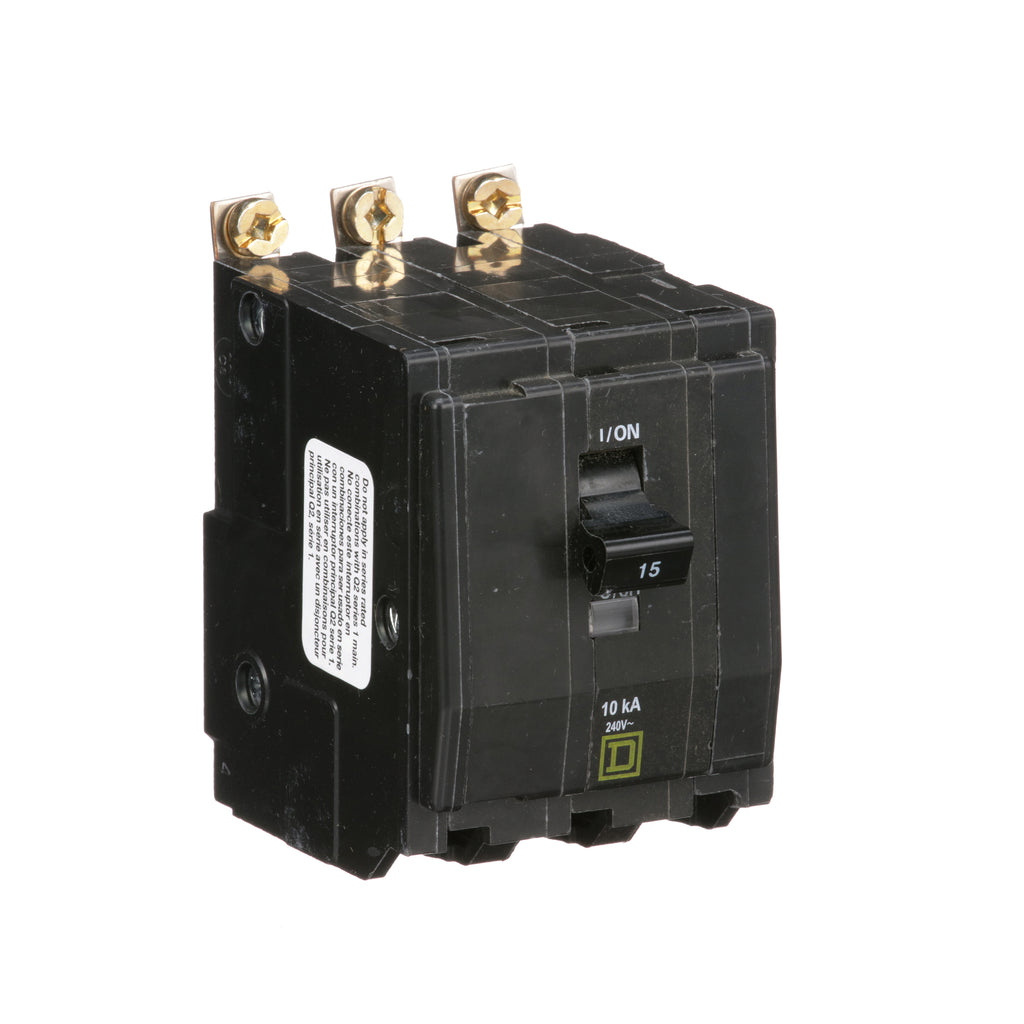

QOB315 - Square D 15 Amp 3 Pole Bolt-On Circuit Breaker 120/240VAC 10kAIC QOB Series

QOB315

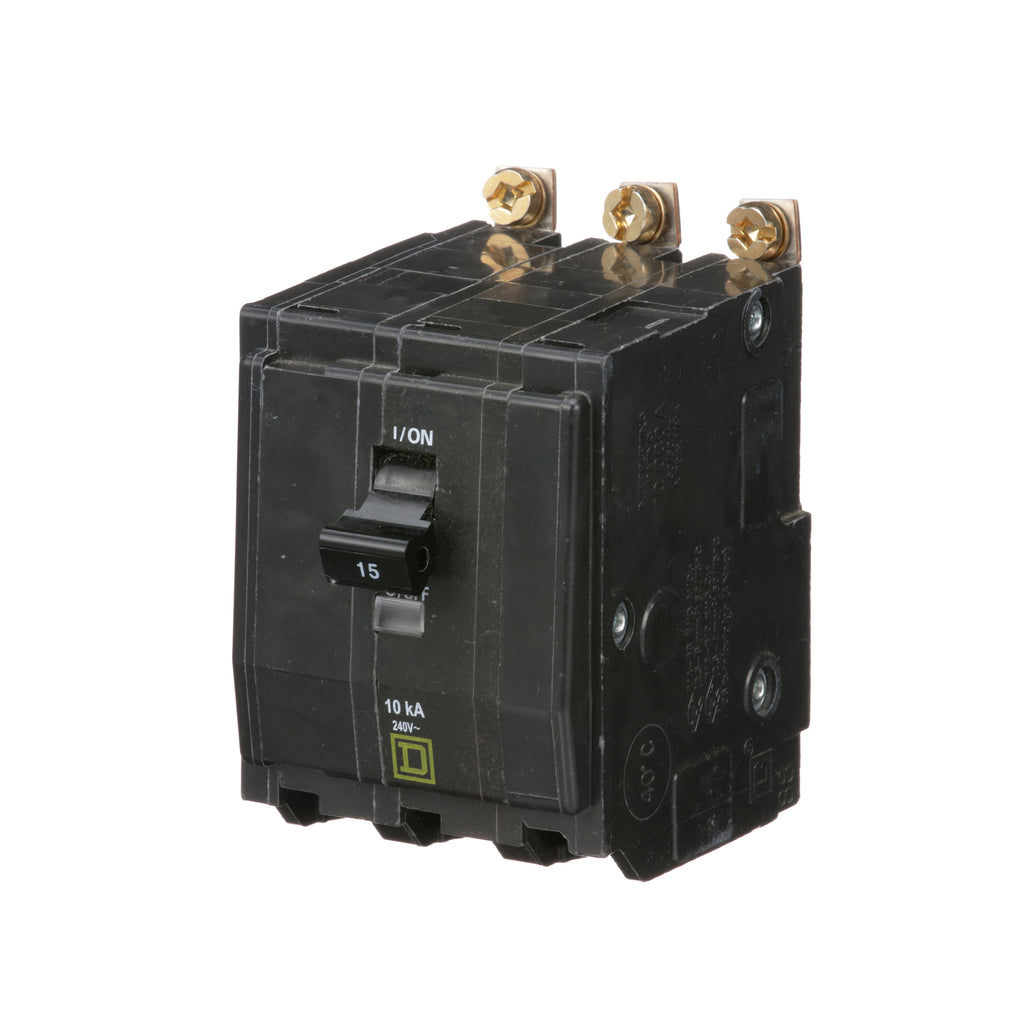

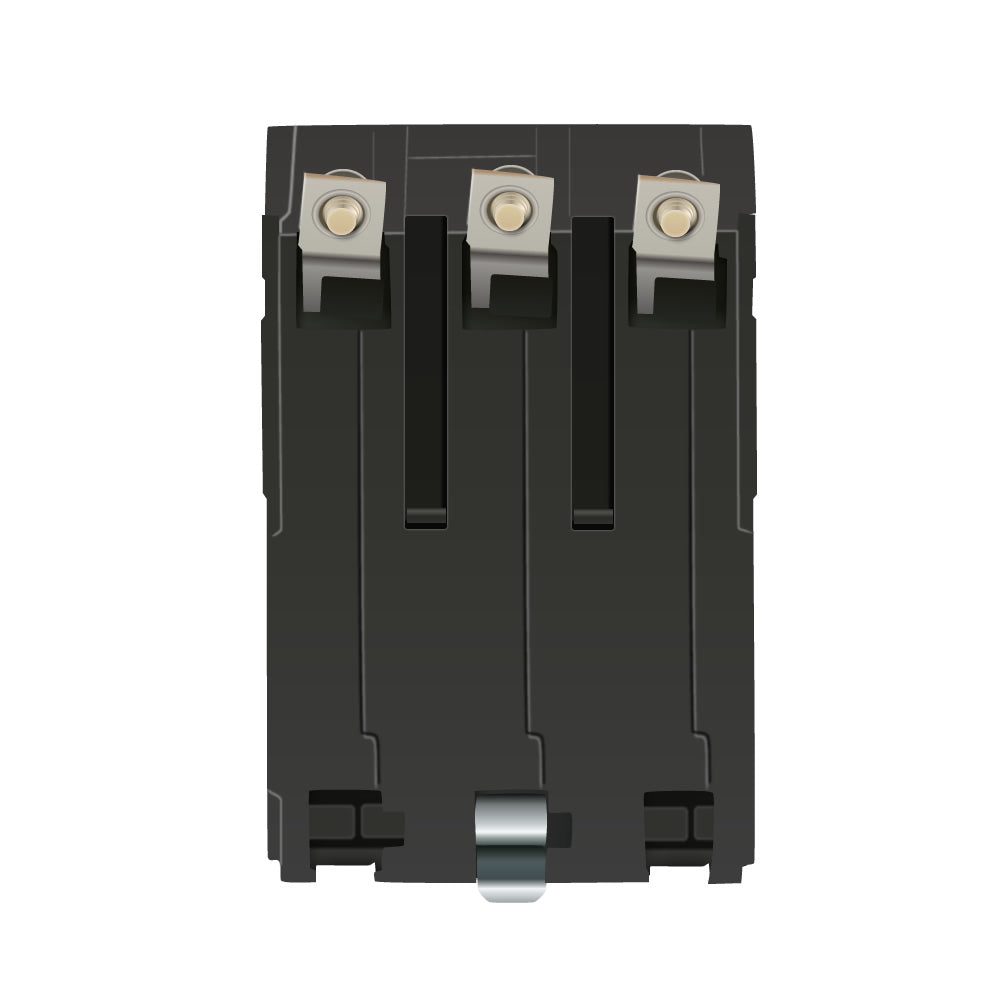

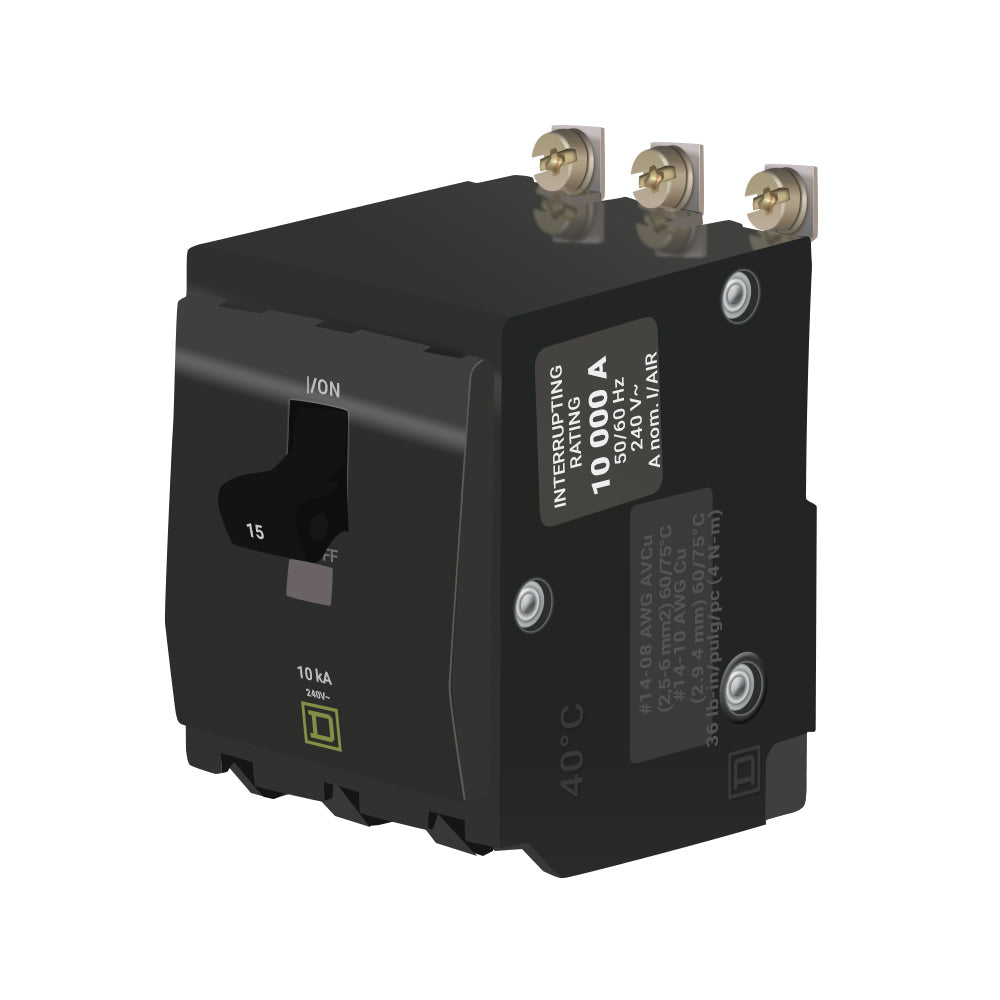

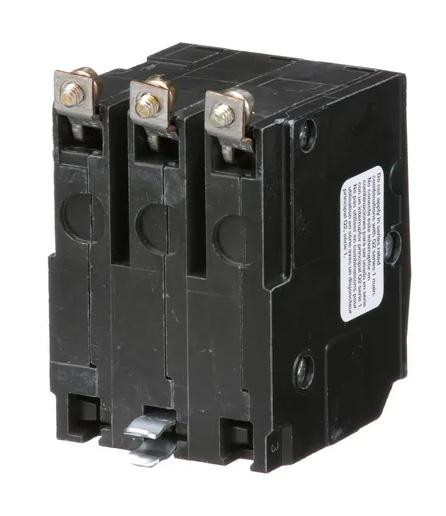

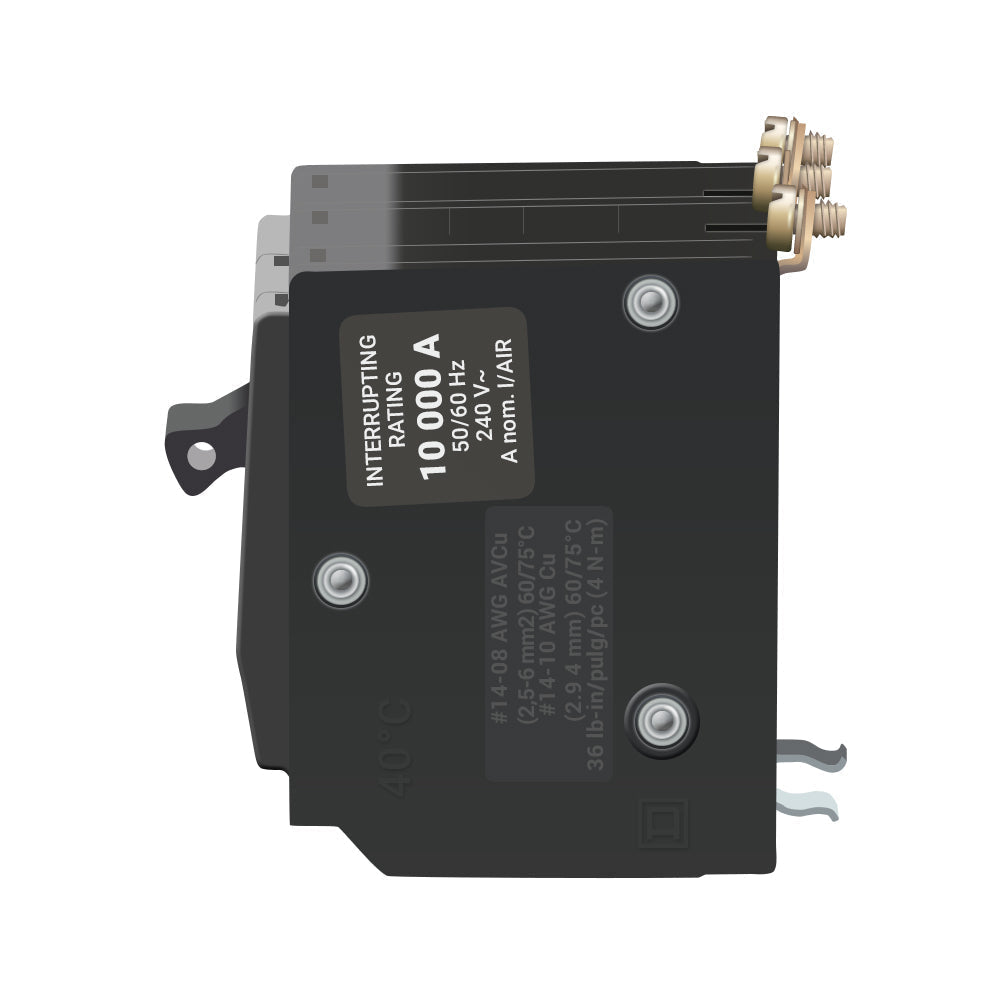

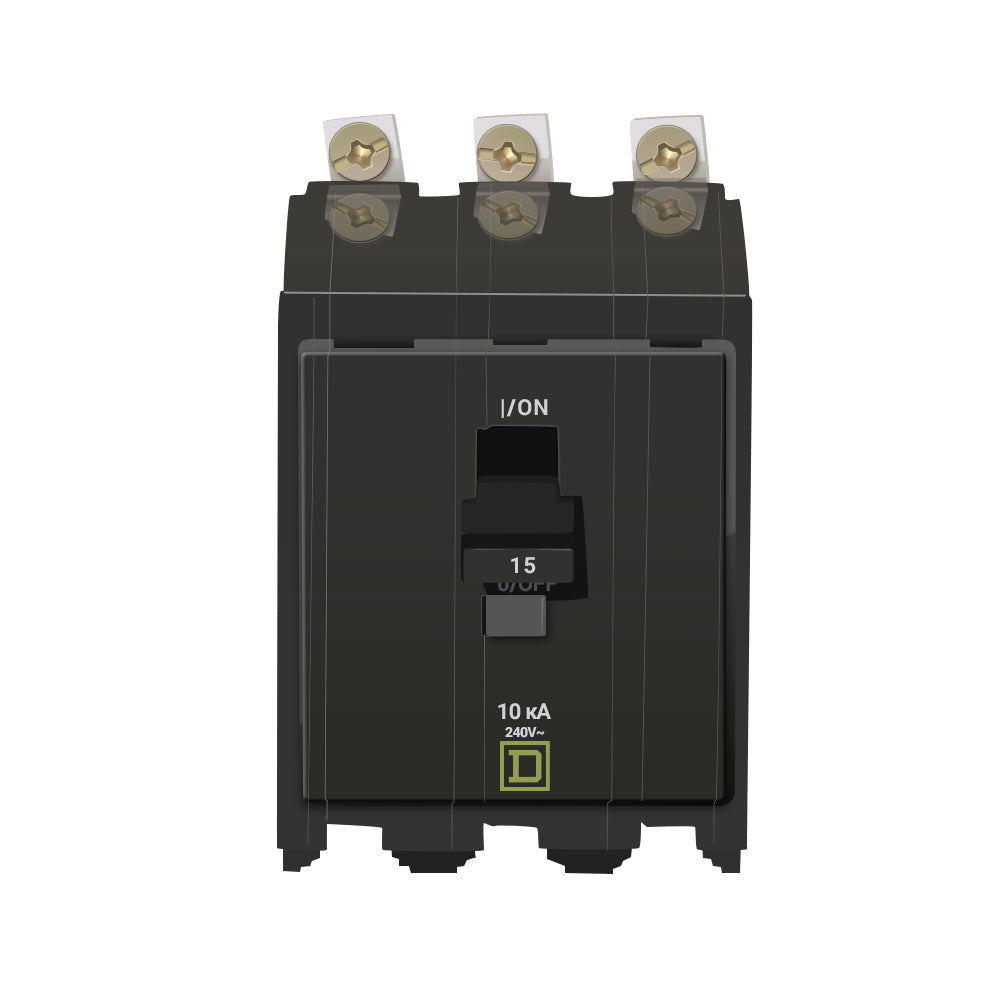

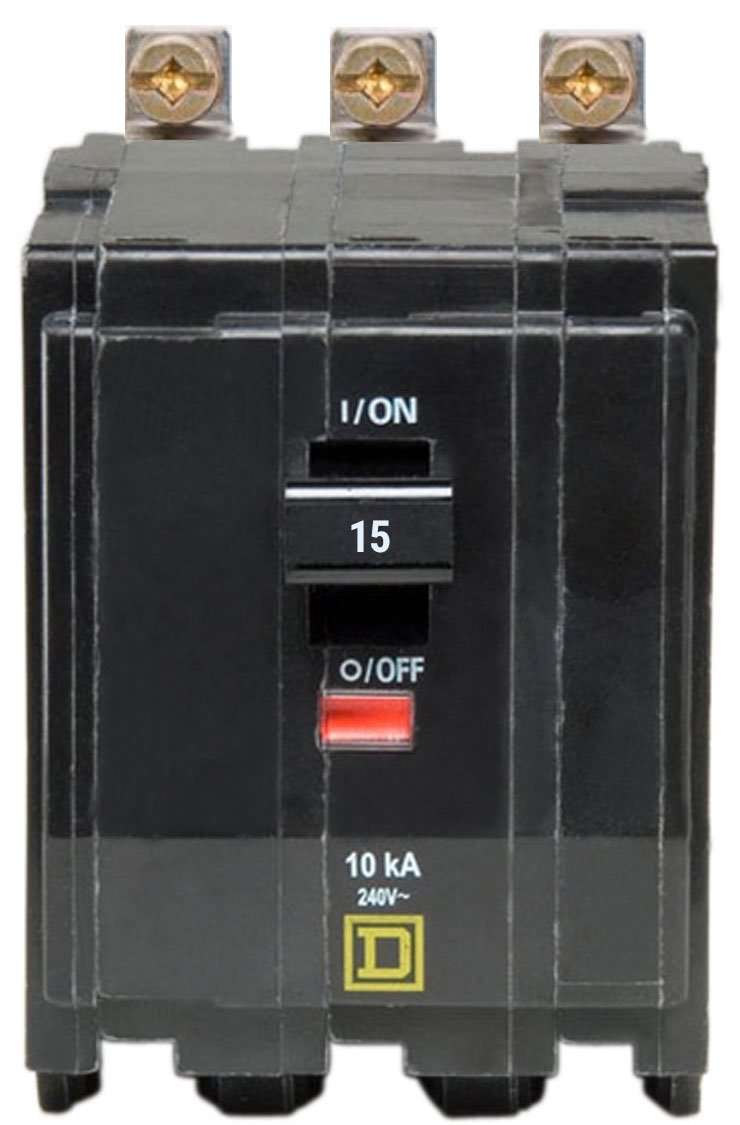

QOB315 is a 15 Amp, 3 Pole bolt-on circuit breaker from Square D designed for reliable protection in electrical systems.This Square D QOB315 circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It supports 120/240VAC and 48VDC voltages with a 10kA interrupting rating at 120/240VAC. The breaker mounts with a bolt-on connection and is UL and CSA certified. It is mercury free and compatible with NQOD panelboards, suitable for wire sizes AWG 14 to AWG 8 copper or aluminum.

Key Specifications
• Amperage: 15 Amps
• Voltage: 120/240VAC, 48VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10kAIC at 120/240VAC
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Certifications: UL, CSA, RoHS, REACh, HACR
• Connection Type: Pressure Plate
• Wire Gauge: AWG 14 to AWG 8 (Copper or Aluminum)
• Breaker Feature: Mercury Free
• Compatible Panelboards: NQOD
At Essential Parts, we offer fast shipping, low(more...)


Specifications

• Part Number: QOB315
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 785901417064
• GTIN : 00785901417064
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.85
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper or Aluminum
