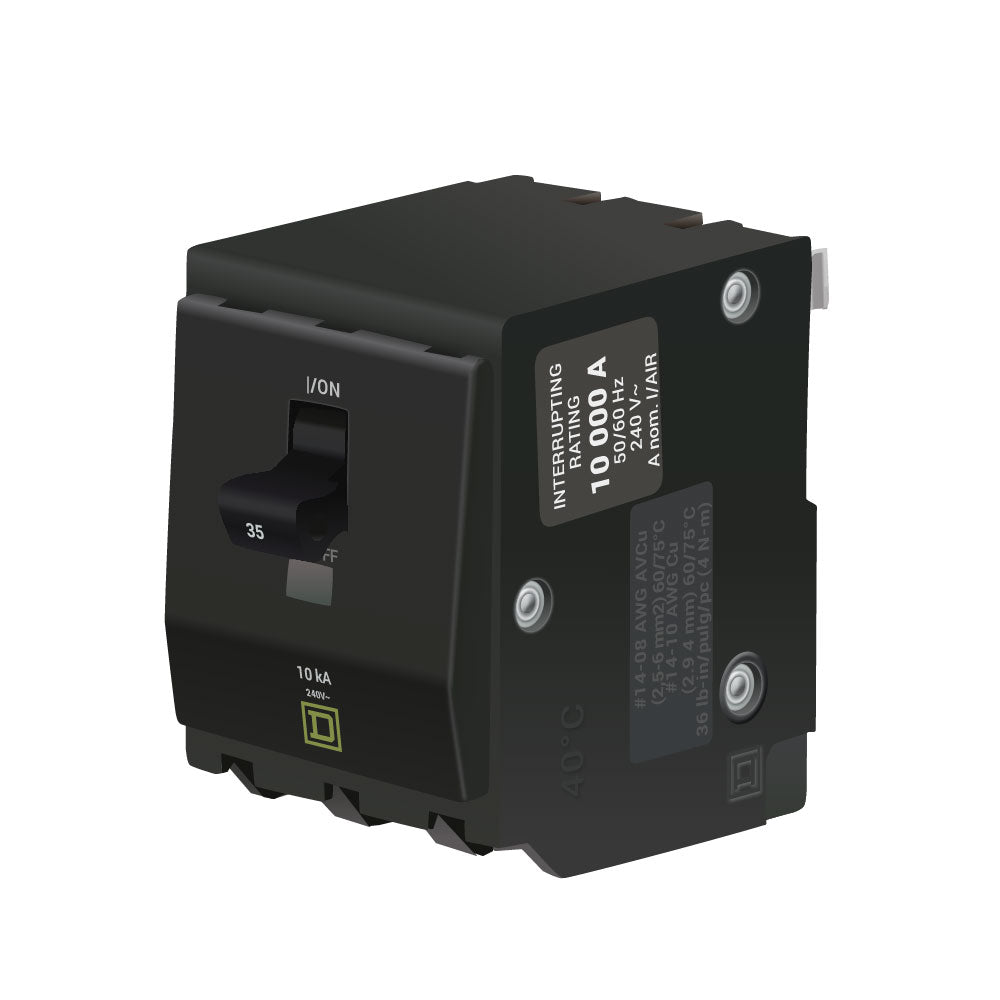

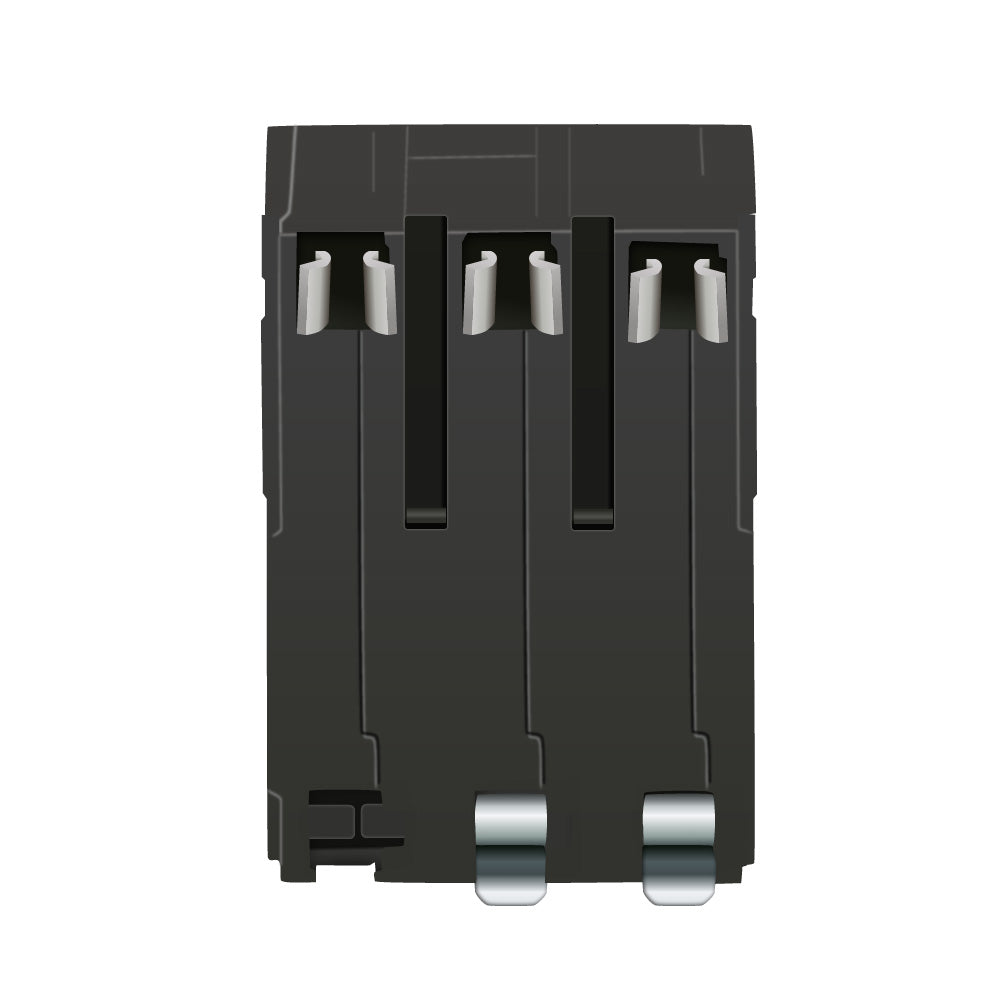

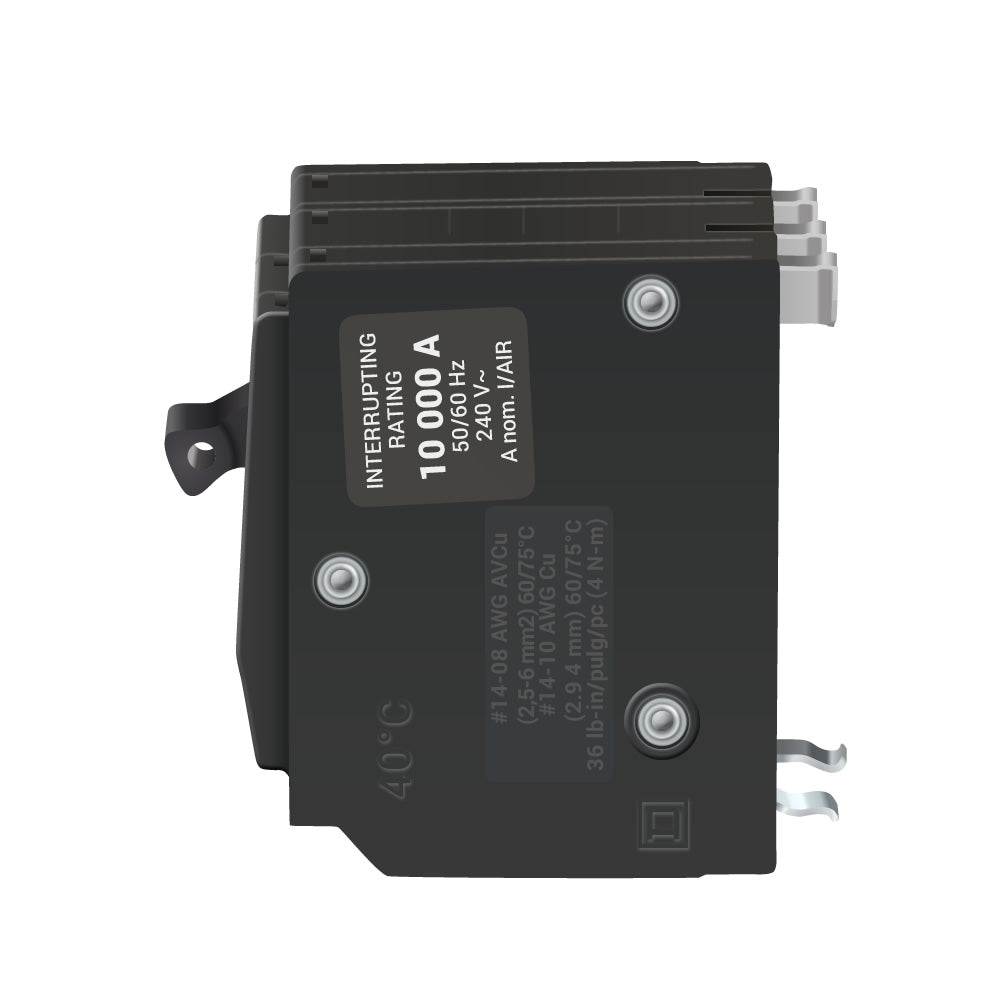

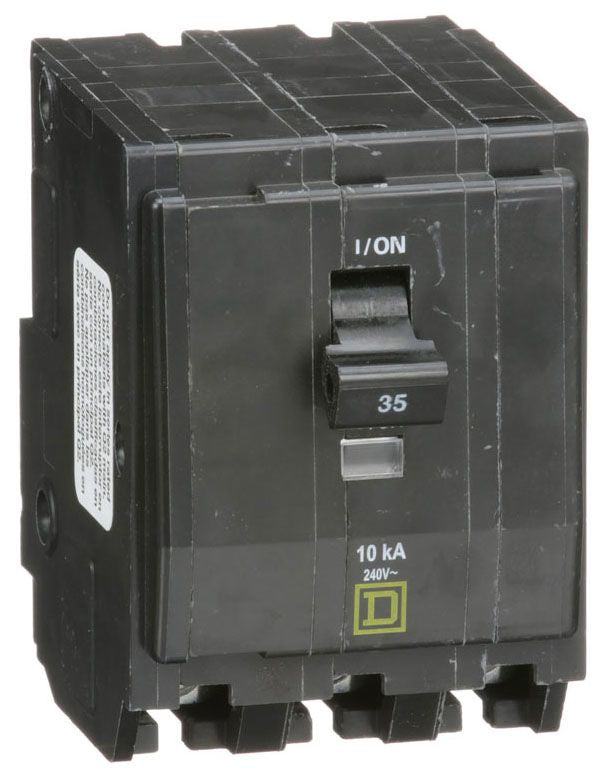

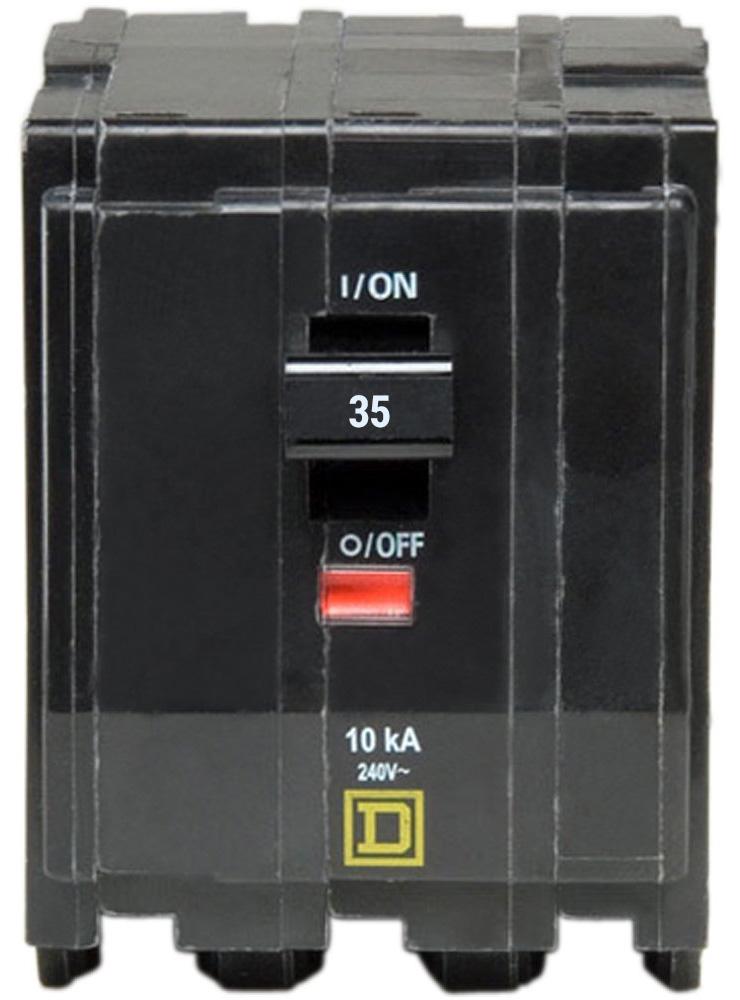

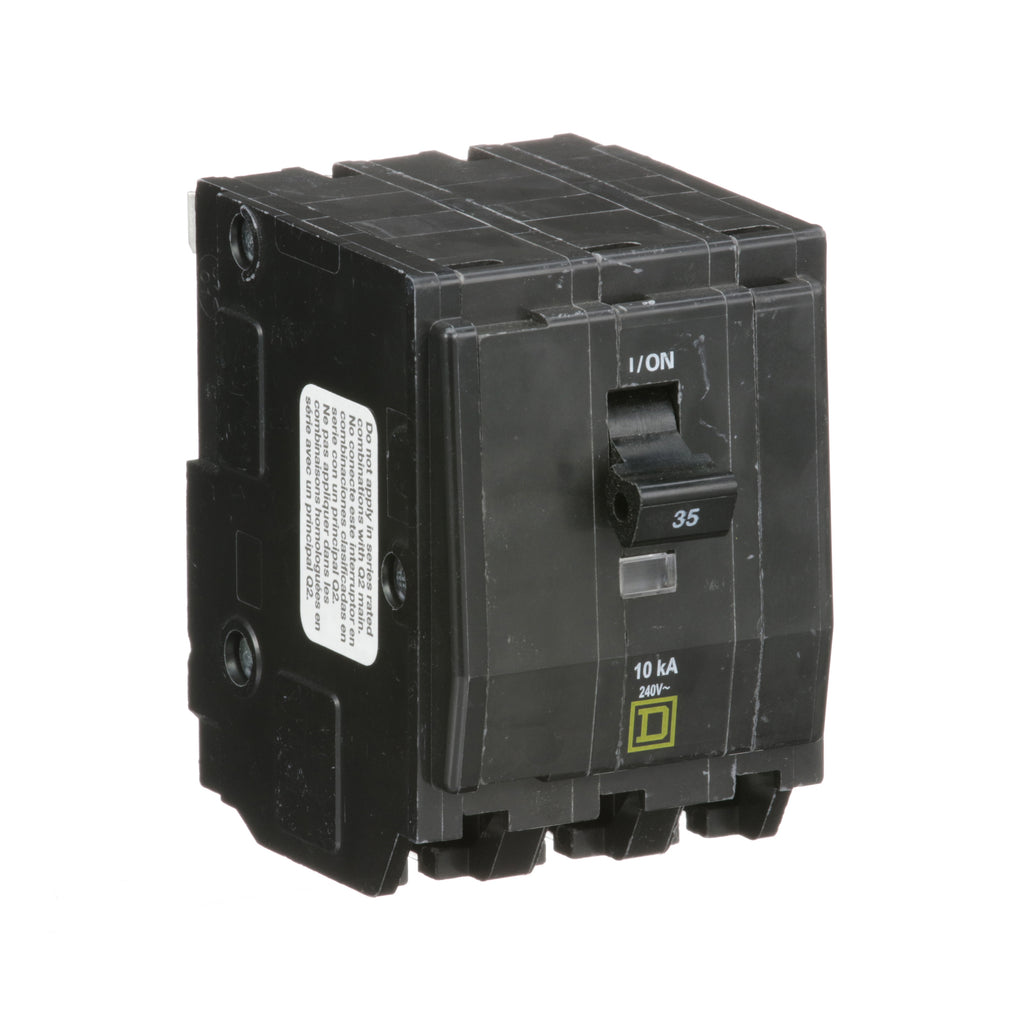

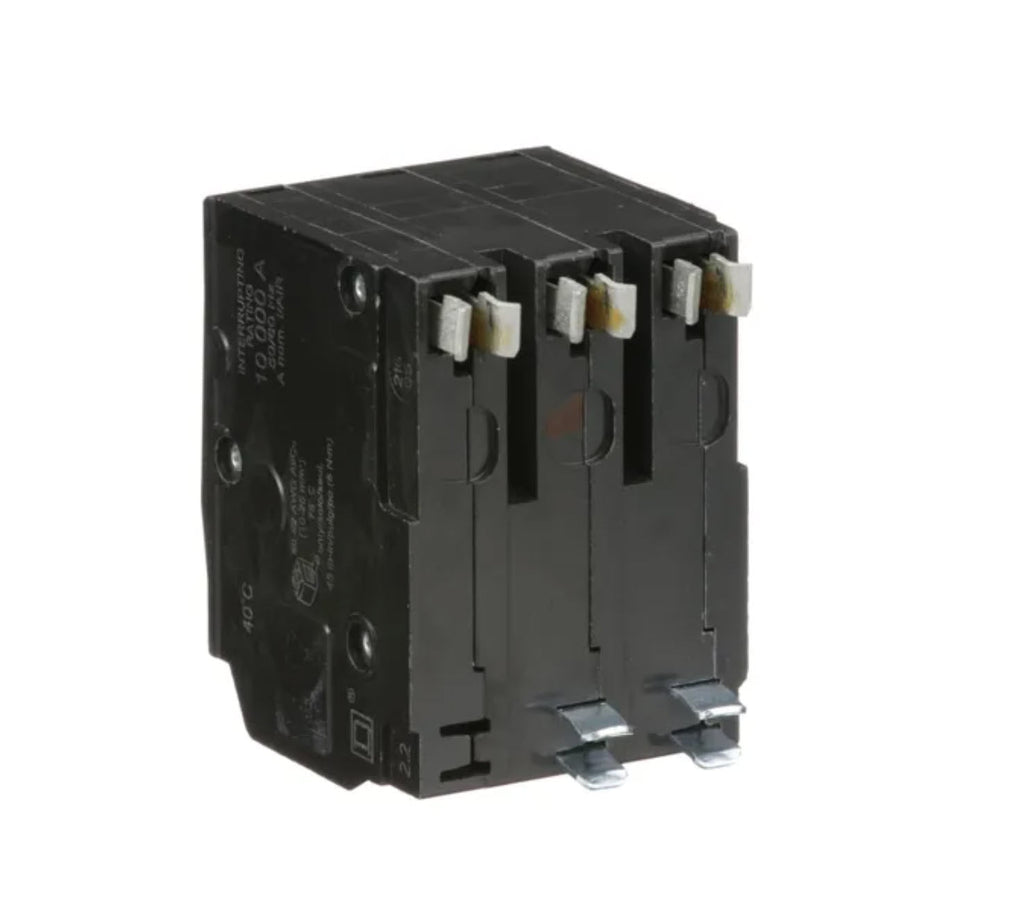

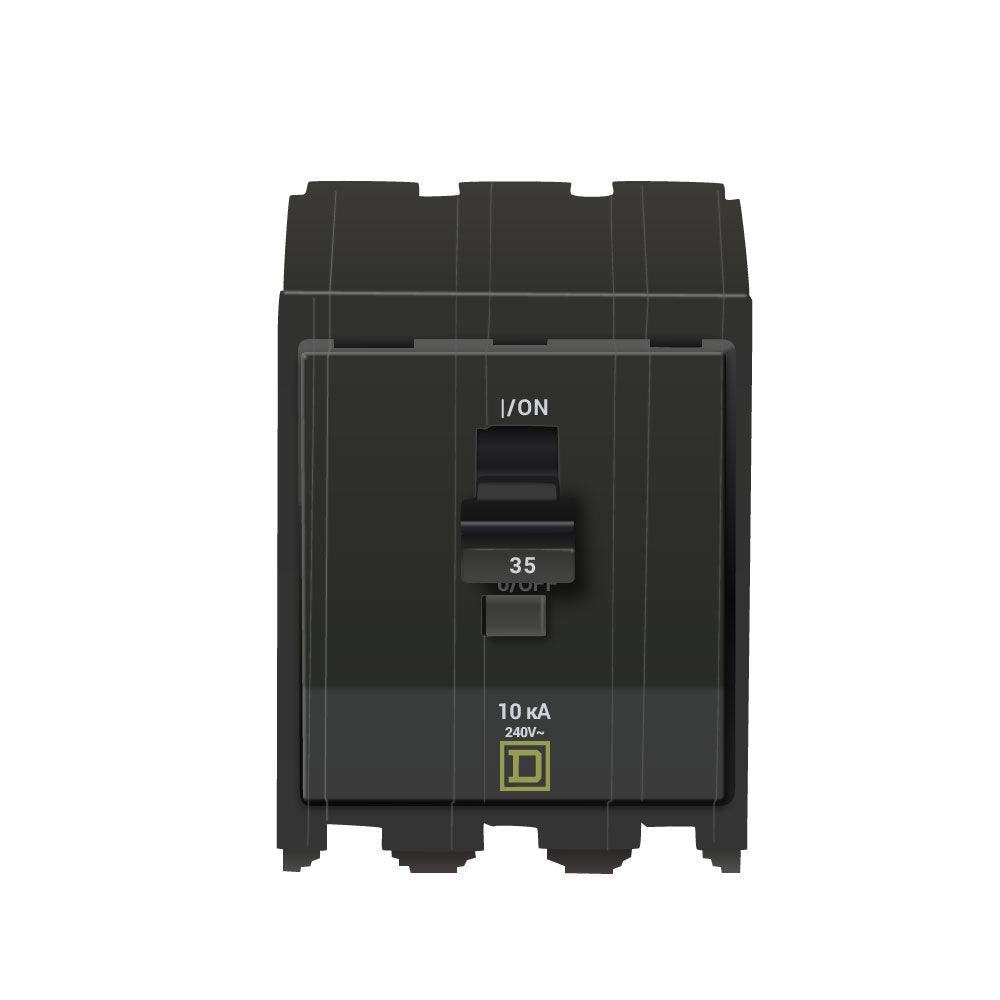

QO335 - Square D QO 35A 240V 3-Pole Miniature Circuit Breaker, Plug-On Mount, Thermal Magnetic Trip, 10kA Interrupt, QO Series

QO335

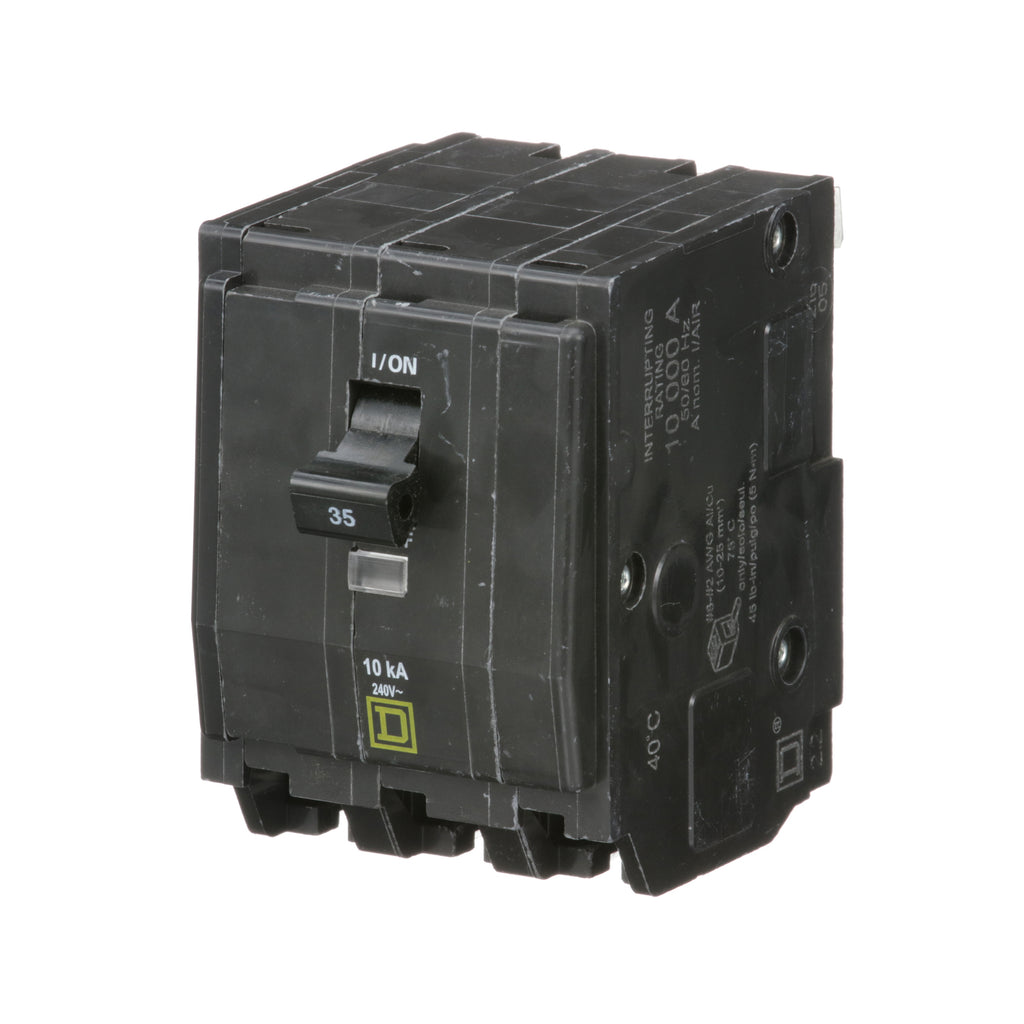

QO335 is a Square D QO Series 3-pole miniature circuit breaker designed for reliable overload and short circuit protection in commercial and industrial applications.

This standard thermal magnetic circuit breaker features a 35A current rating, 240V AC voltage rating, and a 10kA interrupt rating. It is plug-on mounted for easy installation in compatible QO load centers and is suitable for use in three-phase systems. The QO335 is engineered for durability and safety, with a common trip mechanism and a compact, space-saving design.

Key Specifications
• Part Number: QO335
• Manufacturer: Square D (Schneider Electric)
• Amperage: 35A
• Voltage: 240V AC, 48V DC
• Poles: 3

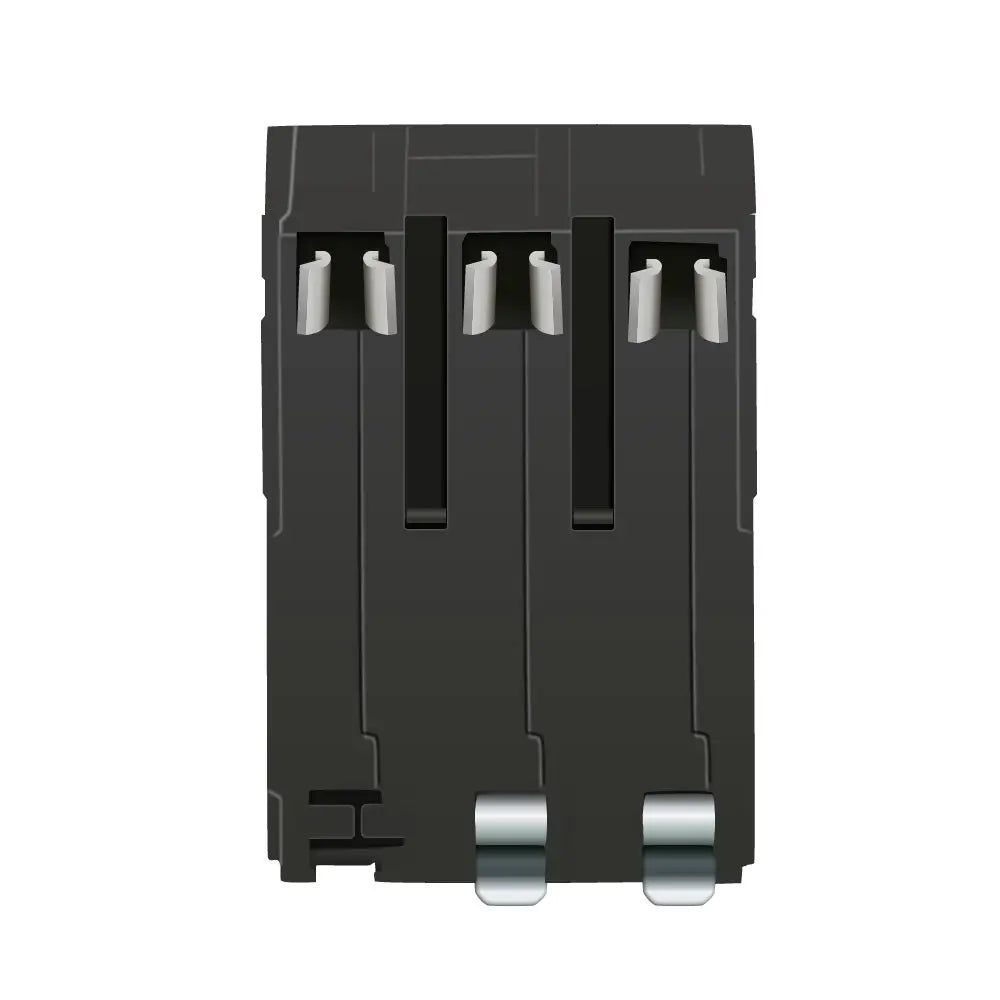

• Mounting Type: Plug-On
• Interrupt Rating: 10kA at 120/240V AC, 5kA at 48V DC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Certifications: Not specified in available data
• Wire Size: 8 to 2 AWG
• Operating Temperature: 40°C (104°F)
• Dimensions: 2.91" L x 2.25" W x 3" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO335
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 240
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901012474
• GTIN : 00785901012474
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.81
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 8 to AWG 2, Copper or Aluminum
