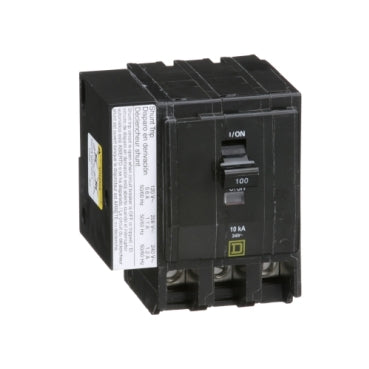

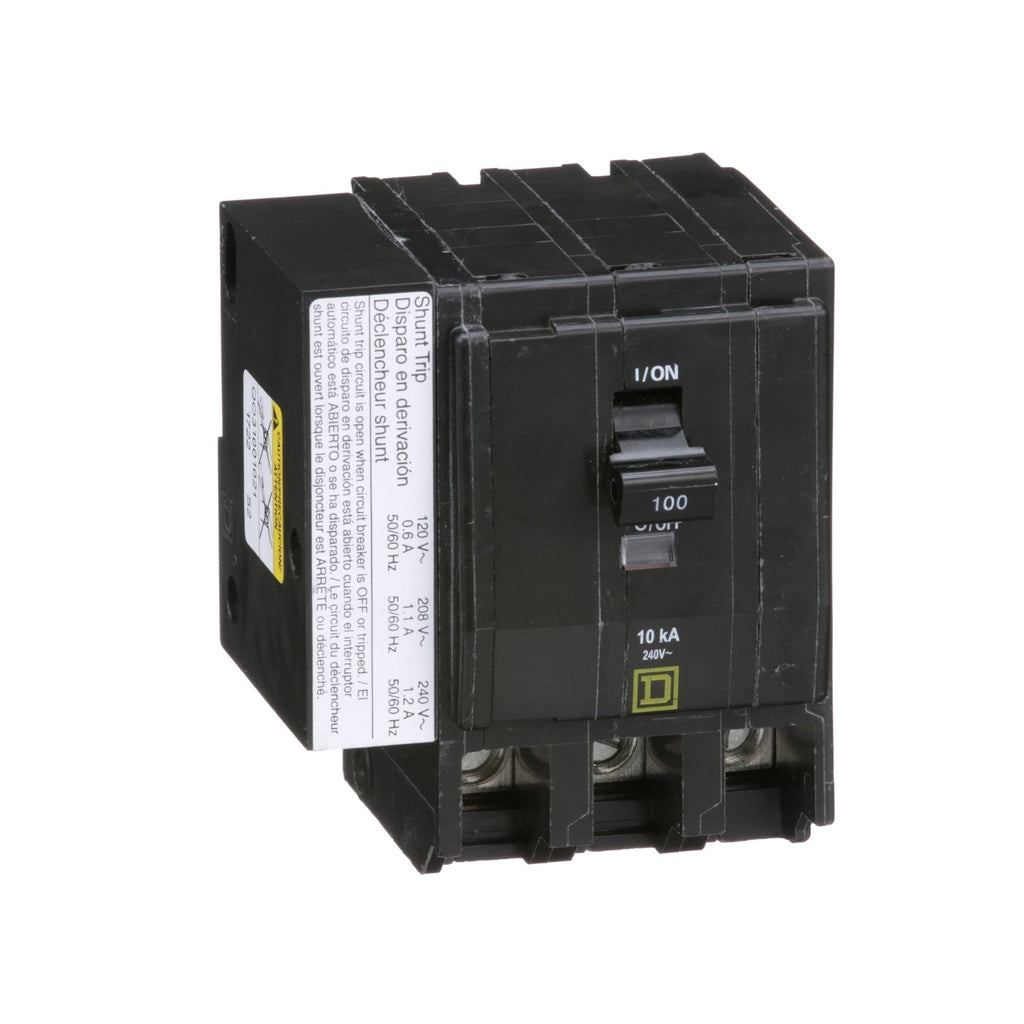

QO31001021 - Square D 100A 240V 3-Pole Circuit Breaker Shunt Trip Plug-In

QO31001021

QO31001021 is a Square D 100 amp, 240 volt, 3-pole circuit breaker with a shunt trip feature for enhanced remote tripping control.This Square D QO31001021 circuit breaker features a plug-in mounting type, 10kA interrupt rating, and is designed for use in QO load centers and panelboards. It provides reliable thermal magnetic trip protection and is UL and CSA certified for safety and performance.

• Amperage: 100A
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Plug-in
• Interrupt Rating: 10kA @ 240 VAC
• Trip Unit: Thermal Magnetic
• Shunt Trip: Yes (120V control)
• Series/Frame: QO
• Certifications: UL, CSA
• Connection Type: Plug-On
• Common Trip: Yes
• Compatible with QO load centers and panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO31001021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 100A/QO
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901030560
• GTIN : 00785901030560
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.33
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
