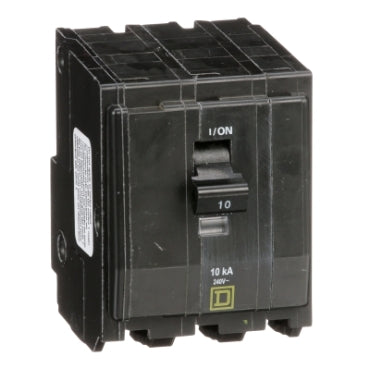

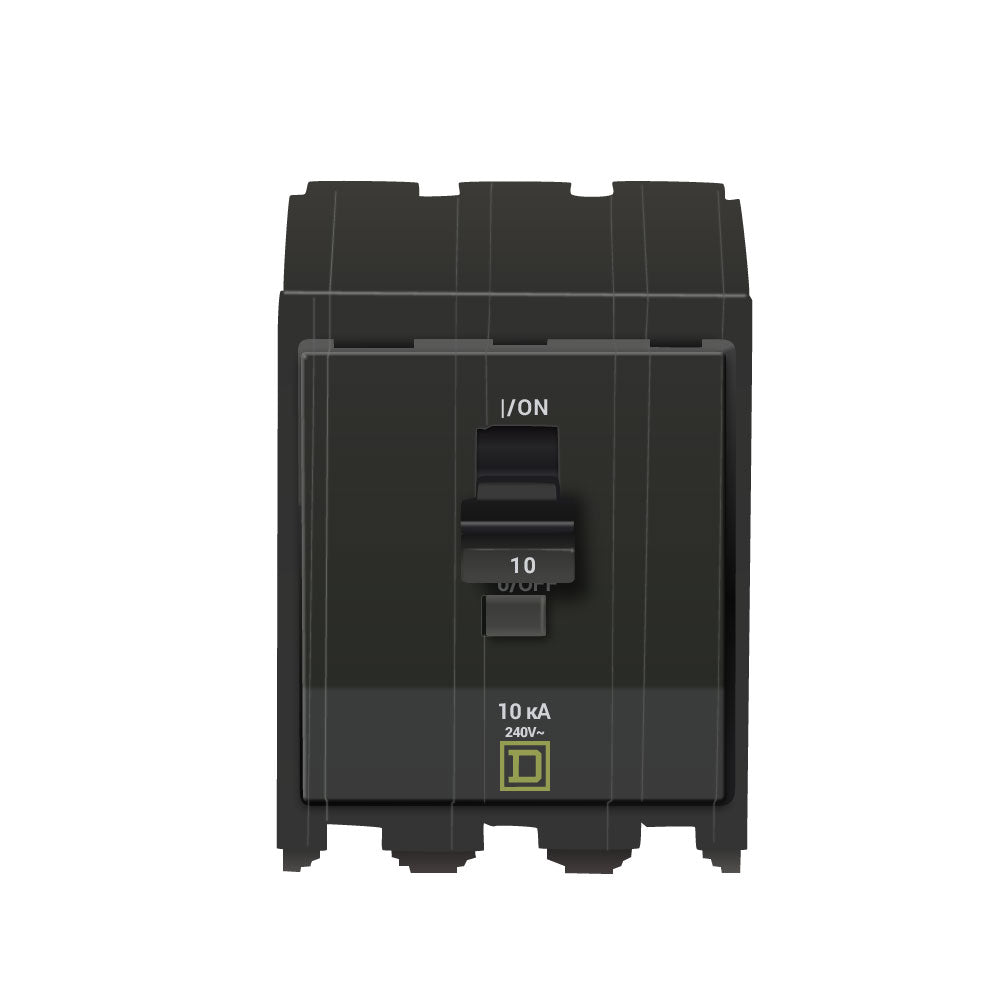

QO310 - Square D 10 Amp 3 Pole 240V Circuit Breaker Plug-In Thermal Magnetic

QO310

QO310 is a 3 pole, 10 amp circuit breaker from Square D designed for 240V applications with plug-in mounting.This Square D QO Series molded case circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions. It has a 10 kiloampere interrupt rating at 240V and is suitable for QO Series load centers. The breaker provides reliable circuit protection with a compact design and pressure plate electrical connections.

• Manufacturer: Square D
• Series: QO
• Poles: 3
• Amperage: 10 A
• Voltage Rating: 240 V
• Interrupt Rating: 10 kA at 240 V
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Mounting Type: Plug-In
• Connection: Pressure Plate
• Phase: 3
• Dimensions (HxWxD): 2.99" x 2.24" x 2.91"
• Certifications: UL Listed (implied by standard compliance)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO310
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 240
• Amperage : 10
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 78590147748
• GTIN : 00785901477488
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.77
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
