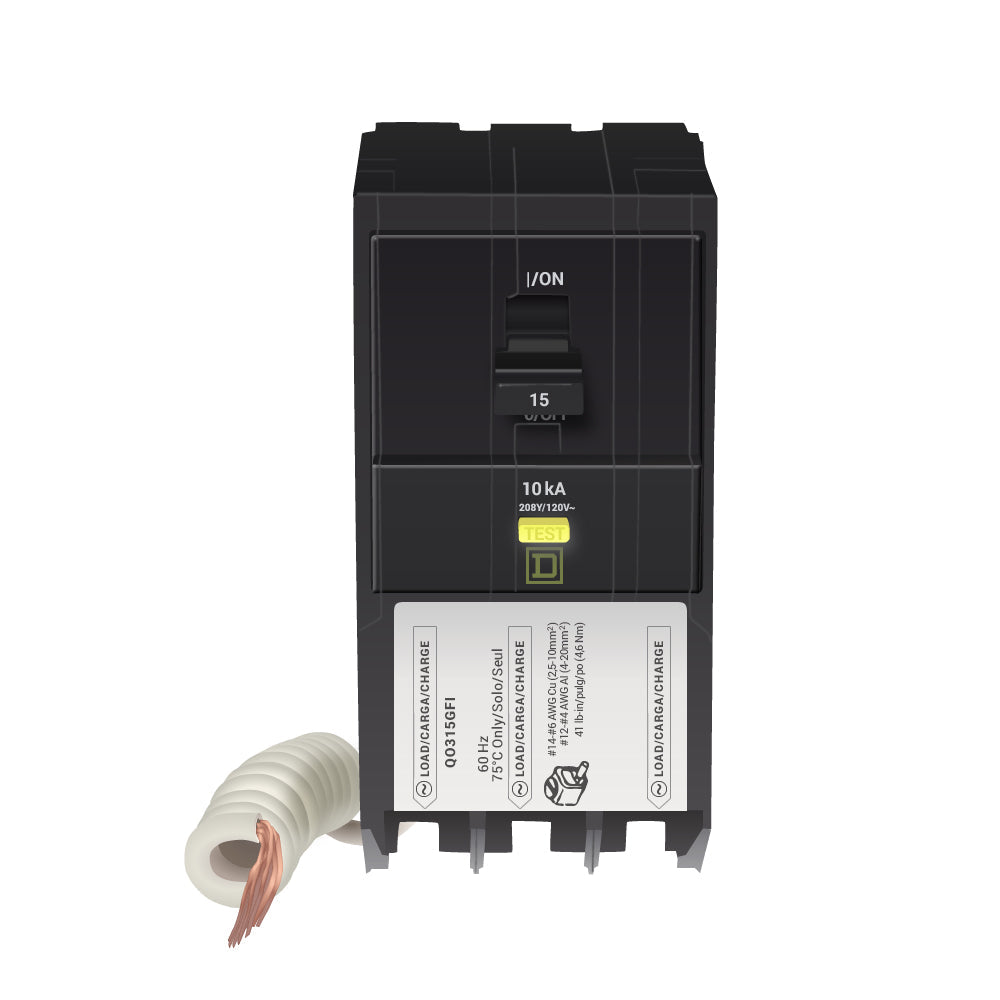

QO315GFI - Square D 15A 3-Pole 208Y/120VAC Ground Fault Circuit Breaker Plug-In QO Series

QO315GFI

QO315GFI is a 15 Amp, 3-pole ground fault circuit breaker from Square D's QO Series designed for 208Y/120VAC systems with plug-in mounting.This molded case circuit breaker features thermal magnetic protection with long time and instantaneous trip functions. It has a 10kA interrupting rating at 208Y/120VAC and is UL and CSA certified. The breaker uses a pressure plate connection and is compatible with QO load centers and NQ panelboards.

• Manufacturer: Square D
• Series: QO
• Amperage: 15A
• Voltage: 208Y/120VAC
• Poles: 3
• Mounting Type: Plug-In
• Interrupting Rating: 10kA at 208Y/120VAC
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Connection Type: Pressure Plate
• Certifications: UL, CSA
• Compatible with QO Load Centers and NQ Panelboards
• Wire Gauge: AWG 14 to 8 Copper, AWG 12 to 8 Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO315GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901652311
• GTIN : 00785901652311
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.41
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8 Copper, AWG 12 to AWG 8 Aluminum
