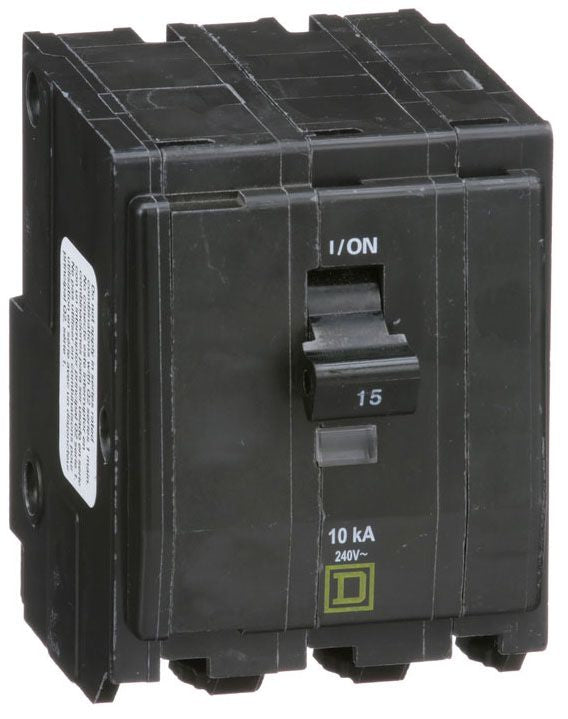

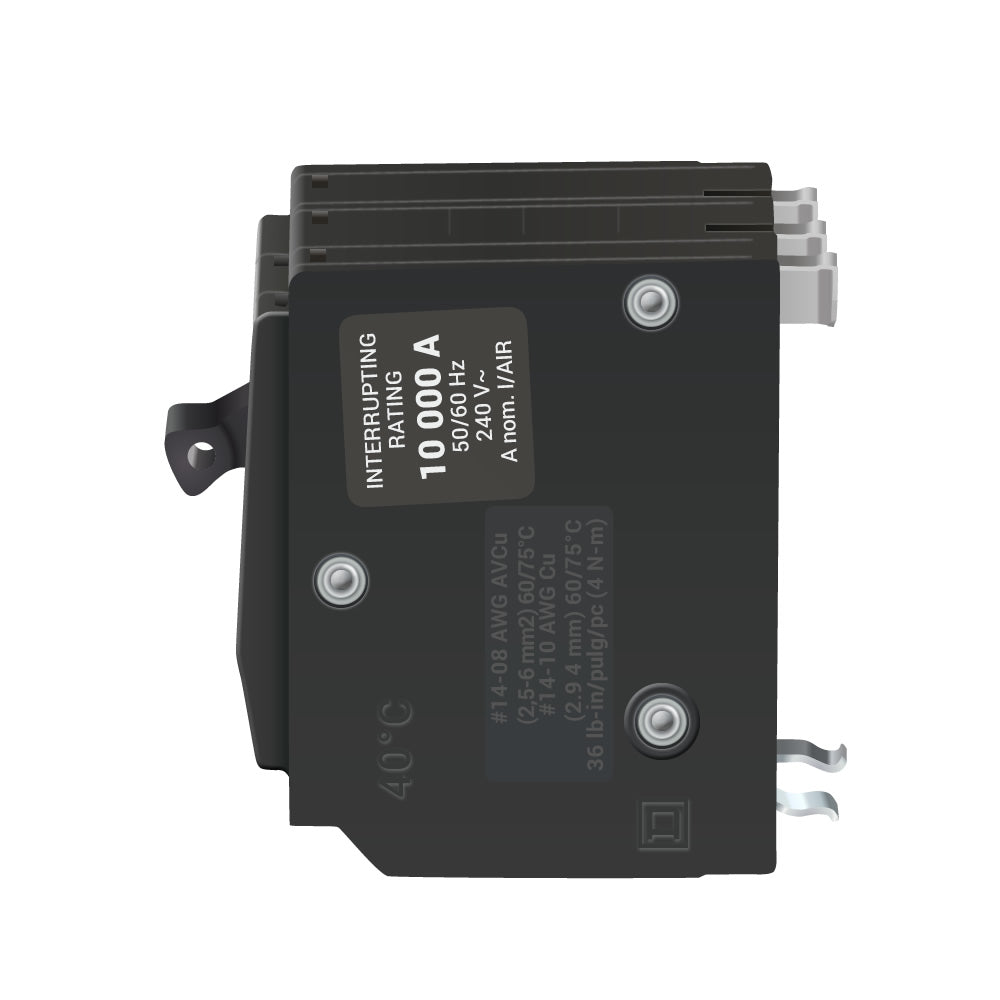

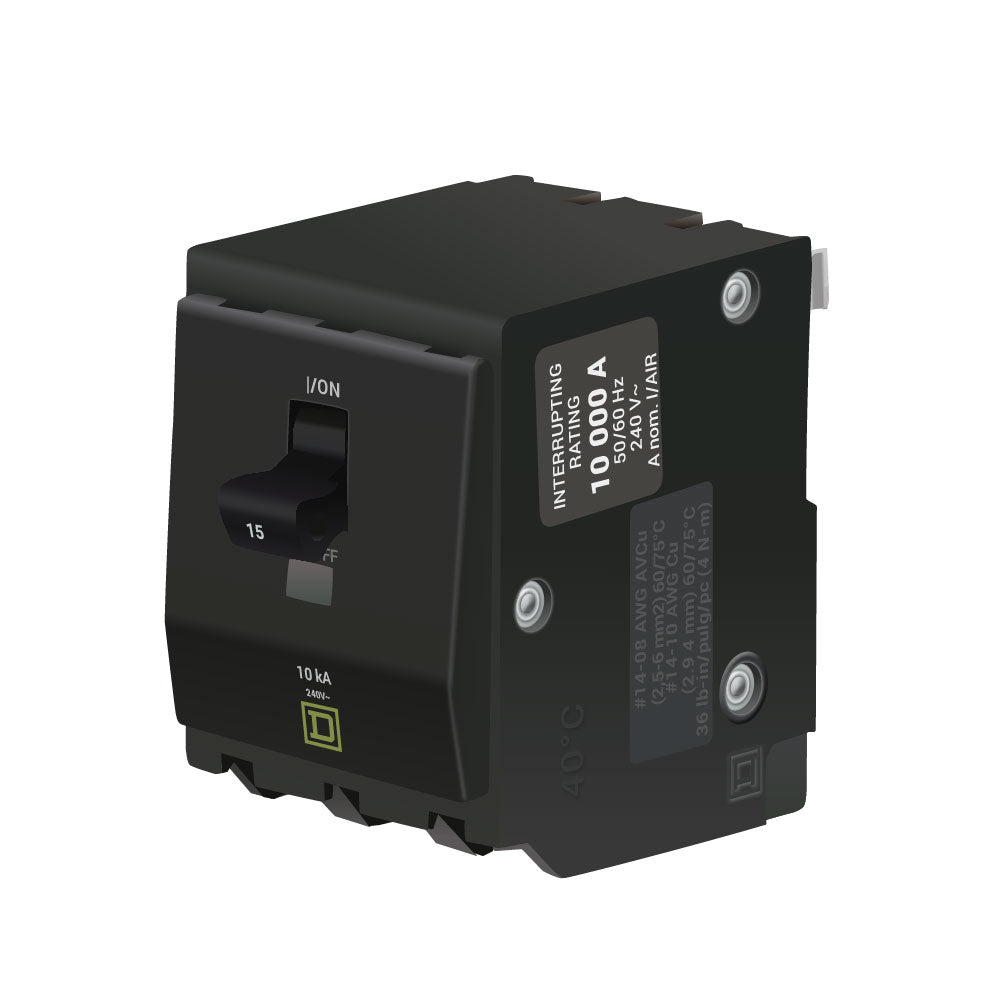

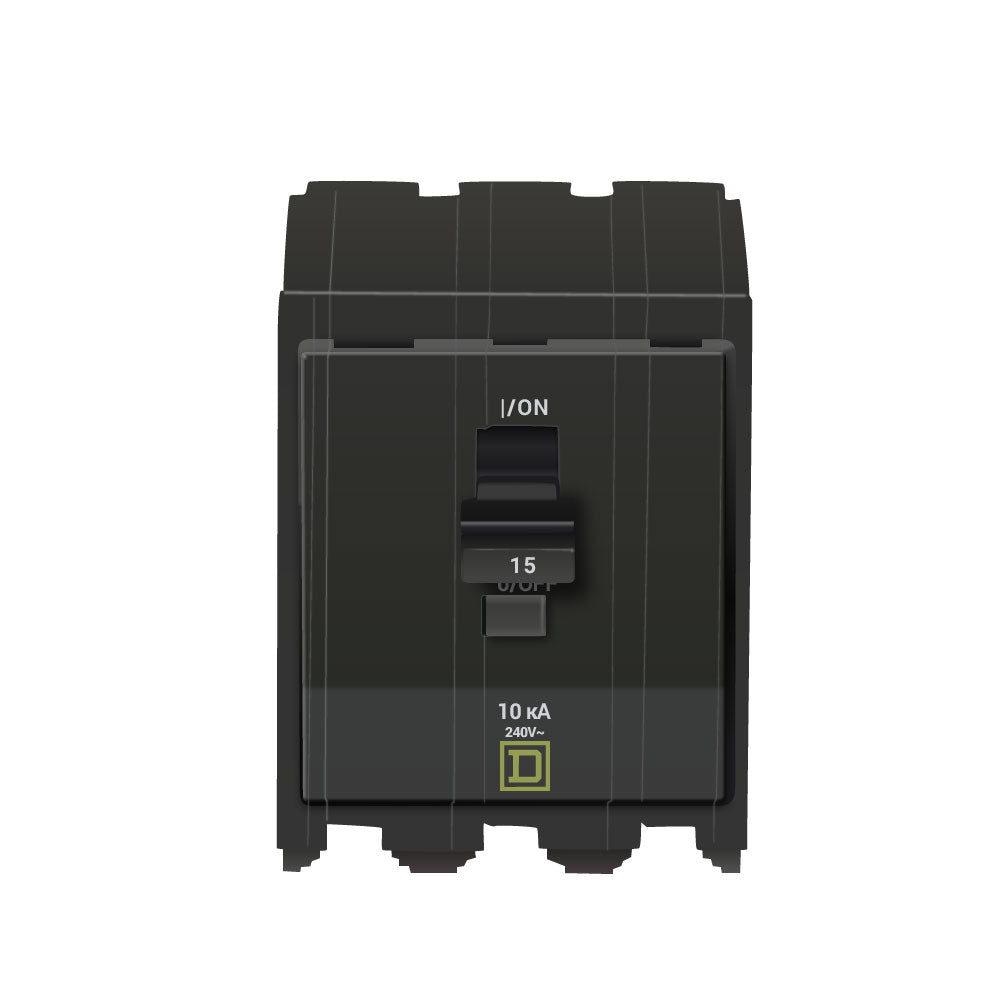

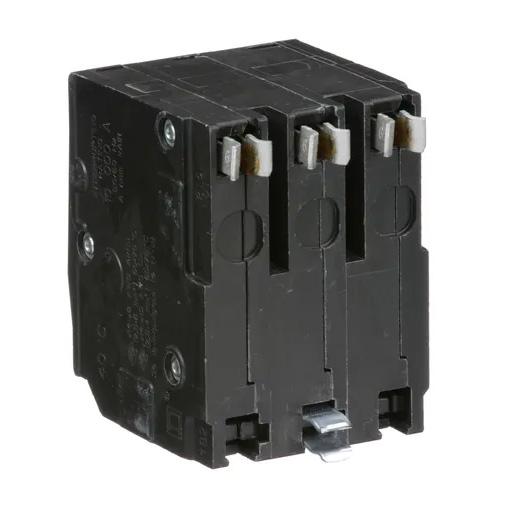

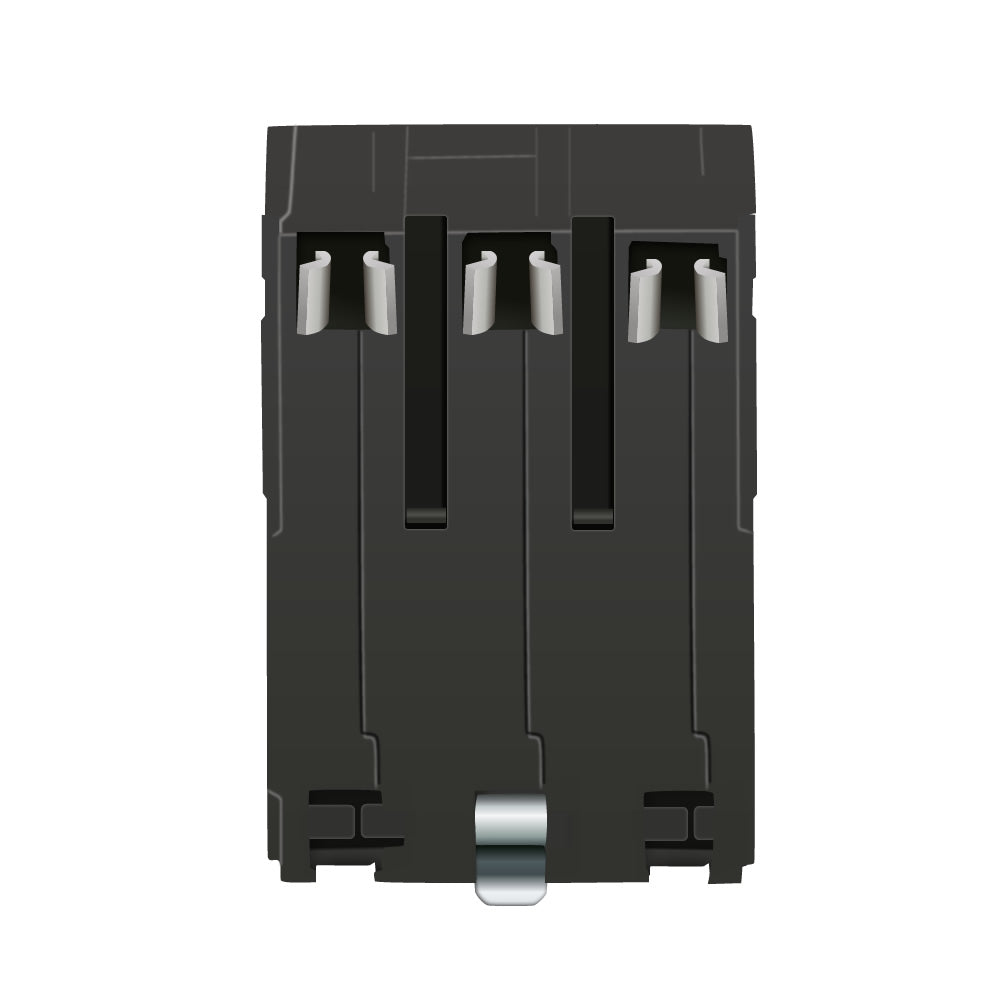

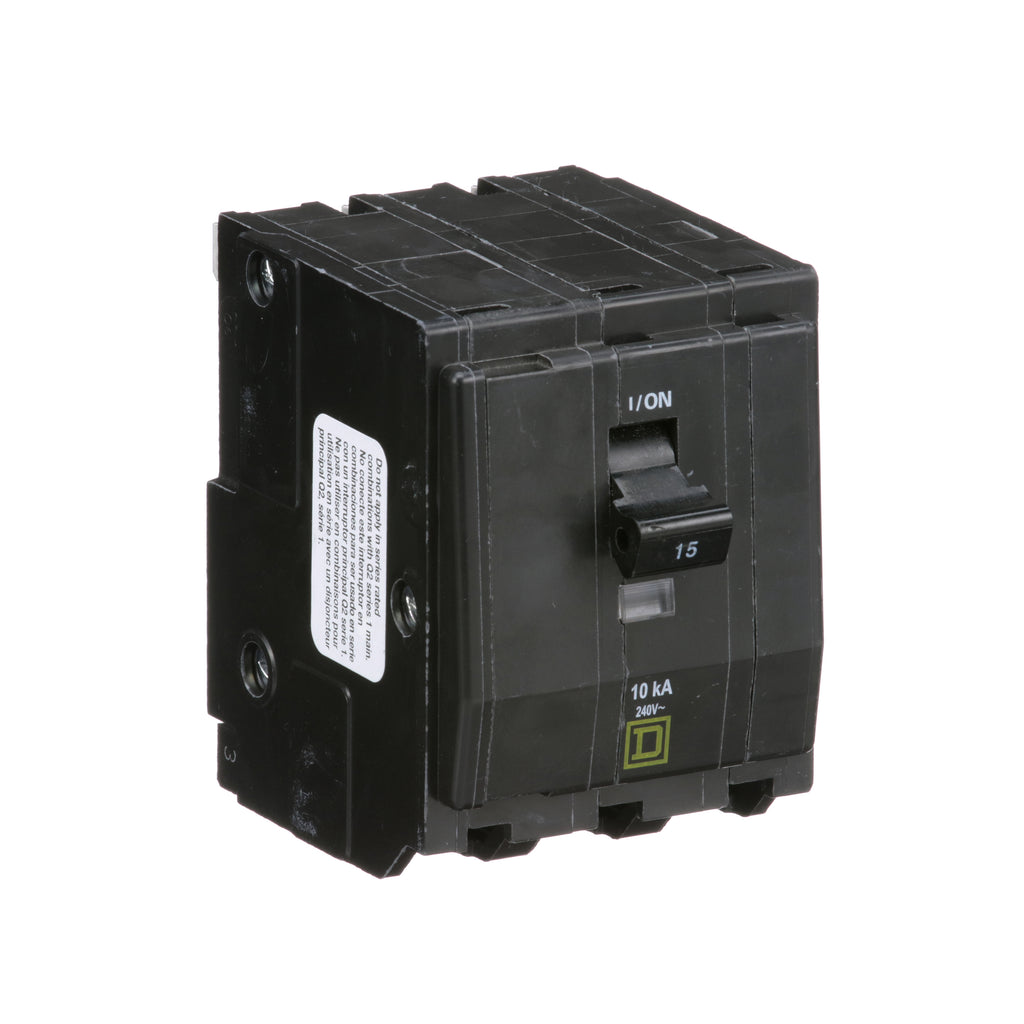

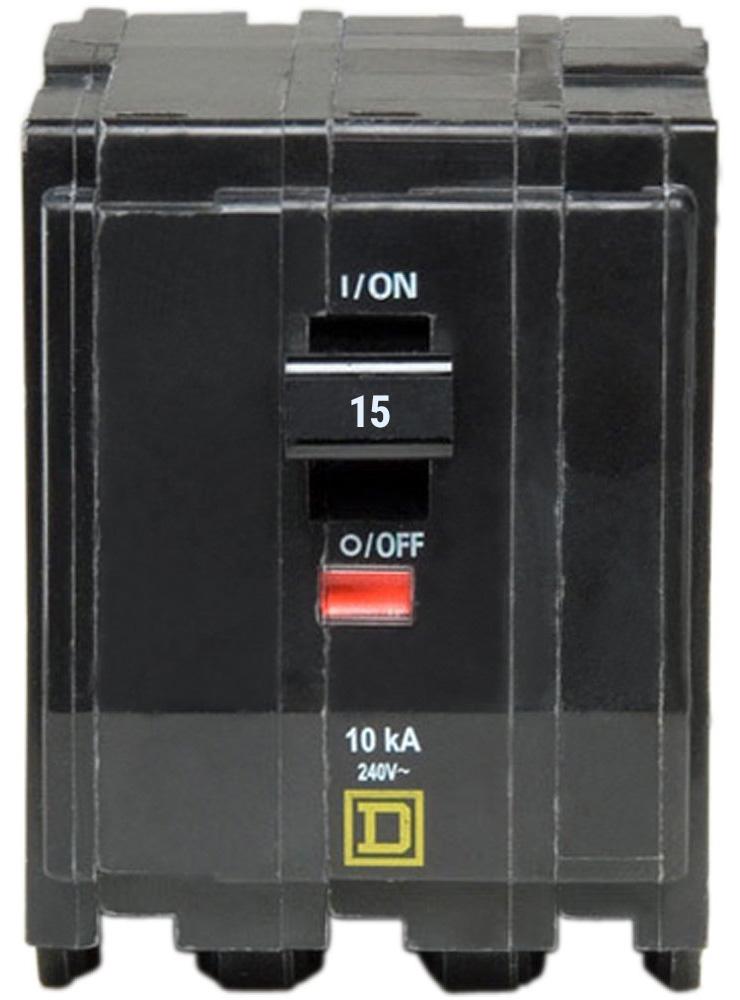

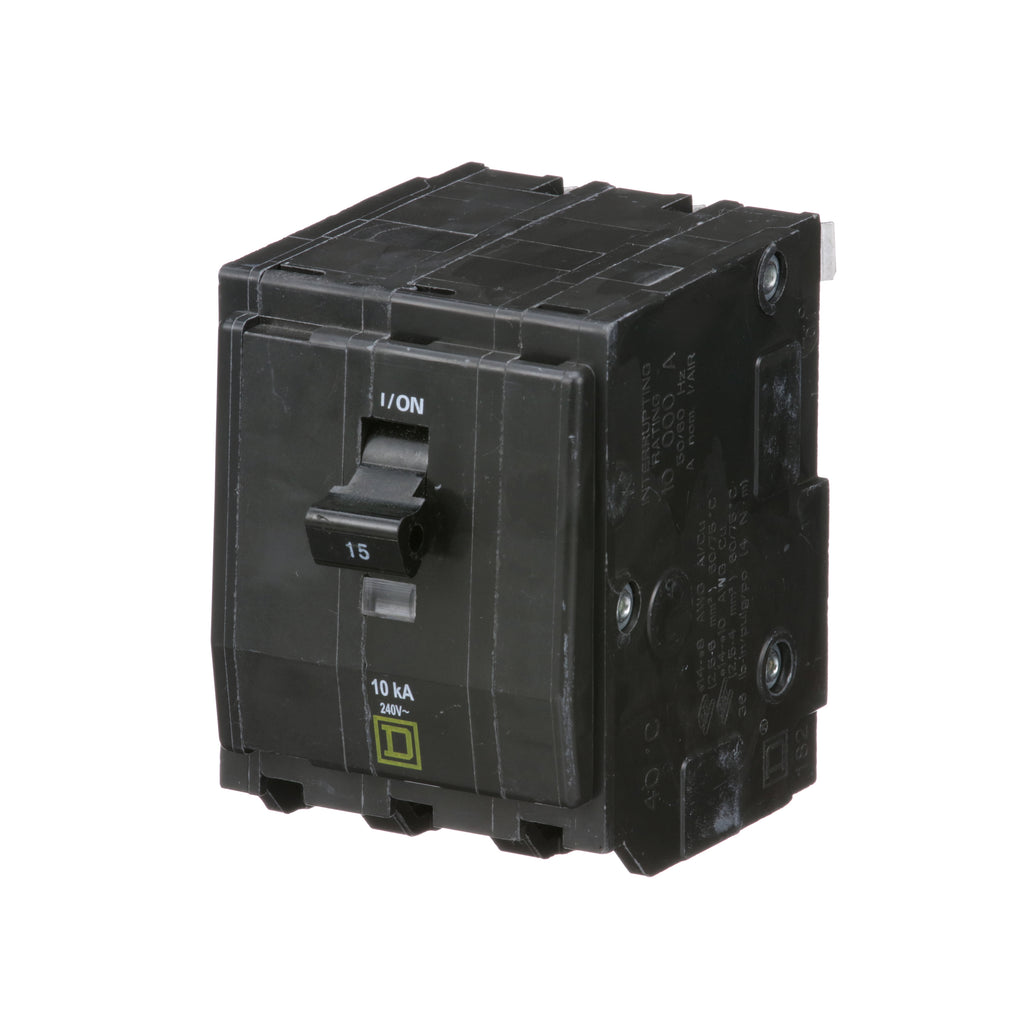

QO315 - Square D 15 Amp 240 Volt 3 Pole Plug-In Circuit Breaker 10kA Interrupt Rating QO Series

QO315

QO315 is a 3 pole, 15 amp, 240 volt plug-in circuit breaker from Square D designed for reliable circuit protection.This Square D QO315 circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It has a 10kA interrupting rating at 120/240VAC and is UL and CSA certified. The breaker fits QO load centers and NQ panelboards, supports wire sizes from AWG 14 to AWG 8 (copper or aluminum), and is HACR rated for HVAC applications.

Key Specifications
• Amperage: 15 Amp
• Voltage: 120/240VAC, 48VDC
• Poles: 3

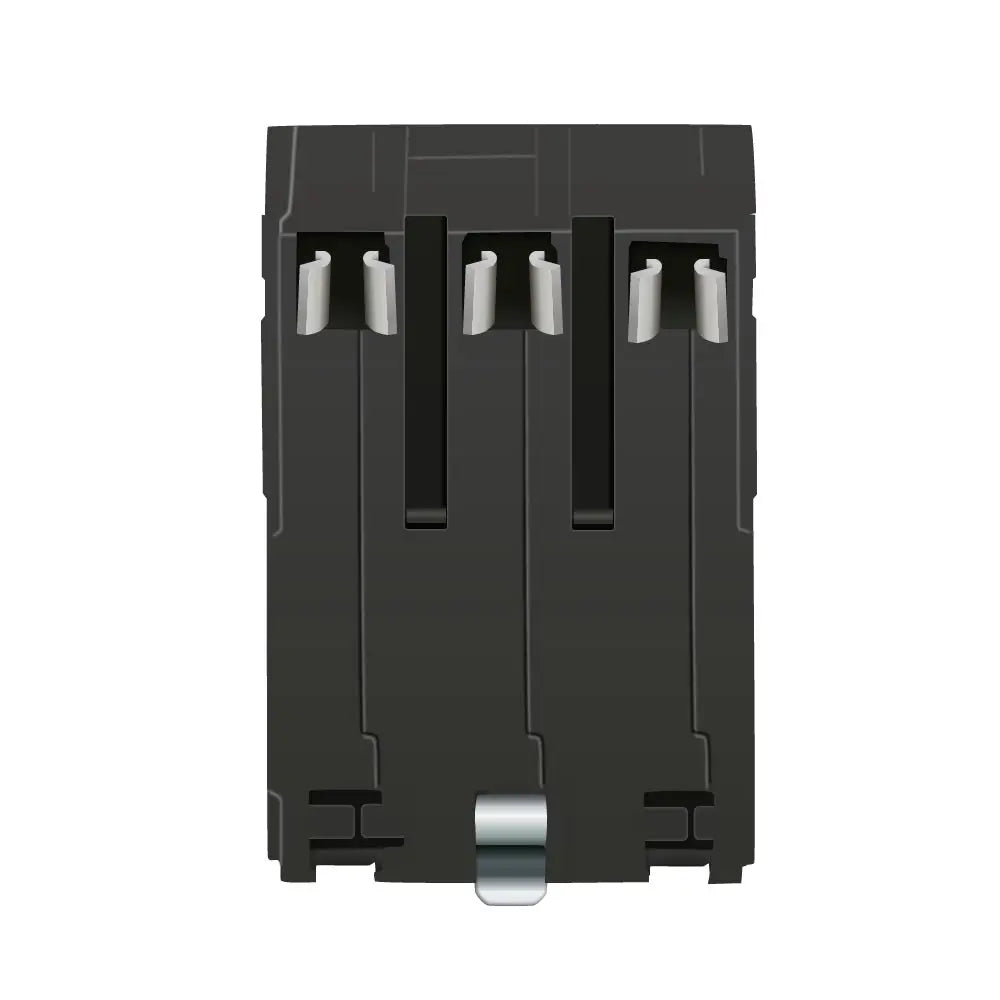

• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Certifications: UL, CSA, RoHS, REACh, HACR
• Terminal Connection: Pressure Plate
• Wire Gauge: AWG 14 to AWG 8, Copper or Aluminum
• Breaker Feature: Mercury Free
• Actuator Type: Paddle
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QO315
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 240
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 785901400646
• GTIN : 00785901400646
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.8
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 14 to AWG 8, Copper or Aluminum
