Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QO3151021

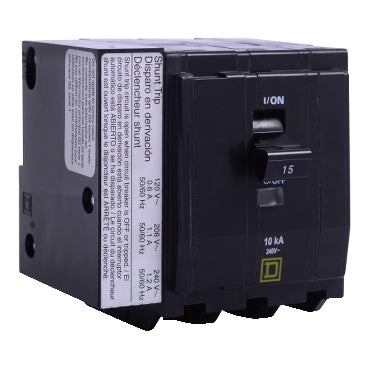

QO3151021 is a Square D Type QO miniature circuit breaker rated 15 amperes at 240 volts AC with 3 poles and shunt trip capability for remote operation via 120V control signal. This plug-on breaker features thermal-magnetic trip protection and is designed for use in panelboards and distribution systems. The shunt trip mechanism enables emergency shutdown and safety interlocking applications, making it ideal for critical load management and emergency power systems. Key Specifications
- Amperage: 15A
- Voltage: 240V AC
- Poles: 3
- Interrupt Rating: 10 kA at 240V AC
- Mounting: Plug-On
- Trip Type: Thermal-Magnetic with Shunt Trip
- Shunt Operating Voltage: 120V
- Load Side Termination: Lugs
- Line Side Termination: Plug-In
- Temperature Rating: 40 degrees C calibration
- Trip Indicator: Visi-Trip window
- HACR Rated
Specifications
- Part Number: QO3151021
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO Series
- Type : QO
- Voltage : 240
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901494072
- Dimensions : 3.0 in (76 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 1.21
