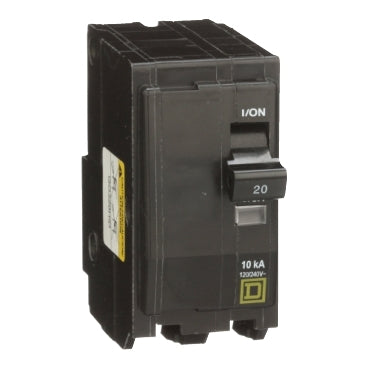

QO220HID - Square D 20A 120/240V 2-Pole Miniature Circuit Breaker Thermal Magnetic Trip

SKU: QO220HID-New
Condition: New
Price:
$173.11
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

QO220HID - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QO220HID - Essential Electric Supply

Description

QO220HID


QO220HID is a 2-pole, 20A, 120/240V miniature circuit breaker designed for high intensity discharge applications. This Square D QO-HID breaker features a thermal magnetic trip unit and is calibrated for use at 40 degrees C. It is engineered for reliable protection in commercial and industrial power distribution systems. The QO220HID breaker is plug-in mount, compatible with QO loadcenters and NQOD panelboards. It offers a compact design for space-saving installations and features pressure plate terminals for secure connections. The breaker is rated for 10kA interrupt capacity at 240V and is suitable for use in systems requiring high density discharge protection.
  • Part Number: QO220HID
  • Manufacturer: Square D
  • Amperage: 20A
  • Voltage: 120/240V AC
  • Poles: 2
  • Mounting Type: Plug-In
  • Interrupt Rating: 10kA @ 240V
  • Series/Frame: QO-HID
  • Frame Size: 2-Panel Space
  • Terminal Type: Pressure Plate
  • Trip Unit: Thermal Magnetic
  • Application: High Intensity Discharge
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QO220HID
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QO Series
  • Type : QO
  • Voltage : 120/240
  • Amperage : 20
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@240V
  • Connection : Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Pressure plate
  • Frame Size : 100A/QO
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
  • Breaker Type : High Intensity Discharge
  • Protection : Thermal Magnetic

Product Data

  • UPC : 078590154378
  • GTIN : 00785901543787
  • Country of Origin : Mexico
  • Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 0.53
  • Panel Type : QO Load Centers and NQ Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 14 to AWG 8 Copper/Aluminum
