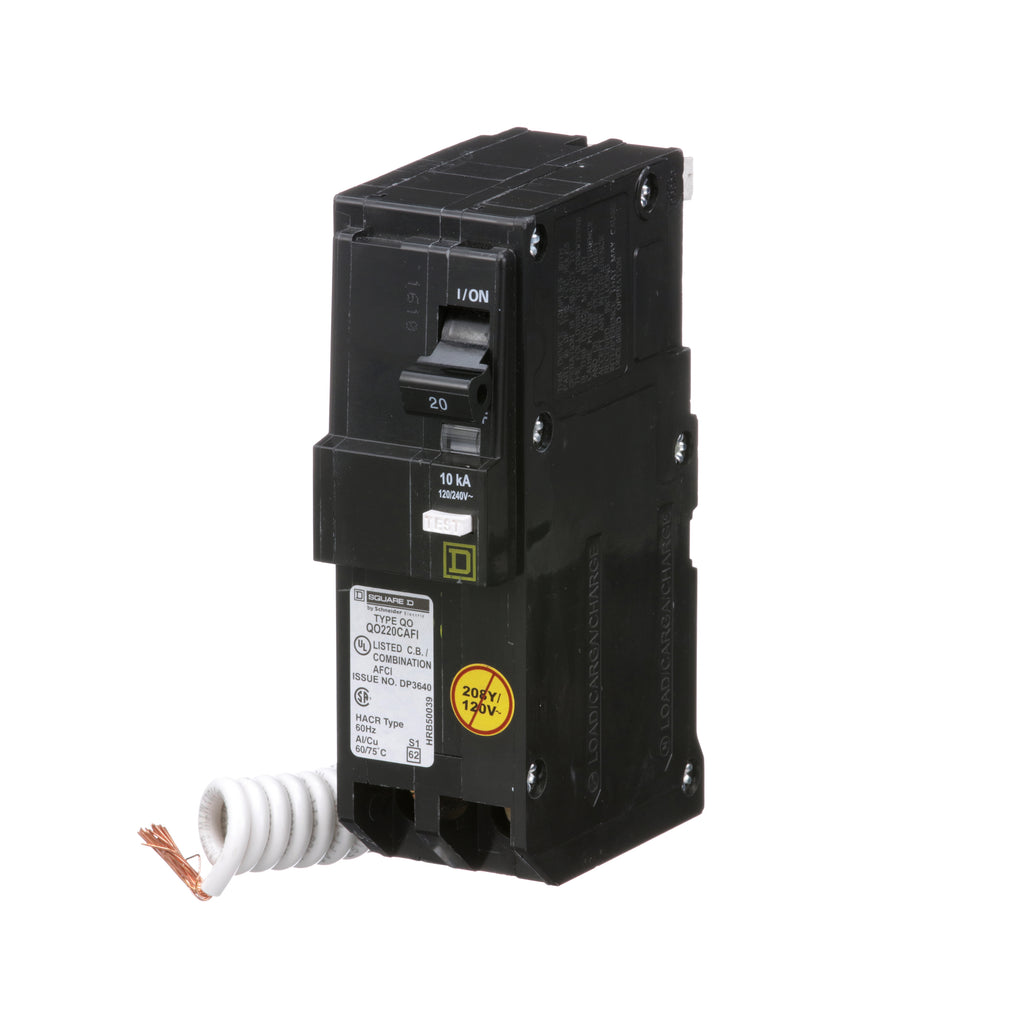

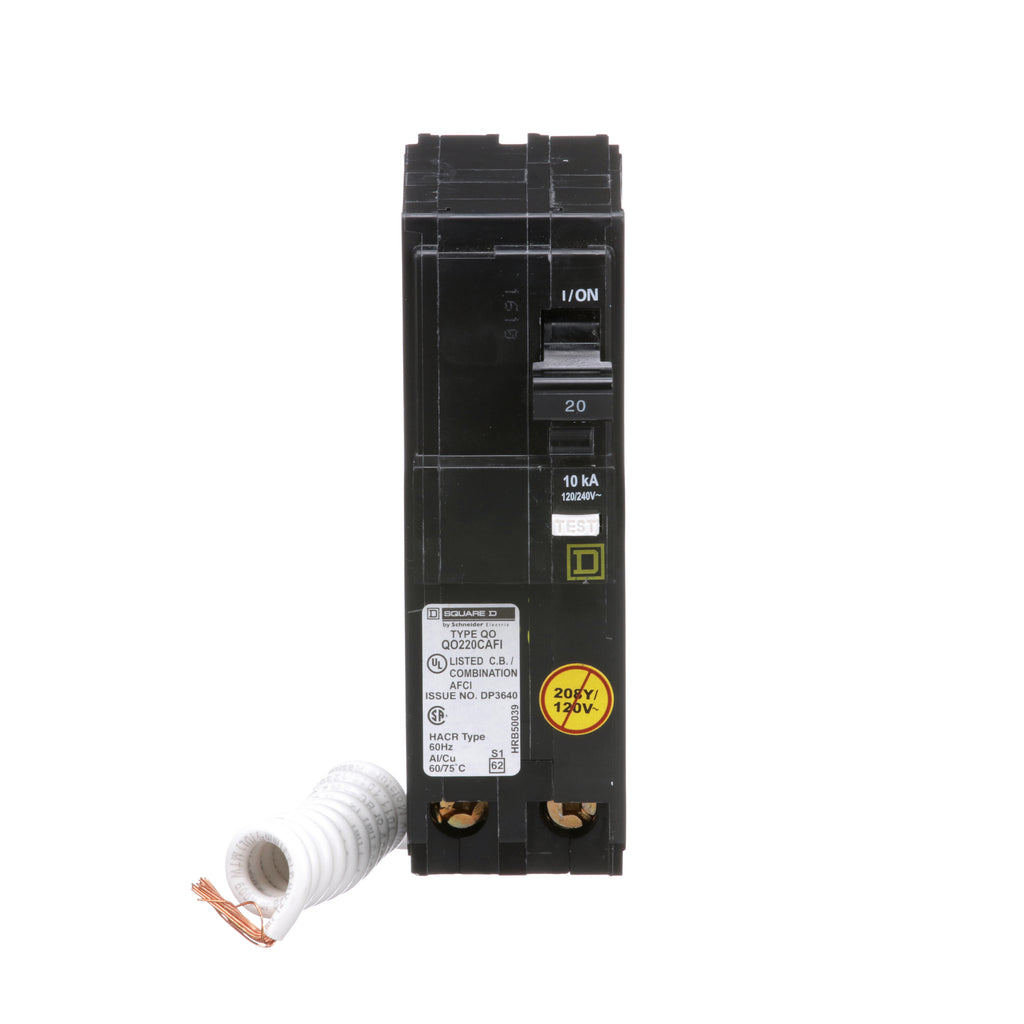

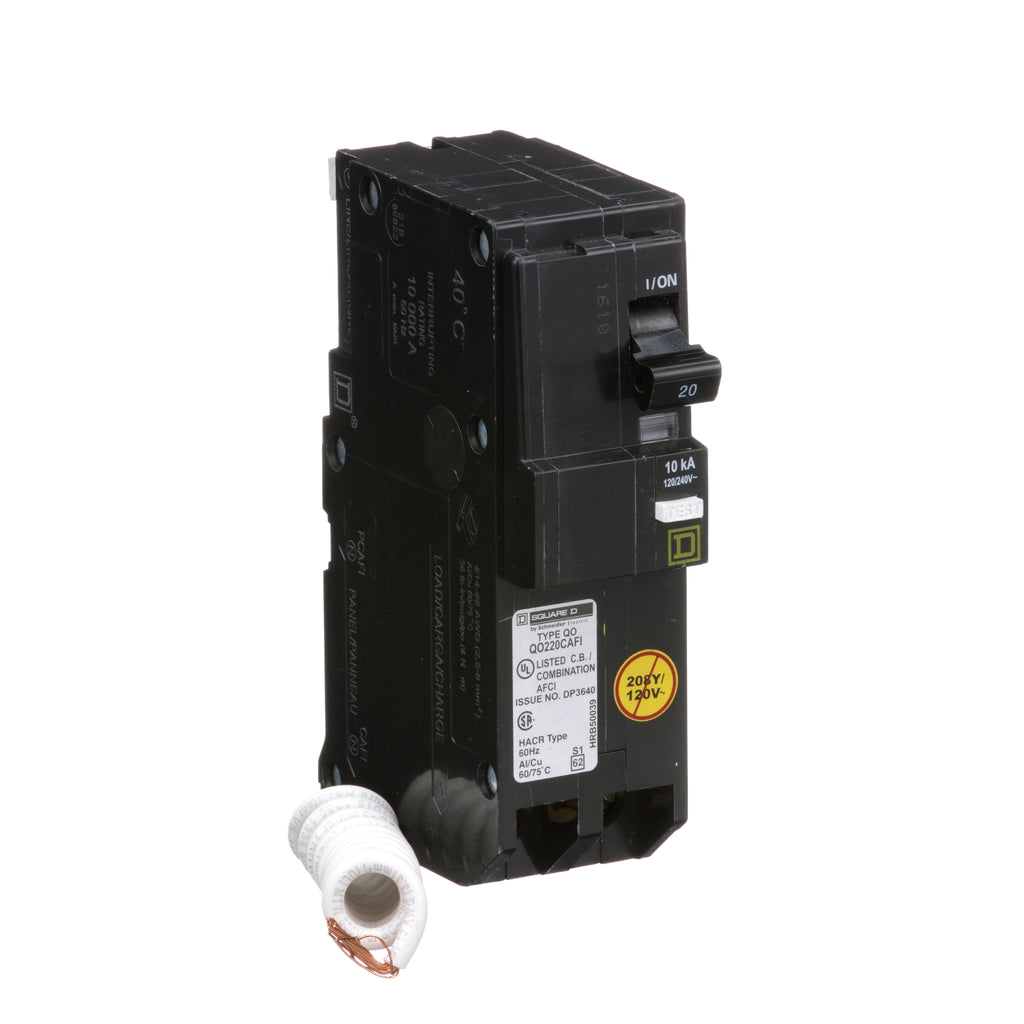

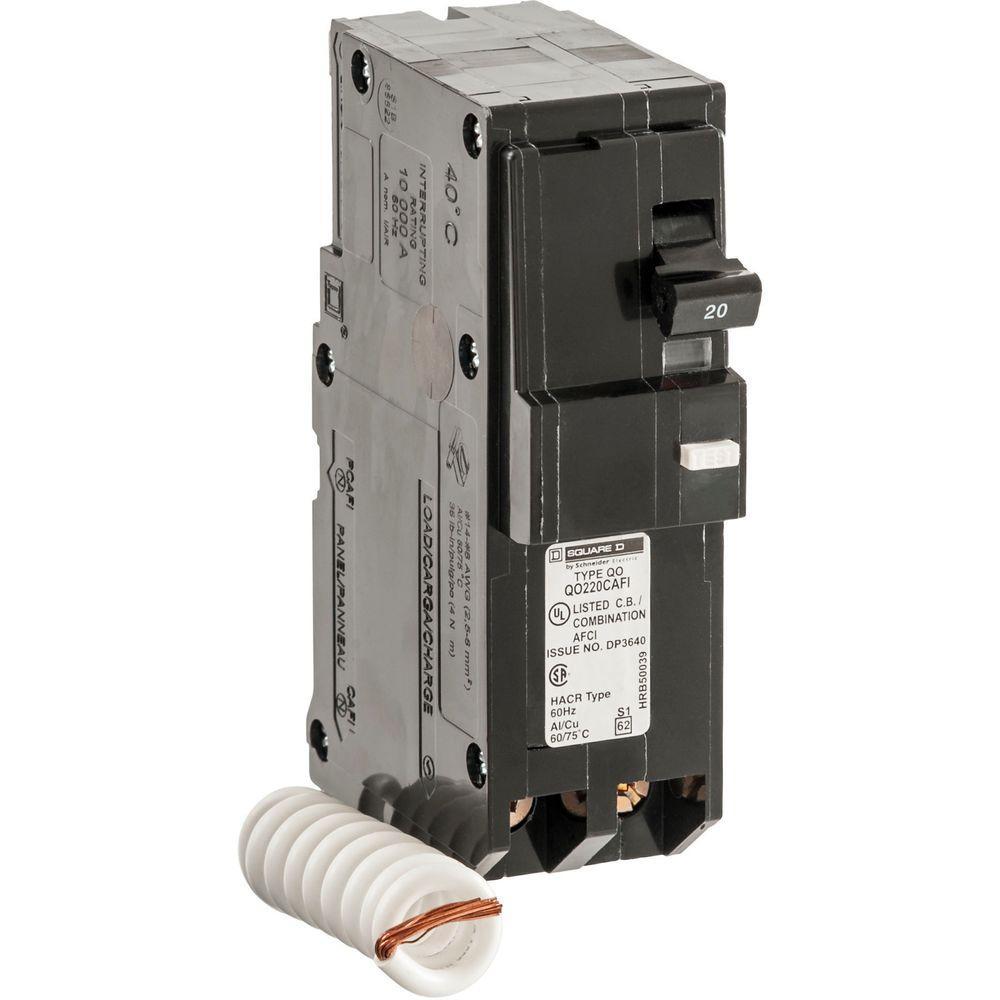

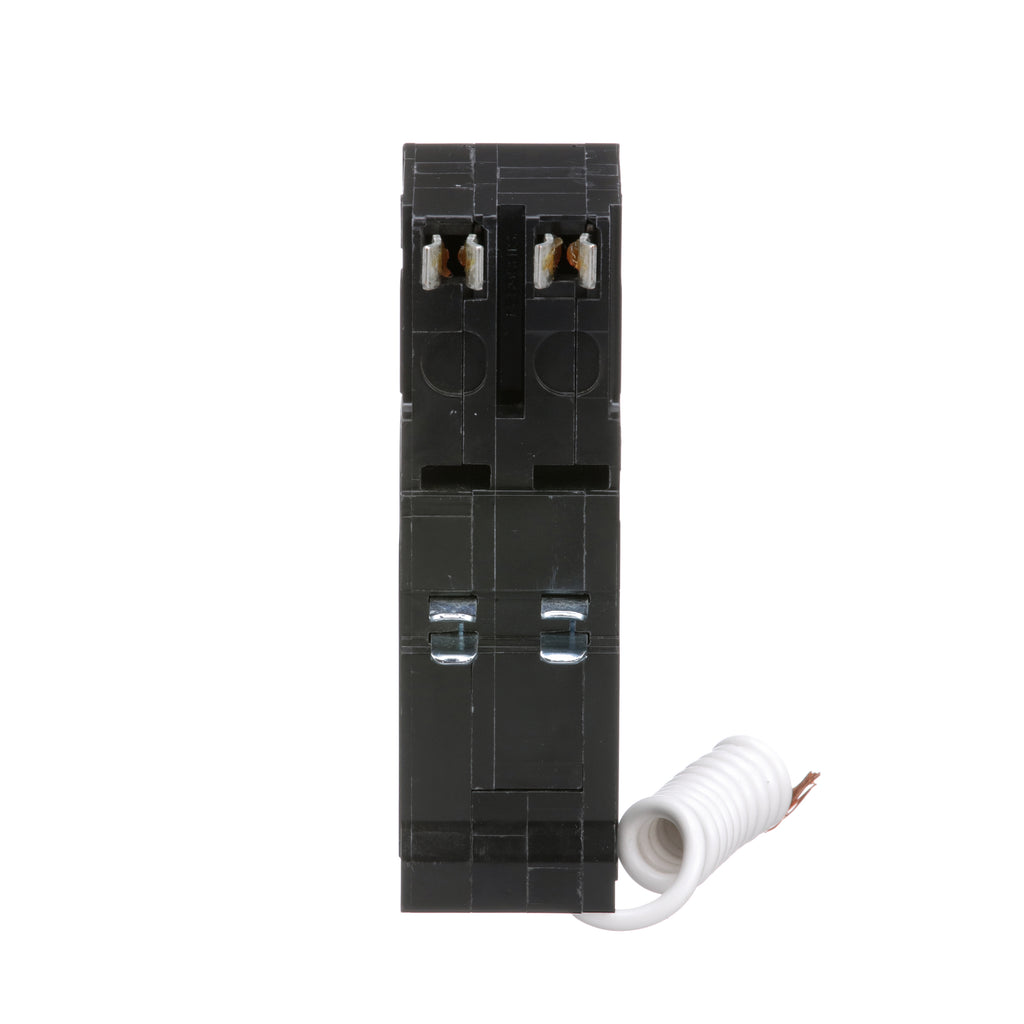

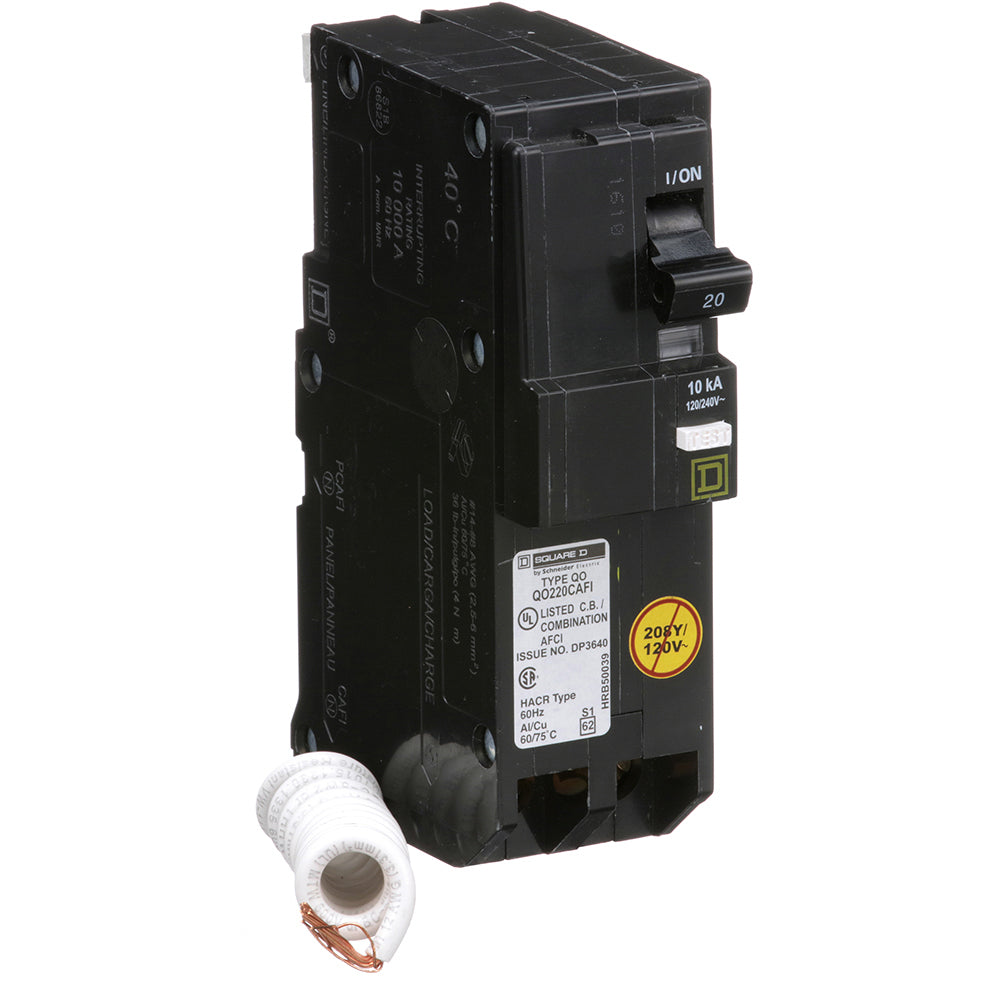

QO220CAFI - Square D 20 Amp 120/240V 2 Pole Combination Arc Fault Circuit Breaker QO Series

QO220CAFI

QO220CAFI is a 2 pole, 20 amp combination arc fault circuit breaker from Square D designed for 120/240V applications.This Square D QO220CAFI circuit breaker features a plug-in mounting type with a thermal magnetic trip unit providing long time and instantaneous trip functions. It has a 10kA interrupting rating at 120/240VAC and is UL and CSA certified. The breaker supports wire gauges from AWG 14 to AWG 8 for copper or aluminum wiring and is compatible with QO load centers. It includes a VISI-TRIP indicator for easy trip status identification and meets RoHS and HACR standards.

Key Specifications
• Amperage: 20 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kAIC at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Certifications: UL, CSA
• Connection Type: Screw Clamp
• Wire Gauge: AWG 14 to AWG 8 Copper/Aluminum
• Protection: Combination Arc Fault (CAFCI)
• Standards: RoHS, HACR
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QO220CAFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 078590138946
• GTIN : 00785901389460
• Country of Origin : Mexico
• Dimensions : 4.8 in (121 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.96
• Certification : UL, CSA
• Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8 Copper/Aluminum
