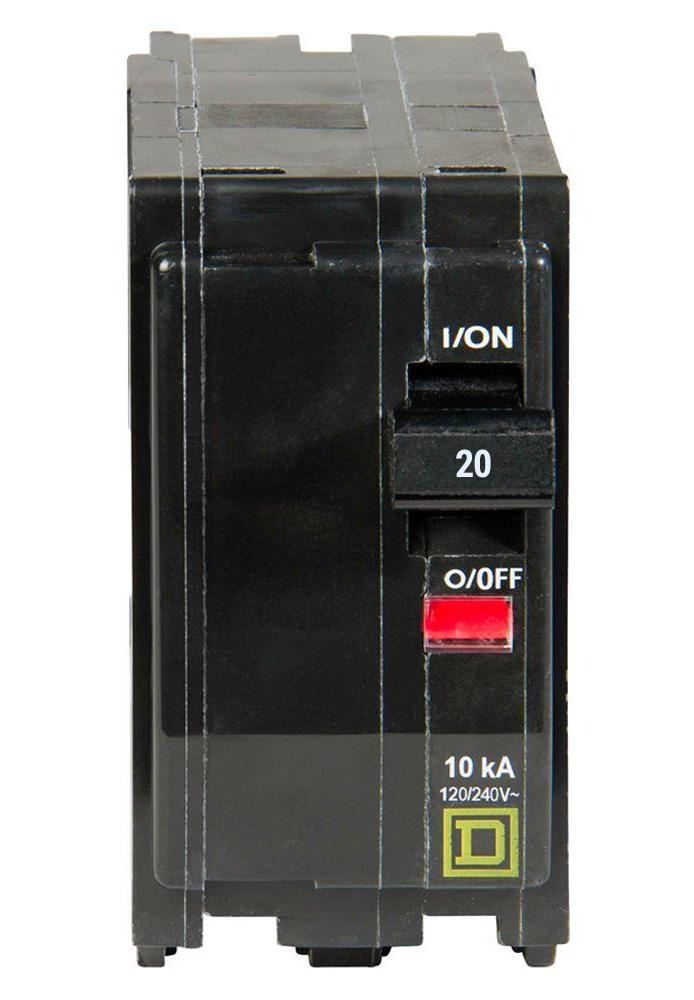

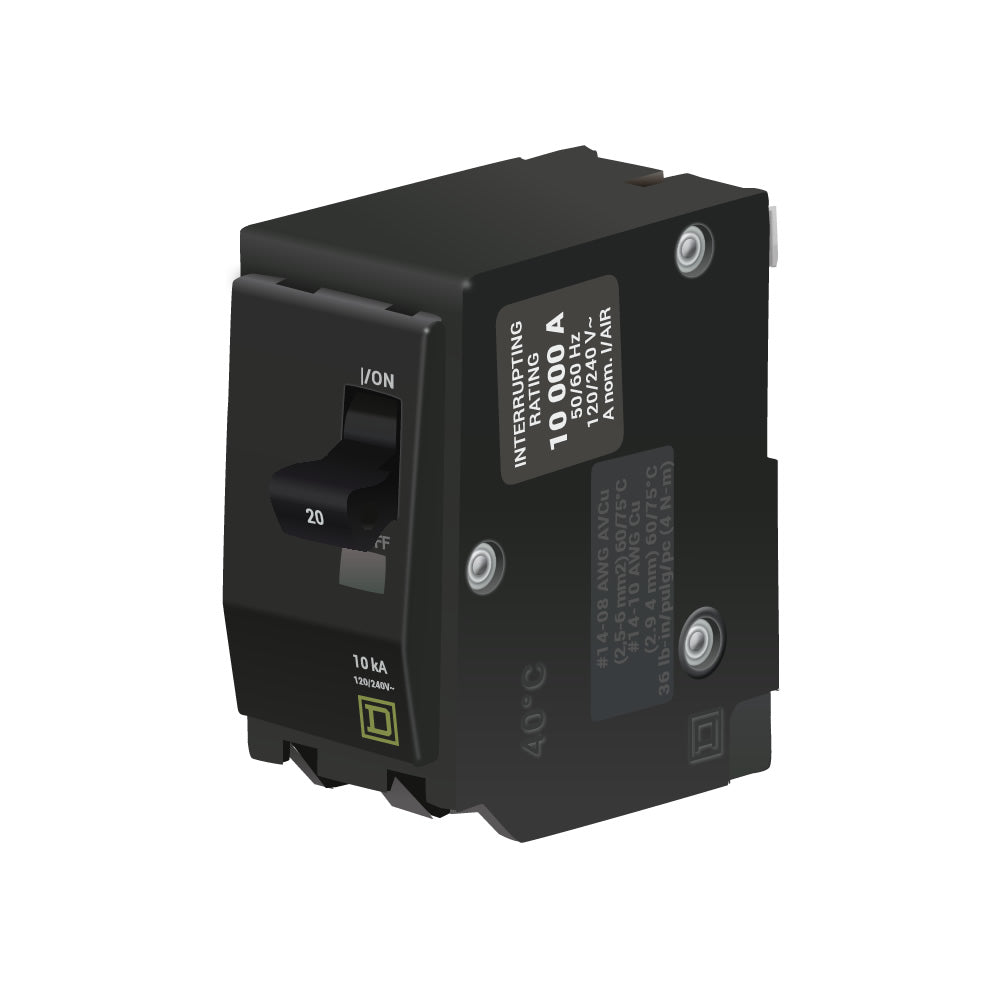

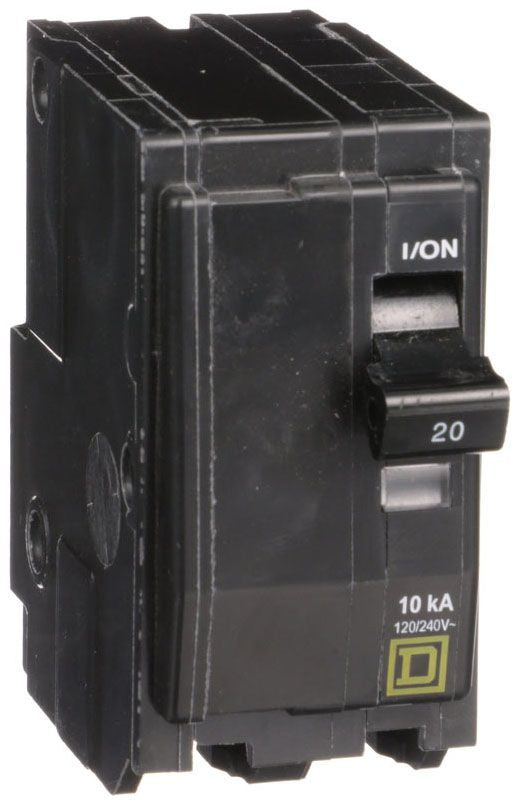

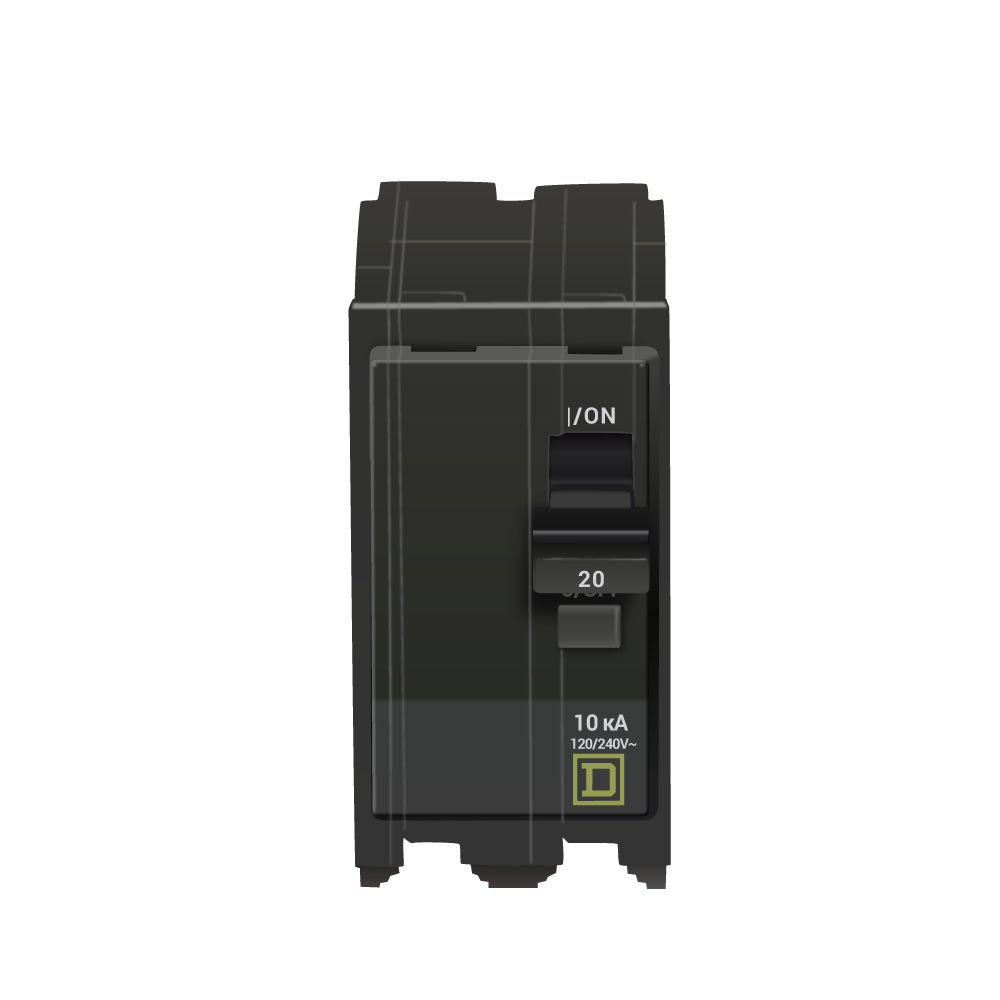

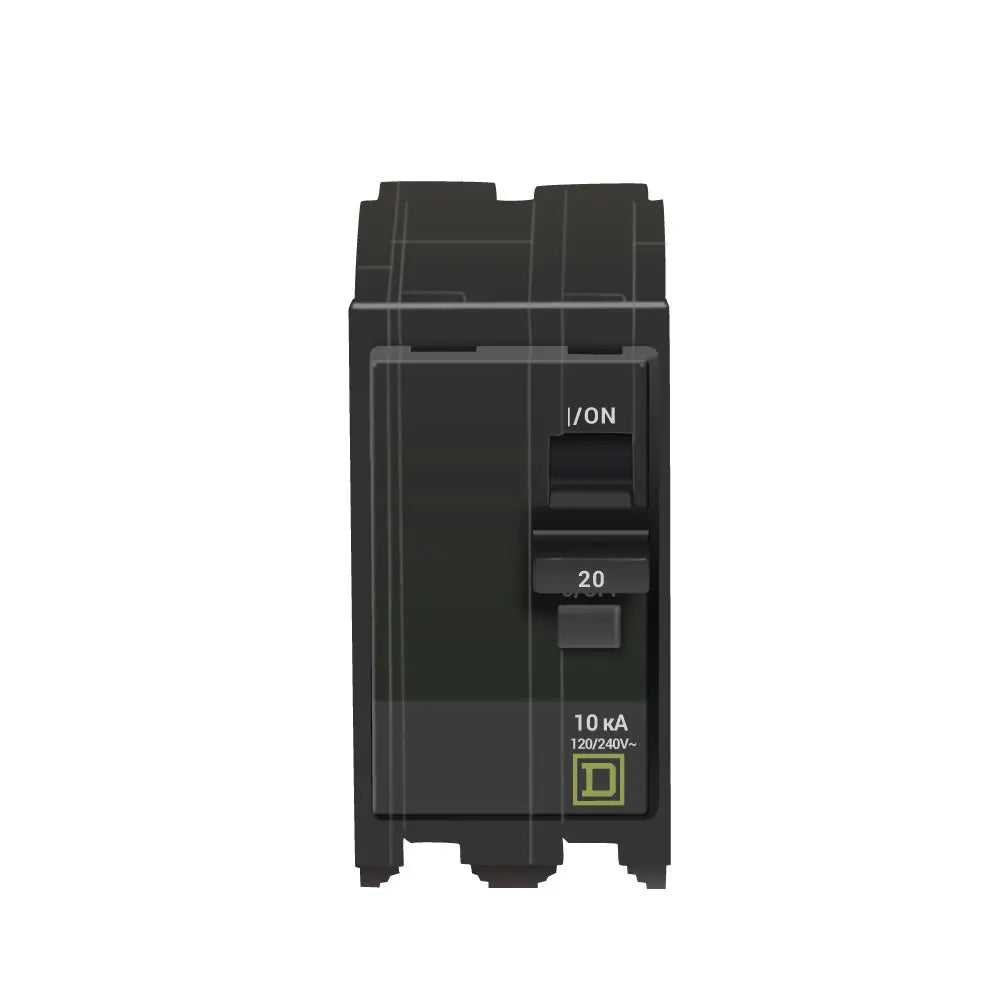

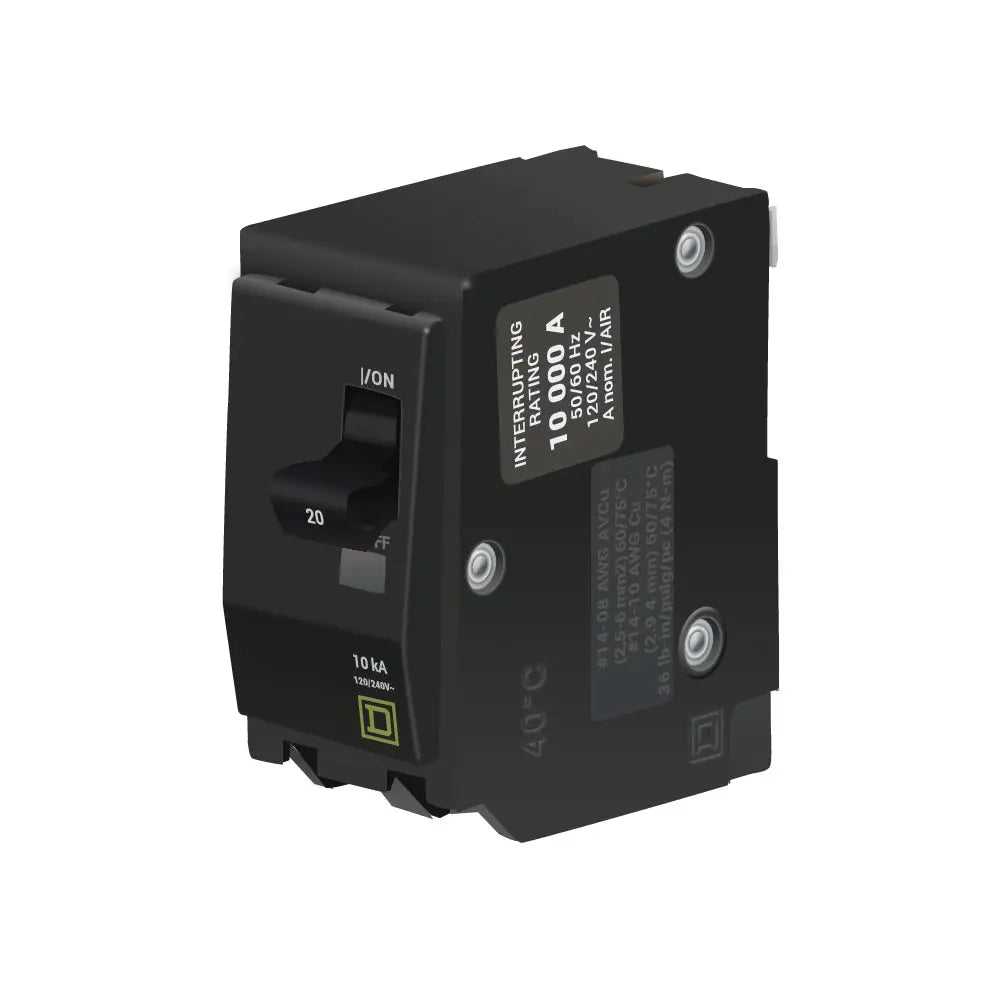

Square D QO220 2-Pole 20A 120/240VAC Thermal Magnetic Circuit Breaker, Plug-In

QO220

Square D QO220 2-Pole 20A 120/240VAC Thermal Magnetic Circuit Breaker, Plug-In

The Square D QO220 is a 2-pole miniature circuit breaker rated 20A at 120/240VAC, listed to UL 489 and CSA certified for overcurrent protection of branch circuit conductors in QO load centers and NQ panelboards. This thermal-magnetic breaker carries a 10kA interrupt rating at 120/240VAC, making it suitable for inclusion in commercial and residential electrical specifications and submittal packages.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Branch circuit overcurrent protection in QO load centers and NQ panelboards
• 240V equipment circuits, including HACR-rated HVAC branch circuits
• Residential and light commercial electrical distribution
• Panel upgrades and breaker replacements specifying QO/100A frame compatibility

Key Features

• Thermal magnetic trip: Provides both overload and short circuit protection in a single unit.
• Visi-Trip indication: Handle moves to a center position and a visual indicator confirms a tripped state.

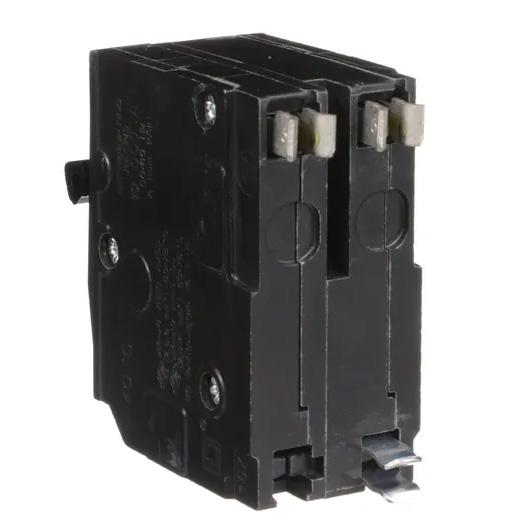

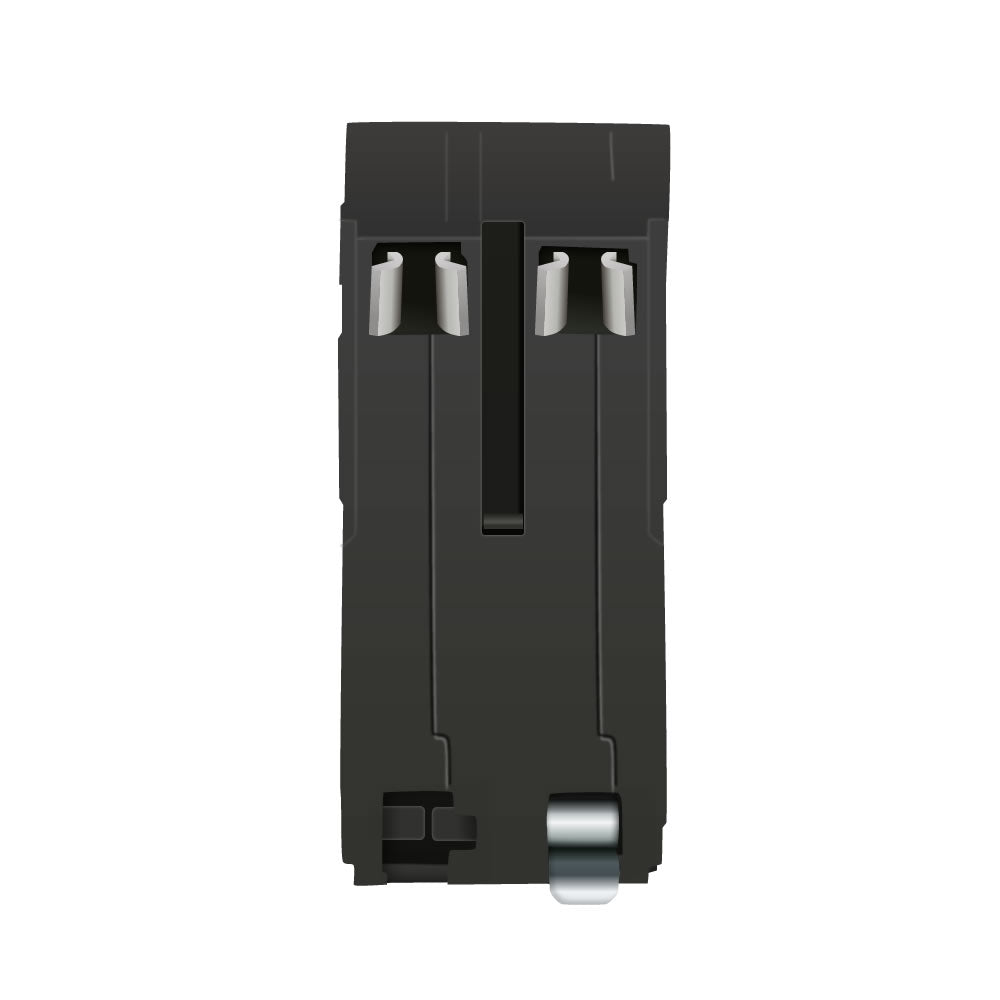

• Plug-in mounting: Installs directly into compatible QO load centers without bolts or DIN rail.
• Common trip 2-pole design: Both poles open simultaneously on a fault for balanced circuit protection.
• Pressure plate termination: Accepts 14-8 AWG copper or aluminum conductors.

Specifications

• Manufacturer: Square D (Schneider Electric)
• Catalog Number: QO220
• Poles: 2
• Current Rating: 20A
• Voltage Rating: 120/240 VAC, 48 VDC

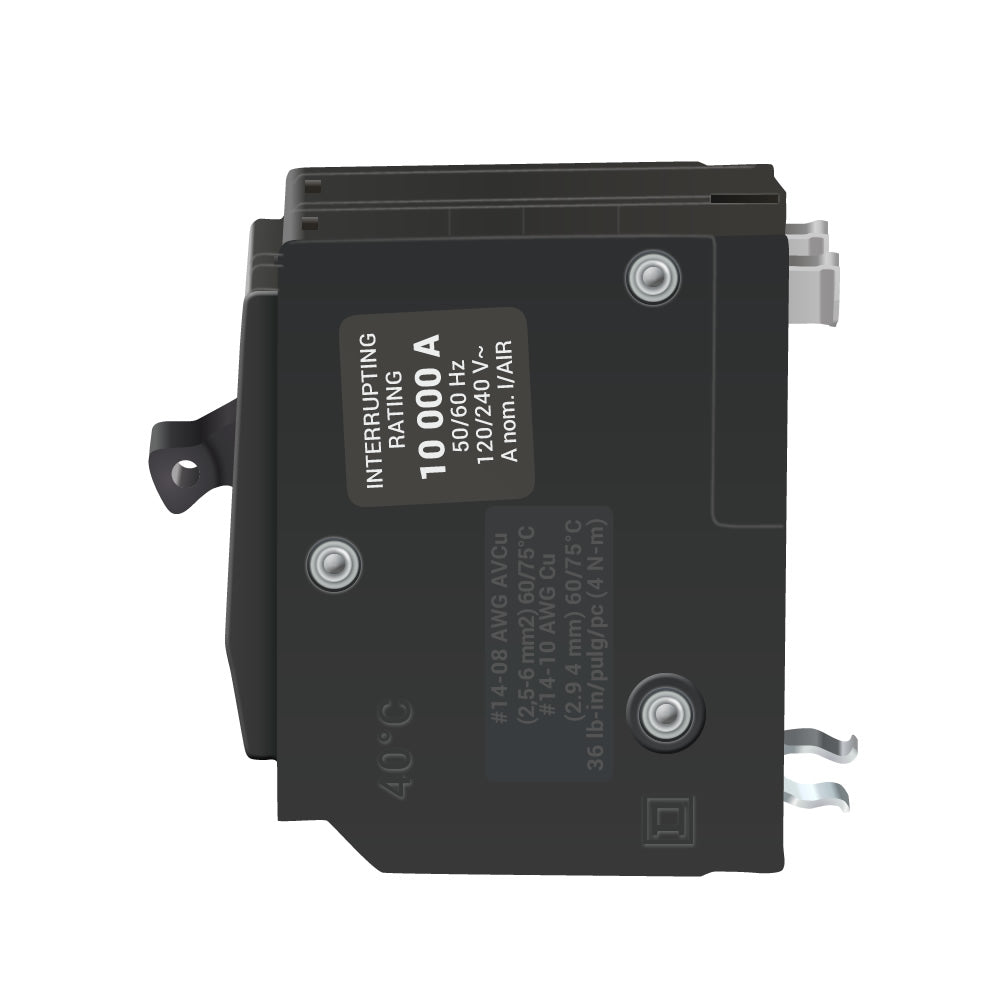

• Interrupt Rating: 10kA at 120/240VAC, 10kA at 120VAC, 5kA at 48VDC
• Frequency: 50/60 Hz
• Trip Type: Thermal Magnetic
• Frame Size: QO/100A
• Mounting: Plug-In
• Termination: Pressure Plate
• Wire Size: 14-8 AWG, copper or aluminum
• Standards: UL Listed (UL 489), CSA
• Ambient Rating: 104 deg F (40 deg C)

Product Identification

• Dimensions: 2.91 in D x 1.50 in W x 3.00 in H
• Weight: 0.50 lb
• UPC: 785901400363

FAQ

• What is the interrupt rating of the Square D QO220? The QO220 carries a 10kA interrupt rating at 120/240VAC.
• What wire sizes does the QO220 accept? The pressure plate terminals accept 14 to 8 AWG copper or aluminum conductors.
• Is the QO220 UL listed? Yes, the QO220 is UL listed to UL 489 and CSA certified.
• What panels is the QO220 compatible with? Th


  Specifications

  • Part Number: QO220
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QO SEries
  • Type : QO
  • Voltage : 120/240
  • Amperage : 20
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@240V
  • Connection : Plug-In
  • Functions : LI - Long-Time and Instantaneous Trip
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic



  Product Data

  • UPC : 785901400363
  • GTIN : 00785901400363
  • Country of Origin : Mexico
  • Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 0.5 lb
  • Certification : HACR, UL Listed
  • Wire Size : AWG 14 to AWG 8, Copper or Aluminum
