Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QO220H

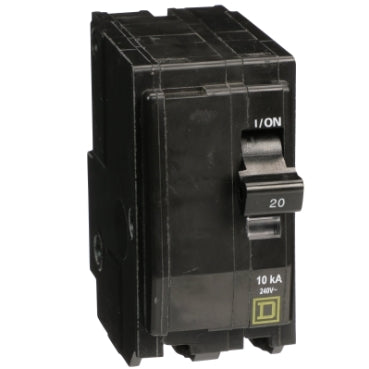

QO220H is a Square D 20 Amp, 2 Pole, 120/240 Volt plug-in miniature circuit breaker designed for reliable circuit protection. This QO series breaker features a 10,000 Amp interrupt rating and is HACR rated for HVAC applications. It mounts via plug-in pressure plate and includes lug-type load side terminals. The breaker is suitable for residential and light commercial load centers and complies with applicable electrical standards.
- Amperage: 20 Amp
- Voltage: 120/240 Volt AC
- Poles: 2
- Interrupt Rating: 10 kA at 240 VAC
- Mounting Type: Plug-in pressure plate
- Trip Unit: Standard thermal-magnetic
- Series/Frame: QO
- HACR Rated for HVAC equipment
- Load Side Terminals: Lugs
- Dimensions: Approx. 1.5" W x 2.91" D x 2.99" H
Specifications
- Part Number: QO220H
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO Series
- Type : QO
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Pressure Plate
- MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 785901400370
- GTIN : 00785901400370
- Country of Origin : Mexico
- Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.56
- Standards : UL Listed, CSA
- Certification : UL Listed, CSA
