Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QO215EPD

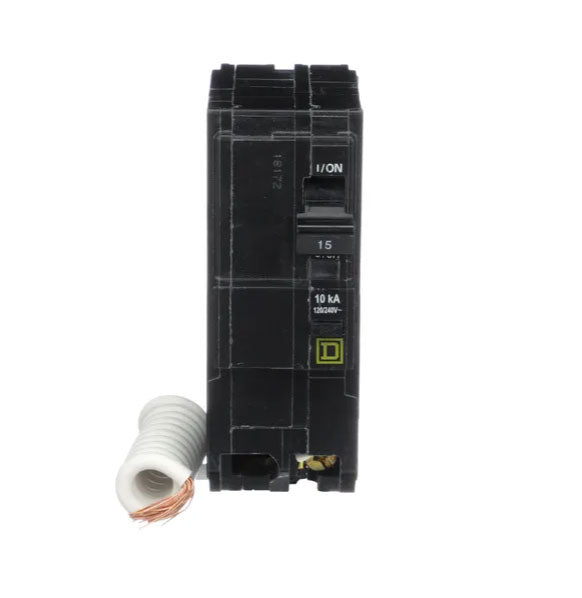

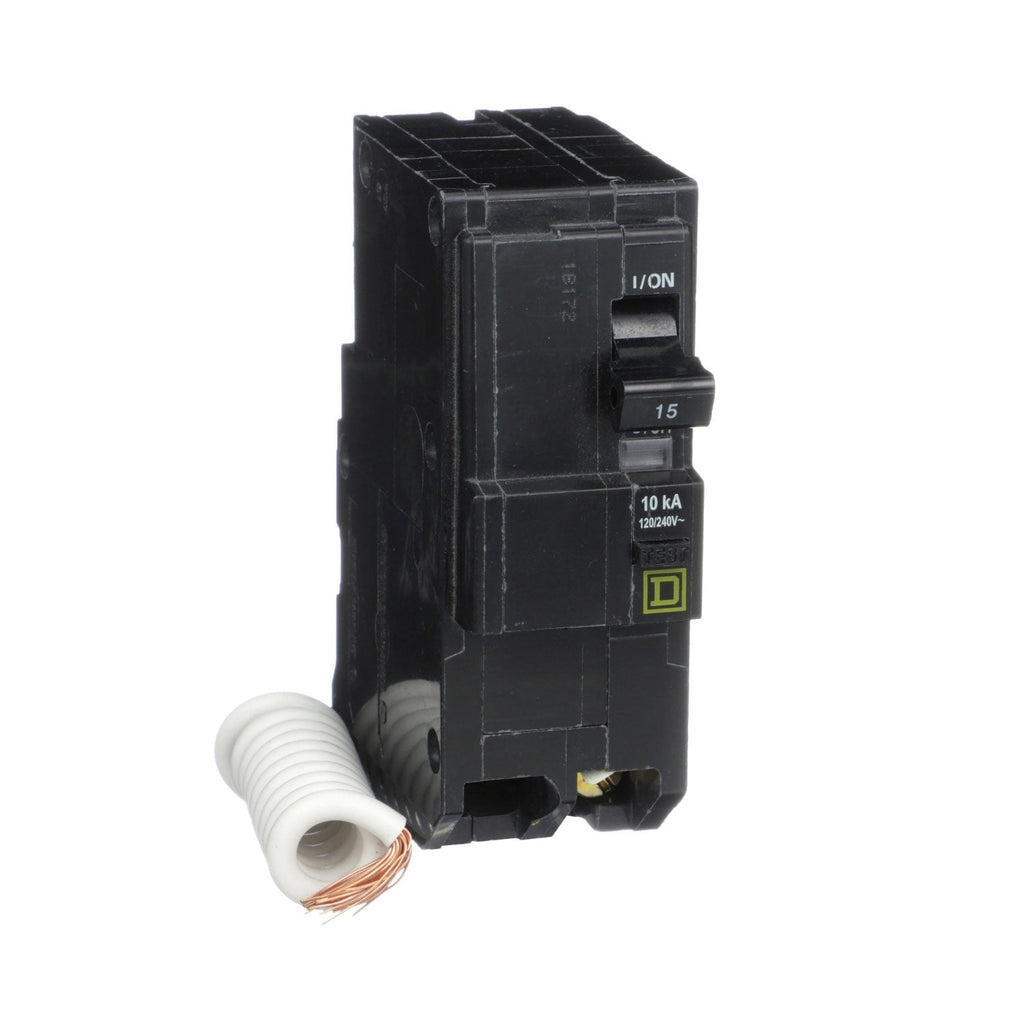

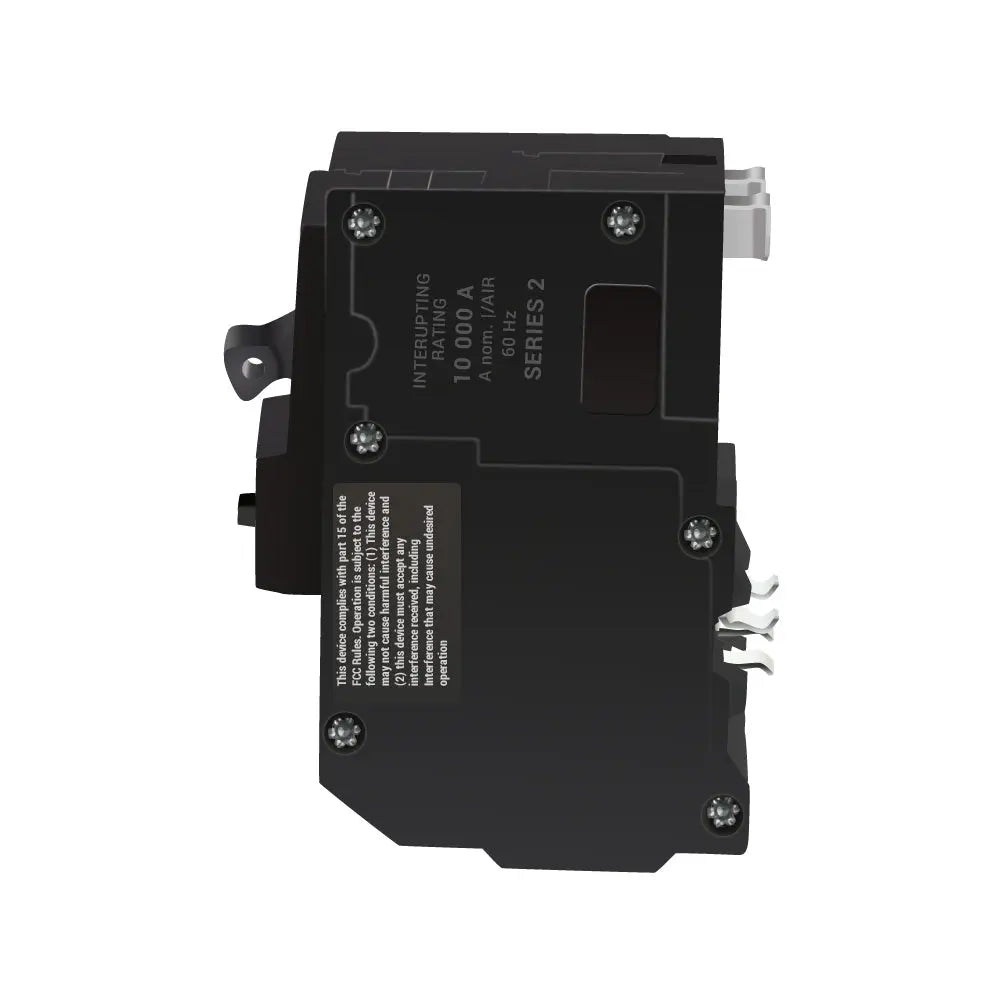

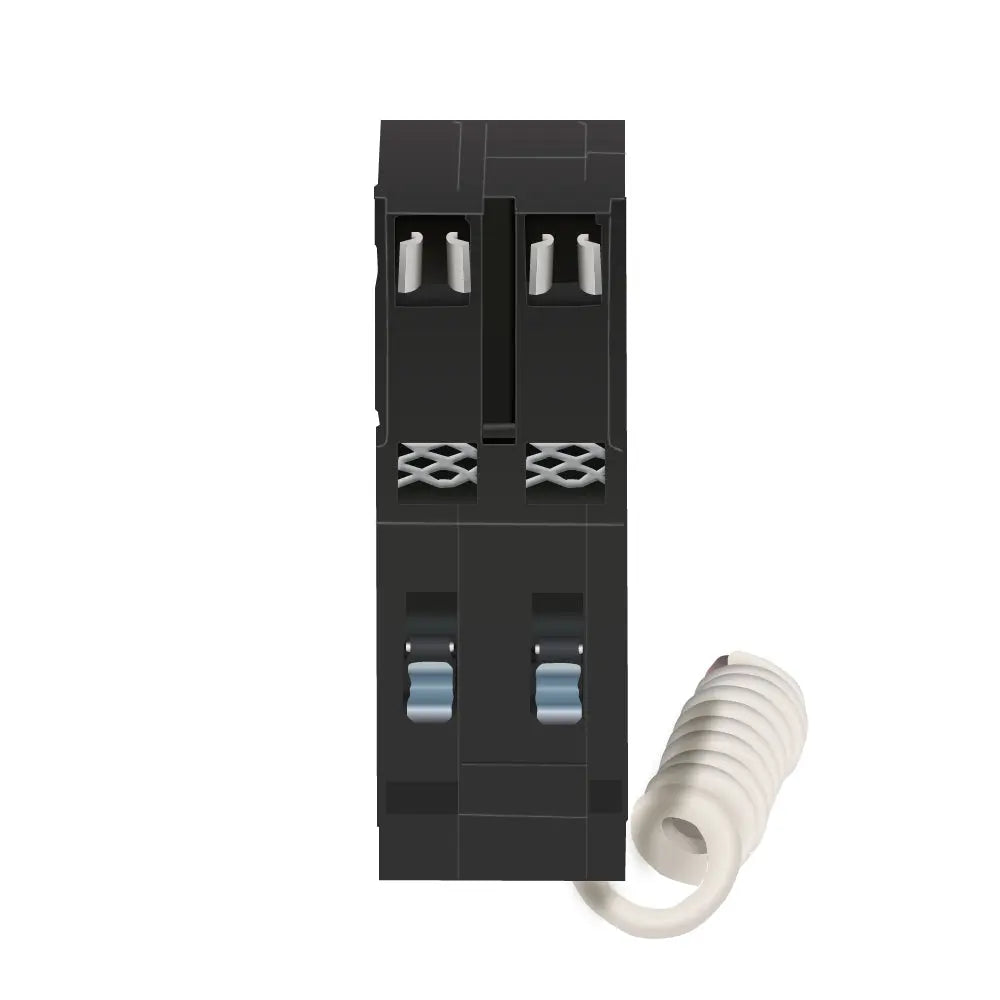

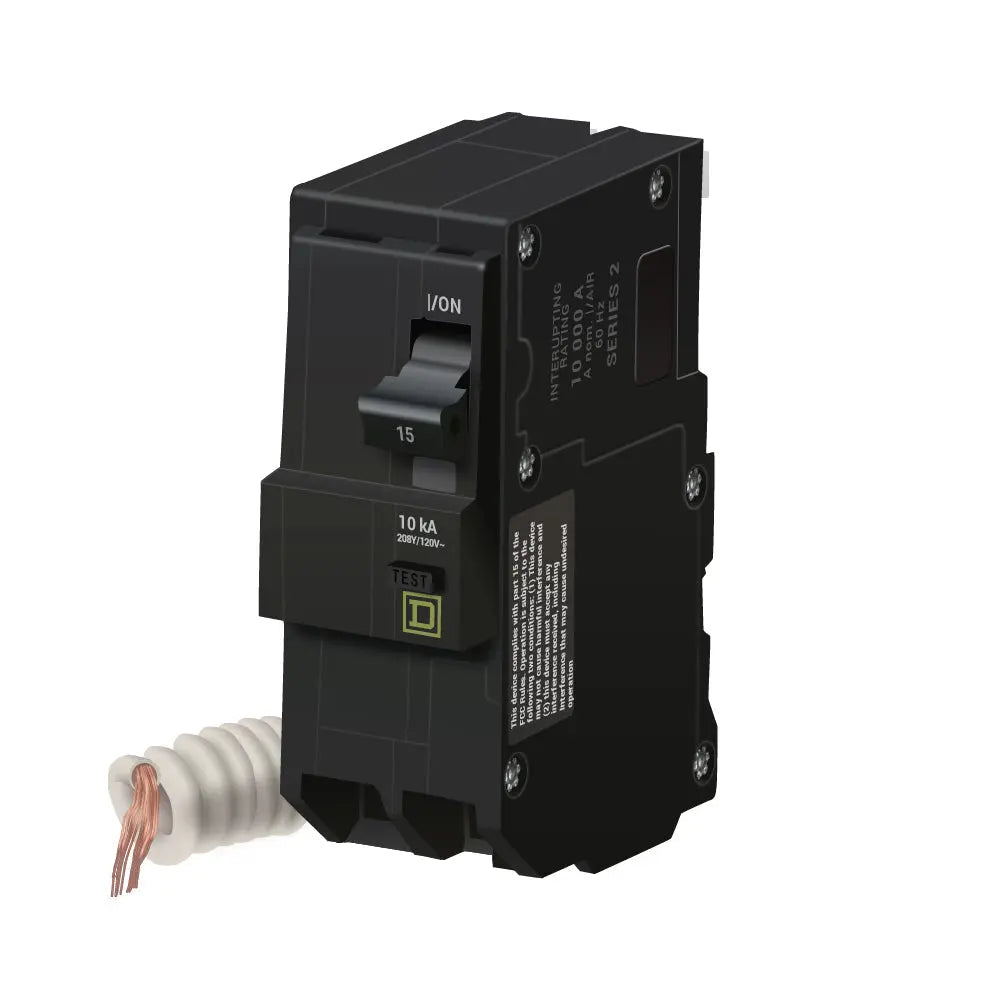

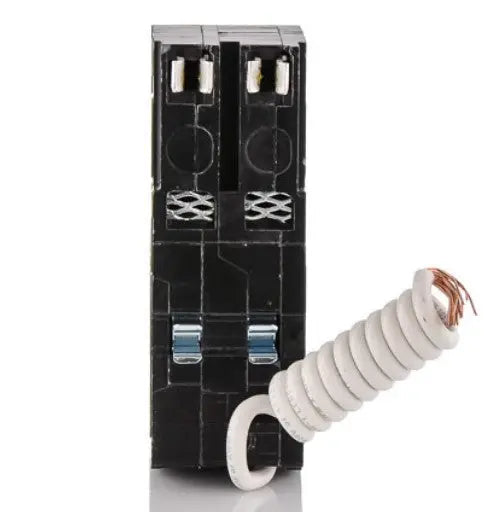

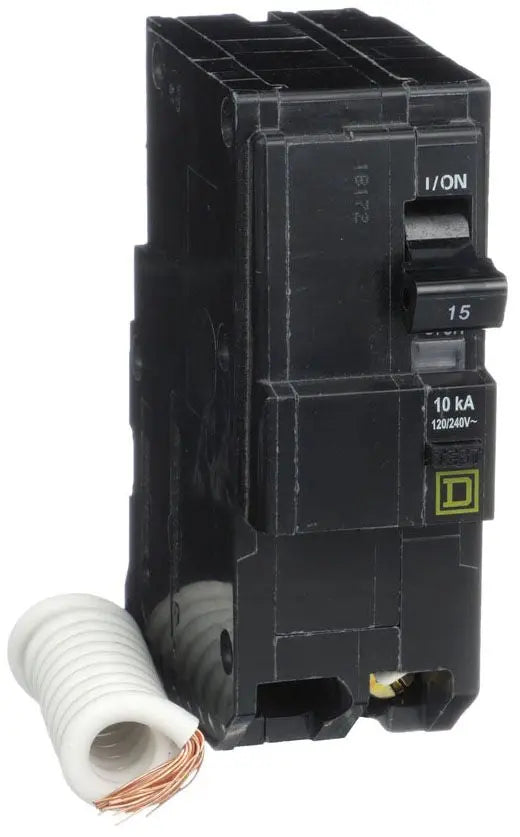

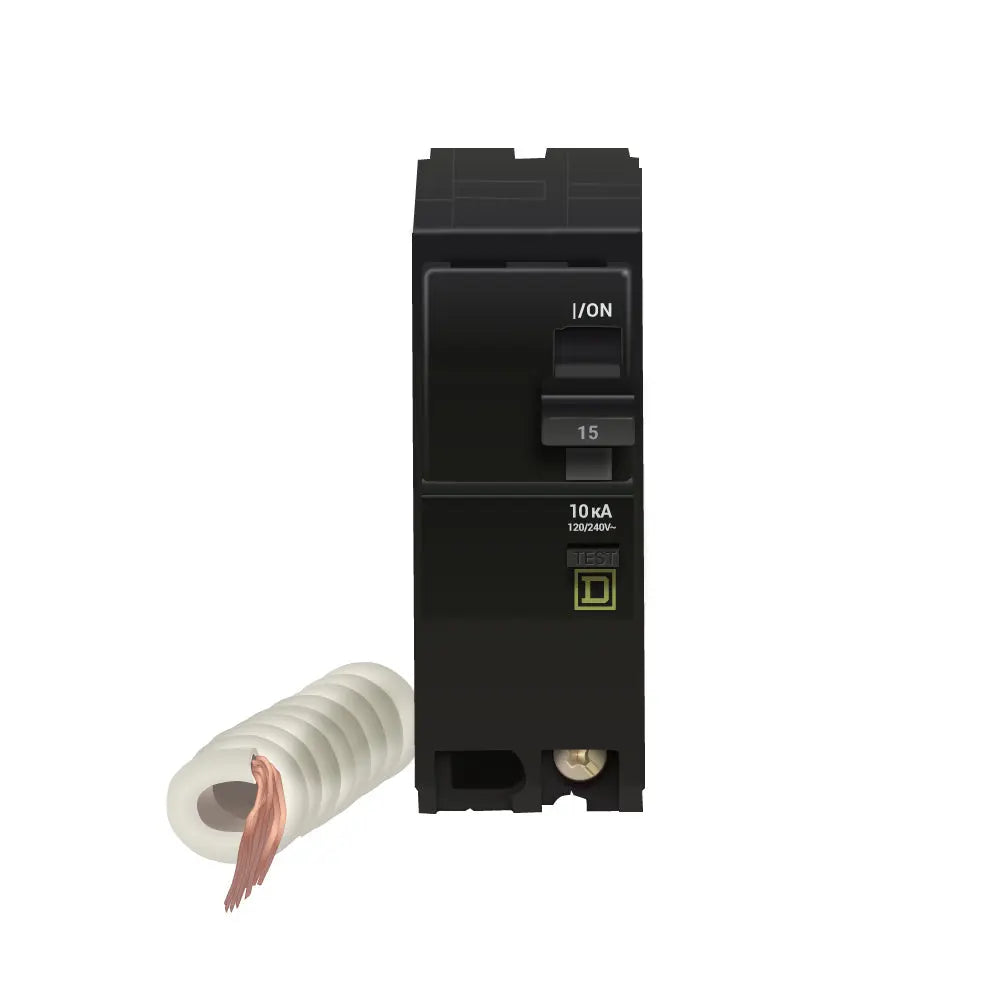

QO215EPD is a Square D QO Series 2 pole, 15A, 120/240VAC ground fault circuit breaker designed for reliable equipment protection.
This thermal magnetic, common trip breaker features a plug-in mounting style, 10kA interrupting rating, and is approved for use in QO loadcenters, NQOD panelboards, and OEM interior/speed-D switchboard distribution panels. It accepts 14–8 AWG copper or 12–8 AWG aluminum wire and is rated for 40°C operation.
-
Key Specifications
- Amperage: 15A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10kAIC at 120/240VAC
- Series/Frame: QO
- Trip Unit: Thermal Magnetic, Common Trip
- Certifications: UL, CSA
- Wire Size: 14–8 AWG (Copper), 12–8 AWG (Aluminum)
- Temperature Rating: 40°C
- Dimensions: 2.91" L x 1.5" W x 4.12" H
- Connection: Pressure Plate Terminal
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QO215EPD
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO Series
- Type : QO
- Voltage : 240
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Pressure plate
- Frame Size : 100A/QO
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
- Breaker Type : Ground Fault Equipment Protection (30mA)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901120735
- GTIN : 00785901120735
- Country of Origin : Mexico
- Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.881
- Panel Type : QO Load Centers and NQ Panelboards
- Standards : CSA Certified, UL Listed
- Certification : UL Listed
- Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
