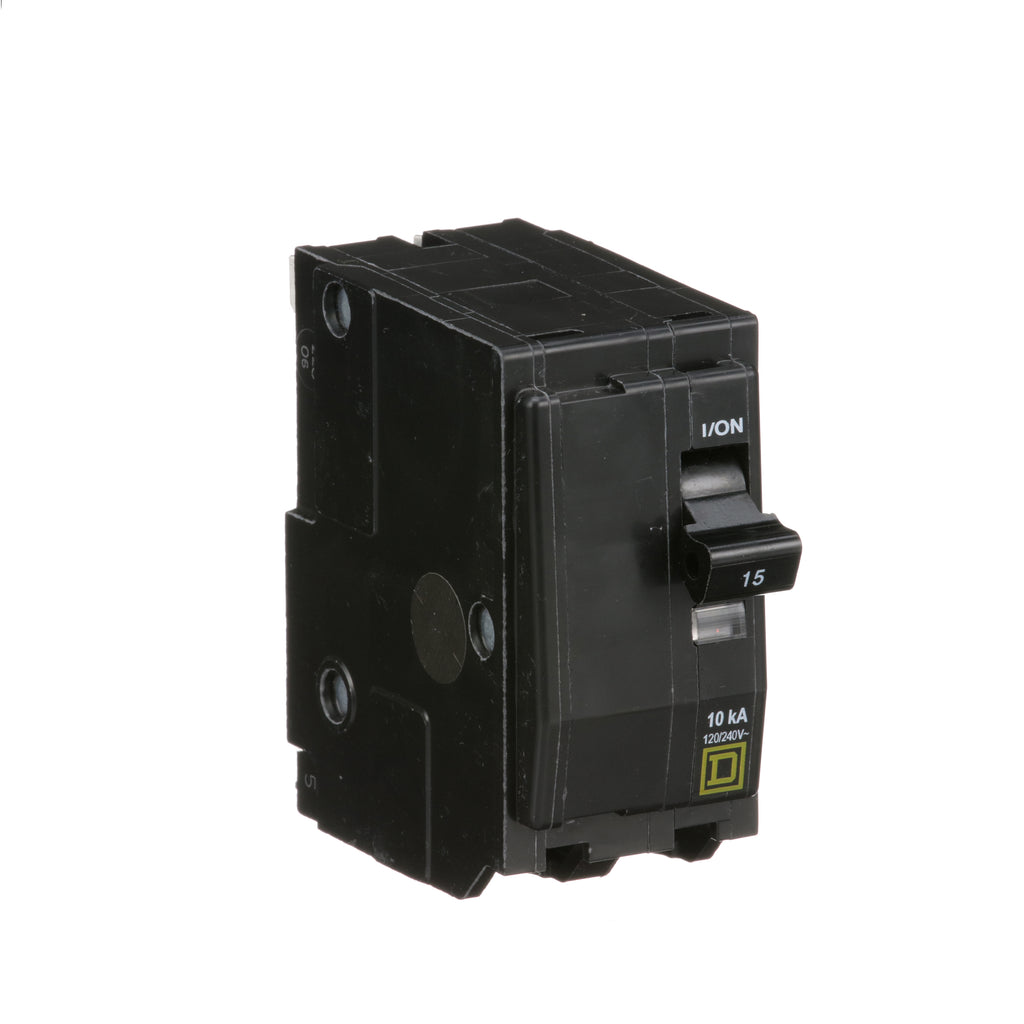

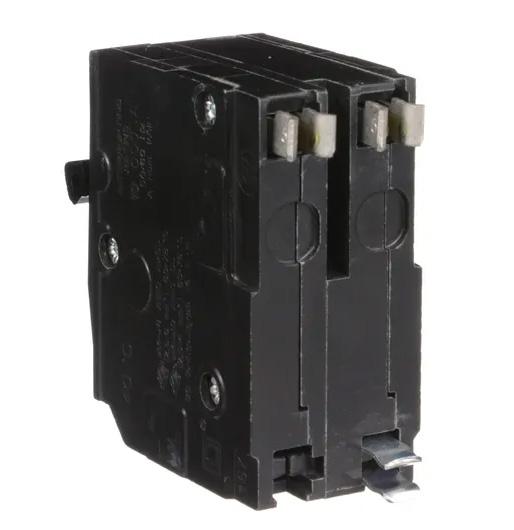

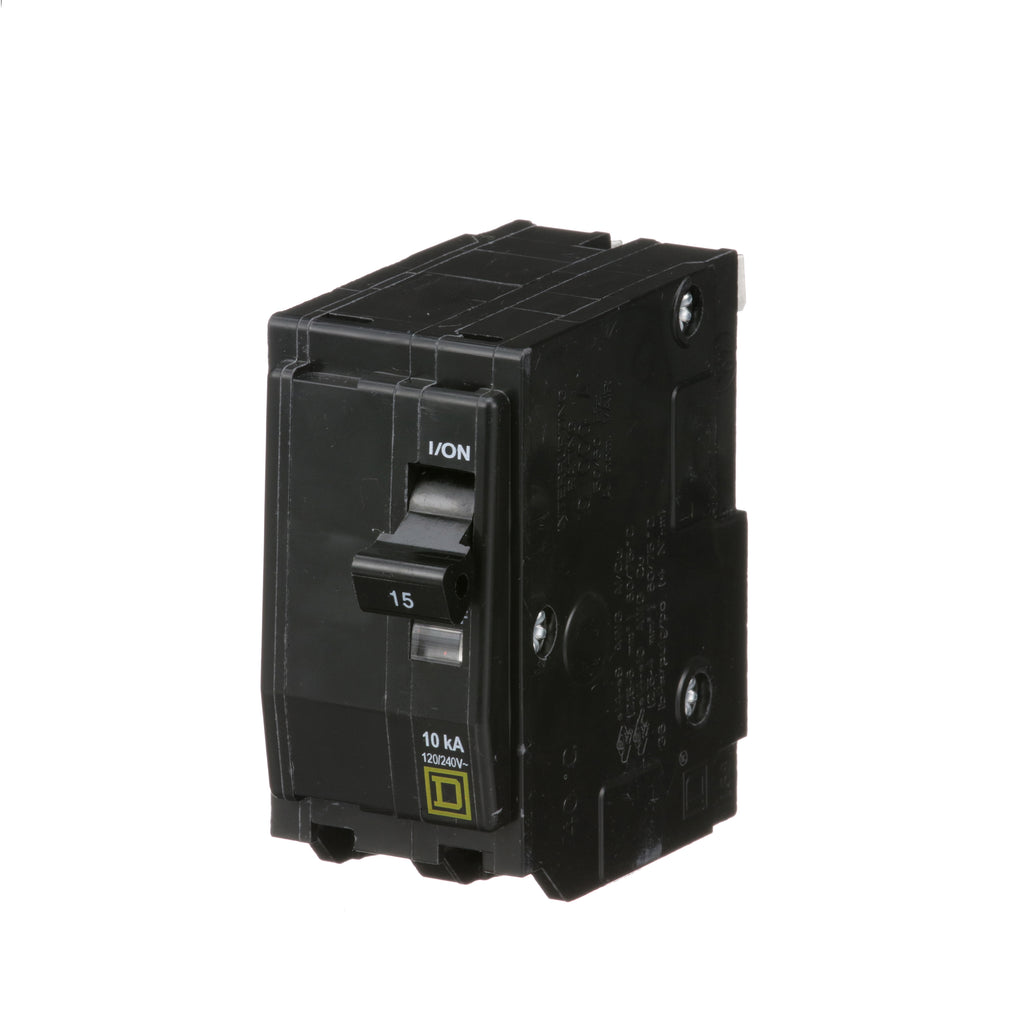

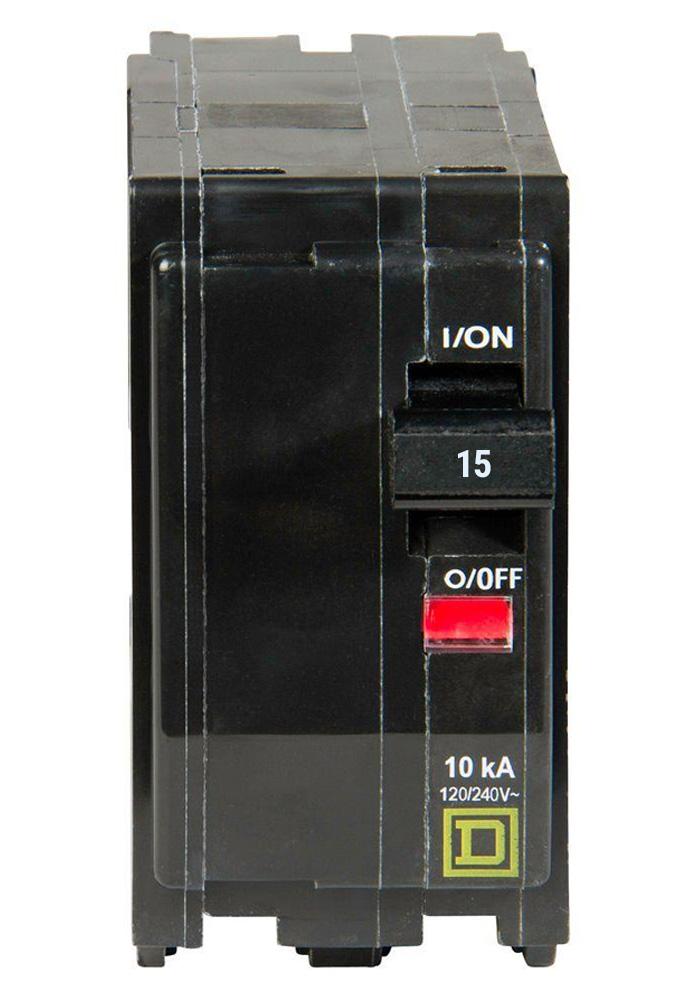

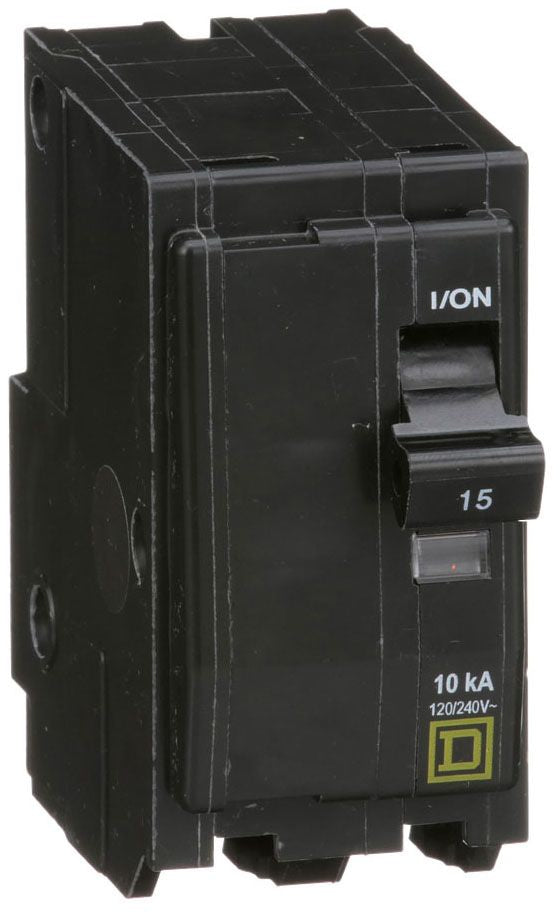

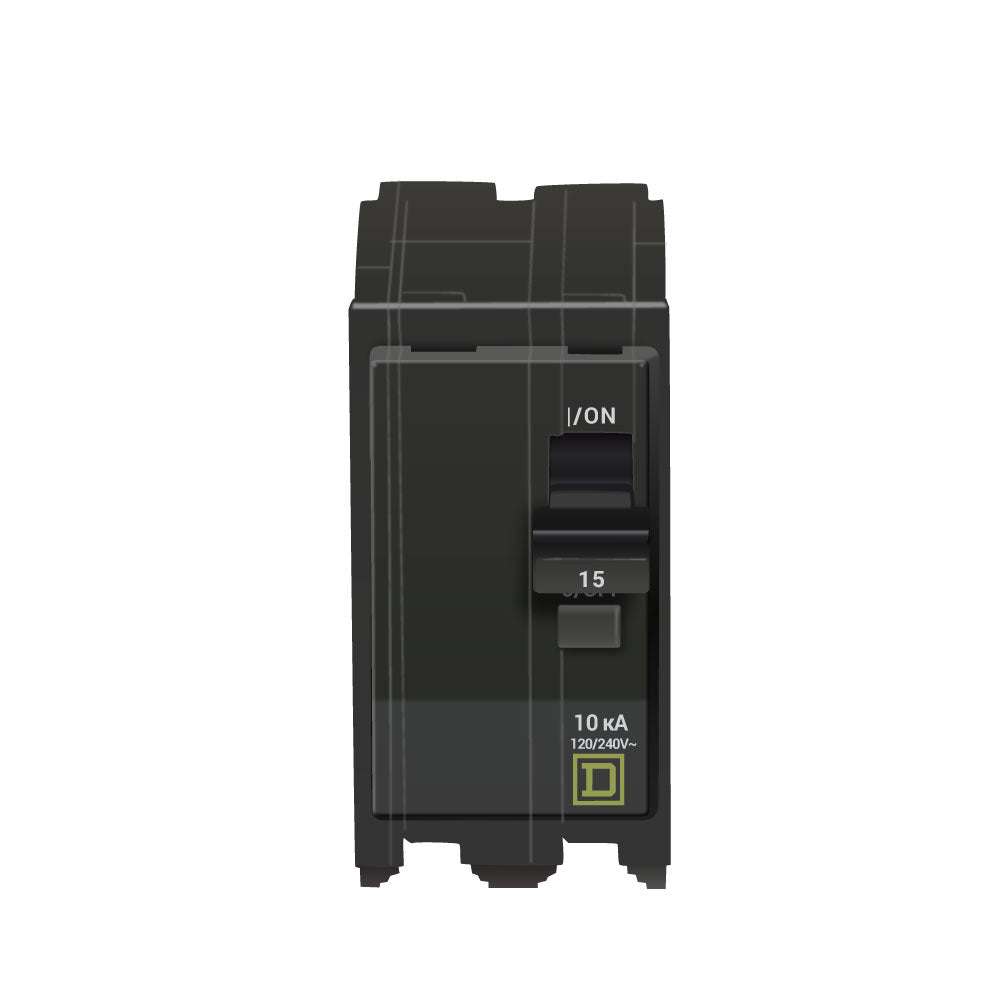

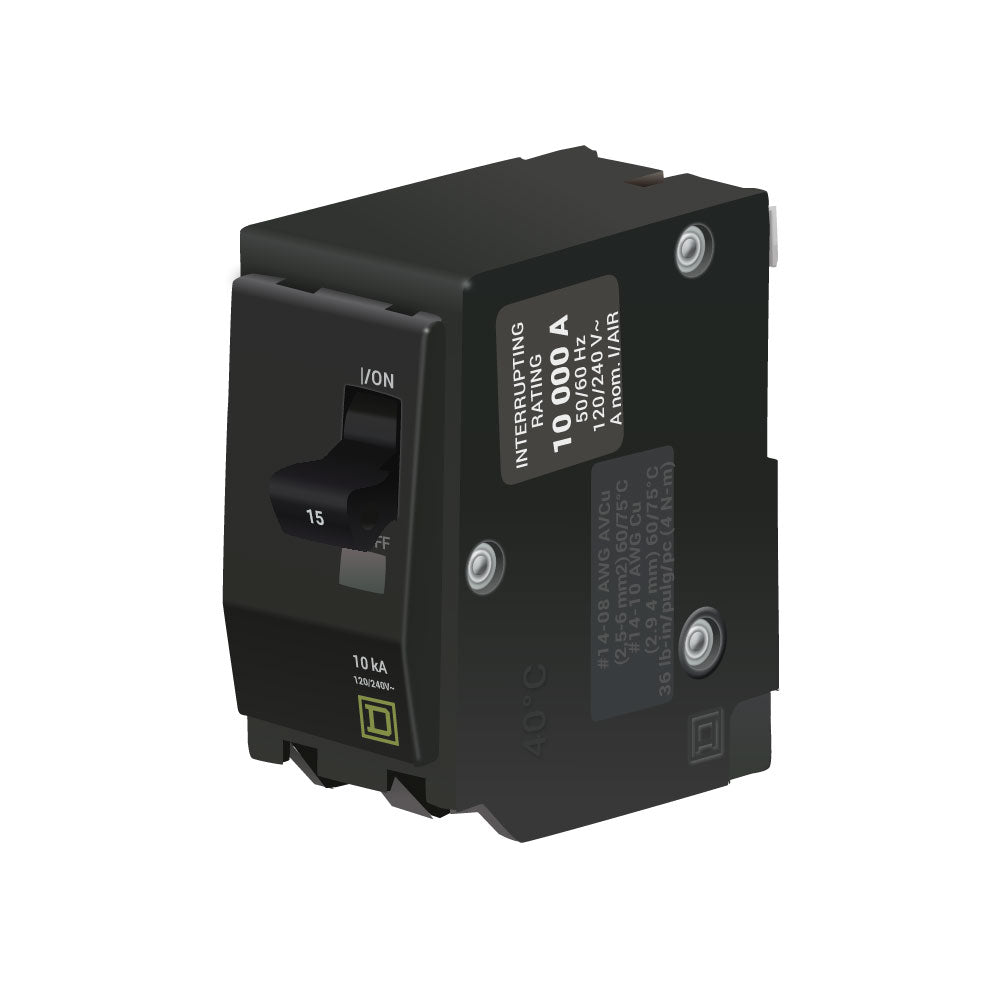

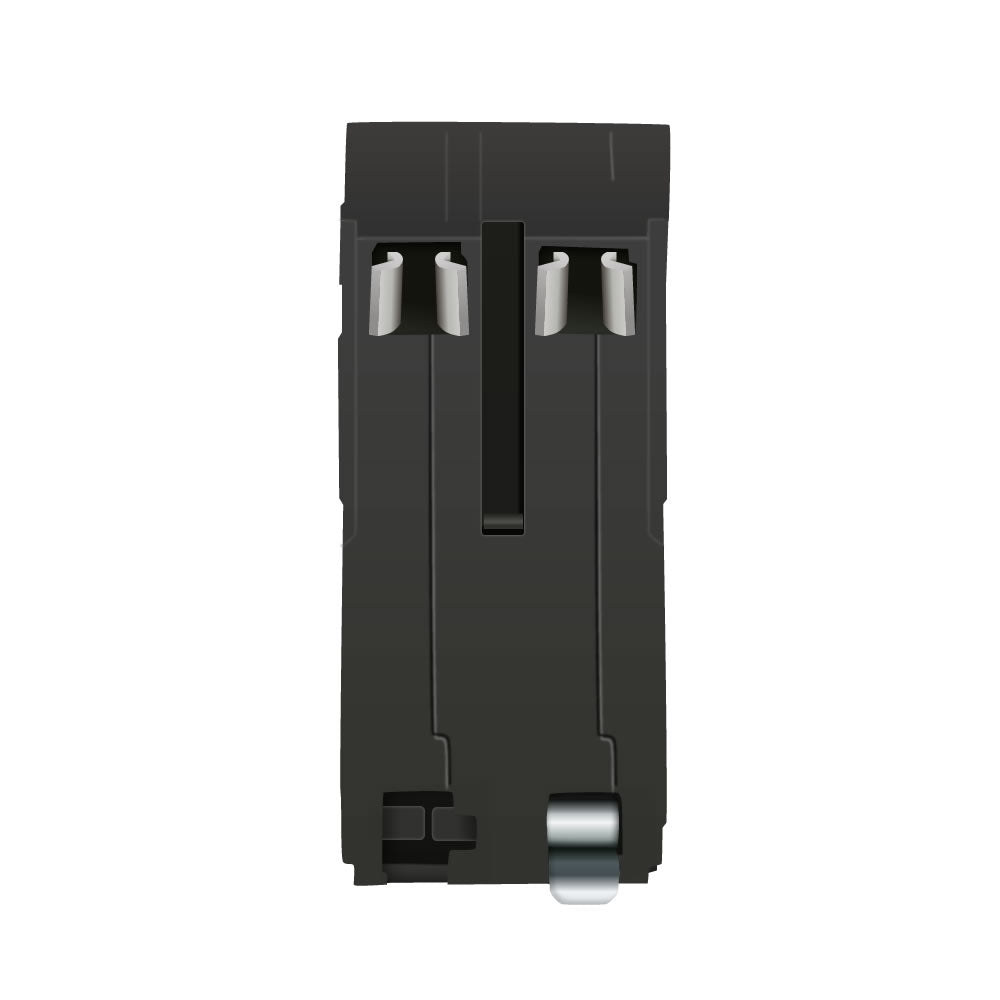

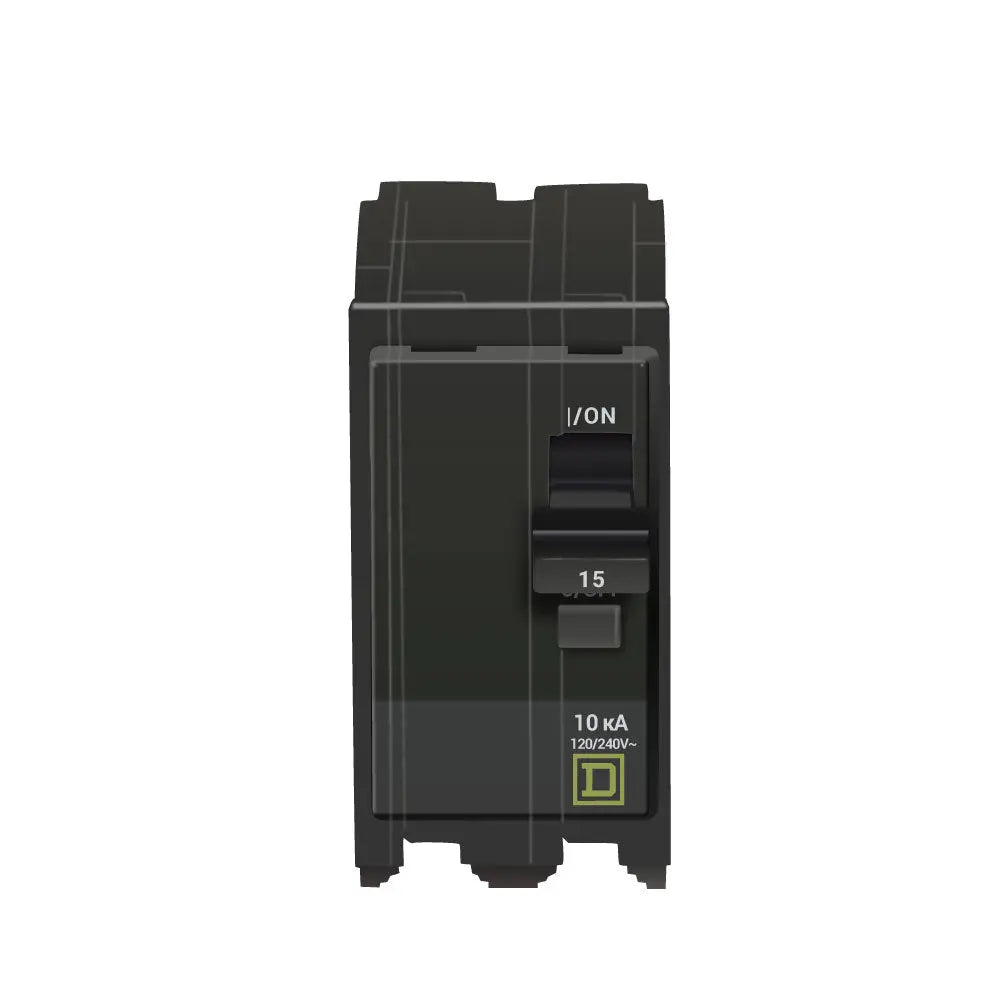

QO215 - Square D 15 Amp 2 Pole 120/240V Miniature Circuit Breaker Plug-In Type

QO215

QO215 is a Square D 15 Amp 2 Pole miniature circuit breaker designed for residential and light commercial electrical panels.

This circuit breaker features a plug-in mounting type compatible with Square D QO load centers and panelboards. It is rated for 120/240 volts AC with a 10,000 amp interrupting rating, providing reliable overcurrent protection. The breaker includes a common trip mechanism and is UL listed and CSA approved, ensuring compliance with safety standards. It supports conductor sizes from 14 to 8 AWG copper or aluminum wire and has a compact size of approximately 3 inches height by 1.5 inches width.

Key Specifications
• Amperage: 15 Amp
• Voltage: 120/240 VAC
• Poles: 2 Pole
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 Amps
• Series/Frame: QO Series
• Trip Unit: Common Trip
• Certifications: UL Listed, CSA Approved
• Conductor Size: 14-8 AWG Copper/Aluminum
• Phase: Single Phase
• Dimensions: Approx. 3" H x 1.5" W x 3" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO215
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901400301
• GTIN : 00785901400301
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.54 lb
• Certification : HACR, UL Listed
• Wire Size : AWG 14 to AWG 8, Copper or Aluminum
