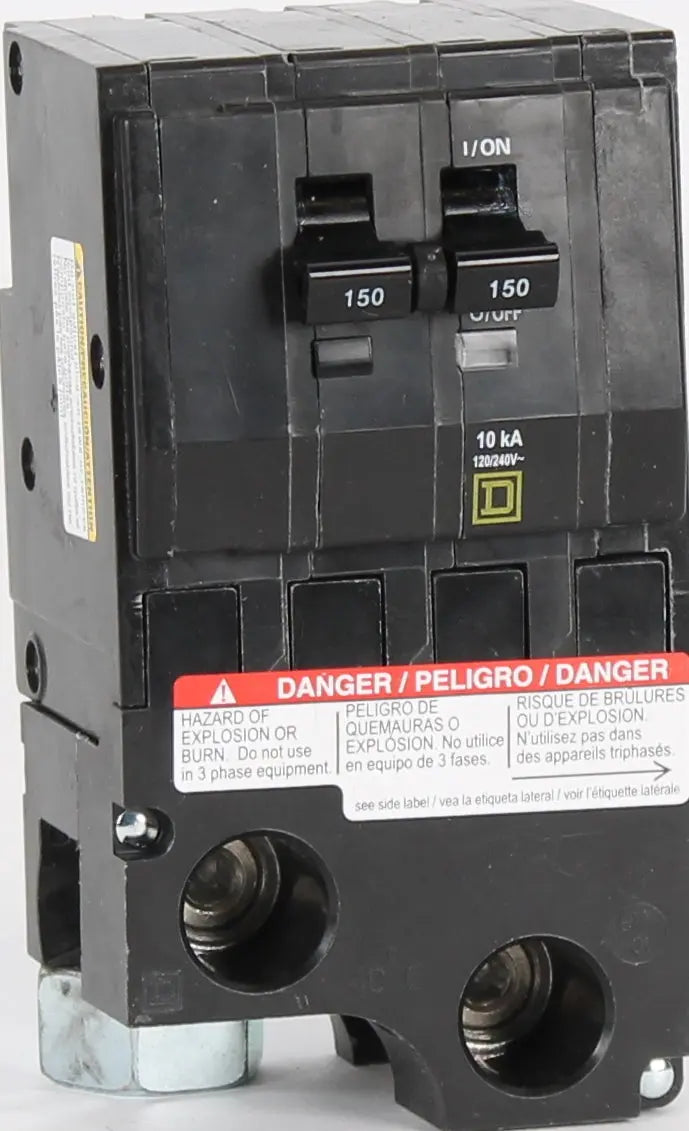

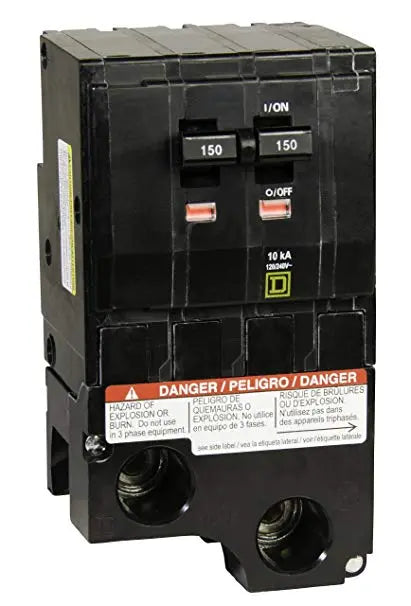

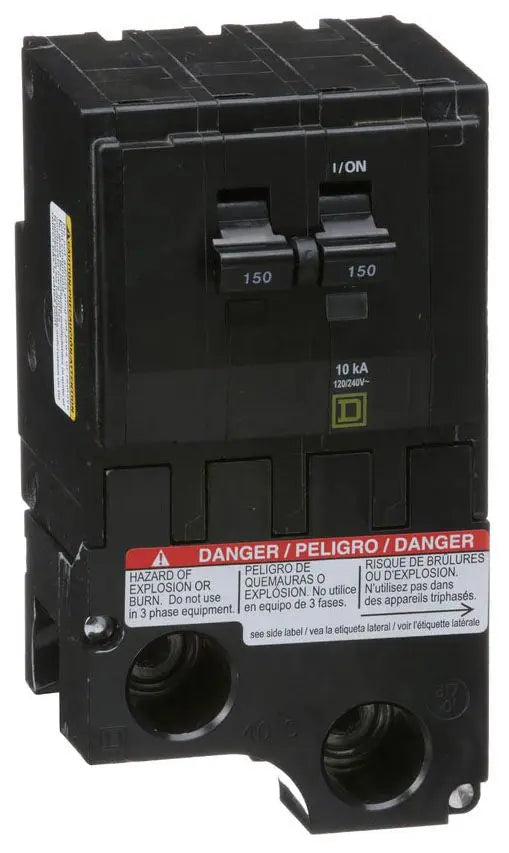

QO2150 - Square D 150 Amp 2 Pole 120/240VAC QO Series Circuit Breaker Plug-In 10kA Thermal Magnetic

QO2150

QO2150 is a Square D 2 pole circuit breaker rated for 150 amps and 120/240 volts AC with a plug-in mounting type.This QO Series circuit breaker features thermal magnetic trip units with long-time and instantaneous trip functions, providing reliable overcurrent protection. It has a 10kA interrupting rating at 120/240VAC and is UL and CSA certified. The breaker supports wire sizes from AWG 1 to 300 kcmil copper or aluminum and is HACR rated for HVAC applications.

Key Specifications
• Amperage: 150 Amp
• Voltage: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Plug-In
• Interrupting Rating: 10 kA at 120/240 VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Certifications: UL Listed, CSA Certified
• Terminal Connection: Box Lugs
• Wire Gauge: AWG 1 to 300 kcmil Copper or Aluminum
• Phase: Single Phase
• HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO2150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901300021
• GTIN : 00785901300021
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 2.511
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 1 to 300KCmil, Copper or Aluminum
