QO120VHAFI - Square D 20A 120V 1 Pole Combination Arc Fault Circuit Breaker QO Series

QO120VHAFI

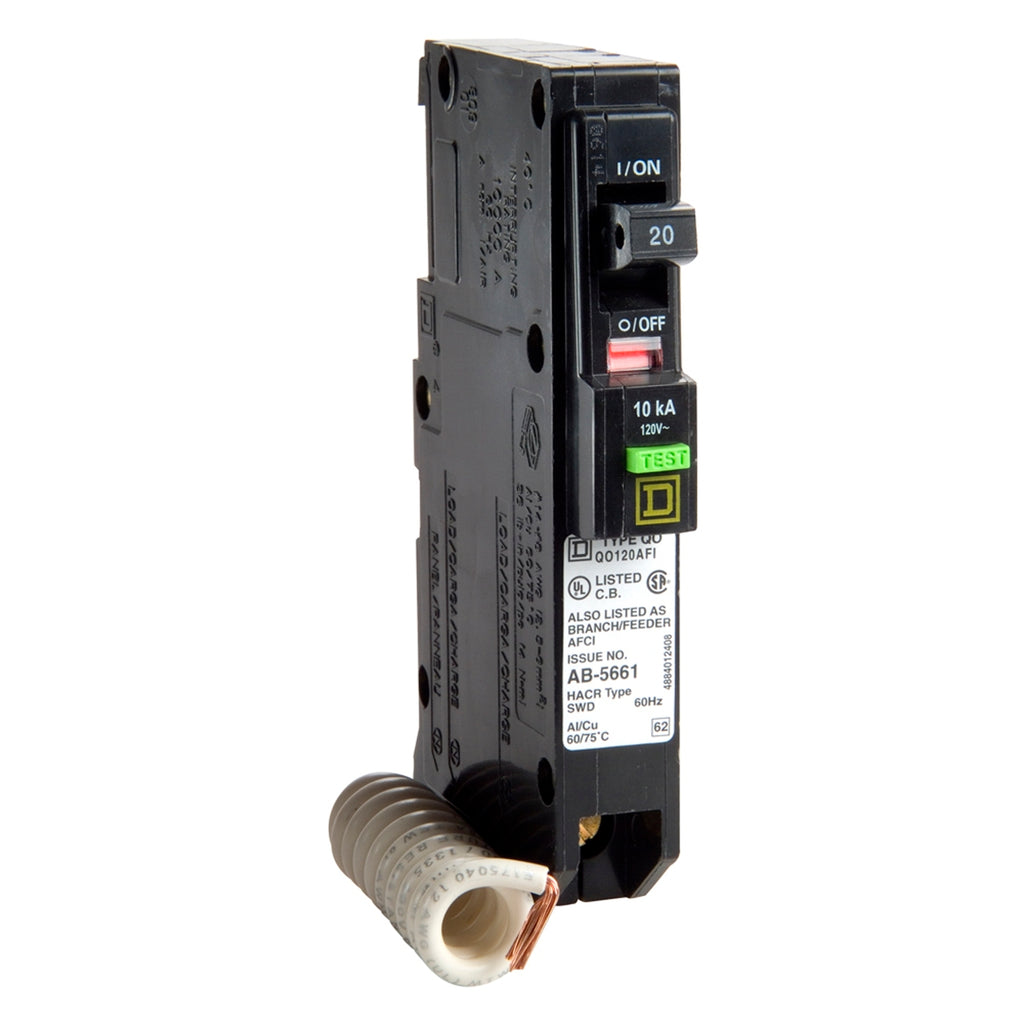

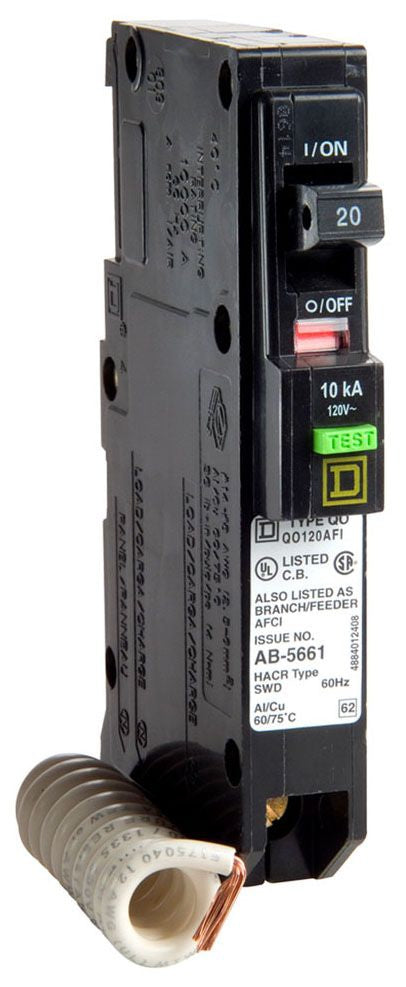

QO120VHAFI is a 20A, 120V, 1-pole combination arc fault circuit breaker from the Square D QO series, designed for residential and light commercial applications requiring advanced arc fault protection. This breaker features plug-in mounting, a 10kA interrupt rating, and is built for use in QO load centers. It provides reliable overload, short circuit, and arc fault protection with a thermal magnetic trip unit and a pigtail neutral connection. The QO120VHAFI is UL listed, RoHS compliant, and meets HACR standards for HVAC applications.

• Part Number: QO120VHAFI
• Manufacturer: Square D
• Series: QO
• Amperage: 20A
• Voltage: 120V AC
• Poles: 1
• Mounting Type: Plug-in
• Interrupt Rating: 10kAIC at 120V
• Neutral Connection: Pigtail
• Trip Unit: Thermal Magnetic
• Protection Type: Combination Arc Fault (CAFCI)
• Certifications: UL 489, RoHS, HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO120VHAFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO-AF
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901682998
• GTIN : 00785901682998
• Country of Origin : United States
• Dimensions : 4.8 in (121 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.57
• Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Cu/Al
