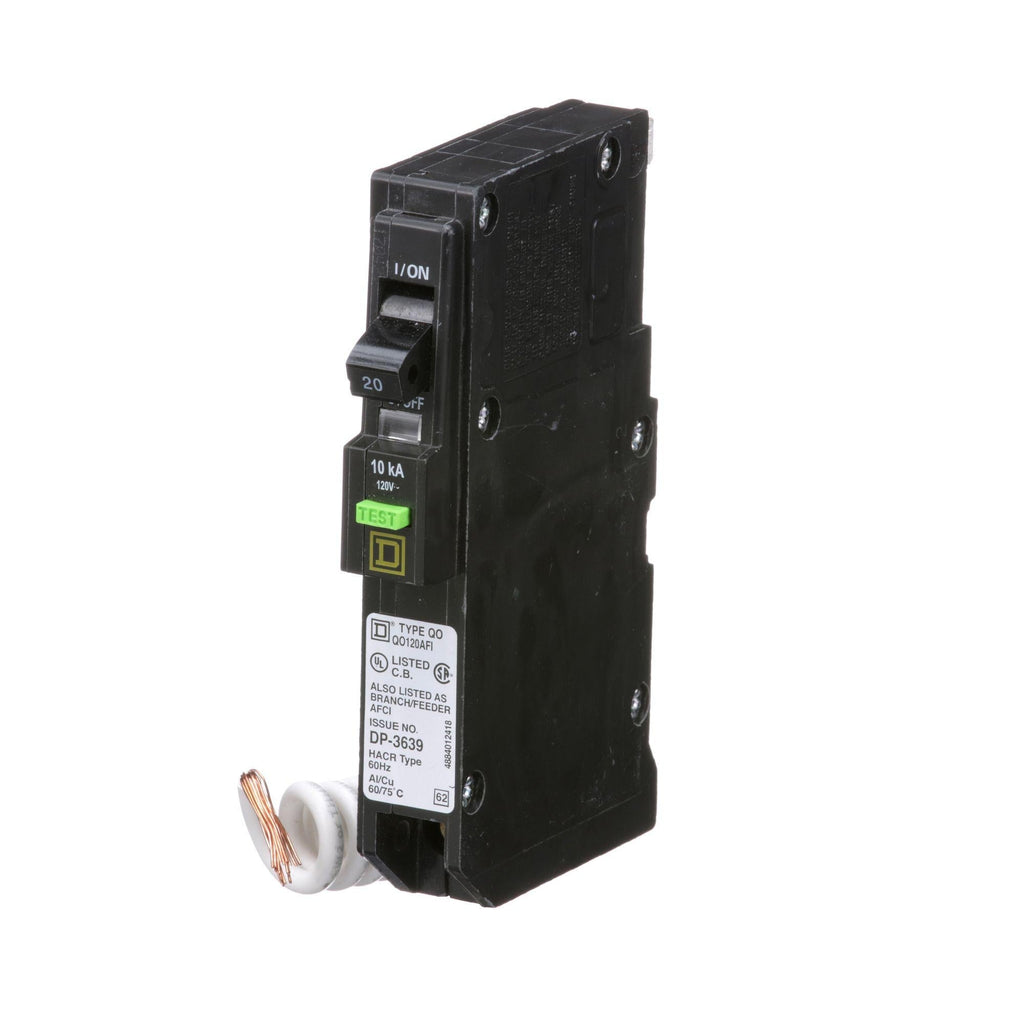

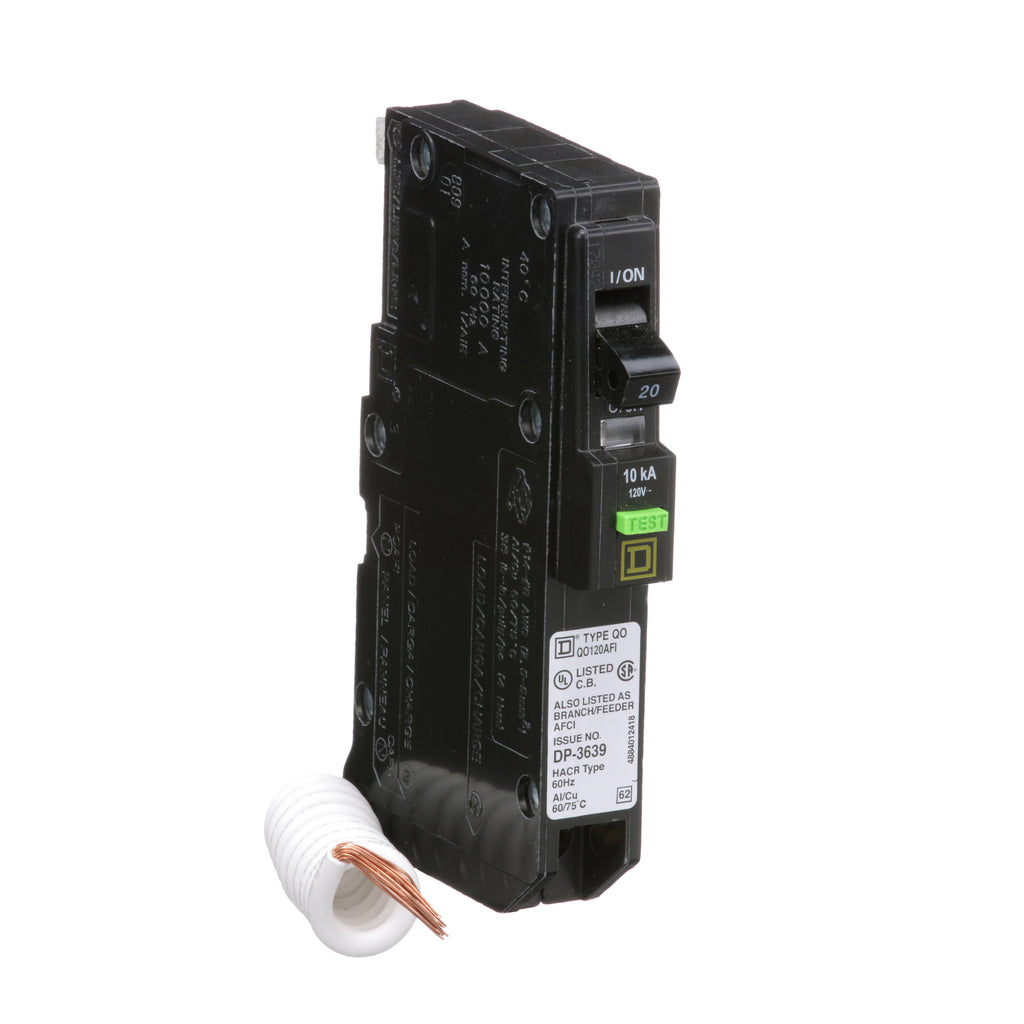

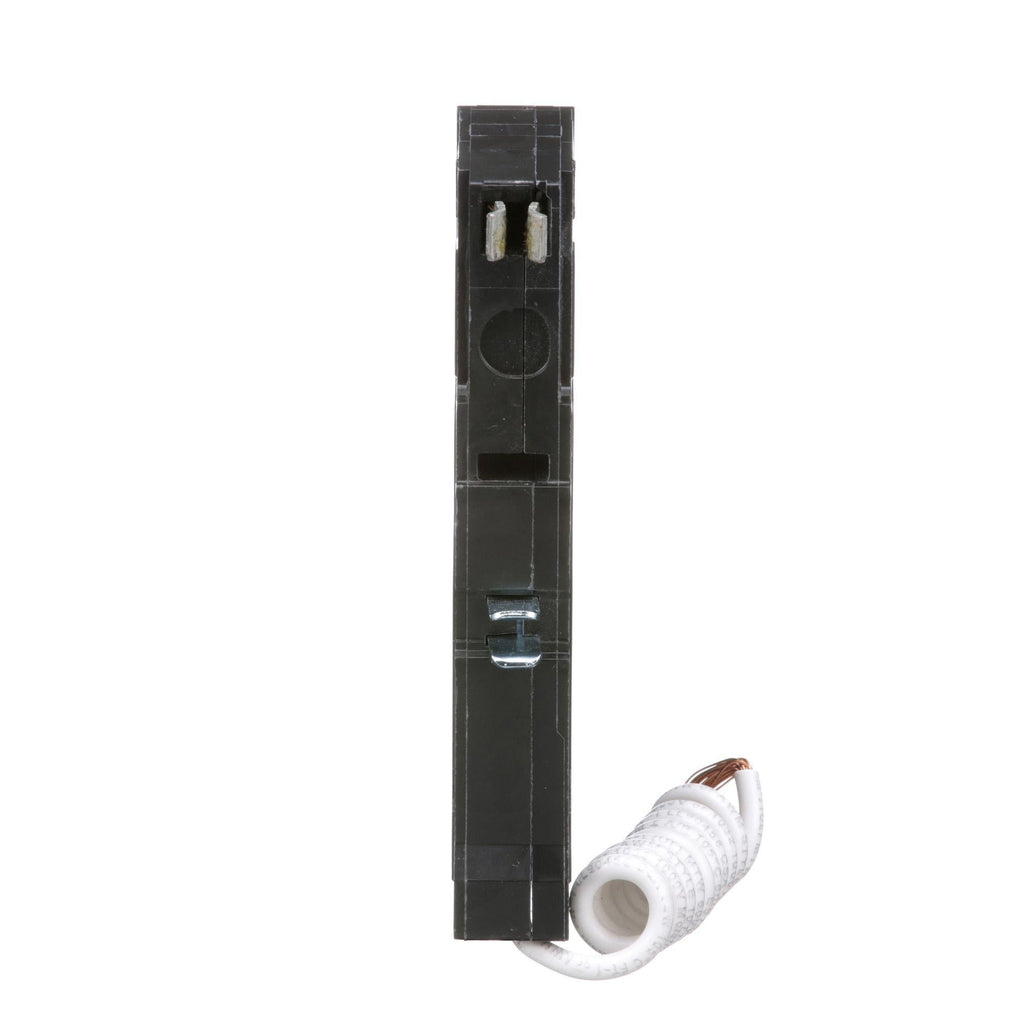

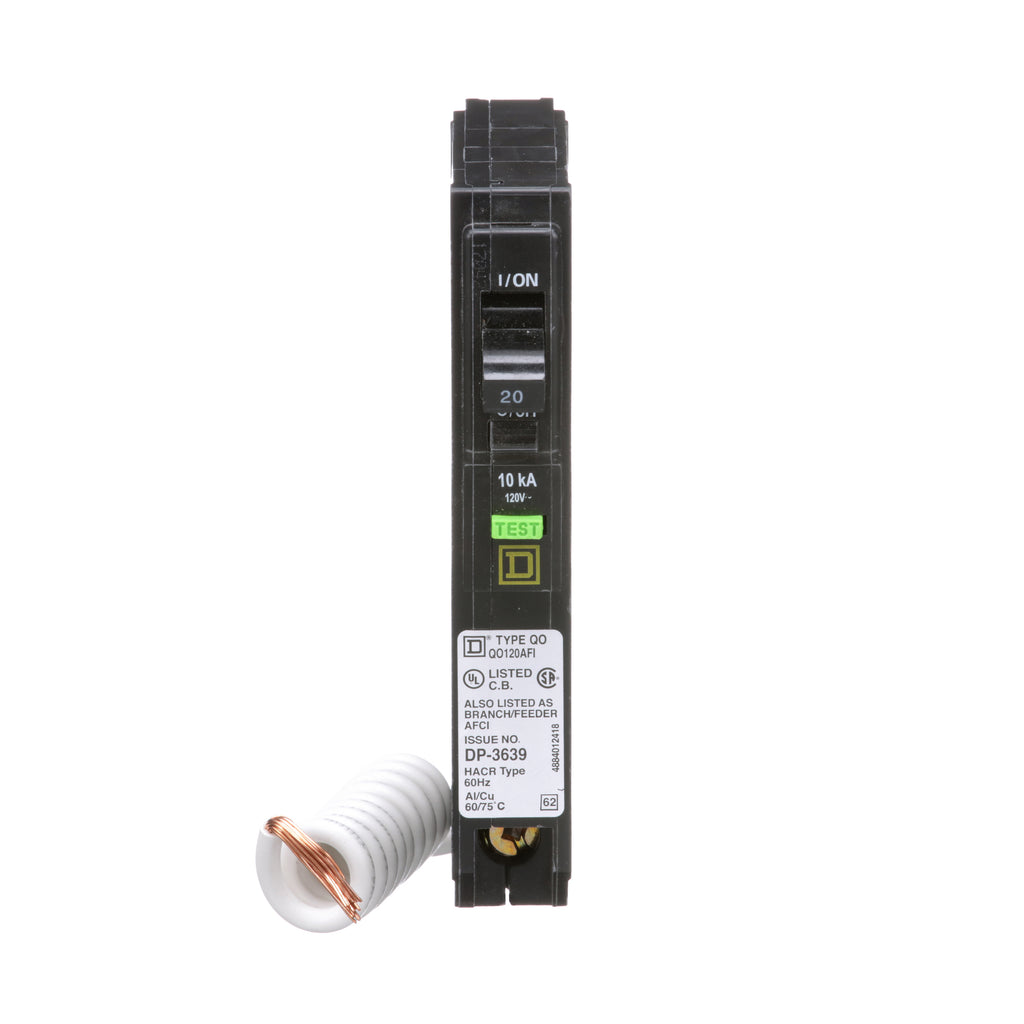

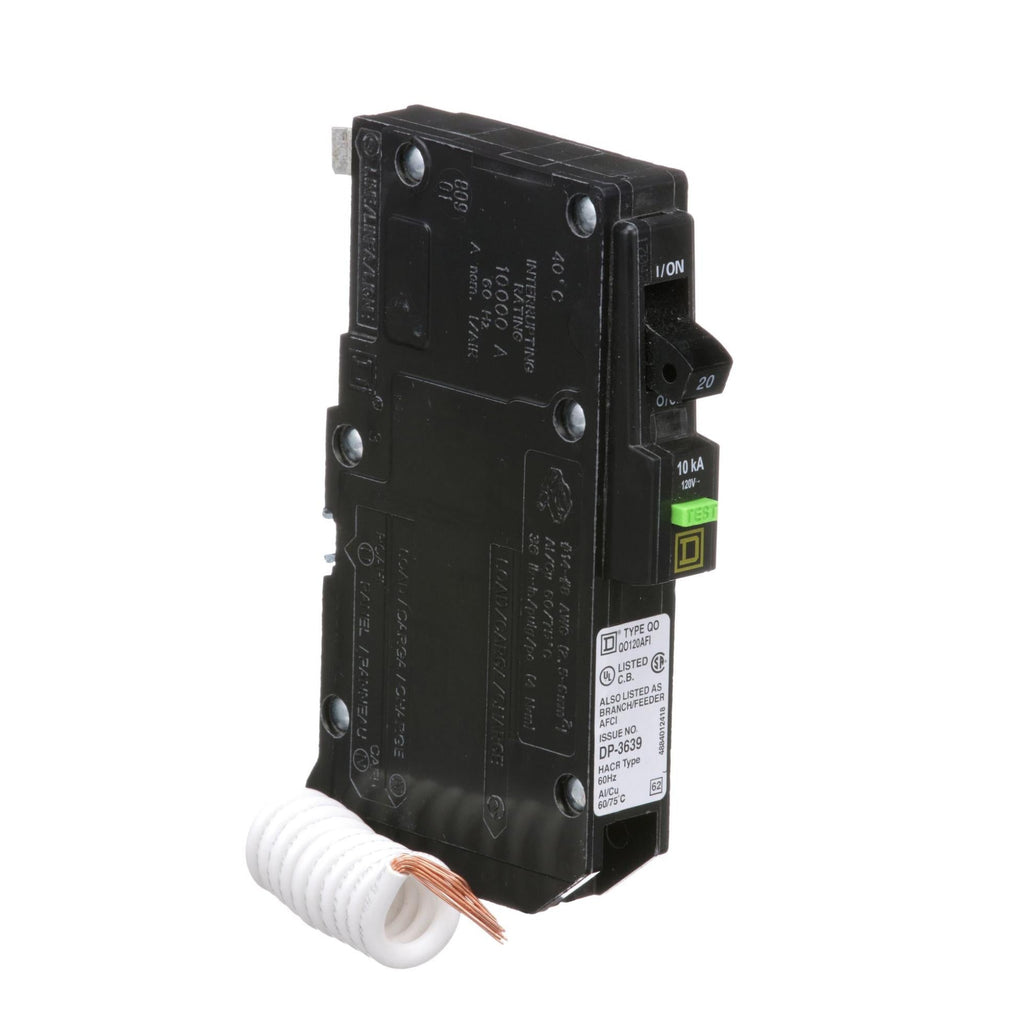

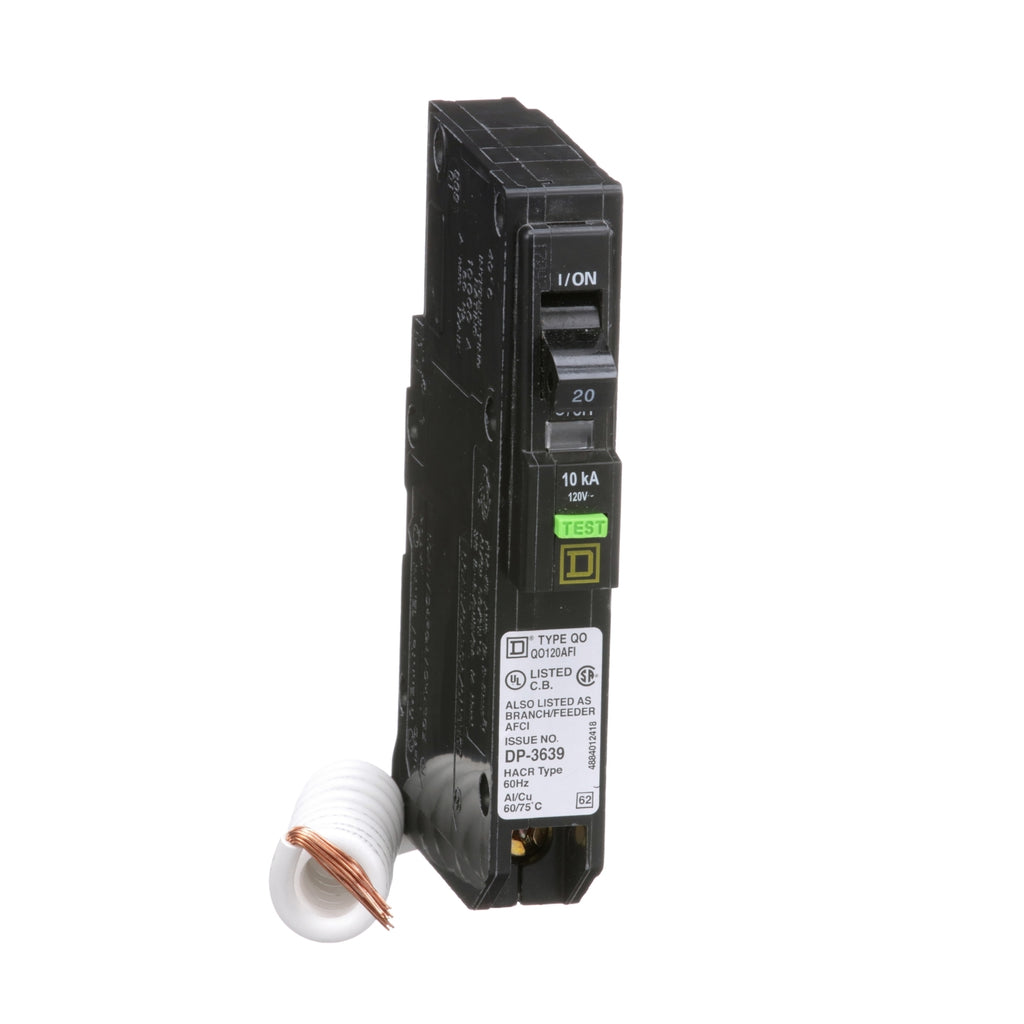

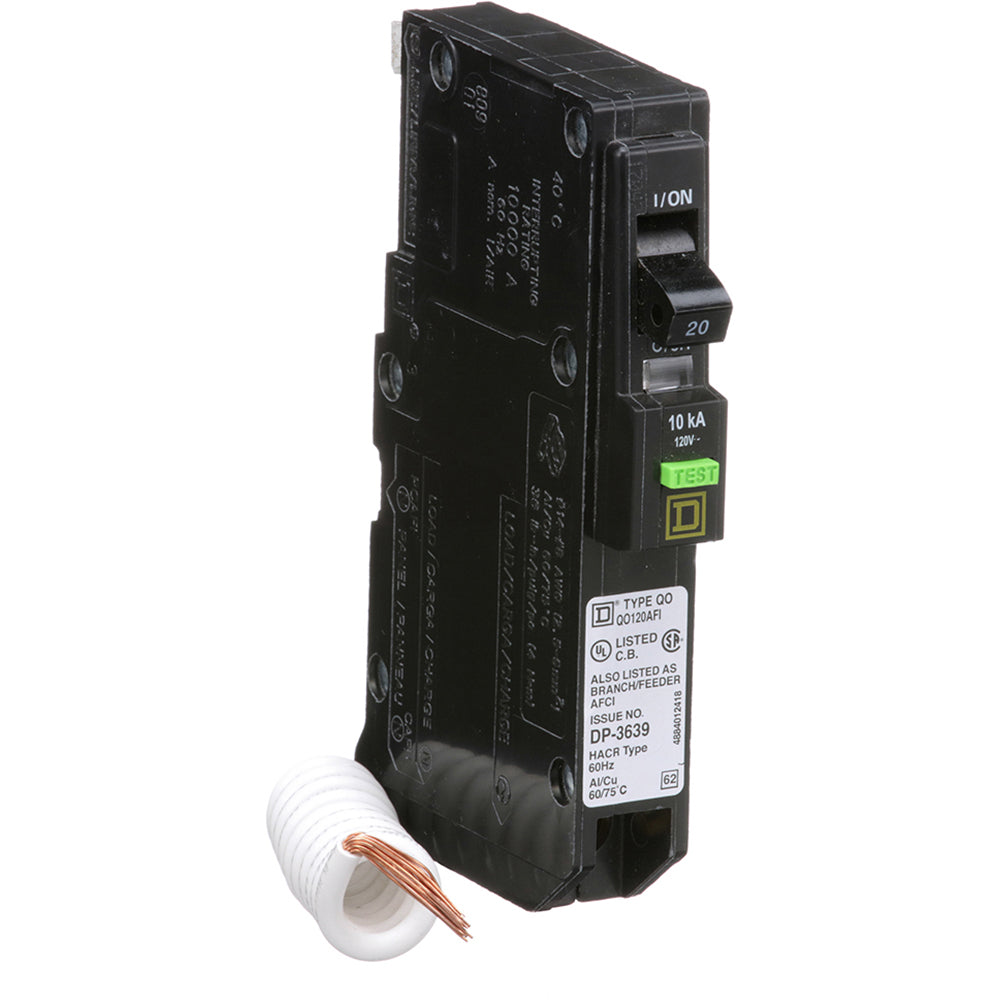

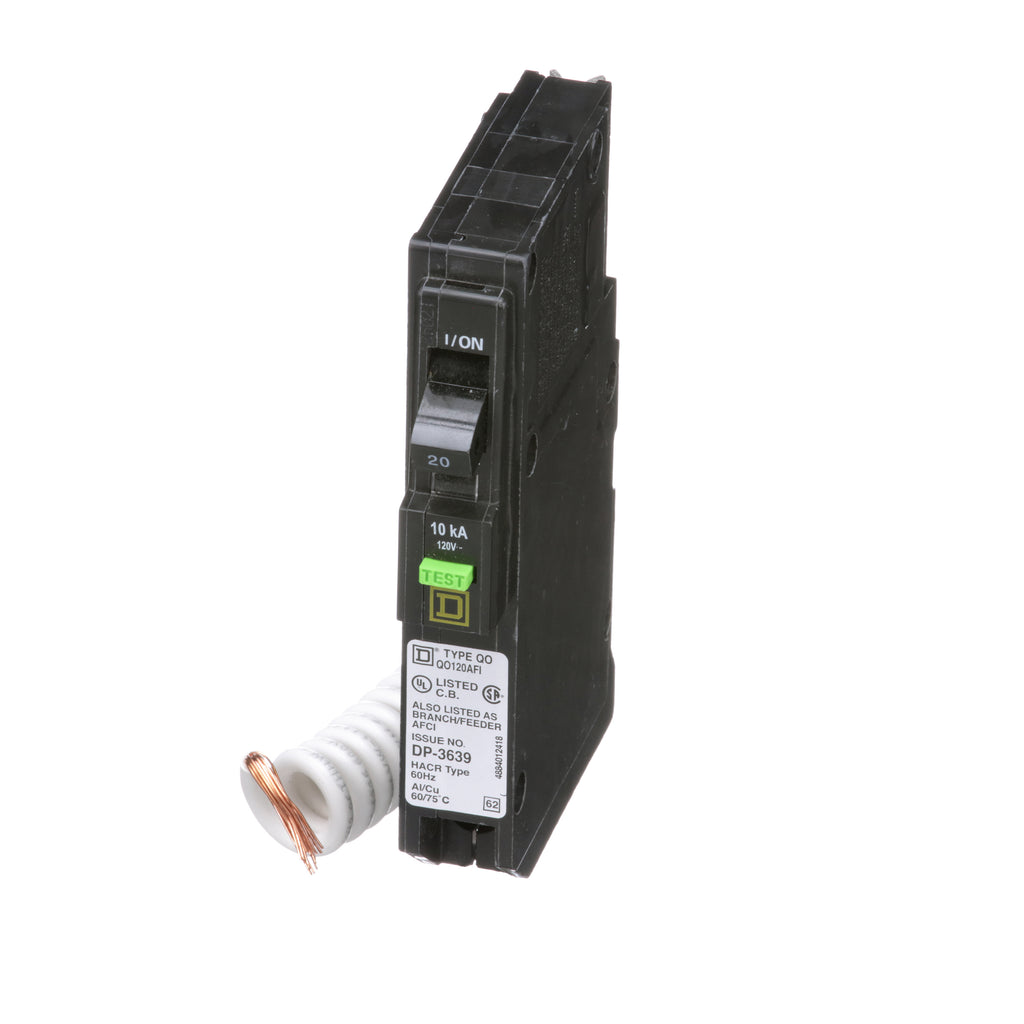

QO120AFI - Square D 20A 120V 1 Pole QO Arc Fault Circuit Breaker Plug-In 10kA

QO120AFI

QO120AFI is a 20 amp, 120 volt, 1 pole arc fault circuit breaker from Square D designed for plug-in mounting with a 10kA interrupt rating.This QO series circuit breaker features thermal magnetic trip units with long time and instantaneous trip functions, VISI-TRIP indicator for easy status identification, and arc fault protection to enhance electrical safety. It supports 1 phase operation and is CSA and UL certified.

• Manufacturer: Square D
• Part Number: QO120AFI
• Amperage: 20A
• Voltage: 120V AC
• Poles: 1
• Interrupt Rating: 10kA @ 120V
• Frame Type: QO
• Mounting Type: Plug-In
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Arc Fault Protection: Yes
• VISI-TRIP Indicator: Yes
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO120AFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO-AF
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Arc Fault Circuit Interrupter
• Protection : Thermal Magnetic

Product Data

• UPC : 785901301301
• GTIN : 00785901301301
• Country of Origin : Mexico
• Dimensions : 4.8 in (121 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 11.649
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed; CSA
• Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Copper/Aluminum
