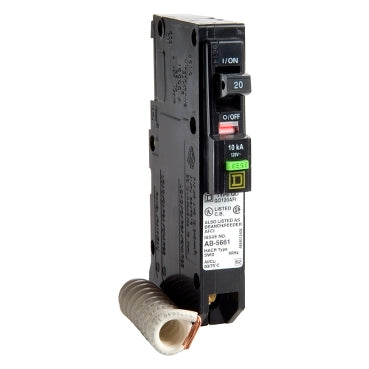

QO120AFIC - Square D 20A 120V 1-Pole Combination Arc Fault Circuit Breaker Plug-In

QO120AFIC

QO120AFIC is a 20 Amp, 120 Volt, 1-pole combination arc fault circuit breaker by Square D designed for plug-in mounting.This circuit breaker provides reliable arc fault protection with a 10kA interrupting rating at 120 VAC. It features a thermal magnetic trip unit with long-time and instantaneous trip functions, a plug-on neutral design for faster installation, and a compact footprint. The breaker is UL listed, HACR rated, RoHS and REACh compliant, and supports wire sizes from 14 to 8 AWG copper or aluminum.

• Amperage: 20 Amps
• Voltage: 120 VAC
• Poles: 1
• Mounting Type: Plug-in
• Interrupt Rating: 10 kAIC at 120V
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Circuit Breaker Type: Combination Arc Fault (CAFCI)
• Certifications: UL 489, CSA, RoHS, REACh, HACR Rated
• Wire Size Range: 14-8 AWG Copper/Aluminum
• Includes Pigtail Neutral
• Dimensions: Approx. 2.9" L x 0.7" W x 4.8" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO120AFIC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO-AF
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 785901301349
• GTIN : 00785901301349
• Dimensions : 4.8 in (121 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.581
