Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QBF32200

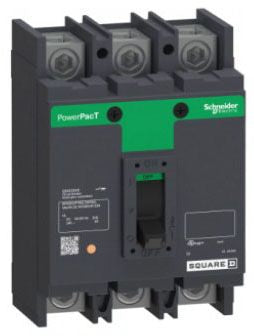

QBF32200 is a PowerPacT Q-frame molded case circuit breaker from Schneider Electric designed for overcurrent protection and switching on AC systems. This 200-ampere, 3-pole unit operates at 240VAC with a 10kA interrupting capacity at 240V and features thermal-magnetic trip technology with long-time and instantaneous (LI) protection functions. The breaker utilizes bolt-on mounting with line and load side lug terminals for secure electrical connections. Key Specifications
- Part Number: QBF32200
- Manufacturer: Schneider Electric (Square D)
- Amperage Rating: 200A
- Voltage: 240VAC
- Poles: 3
- Frame Type: Q-Frame
- Interrupting Capacity: 10kA at 240VAC
- Trip Unit: Thermal-Magnetic
- Trip Functions: LI (Long-Time and Instantaneous)
- Mounting: Bolt-On
- Certifications: UL 489 Listed, CSA Certified
- Continuous Current Rating: 80%
Specifications
- Part Number: QBF32200
- Manufacturer : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QBF
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : Q Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
