Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QBF32100

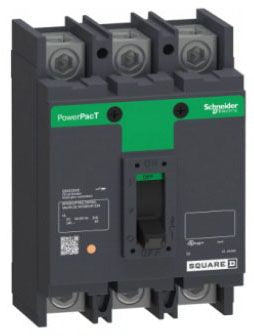

QBF32100 is a PowerPacT Q-frame molded case circuit breaker from Schneider Electric designed for overcurrent protection and switching on AC systems. This thermal-magnetic trip unit provides reliable protection with a 10kA interrupting rating at 240VAC and 208Y/120VAC. The breaker features a busbar mounting configuration and is UL 489 listed with CSA, ANCE, and IEC certifications for global compliance. Key Specifications
- Part Number: QBF32100
- Manufacturer: Schneider Electric (Square D)
- Amperage Rating: 100A
- Voltage Rating: 240VAC
- Number of Poles: 3 Pole
- Interrupting Rating: 10kA
- Trip Unit: Thermal-Magnetic
- Mounting Type: Busbar
- Frame Series: PowerPacT Q
- Certifications: UL 489, CSA, ANCE, IEC
- Thermal Capacity: 80%
Specifications
- Part Number: QBF32100
- Manufacturer : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QBF
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : Q Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
