Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QBF32110

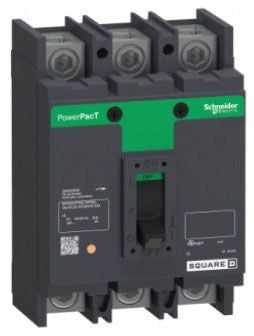

QBF32110 is a Schneider Electric Square D PowerPact Q Frame molded case circuit breaker designed for reliable overcurrent protection and switching in AC systems.This 3-pole circuit breaker features a 110 Amp rating, 240 VAC maximum voltage, and a B interrupt rating with 10 kA breaking capacity. It uses thermal-magnetic trip technology and is UL 489 listed for safety and performance. The breaker is unit mount with lug connections for line and load, suitable for distribution applications.
- Manufacturer: Schneider Electric Square D
- Amperage: 110 Amp
- Number of Poles: 3
- Maximum Voltage: 240 VAC
- Interrupt Rating: 10 kA (B code)
- Frame Type: PowerPact Q Frame
- Trip Unit: Thermal-magnetic
- Mounting Type: Unit mount with lugs
- UL Listing: UL 489
- Continuous Current Rating: 80%
- Mechanical Durability: 1000 cycles loaded, 5000 cycles no load
- Operating Temperature Range: 40 to 70 °C
Specifications
- Part Number: QBF32110
- Manufacturer : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QBF
- Voltage : 240
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : Q Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
