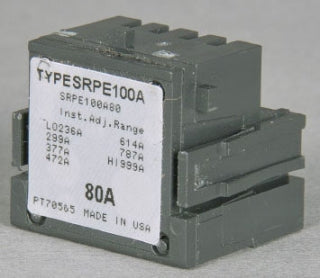

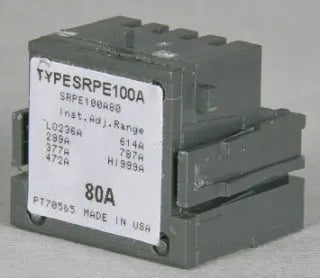

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Bus Plug Part
- Series
- Spectra Series
- Frame
- SRPG
- Rated current
- 150
- Max current rating
- 150
- Voltage
- 600V
- Amperage Maximum
- 150
- Amperage Minimum
- 150
- Trip Type
- MICROVERSATRIP-PLUS, MICROVERSATRIP-PM
- UPC
- 783164213270
- GTIN
- 00783164213270
- Weight
- 0.05
Product description & additional details

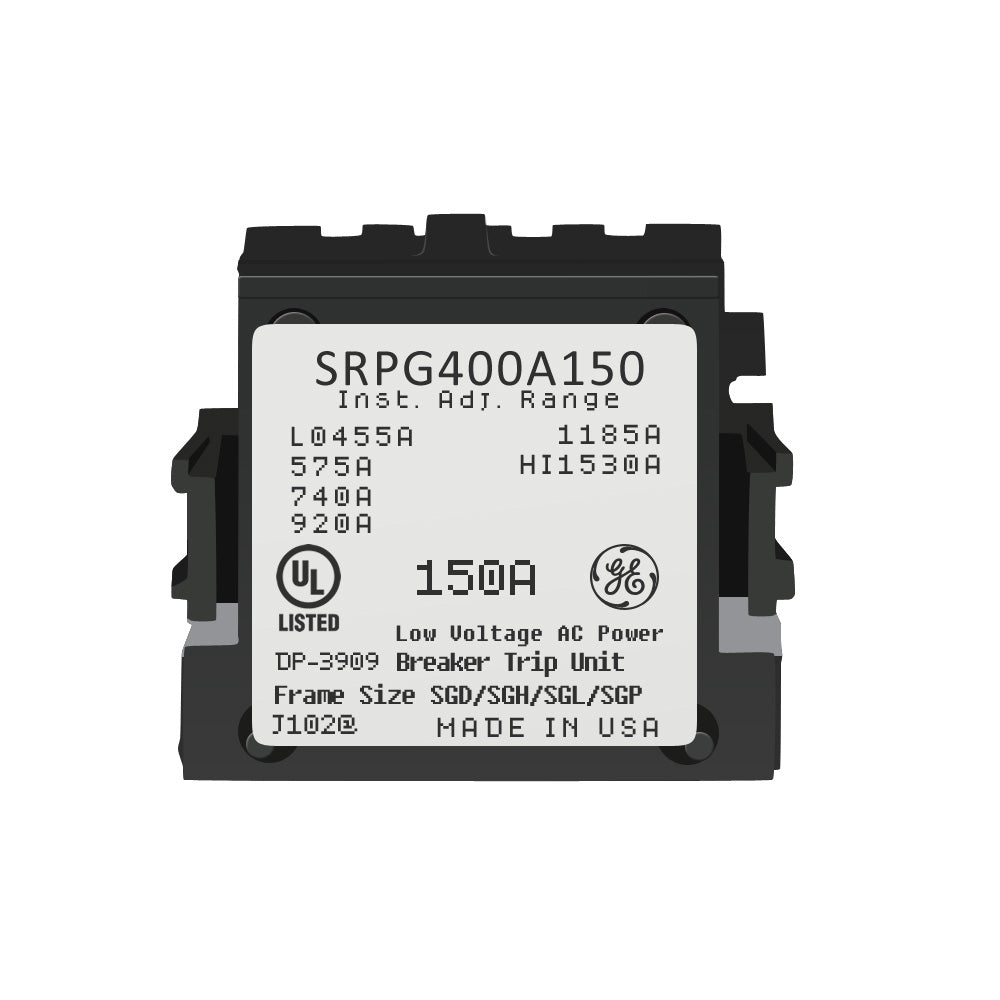

SRPG400A150
SRPG400A150 is a General Electric 150 Amp rating plug designed for use with Spectra Series circuit breakers, providing adjustable trip settings for precise protection.This rating plug fits SG400 frame circuit breakers and features a 150 Amp plug current rating with a maximum breaker current of 400 Amps. It supports a voltage rating of 600 VAC and includes an adjustable instantaneous trip range from 455 to 1530 Amps. The SRPG400A150 is UL, CSA, and IEC approved, ensuring compliance with international safety standards. It is field installable and compatible with Spectra, Power Break, and Power Break II breakers.
- Key Specifications
- Manufacturer: General Electric
- Part Number: SRPG400A150
- Amperage: 150 Amp Plug Current
- Maximum Breaker Current: 400 Amps
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Frame Type: SG400 (Spectra Series)
- Adjustable Instantaneous Trip Range: 455-1530 Amps
- Certifications: UL, CSA, IEC
- Mounting Type: Field Installable
- Series: Spectra
Specifications
- Part Number: SRPG400A150
- Manufacturer : General Electric
- Brand : General Electric
- Category : Bus Plug
- Item Subcategory : Bus Plug Part
- Family : Spectra Series
- Type : SRPG
- Voltage : 600
- Amperage : 150
- Amperage Maximum : 150
- Amperage Minimum : 150
- Trip Type : MICROVERSATRIP-PLUS, MICROVERSATRIP-PM
Product Data
- UPC : 783164213270
- GTIN : 00783164213270
- Weight : 0.05
