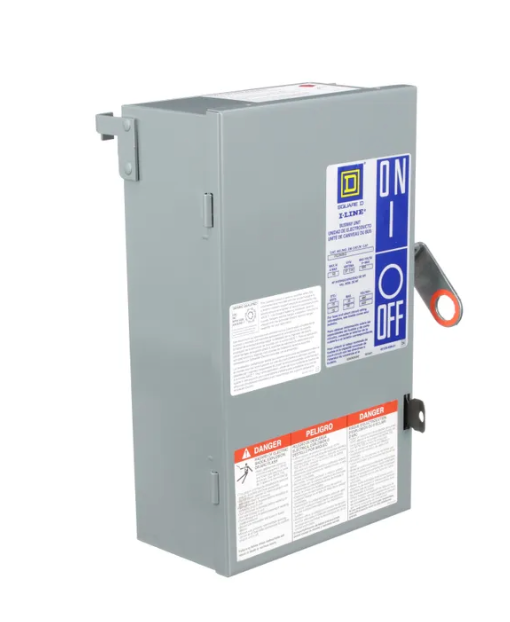

PQ3606GGSC - Schneider Electric 60A 600V 3P Fusible I-Line Bus Plug with Door Gasket

PQ3606GGSC

PQ3606GGSC is a Schneider Electric fusible bus plug designed for I-Line busway systems, rated at 60 amps and 600 volts with 3 poles.

This fusible bus plug supports type H, K, and R fuses and features a 200kA interrupting rating at 480V. It includes a door gasket and copper mechanical lugs for secure connections. The unit is UL listed and CSA certified, suitable for 3-phase power distribution in industrial and commercial applications.

• Amperage: 60A
• Voltage: 600V
• Poles: 3
• Fuse Types: H, K, R
• Interrupt Rating: 200kA at 480V
• Mounting Type: Plug-in for I-Line busway
• Includes door gasket
• Copper mechanical lugs
• Series: I-Line PQ
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ3606GGSC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 60
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H,K,R
• Wire : 3

Product Data

• Country of Origin : Mexico
• Dimensions : 14.9 in (379 mm) x 10.5 in (266 mm) x 4.6 in (118 mm) (Height x Width x Depth)
• Weight : 0.013
