Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PKA36250GN

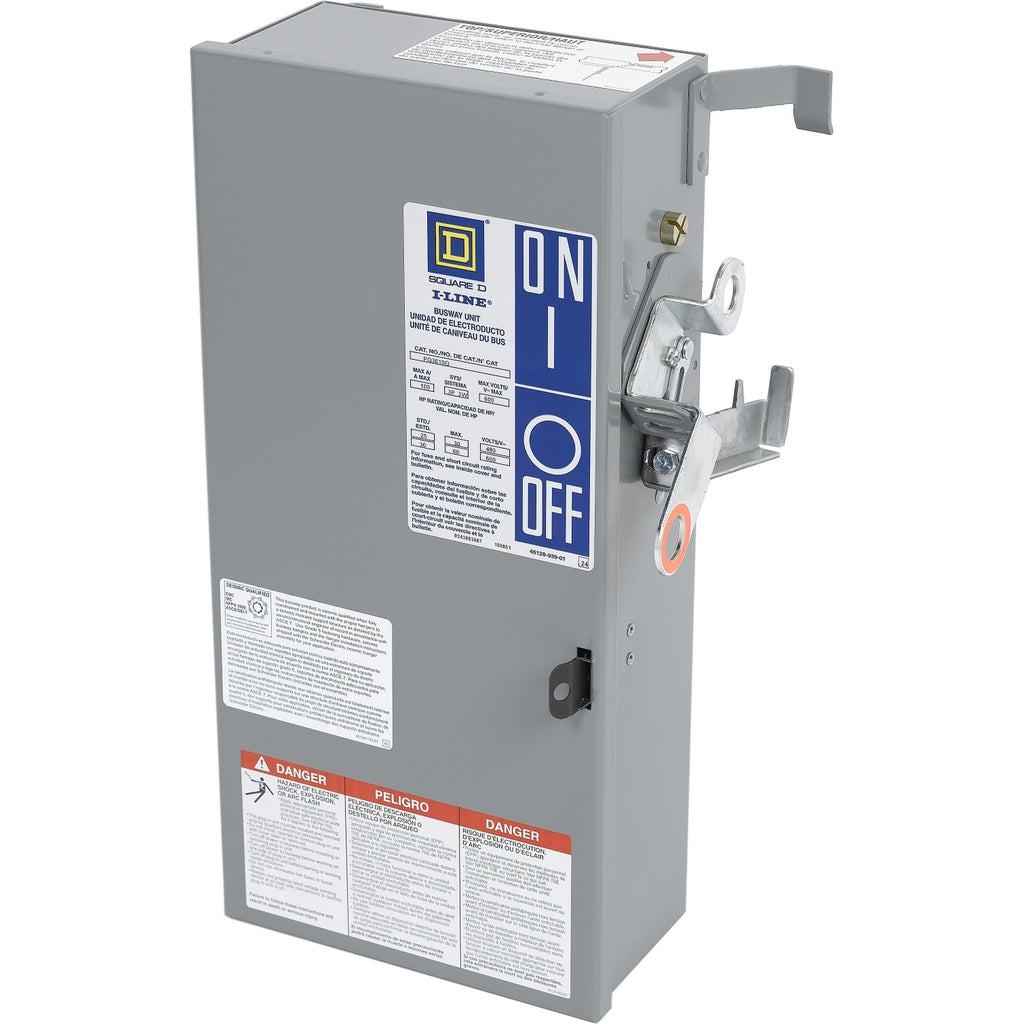

PKA36250GN is a Square D breaker type bus plug designed for use with I-Line plug-in busway systems, rated at 250 amps and 600 volts.PKA36250GN features a 3 pole, 4 wire configuration with ground and utilizes the KA frame thermal magnetic molded case breaker for reliable protection and switching. It is suitable for 3-phase power distribution applications requiring a compact and robust bus plug solution.
- Amperage: 250 Amps
- Voltage: 600 Volts
- Poles: 3 Pole
- Wiring: 4 Wire with Ground
- Frame/Series: I-Line KA Frame
- Type: Breaker Style Bus Plug
- Interrupt Rating: 25kA @ 480V
- Mounting: Plug-in for Square D I-Line Busway
Specifications
- Part Number: PKA36250GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PKA
- Voltage : 600
- Amperage : 250
- Phase : 3
- AIC rating : 25kA@480V
- Wire : 4
- Compatible Frames : KAP
Product Data
- GTIN : 00785901302957
- Country of Origin : United States
- Dimensions : Depth 2.09 in (53 mm) Width 1.69 in (43 mm) Height 4.06 in (103 mm)
- Weight : 45
