Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PKA36200G

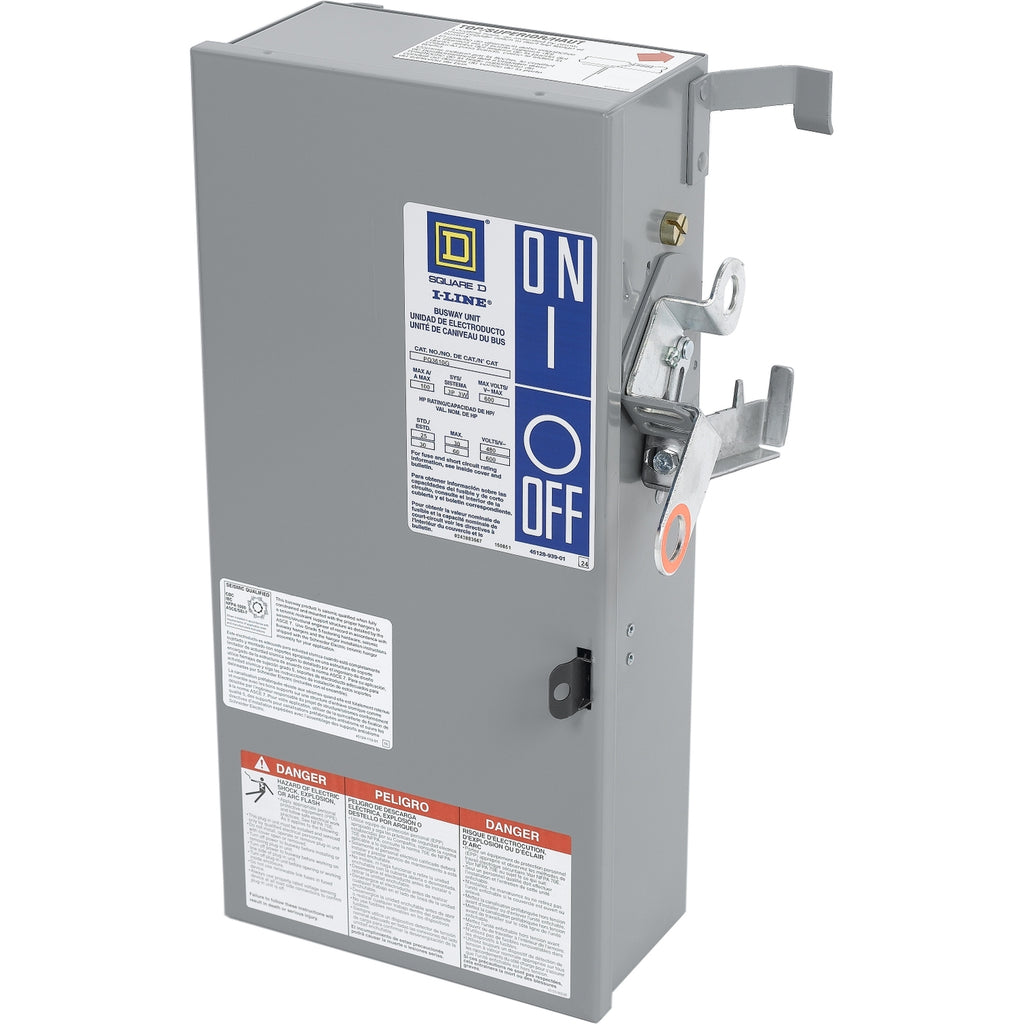

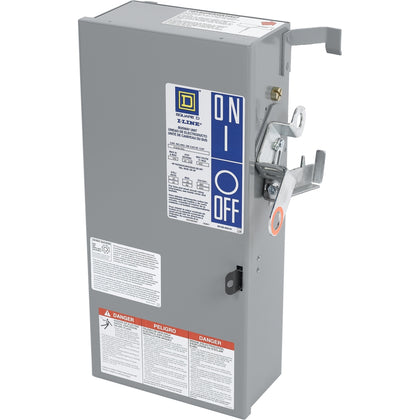

PKA36200G is a breaker-style bus plug designed for I-Line busway systems, rated 200 amperes at 600 volts with 3-pole, 3-wire configuration and ground. This plug-in unit features a KA thermal magnetic molded case circuit breaker and is suitable for use with I-Line aluminum and copper busway systems. The breaker provides reliable overcurrent protection and simplified installation with plug-in connection to compatible busway.
- Amperage Rating: 200A
- Voltage Rating: 600V
- Poles: 3
- Wires: 3 with Ground
- Series: I-Line KA Frame
- Type: Breaker Style Plug-In Unit
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 25kAIC at 480V
- Connection: Plug-In
- UL Listed and CSA Certified
Specifications
- Part Number: PKA36200G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PKA
- Voltage : 600
- Amperage : 200
- Phase : 3
- AIC rating : 25kA@480V
- Wire : 3
- Compatible Frames : KAP
Product Data
- GTIN : 00785901022374
- Country of Origin : United States
- Dimensions : Depth 2.05 in (52 mm) Width 1.18 in (30 mm) Height 1.85 in (47 mm)
- Weight : 45
