Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PKA36200GN

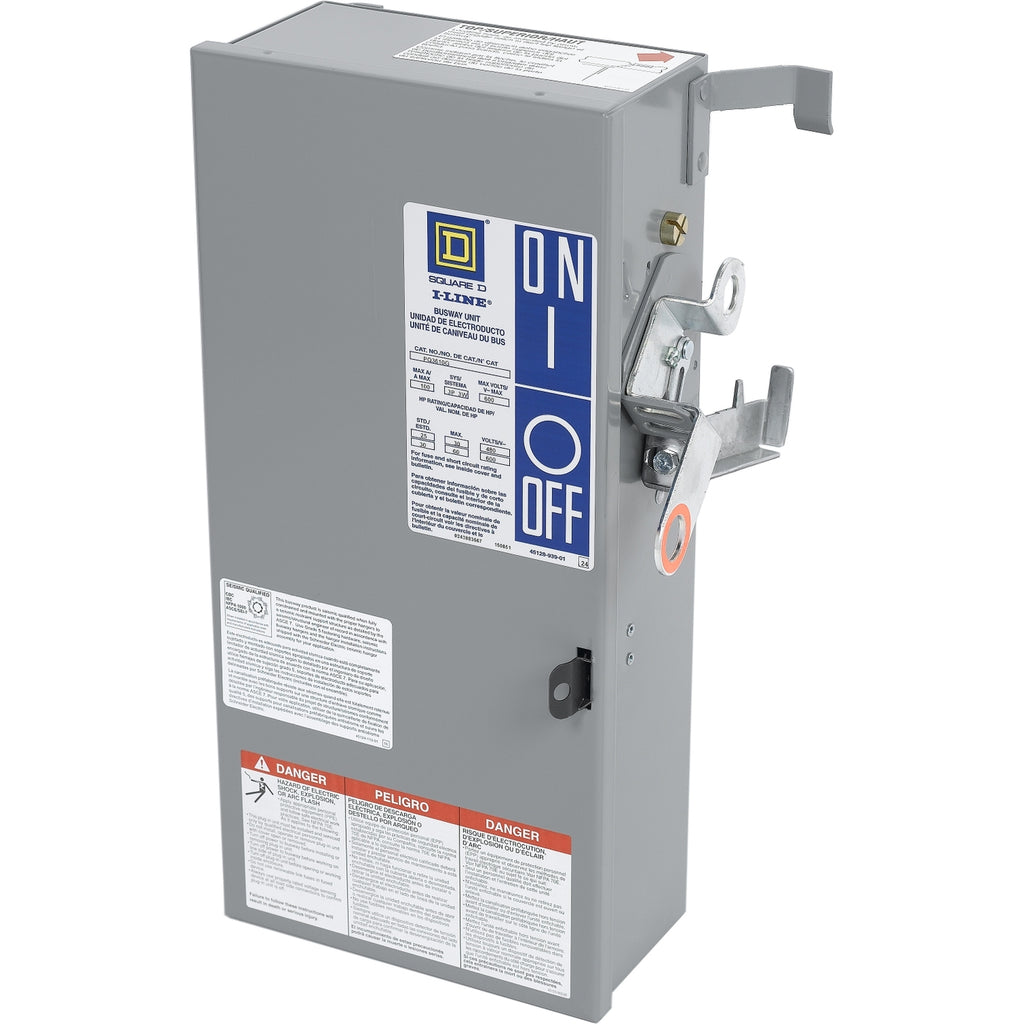

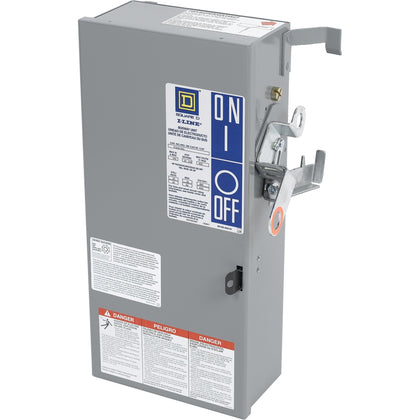

PKA36200GN is a Square D breaker type bus plug rated for 200 Amps at 600 Volts, designed for I-Line busway systems. This 3-phase bus plug features a thermal magnetic molded case circuit breaker and is suitable for industrial power distribution applications requiring reliable switching and protection. Key Specifications
- Amperage: 200A
- Voltage: 600V
- Poles: 3
- Phase: 3-Phase
- Style: Breaker Type
- Series: I-Line
- Trip Unit: Thermal Magnetic
- Interrupting Rating: 25kAIC at 480V
- Approvals: UL, CSA
- Frame Type: PKA
Specifications
- Part Number: PKA36200GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PKA
- Voltage : 600
- Amperage : 200
- Phase : 3
- AIC rating : 25kA@480V
- Wire : 4
- Compatible Frames : KAP
Product Data
- GTIN : 00785901022459
- Country of Origin : United States
- Dimensions : Depth 2.06 in (52.32 mm) Width 2.89 in (73.41 mm) Height 2.45 in (62.23 mm)
- Weight : 45
