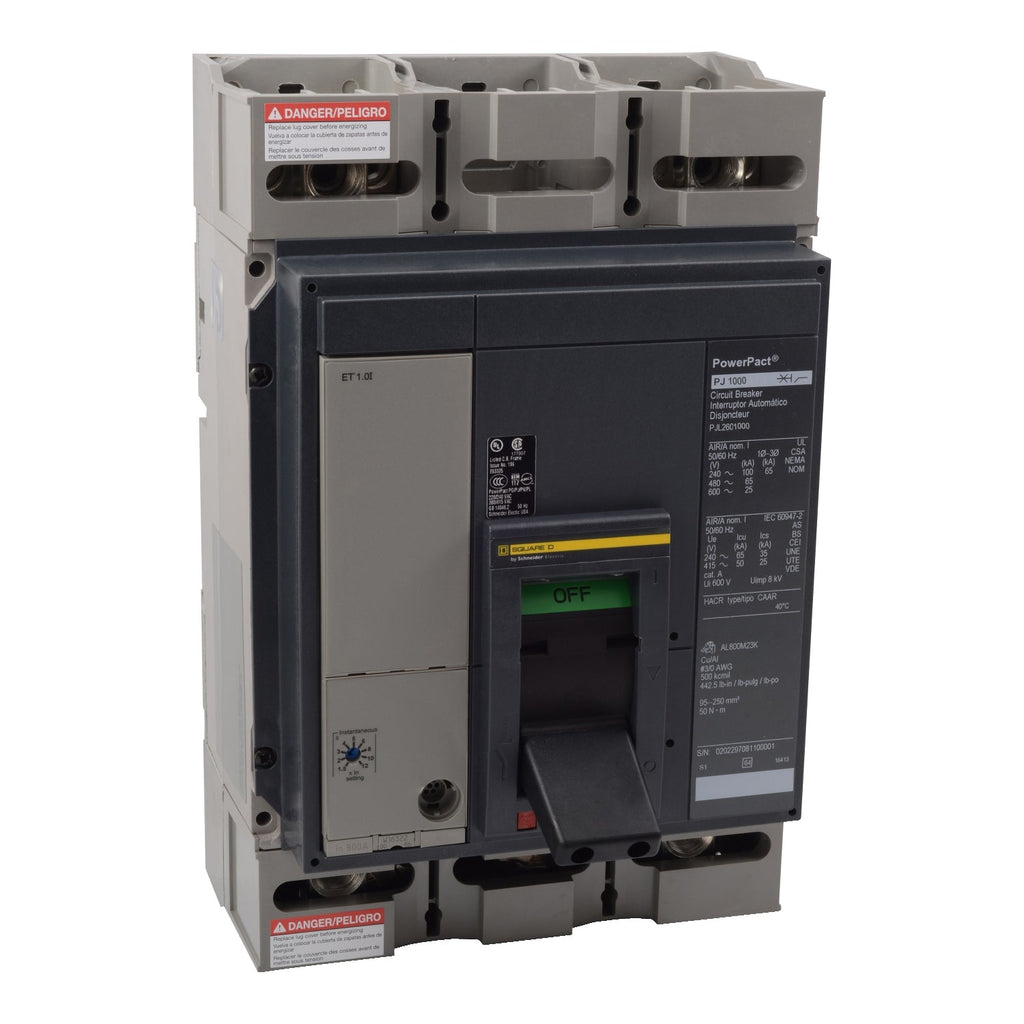

PJL26000S10 - Schneider Electric (Square D) 2-Pole 1000 A 600 V AC Automatic Switch, PowerPact PJL

PJL26000S10

PJL26000S10 is a PowerPact P-frame molded case automatic switch from Schneider Electric (Square D), rated 1000 A, 2 poles, 600 V AC. This model uses a magnetic-only trip (no thermal function) for switching and short-circuit protection per application. Line and load terminations use mechanical lugs (lug-lug) for straightforward panelboard or switchboard integration.

• Family: PowerPact P-Frame, Type PJL (lug-lug)
• Poles: 2 poles
• Amperage: 1000 A
• Voltage: 600 Vac
• Trip unit: Magnetic-only (automatic switch)
• Certifications: UL 489 Listed, CSA Certified

Suffix meanings in this catalog number

• Factory configuration per suffix

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJL26000S10
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJL
• Voltage : 600
• Amperage : 1000
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : NA - No Overcurrent Protection
• Frame Size : P Frame
• Protection : Non-Automatic

Product Data

• UPC : 762179036296
• Country of Origin : United States
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
