AL800P6K - Square D PowerPact M/P Mechanical Lug Kit 800A 3/0 AWG to 600 kcmil Aluminum 3-Pole Unit Mount I-Line

AL800P6K

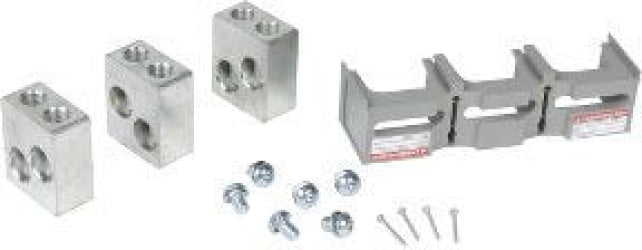

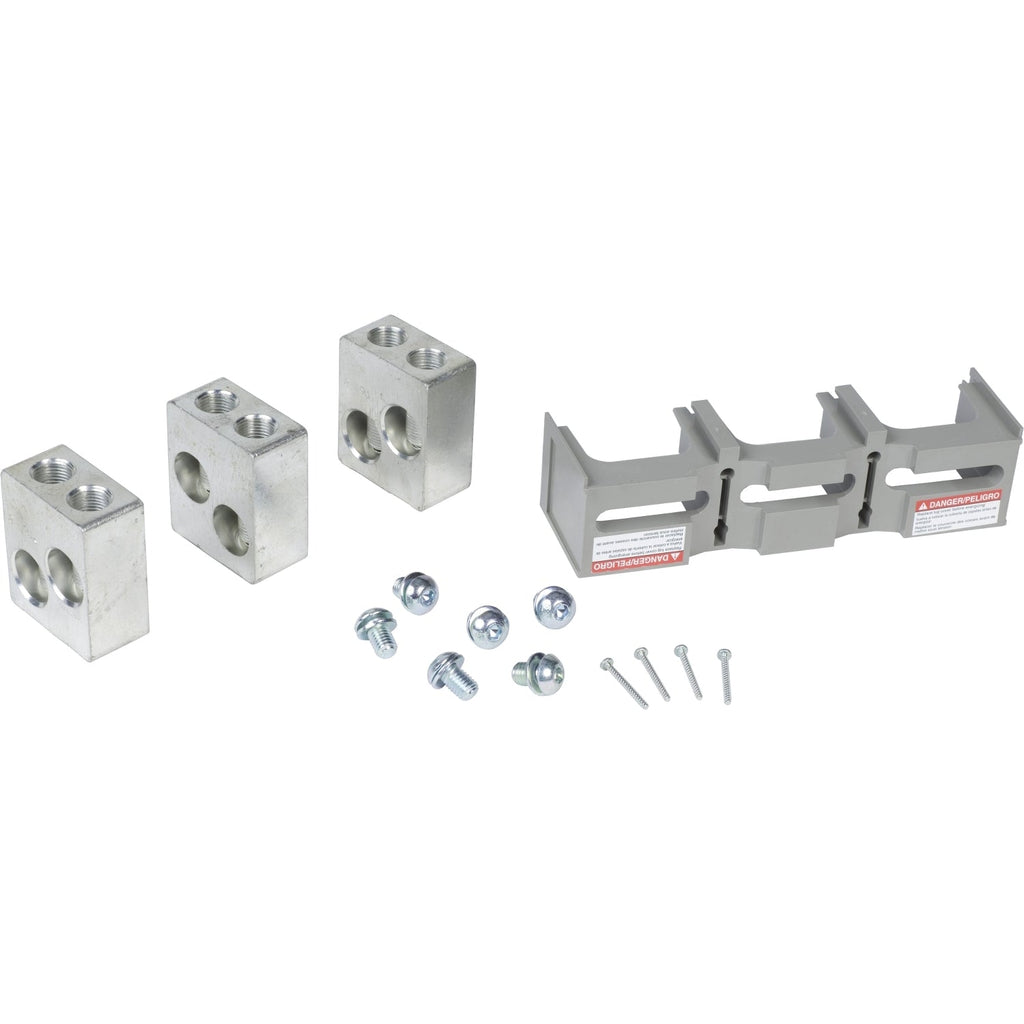

AL800P6K is a mechanical lug kit designed for use with Square D PowerPact M/P frame circuit breakers, supporting conductors from 3/0 AWG to 600 kcmil. This aluminum lug kit is rated for 800A maximum current and is compatible with 3-pole and 4-pole PowerPact M/P I-Line circuit breakers. It features a unit mount design and is suitable for both copper and aluminum conductors. The kit includes three lugs and is UL and CSA certified for reliable performance in commercial and industrial power distribution applications.

• Part Number: AL800P6K
• Manufacturer: Square D
• Series/Frame: PowerPact M/P
• Rated Current: 800A
• Conductor Range: 3/0 AWG to 600 kcmil
• Mounting Type: Unit Mount, I-Line
• Poles: 3-Pole (compatible with 4-pole)
• Material: Aluminum
• Standards: UL, CSA
• Application: PowerPact M/P Circuit Breakers
• Kit Includes: 3 Lugs
• Wire Type: Copper/Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AL800P6K
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : Powerpact
• Type : Powerpact
• Voltage : 600VAC
• Amperage : 800-1200
• Poles : 3
• MCM Size : 600
• Barrels : 2
• Metal Type : Aluminum
• Compatible Frames : PGL,PJL,PGM,PGP,PGA,PLL,PLM,PLP,PLA,MGL,MGM,MGP,MGA,MJL,MJM,MJP,MJA

Product Data

• UPC : 785901409533
• GTIN : 00785901409533
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 2.401
• Standards : RoHS, REACh
• Certification : UL, CSA
• Wire Size : AWG 3/0...600 kcmil aluminium/copper
